MINI DATAALARM PROCESSOR II

Operation and Maintenance Manual

Precise Temperature and Humidity Control

Air and Water/Glycol Cooled and Chilled Water

REV 8/03 1

TABLE OF CONTENTS

INTRODUCTION............................................................................................................................................. 1-5

Design Features................................................................................................................................. 4

Software Features.............................................................................................................................. 4

Protective and Safety Features.......................................................................................................... 5

Conditions & Functions Displayed ..................................................................................................... 5

Alarms Displayed............................................................................................................................... 5

Historical Data ................................................................................................................................... 5

INSTALLATION.............................................................................................................................................. 7- 5

Location Considerations..................................................................................................................... 5

Installation and Wiring........................................................................................................................ 6

Installing the Optional Remote Alarm Contact................................................................................... 7

MINI-DAP-II OPERATION and PROGRAMMING ......................................................................................... 7-14

Buttons Function................................................................................................................................ 7

Menu Designation.............................................................................................................................. 7

Menu 1 – Temperature & Humidity Setpoints.................................................................................. 8

Menu 2 – Override Request ............................................................................................................ 9

Menu 3 – Password A...................................................................................................................... 9

Menu 4 – Change Temperature Setpoint......................................................................................... 9

Menu 5 – Change Humidity Setpoint............................................................................................... 9

Menu 6 – Compressor Lead/Lag ..................................................................................................... 9

Menu 7 – Adjustment Rate............................................................................................................... 9

Menu 8 – Set Date and Time........................................................................................................... 9

Menu 9 – Calibrate Time Clock........................................................................................................ 9

Menu 10 – Temperature and Humidity History.................................................................................. 9

Menu 11 – Alarm History.................................................................................................................... 10

Menu 12 – Password B...................................................................................................................... 10

Menu 13 – Day Schedule for Night Setback...................................................................................... 10

Menu 14 – Night setback Override Enable........................................................................................ 10

Menu 15 – Override Time Setting ..................................................................................................... 10

Menu 16 – Setup Temperature for Night Setback Cooling................................................................ 10

Menu 17 – Setback Temperature for Night Setback Heating............................................................ 10

Menu 18 – Setup Humidity for Night Setback Dehumidification........................................................ 10

Menu 19 – Setback Humidity for Night Setback Humidification......................................................... 10

Menu 20 – Set Monday Schedule for Night Setback......................................................................... 11

Menu 21 – Set Tuesday Schedule for Night Setback........................................................................ 11

Menu 22 – Set Wednesday Schedule for Night Setback................................................................... 11

Menu 23 – Set Thursday Schedule for Night Setback....................................................................... 11

Menu 24 – Set Friday Schedule for Night Setback............................................................................ 11

Menu 25 – Set Saturday Schedule for Night Setback ....................................................................... 11

Menu 26 – Set Sunday Schedule for Night Setback.......................................................................... 11

Menu 27 – Temperature Scale .......................................................................................................... 11

Menu 28 – Temperature Deadband................................................................................................... 11

Menu 29 – High Temperature Limit Setting....................................................................................... 11

Menu 30 – Low Temperature Limit Setting........................................................................................ 11

Menu 31 – Calibrate Temperature Sensor......................................................................................... 11

Menu 32 – Humidity Deadband ......................................................................................................... 11

Menu 33 – High Humidity Limit Setting.............................................................................................. 11

Menu 34 – Low Humidity Limit Setting............................................................................................... 12

Menu 35 – Calibrate Humidity Sensor............................................................................................... 12

Menu 36 – Audio Alarm...................................................................................................................... 12

REV 8/03 2

Menu 37 – Restart Mode.................................................................................................................... 12

Menu 38 – Start Time Delay .............................................................................................................. 12

Menu 39 – Firestat Temperature Setting........................................................................................... 12

Menu 40 – Optional Alarm 1 Message Setting .................................................................................. 12

Menu 41 – Optional Alarm 2 Message Setting .................................................................................. 12

Menu 42 – Optional Alarm 3 Message Setting .................................................................................. 12

Menu 43 – Fan Mode......................................................................................................................... 12-13

Menu 44 – Compressor Equipment Configuration............................................................................. 13

Menu 45 – Heating Equipment Configuration.................................................................................... 13

Menu 46 – Humidifier Configuration .................................................................................................. 13

Menu 47 – Dehumidification Configuration........................................................................................ 13

Menu 48 – Change Password A........................................................................................................ 13

Menu 49 – Change Password B........................................................................................................ 13

PROCEDURE TO RETRIEVE PASSWORD A and B............................................................................................ 9

MANUAL DIAGNOSTIC PROGRAM........................................................................................................................ 13-14

MINI-DAP-II CONTROL LOGIC ..................................................................................................................... 14 – 17

Types of Operation............................................................................................................................. 14

OCCUPIED OR NORMAL MODE

Evaporator Fan Logic......................................................................................................................... 14

Occupied Cooling Logic..................................................................................................................... 14

Occupied Heating Logic..................................................................................................................... 15

Occupied Humidification Logic........................................................................................................... 15

Occupied Dehumidification Logic....................................................................................................... 15

SETBACK/UP MODE

Evaporator Fan Logic......................................................................................................................... 15

Setup Cooling Logic........................................................................................................................... 15

Setback Heating Logic....................................................................................................................... 16

Setback Humidification Logic............................................................................................................. 16

Setup Dehumidification Logic............................................................................................................. 16

ON/OFF MODE

Occupied Schedule of On/Off Mode.................................................................................................. 17

Unoccupied Schedule of On/Off Mode .............................................................................................. 17

MINI-DAP-II ALARM LOGIC.......................................................................................................................... 17 – 19

High Temperature Alarm.................................................................................................................... 17

Low Temperature Alarm..................................................................................................................... 17

High Humidity Alarm .......................................................................................................................... 17

Low Humidity Alarm........................................................................................................................... 17

No Airflow Alarm ................................................................................................................................ 17

Change Filter Alarm........................................................................................................................... 17

Humidifier Failure Alarm..................................................................................................................... 17

High Condensate Water Alarm .......................................................................................................... 17

Firestat Alarm..................................................................................................................................... 18

Short-Cycle Alarm.............................................................................................................................. 18

Power Failure Restart Alarm.............................................................................................................. 18

Temperature Sensor Fail ................................................................................................................... 18

Humidity Sensor Fail.......................................................................................................................... 18

High Pressure Compressor 1 Alarm.................................................................................................. 18

High Pressure Compressor 2 Alarm.................................................................................................. 18

No Water Flow Alarm......................................................................................................................... 18

Smoke Alarm...................................................................................................................................... 18

Fan Motor Overload Alarm................................................................................................................. 19

Local Alarm ........................................................................................................................................ 19

Low Pressure Compressor Alarm...................................................................................................... 19

REV 8/03 3

Low AC Voltage Warning Alarm ........................................................................................................ 19

TROUBLESHOOTING ................................................................................................................................... 19-23

TYPICAL INTERCONNECTING WIRING ...................................................................................................... 23

SPECIFICATIONS.......................................................................................................................................... 24

PARTS LIST ................................................................................................................................................... 24

SENSOR CHART ........................................................................................................................................... 25

MINI DATA ALARM PROCESSOR II

The MINI-DAP II control panel is designed for Data Aire Ceiling systems with one or two cooling stages, one heating

stage and a humidifier. This microprocessor based control offers innovative features and “state of the art” technology.

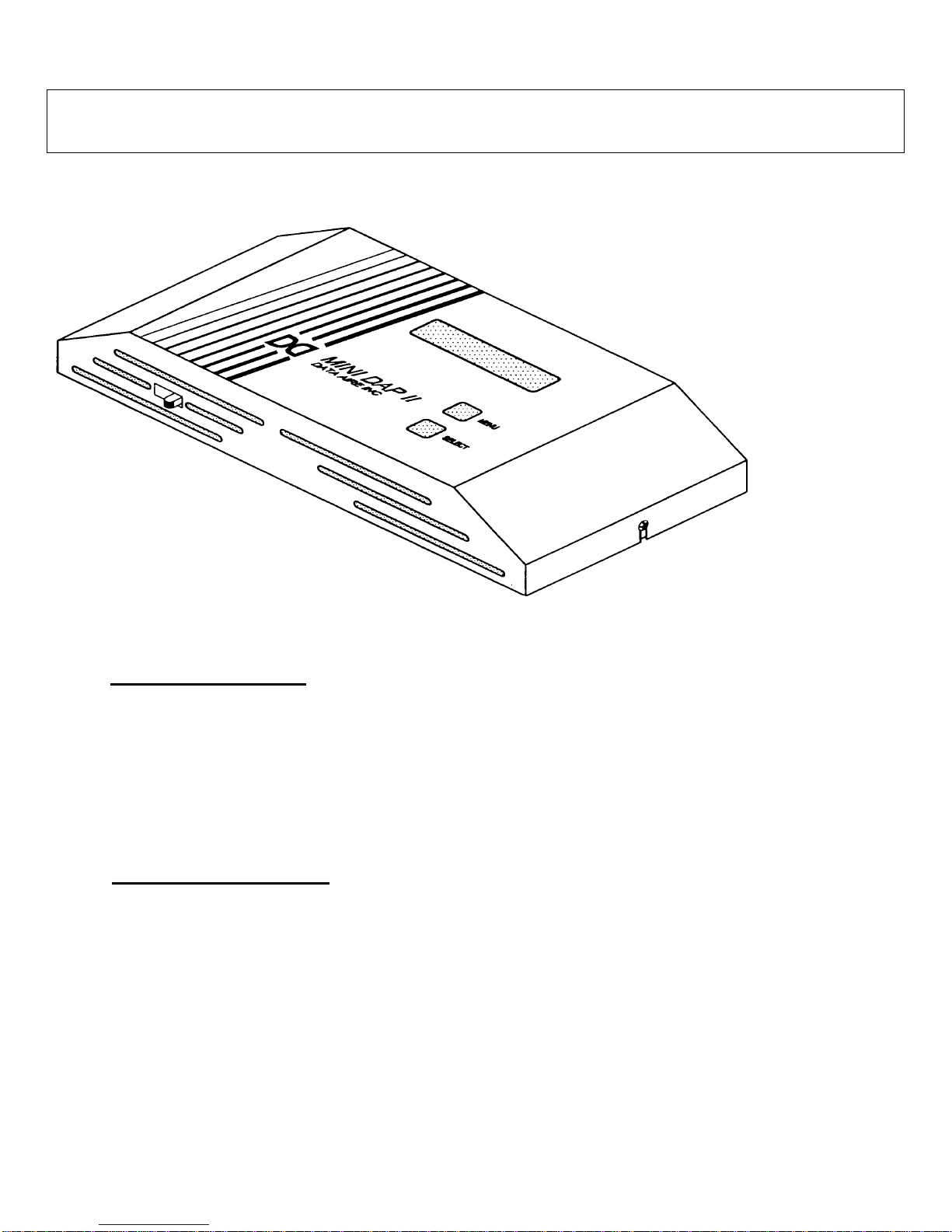

Figure 1: Mini-Dap II Panel

Design Features

• Microprocessor based dual layer board

design

• 16 characters liquid crystal display (LCD)

• Panel mounted temperature and humidity

sensor are standard

• Nonvolatile memory storage for all

programmed settings and alarm history (5

latest alarms)

• Printed circuit board mounted audio alarm

• Five control outputs for fan, cooling stage 1,

cooling stage 2, heat, humidifier

• Five alarm inputs with three selectable

messages

• Optional plug-in remote alarm contact

Software Features

• Setpoint deviation control logic

• Selectable night setback and on/off

functions provide an economical control

solution

• Adjustable system reaction time (Adjustment

rate)

• All settings are programmed using menu

driven soft-touch keys

• Adjustable temperature and humidity

deadband

• °C to °F conversion

• Two level passwords for menus access

• Calibration offset for temperature and

humidity sensor

• Manual diagnostics for components

troubleshooting

REV 8/03 4

REV 8/03 5

Protective & Safety features

• Metal shell enclosure protects panel from

electromagnetic interference, environmental

contamination and handling damage.

• Protected 24 VAC power input:

- 1amp fuse for processor portion of the

PC board

- 5 amp fuse for relay outputs

- Metal Oxide Varistor (MOV) snubs the

transient voltage and protect the circuit

board from an excessive power.

• Opto-isolators for 24 VAC signal inputs

protect the processor from electrical noise of

contactors, compressors and motors, ect.

Conditions and Functions Displayed

• Current room temperature (°F or °C)

• Current room humidity (% RH)

• Cooling stage (1st stage , 2nd stage)

• Reheat

• Humidification or Dehumidification

• Date and Time

• Occupied or Unoccupied period *

* Only displayed when night setback feature is enabled.

Alarms Displayed

• High Temperature Warning

• Low Temperature Warning

• High Humidity Warning

• Low Humidity Warning

• High Condensate Water

• No Air Flow

• Firestat

• Compressor Short-cycle Warning

• Temperature Sensor Fail

• Humidity Sensor Fail

• Power Failure *

• Change Filter *

• Humidifier Fail *

• No Water Flow *

• Fan Overload *

• Local Alarm 1*

• Local Alarm 2*

• Smoke Alarm *

• High Pressure Compressor 1 **

• High Pressure Compressor 2 **

• Low Pressure 1*

• Low AC Voltage Warning

* Alarm displays require additional components or sensors and programmable selections. Some

alarm messages are selected using one of three optional alarm menus.

** These alarms will be set-up at the factory as defaults on single or dual compressor unit.

Historical Data

• Maximum and minimum temperature and humidity since unit has been on.

• Last five alarms to occur.

Location Considerations

Locate the MINI-DAP II panel as follows:

• On a partitioning interior wall, and approximately 5ft (1.5 m) above the floor in a location of the best

average room temperature, room humidity and good air movement.

• Away from direct sunlight or radiant heat, outside walls or behind doors, air discharge grilles or

outside doors.

• Away from steam or water pipes, warm air stacks, unheated/uncooled areas, monitors or sources of

electrical interference.

CAUTION: Shock Hazard. Disconnect power before wiring connections are made

to prevent electrical shock or possible damage to the equipment.

Figure 2: Terminal identification and circuit board details.

Installation and Wiring

To install and wire the MINI-DAP II panel:

1. Use a Phillips screwdriver to loosen the side screws of the panel.

2. Remove the cover of the MINI-DAP II panel. Place the panel against the wall, mark the location of

three mounting holes. See figure 3.

3. Use plastic anchors and screws for mounting on drywall or plaster (recommended).

4. Connect one end of the factory provided cable to the unit terminal strip, refer to unit wiring diagram for

details. Use the color coded wires to designate the functions and terminal number. See figure 2.

5. Use color code to identify the wire function and connect the other end of the cable to MINI-DAP II

panel.

CAUTION: Equipment Damage Hazard. Before applying power, make all wiring connections and

check the connections. Short circuited or improperly connected wires may result in permanent damage to

the unit.

Figure 3: Wall mounting hole location

REV 8/03 6

REV 8/03 7

Installing the Optional Remote Alarm Contact

1. Turn the Mini-Dap II off. Loosen the side screws and remove the panel cover.

2. Remove four screws that secure the 2nd layer board to the base board. See figure 4.

3. Unplug the 2nd layer board.

4. Plug the summary alarm contact board to CON4 plug on the base board. See figure 4.

5. Reinstall the 2nd layer board back to the base board.

Panel Operation

Button Functions

Menu: Press Menu button to go to desired menu.

Select: Press Select button to display current setting, to change setting or to exit menu mode.

Alarm Silence: Press Select button to silence an audio alarm.

Note: The last value to appear is stored for use. Go to Exit menu, press Select button twice to

Return to the normal operation.

Menu Designation

* Apply for night setback option only. These menus will only show when menu #13 is set to “Y”.

1. SETPOINTS

2. OVERRIDE RQST*

3. PASSWORD A

4. TEMP SETPOINT

5. HUMID SETPOINT

6. COMP LEAD/LAG

7. ADJUST RATE

8. SET TIME

9. CALIB CLOCK

10. TEMP/HUM HIST

11. ALARM HISTORY

12. PASSWORD B

13. DAY SCHEDULE

14. OVERRIDE ENBL*

15. OVERRIDE TIME*

16. SETUP COOL*

17. SETBACK HEAT*

18. SETUP DEHUM*

19. SETBACK HUMID*

20. MON SCHEDULE *

21. TUE SCHEDULE*

22. WED SCHEDULE*

23. THU SCHEDULE*

24. FRI SCHEDULE*

25. SAT SCHEDULE*

26. SUN SCHEDULE*

27. TEMP SCALE

28. TEMP DEADBAND

29. HI TEMP LIMIT

30. LO TEMP LIMIT

31. CALIB TEMP

32. HUM DEADBAND

33. HI HUM LIMIT

34. LO HUM LIMIT

35. CALIB HUMID

36. AUDIO ALARM

37. RESTART MODE

38. START DELAY

39. FIRE STAT

40. OPT ALARM 1

41. OPT ALARM 2

42. OPT ALARM 3

43. FAN MODE

44. COOLING EQUIP

45. HEATING EQUIP

46. HUMIDIFIER

47. DEHUMIDIFIER

48. PASSWORD A

49. PASSWORD B

Figure 4: Board assembly with

temperature, humidity sensor and optional summary alarm contact

Programming and Selections

Menu Operations and Settings

To access the menus setting of Mini-Dap II,

Press Menu button to go to menu 1

1-SET POINTS

Press Select button to display current

temperature setpoint report

TEMP SP: 72°F

Press Select button again to display current

humidity setpoint report

HUM SP: 50%

Press Menu button

NOTE: Menu #2 -OVERRIDE RQST will not

show if Menu #13- DAY SCHEDULE is set for

“N” or Menu #14-OVERRIDE ENBL is set for “N”

2-OVERRIDE RQST

Press Select button to display current setting

OVERRIDE RQST: N (No)

Press Select button to change to “Y” (yes)

An override request will temporarily

force the Mini-DAP II to operate in

“occupied” mode for the time period

REV 8/03 8

Table des matières

Autres manuels Data Aire Système de sécurité

Data Aire

Data Aire DAP III Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
