DAS AUDIO SARA Guide de démarrage rapide

SARA manual / SARA - SUB

SARA

RIGGING MANUAL

SARA manual / SARA - SUB

INDEX

SAFETY PRECAUTIONS

Assembly of SARA units on transport platform PL-SARA. Disassembly 4

Assembly of a SARA-SUB unit on its transport platform, PL-SARA-SUB 5

Disassembly

Assembly of GS-PL-SARA. Angle settings. 6

Stability, max and min angle and max number of units.

Assembly of 4 SARA units with TOP-PL-SARA on platform 8

Storage of platforms with TOP-PL-SARA during a show 11

AX-SARA introduction: FRAME +PICK-UP unboxing 12

Assembly of AX-SARA on a SARA unit. Pick-UP AX-SARA 13

and Max. number of units. Up tilt - down tilt

Assembly of AX-SARA on SARA-SUB. Max number of units 17

Assembly of AX-SARA-LT 19

Assembly of JP-SARA on SARA-SUB unit for stacking SARA systems 21

Assembly of JP-SARA for rigging SARA units under SARA-SUBs 27

SARA manual / SARA - SUB

SAFETY PRECAUTIONS

 Thismanualoffersallthenecessaryinformationforying

DAS Audio systems. This document contains safety precautions

and a description of the elements to be used.

 TocarryoutanyoperationsrelatedtoyingaDASAudio

system,itisrecommendedtoreadthepresentdocumentrst

and comply with the warnings and advice given. The goal is

to allow the user to become familiar with the mechanical

elements required to y the acoustic system, as well as the

safetymeasurestobetakenduringandafterassembly.

 Onlyexperiencedinstallerswithadequateknowledgeof

theequipmentandlocalsafetyregulationsshouldyspeaker

boxes. It is the user´s responsibility to ensure that the systems

tobeown(includingyingaccessories)complywithstateand

localregulations.

 The working load limits in this manual are the results

of tests carried out by independent laboratories. It is the

user´s responsibility to follow and comply with safety factors,

resistance values, periodical supervisions and warnings given

in this manual. Product improvement through research and

development is on going at DAS Audio, specications are

subjecttochangewithoutnotice.

It is common practice to apply 5:1 safety factors for

enclosures and static elements. For slings and elements

exposed to material fatigue due to friction and load variation

thefollowingratiosmustbemet;5:1forsteelcableslings;4:1for

steelchainslingsand7:1forpolyesterslings.Thus,anelement

withabreakingloadlimitof1000kgmaybestaticallyloaded

with200kg(5:1safetyfactor)anddynamicallyloadedwith142

kg(7:1safetyfactor).

 When a system is own, the working load must be

lowerthantheresistanceofeachindividualyingpointinthe

enclosure, as well as each box.

 Rigging hardware should be regularly inspected and

defectiveunitsreplaced discarded.Itishighlyrecommended

that you implement an equipment inspection and maintenance

program, including reports to be lled out by the inspectors.

Localregulationsmayexistthat,incaseofaccident,mayrequire

you to submit evidence of inspection reports and corrective

actions carried out after defects were found.

 Absolutelynorisksshouldbetakenwithregardstopublic

safety.

 When ying enclosures from the ceiling or other

structures, extreme care should be taken to assure the load

bearingcapabilitiesofthestructuressothattheinstallationis

absolutely safe. Do not y enclosures from unsafe structures.

Consult a certied professional if needed. Use gloves and all

necessaryprotectiveequipmenttoavoidpersonalinjuries.

 AllyingaccessoriesthatarenotsuppliedbyDASAudio

are the user´s responsibility. Use at your own risk.

SARA manual / SARA - SUB

2.-Assembly of SARA units on transport platform PL-SARA.

Disassembly

Fig.1

Removethetwofrontsecuritypins

from the SARA unit and release the

connectingrods.

Gentlyplacetheunitinsertingthe

connectingrodsintothededicatedslots

of the transport platform.

Fig.2

To attach the SARA unit to the transport

platform, insert the security pins into the

front holes of the platform as shown in

thegure.Onlyonepinpersideis

needed!!

Fig.3

Nextstep,attachingthebackoftheunit

to the dolly.

Fig.4

Removethepinthatlockstherear

connectingrod.

Turntheconnectingrodandplace

it between the two rear plates of the

transport platform, as shown in the

gure.Attachtheconnectingrodto

theplatforminsertingthesecuritypin

asshowninthegure.OnlyonePIN

needed!! For disassembly, proceed in

reverseordertothatdescribedinthe

stepsabove.

Fig.1 Fig. 2

Fig.3 Fig.4

SARA manual / SARA - SUB

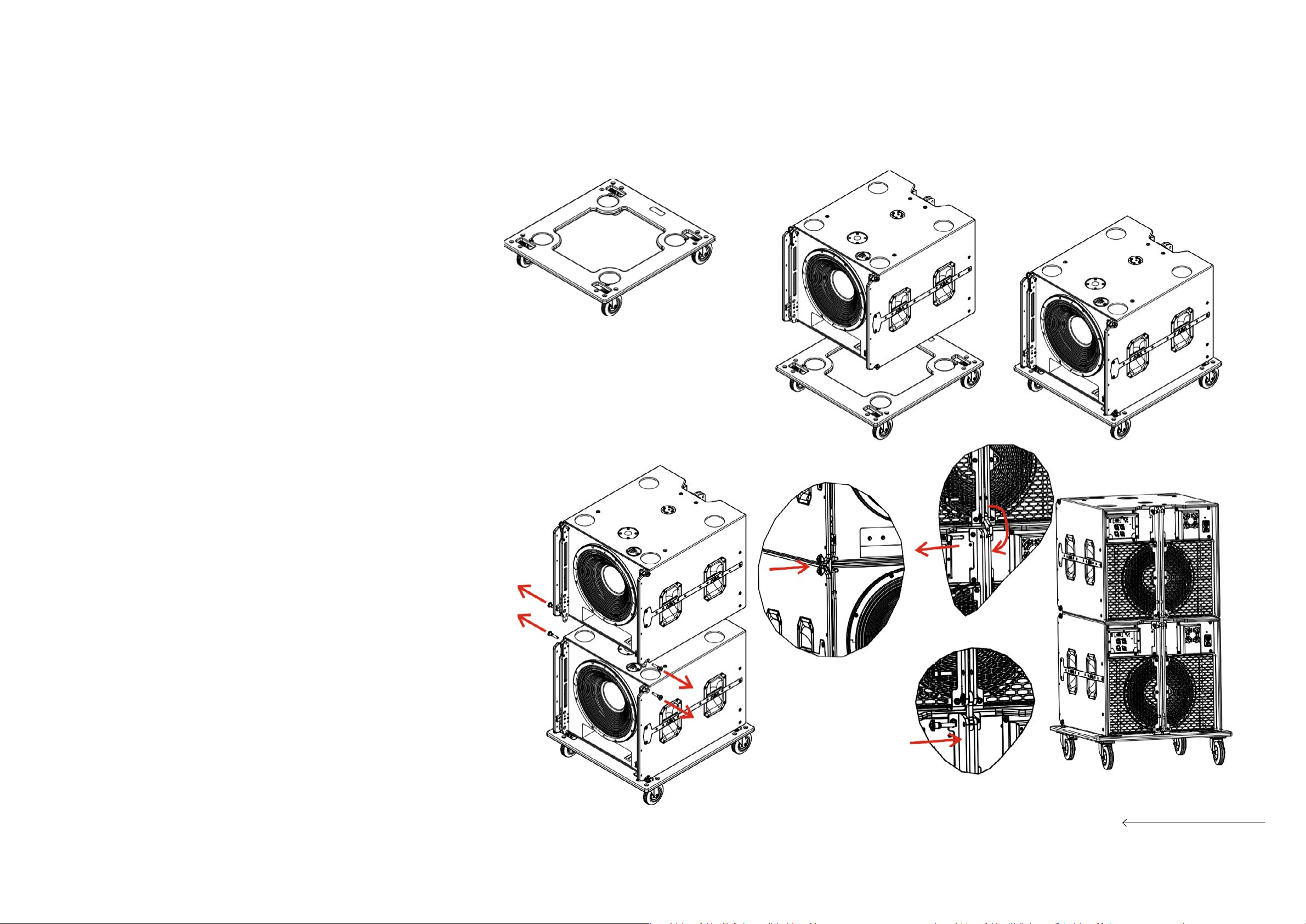

3.- Assembly of a SARA-SUB unit on its transport platform, PL-SARA-SUB.

Disassembly

Fig.1

Only use the PL-SARA-SUB accessory

(WLL160kgf)showninthegureto

stack and transport up to 3 units of

SARA-SUB.

Fig.2

Place the SARA-SUB unit on the

platformaligningitsfeetwiththemarks

on the platform.

Fig.3 y 4

Notethattherstunitisnotattachedto

theplatformwithsecuritypins,however,

subsequent units need to be attached

to each other. Once a unit has been

stacked on top of another unit, insert

the(2)securitypinsonbothsidesatthe

front,asshowningure4.

Fig.5, 6 y 7

Next,removethesecuritypinfromthe

rearplates,lowertherearconnecting

rodandattachitwiththepreviously

removedsecuritypin,asshowninthe

gure.Theresultcanbeseeningure7.

*Tostackathirdunit,followtheabove

described steps

**Todisassemble,followthestepsabove

inreverseorder

Fig.1 Fig. 2

Fig.3

Fig.4

Fig.6

Fig.5 Fig.7

SARA manual / SARA - SUB

4.- Assembly of GS-PL-SARA. Angle settings.

Stability, max and min angle and max

number of units

Fig.1

ThegureshowsthePL-SARA(WLL=160

kgf)accessory.

Fig.2

The GS-PL-SARA accessory can be at-

tachedtothePL-SARAtoprovideaddi-

tionalstabilityingroundstackedSARA

(WLL=160kgf)applications.

Fig.3

Thegureshowshowthedifferentparts

oftheaccessorytintothecorrespond-

ingslots,releasingthesecuritylatches

included. Note that the elbow pieces are

mounted at the front of the platform,

whiletheremainingpiecesgoatthe

back.

Fig.4

Note that the maximum number of units

thatcanbegroundstackedremains4.

PL-SARA platforms and the GS-PL-SARA

accessoryaredesignedformaximum

stabilitywitha±14°tiltabovethehorizon-

tal,regardlessofthesplayanglebetween

the4SARAunitsthatcanbestackedon

them.

WhenusingtheGS-PL-SARA,makesure

that the platform and accessories are

mountedonarmsurface.

Fig. 2

Fig. 1

Fig.3 Fig. 4

SARA manual / SARA - SUB

Fig.5

Asshowninthegure,thesplayangles

between two adjacent SARA units can

rangefrom0to10degreesmaximum

(thenumbersontherearplatesofthe

SARAunitsindicatethesplayanglesin

degrees).Whenshippedfromthefacto-

ry,theunitshaveasecuritypinstowed

in the “PIN HOLDER” position, inserted

ontherightsideoftheirrearplate,and

another pin stowed in the “STORE LINK”

position, inserted on the left. Insert the

rstpininthedesiredsplayangleandin-

serttheotherpintolocktheconnecting

rodinthechosenangleplus1.Thatis,ifthe

desiredangleis4degrees,insertthe“PIN

HOLDER”pininhole“4”andthe“STORE

LINK” pin in hole “5”. When the de-

siredangleis10degrees,insertthe“PIN

HOLDER”pininhole“10”,andthe“STORE

LINK”pinintheholemarked“10+1”.Make

suretheconnectingrodfromtheunit

ontopisttedbetweentherearplates

of the unit below to ensure the two units

are securely attached.

4.- Assembly of GS-PL-SARA. Angle settings.

Stability, max and min angle and max

number of units

SARA manual / SARA - SUB

5.- Assembly of 4 SARA units with TOP-PL-SARA on platform

Fig.1

StacktherstSARAunitontheplatform

aspreviouslydescribedinthismanual.

Toattachthefollowingunit,removethe

top security pins of the bottom unit.

Alignthetwounitsandremovethetwo

bottom security pins of the upper unit.

Lowertheconnectingrodsandmake

suretheholesarealignedcorrectly.

Fig.2

Re-insert the four security pins to attach

the two SARA units at the front.

Fig.3

Now, it is time to attach the back of the

unit.

Fig.4

Removethesecuritypinthatlocks

therearconnectingrodandlowerthe

connectingrodfromtheupperunit.

Fig.5

Attachtheconnectingrodwiththe

securitypinandremovethesecuritypin

from the bottom unit.

Fig.6

Insertthispinintothefollowinghole

usedbytherstpin,asshowninthe

gure.

Fig.1 Fig. 2

Fig.3 Fig.4 Fig.5 Fig.6

SARA manual / SARA - SUB

Fig.7

Follow the same steps to stack further

units,theresultcanbeseeninthegure.

Fig.8

Rearview.

5.- Assembly of 4 SARA units with TOP-PL-SARA on platform

Fig.7 Fig. 8

SARA manual / SARA - SUB

Fig.9

Fig.12

Fig.9

To attach the TOP-PL-SARA to the unit on

top,rst,removethetwouppersecurity

pins from the SARA unit.

Fig.10

LowertheTOP-PL-SARA,aligntheholes

and attach with the two security pins.

Fig.11

AligntheTOP-PL-SARArearbracketwith

the last hole on the SARA rear plate.

Fig.12

Removethesparepinstowedontherear

plates of the SARA unit and attach the

unit to the TOP-PL-SARA with it.

Fig.13

Insert the pin into the hole of the TOP-PL.

Fig.14

The stack with the accessory can be seen

inthegure.

5.- Assembly of 4 SARA units with TOP-PL-SARA on platform

Fig. 10

Fig.12

Fig.11

Fig.13 Fig.14

Fig.9
