Congratulations!

You have bought a great, innovative product from DAP Audio.

The DAP Audio IPS-CD brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated show, this product provides the effect you need.

You can rely on DAP Audio, for more excellent audio products.

We design and manufacture professional audio equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

You can get some of the best quality, best priced products on the market from DAP Audio.

So next time, turn to DAP Audio for more great audio equipment.

Always get the best -- with DAP Audio!

Thank you!

DAP Audio

DAP Audio IPT-CD Guide

Warning.............................................................................................................................................................

Safety-instructions...............................................................................................................................

Operating Determinations.................................................................................................................

Connecting to the mains...................................................................................................................

Description........................................................................................................................................................

Features................................................................................................................................................

Overview Front panel.........................................................................................................................

Overview Back panel.........................................................................................................................

Operation..........................................................................................................................................................

Connecting the device.....................................................................................................................

Operations...........................................................................................................................................

Remote data link................................................................................................................................

Maintenance....................................................................................................................................................

Troubleshooting................................................................................................................................................

Product Specifications.....................................................................................................................................

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this system have to:

-be qualified

-follow the instructions of this manual

Before you initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the system.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the system are not subject to

warranty.

This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the system.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Do not insert objects into air vents.

Do not connect this system to a dimmer pack.

Do not switch the system on and off in short intervals, as this would reduce the system’s life.

Do not open the device and do not modify the device.

Do not open this device. Risk: hazardous radiation exposure.

Only use system indoor, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Always disconnect power from the mains, when system is not used. Only handle the power-cord

by the plug. Never pull out the plug by tugging the power-cord.

Make sure you don’t use the wrong kind of cables or defective cables.

Make sure that the signals into the mixer are balanced, otherwise hum could be created.

Make sure you use DI boxes to balance unbalanced signals; all incoming signals should be clear.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the system and the power-

cord from time to time.

Make sure that the amplifier is turned down, before turning the power on or off. So you can avoid

supersonic frequencies, which could damage your speakers.

Don't put your equipment next to TV, radio, etc., because of interference or distortion.

If you connect other parts of the system, be careful of ground loops.

The best way to avoid ground loops is connecting the electrical system ground to one central

point ("star" system). In this case the mixer can act as a central point.

Before changing the ground, always turn off your amplifier.

CAUTION!

Keep this system away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Please read this manual carefully and keep it for future reference. Remember that the amplifier

has a better value on the market, if you save the carton and all packing materials.

Always operate the unit with the AC ground wire connected to the electrical system ground.

Connecting amplifier outputs to oscilloscopes or other test equipment, while the amplifier is in

bridged mode, may damage both the amplifier and test equipment.

Do not drive the inputs with a signal level bigger, than required to drive the equipment to full

output.

In system setup, the amplifier's output power must be 50%-100% more than the loaded

loudspeakers rated power.

Please turn off the power switch, when changing the power cord or signal cable, or select the

input mode switch.

In typical use, please set the volume at 0dB position.

Sometimes, when you want to send one signal to more than one amplifier, you should use a signal

distributor.

If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Dap Audio dealer for

service.

Allow time to cool down, before cleaning or servicing.

For replacement use fuses of same type and rating only.

Prevent distortion! Make sure that all components connected to the DSA have sufficient power

ratings. Otherwise distortion will be generated because the components are operated at their

limits.

Avoid ground loops! Always be sure to connect the power amps and the mixing console to the

same electrical circuit to ensure the same phase!

If system is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your system. Leave

the system switched off until it has reached room temperature.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this system is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void. Any other operation may lead to dangers like short-circuit,

burns, electric shock, etc. You endanger your own safety and the safety of others!

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Description of the device

Features

VCD/DVD/MP3/CD player

Long- distance remote controlling

Select the program up or down

Stereo RCA output

Repeat function

Front panel

Fig. 1

1) STOP

Pressing this button will stop playback.

2) B.SKIP/REW

Holding this button lets you scan backward. Tipping this button lets you go back to the beginning of

the current track or select a previous track

3) F.SKIP/FF

Holding this button lets you san forward. Tipping this button lets you skip to the next track.

4) Disk holder

5) AC LED

Indicates that AC power is connected and the device is turned on. The LED will dim if the mains

power fails.

6) DC LED.

Indicates that an external 24Vdc power supply is present.

7) PLAY/PAUSE

Use this button to start playback. Press once to start playback, twice to set the pause mode, and

three times to resume playback.

8) PROG

Use this button to program a playback sequence. See the section program play on page 7/8.

9) REPEAT

Use this button to repeat one track or all tracks of the CD.

10) Display

11) OPEN/CLOSE

Use this button to open or close the disk holder. The disc holder cannot be opened during playback,

so stop playback before pressing the button.

12) AC Power Switch.

This is the main Power switch. Press to turn the amplifier on.

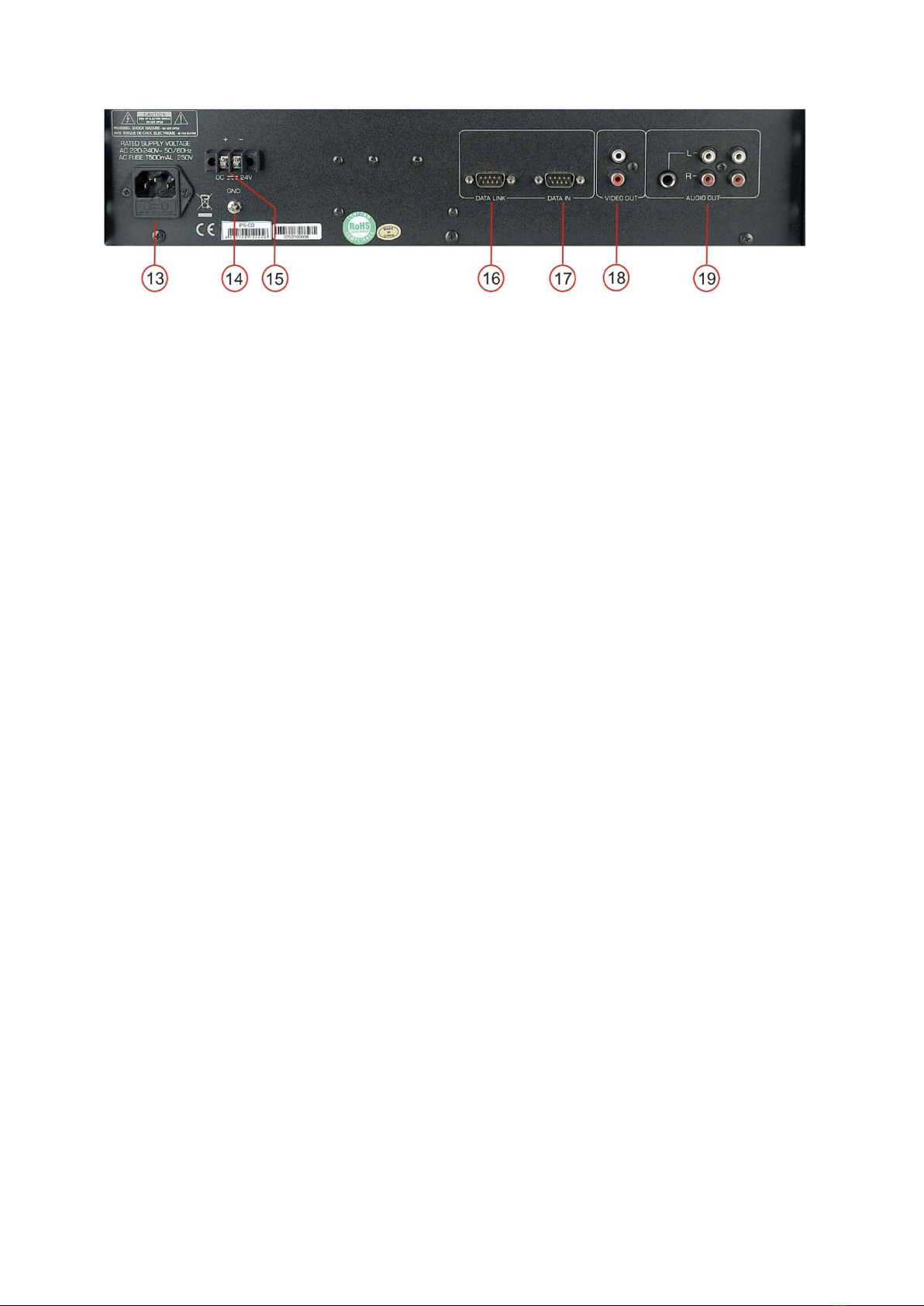

Rear panel

Fig. 2

13) AC Inlet with integrated fuse holder.

This connector is meant for the connection of the supplied main cord. Connect one end of the

power cord to the connector, the other end to the mains, then turn on the power switch (1) to

operate the unit.

Note: Please make sure that the supply voltage matches the operation voltage before connecting

the unit to mains. Replace the fuse only with a fuse of same specification (T500mA).

14) DC 24V Input.

Used to connect an external back up power supply of 24Vdc (e.g. Battery).

15) GND Screw.

This screw offers a separate ground connection. Can be useful in case of grounding problems.

16) Remote Data Link Ports.

Used to Link the remote to another device.

17) Remote Data In Port.

Used to control this device remotely from a Weekly programmable Timer.

18) Video out.

RCA video out for connecting to a video device (e.g. beamer).

19) Audio Out L/R.

2 sets of stereo RCA and 1 mono jack outputs for connecting to an amplifier or mixer.

Operation

Installation

Remove all packing materials from the IPS-CD. Check that all foam and plastic padding is removed.

Secure the equipment into a 19" rack. Connect all cables.

Connecting the device

Below an example of a possible setup.

NOTE: Always turn off and disconnect the amplifier from mains voltage before making any connections.

Fig. 3

Operations

1. Opening and closing of the disc holder

• Turn the unit’s power on. Press the OPEN/CLOSE button to open the disc holder.

• The disc holder cannot be opened during playback, to prevent playback from being interrupted if the

OPEN/CLOSE button is pressed accidentally. Stop the playback first, then press the OPEN/CLOSE button.

2. Loading CD’s

• Hold the disc by the edges and place it in the disc holder, then press the OPEN/CLOSE button to close

the holder.

CAUTION:

• Do not place any foreign objects in the disc holder and do not place more than one disc in the disc

holder at a time.

•Do not push the disc holder in manually when the power is off, as this may result in malfunction and

damages the player.

3. Selecting Tracks

• Press either the B. SKIP or the F.SKIP button to move to a higher or lower track.

• Hold the SKIP button to change tracks continuously at a higher speed.

• When a new track is selected during playback, playback begins as soon as the skip search operation is

completed.

• If the F.SKIP button is pressed while at the last track, the first track is selected. In the same way, If the

B.SKIP button is pressed while at the first track, the last track is selected.

4. Starting Playback

Press the PLAY/PAUSE button during the pause or cue condition to start playback, the PLAY indicator

lights.

5. Stop Playback

There are two ways to stop playback:

• Press the PLAY/PAUSE button during playback to pause at that point.

• Press the STOP button.

6. Pausing

• Press the PLAY/PAUSE button to switch between play and pause.

• The play indicator flashes when the pause mode is set.

• Playback resumes when the PLAY/PAUSE button is pressed again.

7. Scanning (Fast forward/Fast backward)

• Scanning is a function for moving quickly forward or backward when the B.SKIP/RE

or the F.SKIP/FF are pressed and hold.

• Press and hold the according button to begin scanning. The disc moves rapidly forward or backward

and the sound is audible.

8. Program Play

1. Press the PROG button, the player will enter the program mode and the CD will stop rotating. The

display shows as in figure 4:

Fig. 4

2. Select the desired track by using the B.SKIP or F.SKIP buttons. The display shows as in figure 5:

Fig. 5

3. press the PROG button again. The selected track will be added to the program sequence.

The display shows as in figure 6:

Fig. 6

4. Repeat step 2. A maximum of 20 tracks can be programmed.

5. Press the PLAY/PAUSE button to start the program play from the first selection.

6. Press the program button again during program play to stop playing.

7. Press and hold the PROG button more than 2 seconds to cancel the program mode and erase

all the current program contents.

9. Repeat

1. Press the REPEAT-button once to repeat the current track.

2. Press the button again to repeat the whole disc.

3. Press the button a third time, to exit the Repeat Mode.

Before switching off the power

When you have finished using the CD player, before switching off the power, be sure that the disc holder

has been closed with the OPEN/CLOSE button.

CAUTION: Do not forcibly close the disc holder when the power is off.

Do not switch off the power, when the disc holder is open.

Switch off the power after the disc holder has been closed with the OPEN/CLOSE button.

CD’s

1. Precautions on handling compact discs

• Do not allow fingerprints, oil or dust to get on the surface of the disc. If the disc is dirty, wipe it off with a

soft dry cloth.

• Do not use thinner, water, record spray, electrostatic-proof chemicals, or silicone-treated cloths

to clean discs.

• Always handle discs carefully to prevent damaging the surface; in particular when removing a disc

from its case or returning it.

• Do not bend the disc.

• Do not put the CD near heating sources.

• Do not enlarge the hole in the center of the disc.

• Do not write on the label (printed side) with a hard-tipped implement such as a pencil or ball point pen.

• Condensation will form if a disc is brought into a warm area from a colder one, such as outdoors in

winter. Do not attempt to dry the disc with a hair dryer, etc.

Table des matières

Autres manuels DAPAudio Lecteur MP3

DAPAudio

DAPAudio SMP-R Manuel utilisateur

Manuels Lecteur MP3 populaires d'autres marques

Blaupunkt

Blaupunkt Compact Drive MP3 Manuel utilisateur

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manuel utilisateur

Meizu Electronic Technology

Meizu Electronic Technology E5 Manuel utilisateur

Naxa

Naxa NMV-173NX Manuel utilisateur

Philips

Philips PSA250 Manuel utilisateur

Zipy

Zipy go! Waving Manuel utilisateur

Sylvania

Sylvania SMPK4068 Manuel utilisateur

Sony

Sony NW-MS7 - Memory Stick Walkman Manuel utilisateur

Irradio

Irradio RF-42UC Manuel utilisateur

NABAIJI

NABAIJI SWIM MUSIC 100 Manuel utilisateur

Laser

Laser MP3-A9-4GB Manuel utilisateur

Samsung

Samsung YP-T7F Manuel utilisateur

Savant

Savant SMS-1001-00 Guide de référence rapide

Trevi

Trevi XP 71 BT Manuel utilisateur

AGPtek

AGPtek C2 Manuel utilisateur

MobiBlu

MobiBlu DAH-1500i Manuel utilisateur

Denver

Denver MPS-201 Manuel utilisateur

Steren

Steren MP3-002 Manuel utilisateur
