Danfoss ThermoDual-CM Manuel utilisateur

VQ.MP.A1.02 © Danfoss 09/2018

Transport / unpacking the system:

DHS-SMTL / PL

Domestic

water (cold)

Circulation

(Inlet)

Domestic hot water

(hot/network)

Heating supplyHeating return

Drain

(Heating)

Drain

(Domestic water)

Circulation pump

Charging pump

Heating pump

(only for 3-way-vale-

or pump control)

Safety valve

Balancing valves

(Taco-Setter)

Air-vent

Heat exchanger

(brazed)

Electronic

Controller

Control valve

(only for 2-way-valve.

or 3-way-valve control)

Quick Guide ThermoDual®-CM

2VQ.MP.A1.02 © Danfoss 09/2018 DHS-SMTL / PL

Transport / unpacking the system:

The system is delivered on a standard EUR-pallet. This

makes it easy to transport the product via a forklift

truck or pallet truck.

Remove the packaging (wooden crate/foil)

and dispose of it.

Then detach the system from the pallet;

this is ﬁxed using 2 wooden screws.

Setting up the system:

Screw the height-adjustable, enclosed feet into the threads

beneath the frame:

Align the system horizontally by adjusting the height of the

feet, e.g. using a spirit level.

You can compensate for any unevenness of the installation

area by up to 50mm:

For more uneven surfaces, it is ﬁrst necessary to create

a level surface on site, e.g. a boiler platform or similar.

Quick Guide ThermoDual®-CM

VQ.MP.A1.02 © Danfoss 09/2018

DHS-SMTL / PL

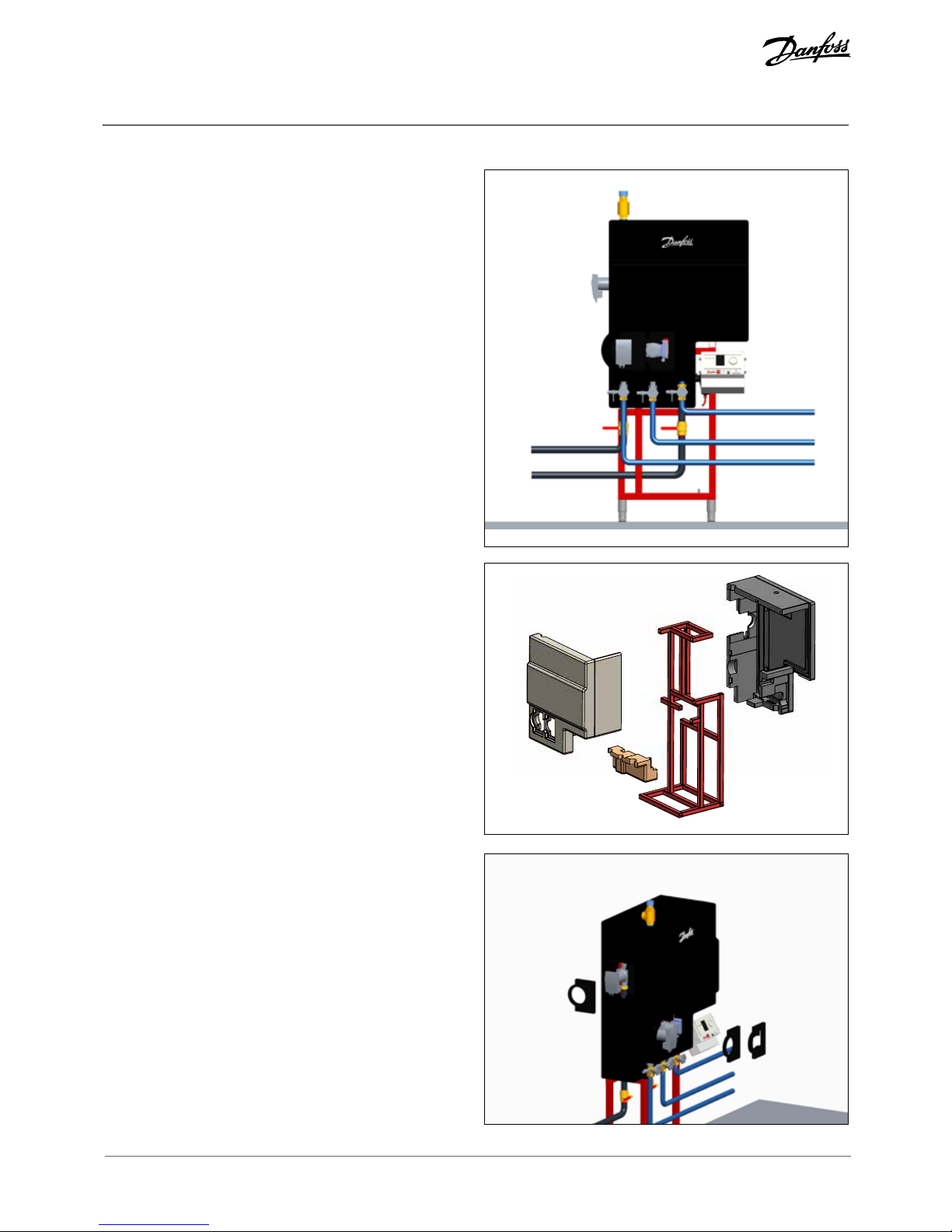

Connecting to the pipe network:

Once the system is correctly aligned at the installation site,

it can be connected to the pipe network.

Disassembly of the thermal insulation (cover):

The thermal insulation consists of 3 hard foam parts.

The back part with the left and top cover is ﬁrmly

connected to the stand frame:

In addition, pumps and valves are provided

with ﬂexible covers.

First remove the ﬂexible pump covers by carefully pulling

them out of the recesses of the insulating cover.

These are ﬂexible and can be easily dismantled

by pressing them together.

Quick Guide ThermoDual®-CM

4VQ.MP.A1.02 Produced by Danfoss A/S © 09/2018

The front cover can be pulled out to the front. This is

connected with the rear via multiple connectors (tongue

and groove). Pull the cover as far forward horizontally as

possible to avoid damaging the connections.

The lower end part can then be easily pulled down

obliquely since it is held only by a groove between the

front and back parts. The left wall can also be pulled

forward horizontally.

It is now possible to carry out inspection and maintenance

work on the system, such as replacing defective

components, checking for leaks or re-tightening screw

connections.

You can also check and/or regulate the ﬂow of circulation

on the balancing valve (Taco setter) as shown

in the picture on the right:

The system can be drained after shutting oﬀ the 5 main

shut-oﬀ valves without removing the cover.

Further details can be found in the complete installation,

commissioning and operating instructions.

Reassembly of the thermal insulation:

The front insulation is installed in reverse order. Pay

particular attention to the correct positioning of the

connectors. Only when all tongue and groove connections

are correctly positioned should the front and back be

pressed together ﬁrmly.

Quick Guide ThermoDual®-CM
