Danfoss RX1 Manuel utilisateur
RX1, 2 & 3
Electronic radio-frequency receivers (1,2 or 3-channel)
GB
F
D
ES
DK
NL
GR
LT
PL
I
Installation Instructions
Commissioning Instructions
Instructions d’installation
Instructions d’utilisateur
Installationsanweisungen
Inbetriebnahme-Instruktion
Instrucciones de instalación
Instrucciones del usuario
Instruktions vejledning
Aktiveringsinstruktioner
Installatiehandleiding
Inbedrijfstelling
Ïäçãßåò åãêáôÜóôáóçò
Οδηγίες έναρξης λειτουργίας
Instrukcja instalacji
Instrukcja
Montavimo instrukcijos
Komplektavimo instrukcijos
Istruzioni per l’uso
Istruzioni per l’ordinazione
2

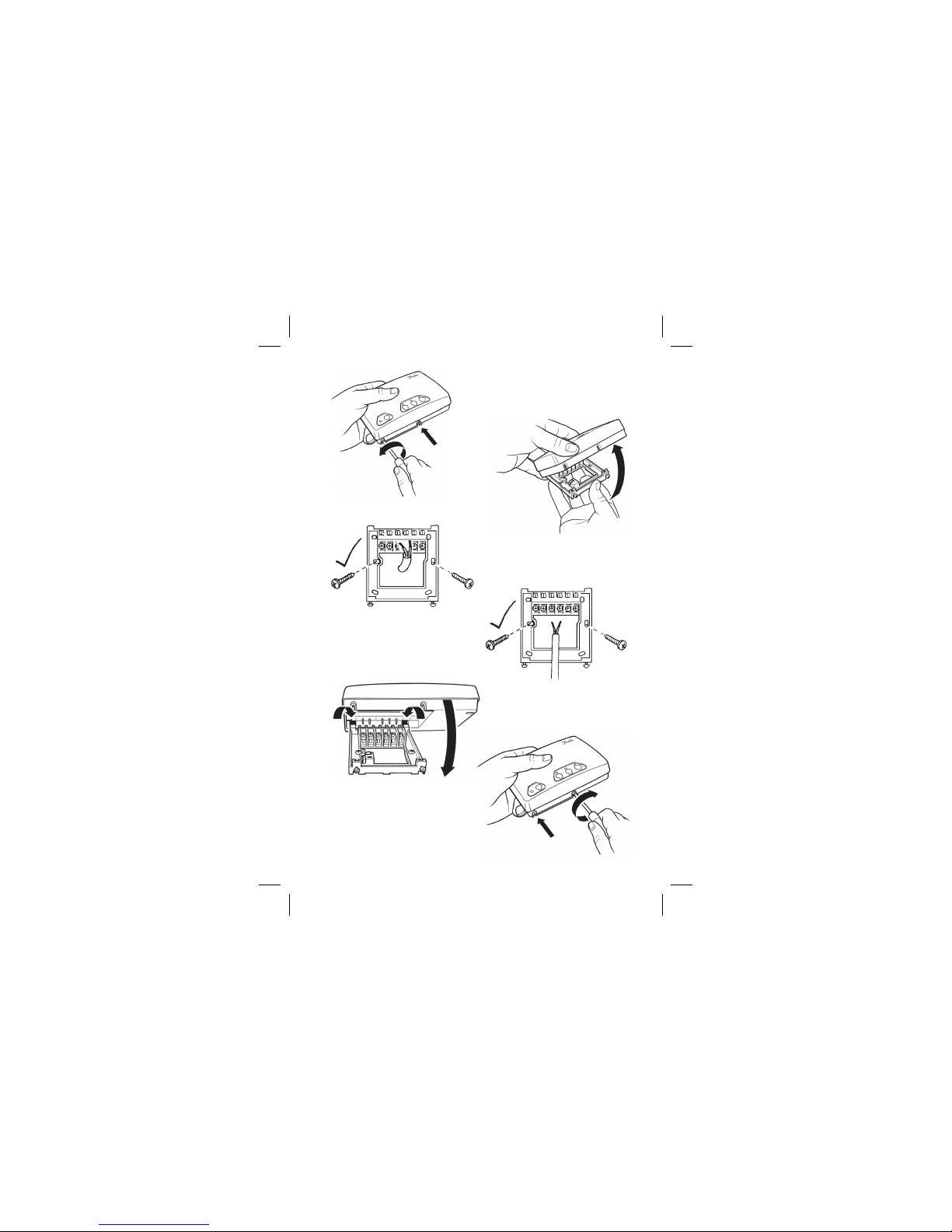

GB - Installation Instructions / F- Instructions d’installation / 3-4
D- Installationsanweisungen / ES - Instrucciones de instalación /
DK - Instruktions vejledning / NL - Installatie handleiding /
GR - Ïäçãßåò åãêáôÜóôáóçò / PL - Instrukcja instalacji /
LT - Montavimo instrukcijos / I- Istruzioni per l’uso
GB - Wiring Details / F - Détails du câblage interne / 5-7
D - Elektrischer Anschluss / ES - Detalles de conexionado /
DK - Ledningsforbindelser / NL - Bedradingsschema /
GR - Λεπτομέρειες ηλεκτρικής σύνδεσης / PL - Szczegóły połączeń /
LT - Informacija apie laidus / I - Dettagli collegamento
GB
Specication 9
Commissioning 10
F
Spécications 11
Instructions 12
D
Technische Daten 13
Inbetriebnahme-Instruktion 14
ES
Especicaciones 15
Instrucciones de puesta en marcha 16
DK
Specication 17
Aktiveringsinstruktioner 18
NL
Technische gegevens 19
Inbedrijfstelling 20
GR
ÐñïäéáãñáöÞ 21
Οδηγίες έναρξης λειτουργίας 22
PL
Specykacja 23
Instrukcja 24
LT
Specikacija 25
Komplektavimo instrukcijos 26
I
Specicazioni 27
Istruzioni per l’ordinazione 28
3

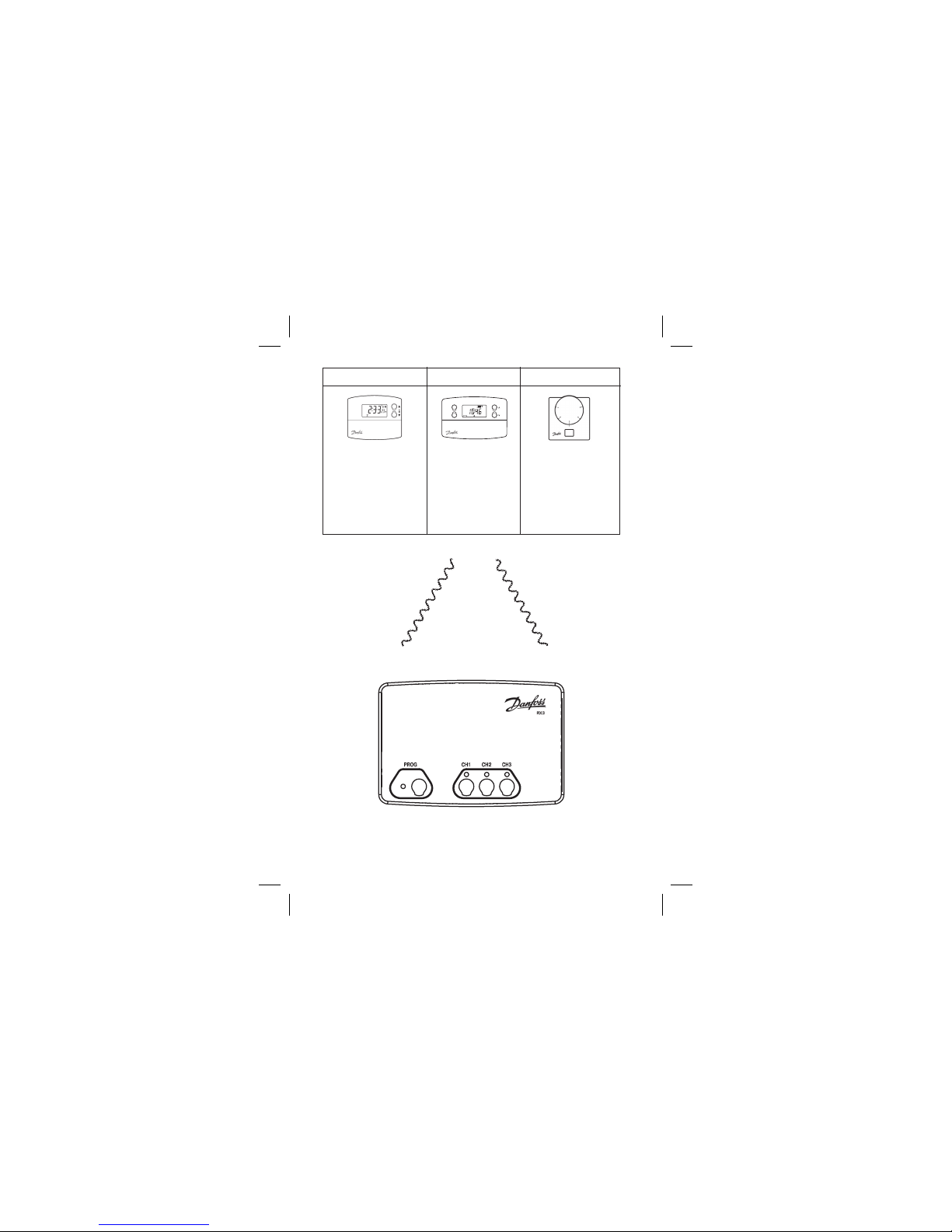

A B C
TP5000-RF TP7000-RF RET B-RF
TP5.2-RF TP75-RF CET B-RF
TP5E-RF WP75-RF
RT51-RF (LEARN
RT52-RF button under
RT1-RF setting dial)
RT2-RF
RX1 RX2 RX2C
RX3 RX3B RX3B-VF
433.92 MHz
30m (max)
4
5
1234
ELECTRONICS
NL
COM ZONE
1 ON
ZONE
1 OFF
RX1
GB F D ES DK
Electronics Electronique Elektronik Electrónica Elektronik
COM COM Potentialfreie Kontakte Común Potentialefri kontakt
On Marche EIN On Tændt
O Arrêt AUS O Slukket
Zone Zone Zone Zona Zone
Boiler Chaudière Heizgerät Caldera Kedel
CH Chauage Central Zentralheizung Calefacción central Centralvarme
HW Eau Chaude Heisswasser Agua caliente Varmt brugsvand
NL GR PL LT IT
Elektronica Ηλεκτρονικά Układy elektroniczne
sterownika
Elektroninė sistema Elettronica
COM COM (Κοινό) Styk beznapięciowy COM (įprasta) COM
Aan ON Styk: załącz On On
Uit OFF Styk: wyłącz O O
Zone Ζώνη Strefa Zona Zona
Ketel Μπόιλερ Bojler Boileris Caldaia
Centrale
verwarming
Κεντρική θέρμανση Centralne ogrzewanie Centrinis šildymas Riscaldamento
centrale
Warm tapwater Ζεστό νερό Gorąca woda
Karštas vanduo
Acqua calda
(GB) Wiring Details / (F) Détails du câblage interne / (D) Elektrischer Anschluss /
(ES) Detalles de conexionado / (DK) Ledningsforbindelser / (NL) Aansluitschema
/ (GR) ËåðôïìÝñåéåò óõñìÜôùóçò / (PL) Szczegóły połączeń / (LT) Informacija
apie laidus / (I) Dettagli collegamento
Note: For mains voltage applications link terminals L and 2.
6

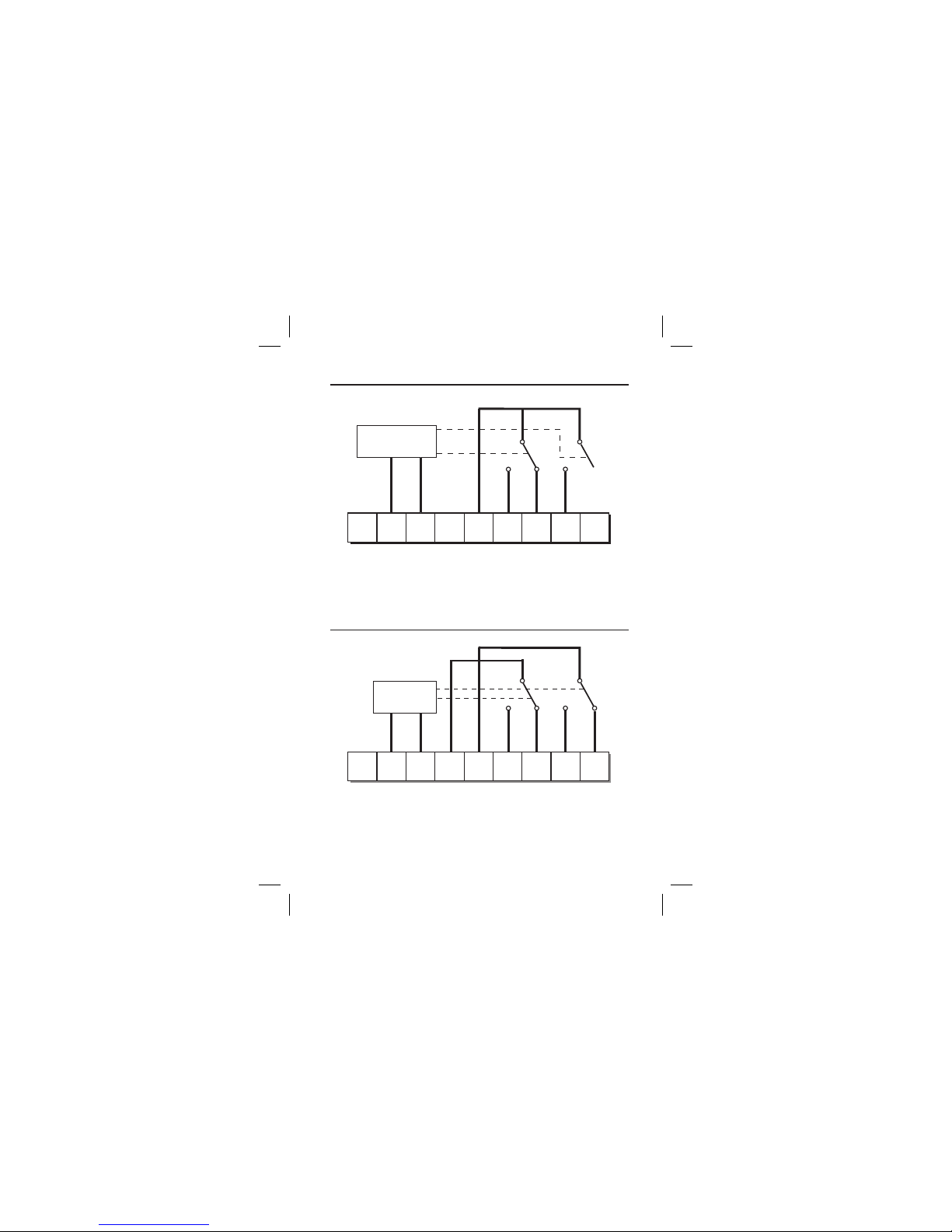

RX2C
ABC123456
ELECTRONICS
COM
ZONE 1
COM
ZONE 2
ZONE 1
ON
ZONE 1
OFF
ZONE 2
ON
ZONE 2
OFF
ZONE 1
ON
NL
RX2
1234
ELECTRONICS
B
ZONE
2 ON
C
COM ZONE
1 ON
ZONE
1 OFF
56
A
L
N
ATTENTION: If replacing a previous version of the RX2 receiver please
use the new backplate supplied and wire as illustrated above.
Note: for mains voltage applications link terminals L and 2.
7

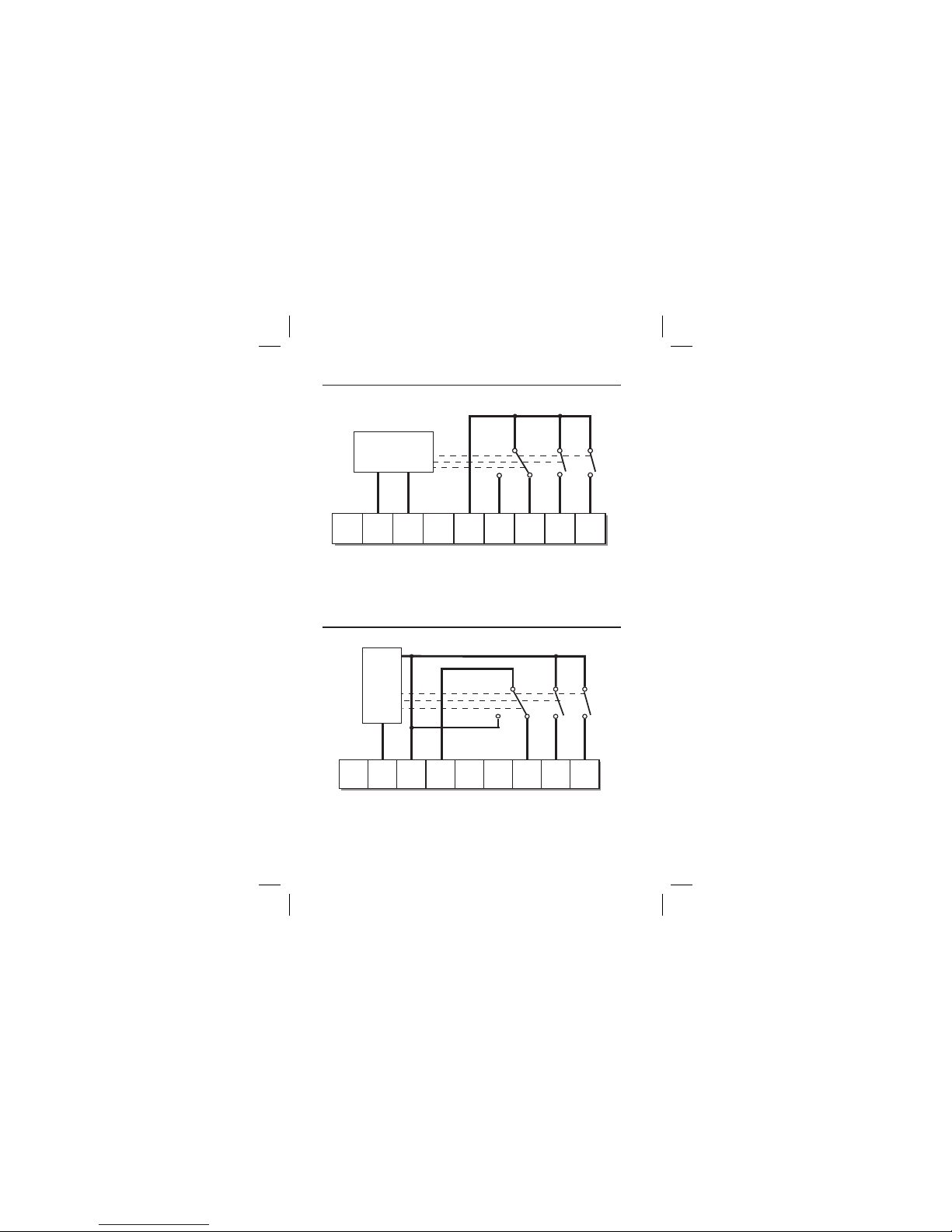

RX3
A
ELECTRONICS
BC123456
NLZONE
1 ON
ZONE
1 OFF
ZONE
2 ON
ZONE
3 ON
COM
RX3B
ELECTRONICS
ABC12 3 456
NLHW PL
FROM
BOILER
HTG BOILER
Pump
Live
From
Boiler
Boiler
Switched
Live
8
RX3B-VF
9
ENGLISH SPECIFICATION
Radio Controlled Room Thermostat Receiver Module for: see list page 3
Supply Voltage 230 Vac ± 15%, 50Hz
Construction BS EN 60730-2-1, EN 300-220-1
Maximum Ambient Temperature 45°C
Switch Type RX1 - 1 x SPDT, type 1B
RX2 - 1 x SPDT, 1 x SPST, type 1B
RX3 - 1 x SPDT, 2 x SPST, type 1B
Switch Rating 264 Vac, 3 (1) A (Total current)
IP Rating IP 40
Control Pollution Situation Degree 2
Max. Range 30 metres
Operating Frequency 433.92 MHz
Software Classication Class A
Rated Impulse Voltage 2.5kV
Ball Pressure Test 75°C
GB - Specication
Specication
GB
10
GB - Commissioning Instructions
Thermostat (refer to page 3 for thermostat type)
Step 1. Type A Press & hold buttons and + for 3 seconds
Type B Press & hold LEARN button for 3 seconds
Type C Remove dial, press & hold LEARN button for 3
seconds (located under setting dial)
Do not replace knob until Learn process is complete
NOTE: Thermostat now transmits continuously for 5 minutes.
Receiver
Step 2. RX1
Press and hold buttons PROG and CH1 for 3 seconds
until green light ashes
Step 3. RX2 / RX3 (if applicable)
Stat 1 - perform steps 1-2 for CH1
Stat 2 (RX2 & RX3)
Wait 5 mins, perform step 1, then press
PROG + CH2 on RX2/RX3
Stat 3 (RX3 only)
Wait 5 mins, perform step 1, then press
PROG + CH3 on RX3
Use only
during
programming
Receiver status
LED, ashes when
receiving
Emergency ‘ON’ button, press
if communication fails, turns
on heat, returns to AUTO when
communication is re-established.
Zone status
LEDs, lit when
‘ON’
Commissioning Instructions
GB
