Danfoss DHP-A Manuel utilisateur

VIBMB402

086U8255 Rev 4

UK-specific appendix to

Installation instructions

DHP-A

DHP-A Opti

DHP-AQ Maxi

DHP-H

DHP-H Opti

DHP-H Opti Pro

DHP-L

DHP-L Opti

DHP-L Opti Pro

2 – Appendix UK

To be read together with Installation instructions

Contents

1 Important information/Safety regulations . . . . . . . . . . . . . . . . . . . 3

1.1 Test results ..................................................3

2 About documents and labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Manufacturer labels..........................................4

3 Piping installation .......................................... 8

3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2 System solution .............................................9

3.3 Discharge pipe arrangement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

4 Commissioning............................................14

4.1 How to flush the tap water system . . . . . . . . . . . . . . . . . . . . . . . . . .14

4.2 How to drain the tap water system . . . . . . . . . . . . . . . . . . . . . . . . . .14

4.3 Inspection access...........................................14

Appendix UK – 3

1 Important information/Safety regulations

 

These instructions are a UK-specific appendix to those instructions found in the Installation instructions.

 

Read the Installation instructions prior to installation.

 

For DHP Opti Pro SP (Single Phase) heat pumps it is imperative that the maximum hot water temperature

is altered from the default factory setting from 95°C to 60°C. Refer to Chapter 9.8 menu Service – HGW

Parameter MAX TEMP in Installation instructions.

 

Hard Water Areas; Normally it is not a problem to install a heat pump in hard water areas since the normal

domestic hot water working temperature will be not greater than 60°C. In areas where exceptional water

conditions prevail, consideration may need to be given to the fitting of a device capable of inhibiting scale.

In such circumstances the advice of the local water authority should be sought.

 

The immersion heater, thermostat, and thermal cut-out are supplied by Danfoss and are factory fitted. If a

replacement part is necessary, it must be replaced with a Danfoss spare part.

 

The water heater is protected with a sacrificial aluminium anode. Under normal circumstances no mainte-

nance is needed.

 

Note! Leave the following documents with the end-user;

- This manual

- Installation instructions

- User manual

The above documents are an integral and essential part of the product. They should be kept with the appli-

ance so that they can be consulted by the user and our authorised personnel.

Please read carefully the instructions and notices about the appliance contained in this manual, as they pro-

vide important information regarding the safe installation, use and maintenance of the heat pump.

1.1 Test results

1.1.1 Heat up time

The heat up time is measured when heating the water from 14°C to 60°C.

DWH 300: Heat up time 1 hour 53 minutes

DHP-H, DHP-A, DHP-AQ Maxi and DWH 200: Heat up time 1 hour 3 minutes

1.1.2 Re-heat time

The re-heat time is measured when 70% of the hot water has been drained and replaced by equal amount

14°C water and re-heated to 60°C.

DWH 300: Re-heat times 70% 1 hour 25 minutes

DHP-H, DHP-A and DWH 200: Re-heat time 70% 41 minutes

DHP-AQ Maxi: 1 hour 6 minutes according to EN12897.

1.1.3 Pressure drop

The measured pressure drop throgh the primary heater is 15 kPa.

1.1.4 Hot water capacity

DHP-AQ Maxi: 160 liter according to EN12897.

4 – Appendix UK

2 About documents and labels

2.1 Manufacturer labels

The heat pump and the indoor unit are marked with durable, permanently fixed labels.

2.1.1 Manufacturer label:

P. O. Box 950 SE-67129 Arvika

Sweden

DHP-H 6

Heat Pump

Source of heat Max Mpa 0,3

System of heat Max Mpa 0,3

Source of heat Min/Max ˚C -10 / +20

Refrigerant Type *R407C

Operation Pressure Min/Max MPa 0,08/3,1

Refrigerant Kg 1.2

Connection

Electric connection V 400 3N~50Hz

Power input Total kW 5,0/8,0/11,0

Power input Heat pump kW 2.0

Power input Auxiliary Heater kW 3/6/9

Pressure Vessel

Volume Sec/Prim l 180/7.5

Design Pressure Sec/Prim MPa 1.0 / 0.3

Test Pressure Sec/Prim MPa 1.43 / 0.43

Design Temp ˚C 100

Rating condition EN 14511 B0W35 A2/W35 A7/W35

(see technical documentation)

Heating capacity kW 5.33 -- --

Coeﬃcient of Performance 4.04 -- --

* This product contains ﬂuorinated greenhouse

gases covered by the Kyoto Protocol

Serial No 086U5000*testBRE

086U5000*testBRE

Model -- YY-WW 09-33

Appendix UK – 5

2.1.2 Manufacturer label: DHP-AQ

P. O. Box 950 SE-671 29 Arvika

Sweden

DHP-AQ CONTROL MAXI 6-13 SP

Heat Pump

Source of heat Max Mpa 0

System of heat Max Mpa 0

Source of heat Min/Max ˚C

Refrigerant Type *

Operation Pressure Min/Max MPa --

Refrigerant Kg

Connection

Electric connection V 230 1N~50Hz

Power input Total kW 3.1/6.1/9.1

Power input Heat pump kW

Power input Auxiliary Heater kW 3/6/9

Pressure Vessel

Volume Sec/Prim l 180/7.5

Design Pressure Sec/Prim MPa 1.0 / 0.3

Test Pressure Sec/Prim MPa 1.43 / 0.43

Design Temp ˚C 100

Rating condition EN 14511 B0W35 A2/W35 A7/W35

(see technical documentation)

Heating capacity kW --

Coeﬃcient of Performance --

* This product contains ﬂuorinated greenhouse

gases covered by the Kyoto Protocol

Serial No 086U0283xxxxxxxx

086L0283xxxxx

Model CU-*104-303 YY-WW 11-27

x 2

6 – Appendix UK

2.1.3 Additional label:

Weight when full (kg)

DHP-H 4 405

DHP-H 6 409

DHP-H 8 409

DHP-H 10 409

DHP-H 12 418

DHP-H 16 422

DHP-A 6 440

DHP-A 8 440

DHP-A 10 440

DHP-A 12

448

Heat Pump *)

*) Incl. DHP Opti and Opti Pro

This label will ensure that this product conforms to the

requirements of United Kingdom Building Regulations.

The information is entirely valid in a UK speciﬁc installations.

Maximum water supply pressure 10 bar

Pressure reducing valve 3 bar

Expansion valve 6 bar

Expansion vessel charge pressure 3 bar

Operating pressure 5,5 bar

Temp and pressure release valve 10 bar; 90−95˚C

Maximum primary working pressure 1,5 bar

Immersion heater D76 / 9 kW / 230 V

WARNING TO THE USER

(a) Do not remove or adjust any component part of this

unvented water heater. Contact the installer.

(b)

If this unvented water heater develops a fault, such

as a ﬂow of hot water from the discharge pipe,

switch the heater oﬀ and contact the installer.

WARNING TO THE INSTALLER

(a) This installation is subject to building regulation

approval,

notify the Local Authority of intention to

install.

(b)

Use only manufacturer's recommended

replacement parts.

Name._________________________________________

Address._______________________________________

Tel No._________________________________________

Completion date.________________________________

Appendix UK – 7

2.1.4 Additional label: DHP-AQ Control Maxi 6–13 SP

This label will ensure that this product conforms to the requirements

of United Kingdom Building Regulations and EN12897:2006.

The information is entirely valid in a UK speciﬁc installation.

Weight when full 286 kg

PT valve replacement no. 086U8267

Oper. temp non self-reset. thermostat 88˚C

Maximum ﬂow temperature 65˚C

Operating pressure heat source 1 bar

Primary heating power input 9 kW

Primary ﬂow rate 0,16−0,31 l/s

Actual capacity 180 liter

Standing heat loss 1,8 kWh / 24 h

Maximum water supply pressure 10 bar

Pressure reducing valve 3 bar

Expansion valve 6 bar

Expansion vessel charge pressure 3 bar

Operating pressure 5,5 bar

Temp and pressure release valve 10 bar; 90−95˚C

Maximum primary working pressure 1,5 bar

Immersion heater D76 / 9 kW / 230 V

WARNING TO THE USER

Do not remove or adjust any component part of this

unvented water heater. Contact the installer.

If this unvented water heater develops a fault, such

as a ﬂow

of hot water from the discharge pipe,

switch the heater oﬀ and contact the installer.

WARNING TO THE INSTALLER

This installation is subject to Building Regulations notiﬁcation.

Use only appropriate components for installation and maintenance.

c) INSTALLED BY:

Name.______________________________________

Address.____________________________________

Tel No._____________________________________

Completion date._____________________________

8 – Appendix UK

3 Piping installation

3.1 General

In section 5.2 you will find connection diagrams.

3.1.1 Unvented package DHP and DWH200

Danfoss code reference UNV0180.

Package contents:

Position Danfoss code Number Description

110 FITT0050 1 Expansion vessel 19 liter

- FITT0052 1 Expansion vessel bracket

132 FITT0053 1 Flexible hose

- FITT0001 1 Tundish 15x22 mm

129 FITT0054 1 Unvented manifold assembly

3.1.2 Unvented manifold assembly

Figure 1. Unvented manifold assembly.

Position Name

A Pressure reducing valve

B Non-return valve

C Cold water to house

D To expansion vessel

E Safety relief valve

3.1.3 Temperature and pressure relief valve

Figure 2. Factory fitted Temperature and pressure relief valve

Appendix UK – 9

3.2 System solution

3.2.1 Unvented package installation, DHP-H and DHP-A models

126

110

128

129

132

10 11

113

Unvented manifold assembly

(see figure 1)

DHP-H

DHP-A

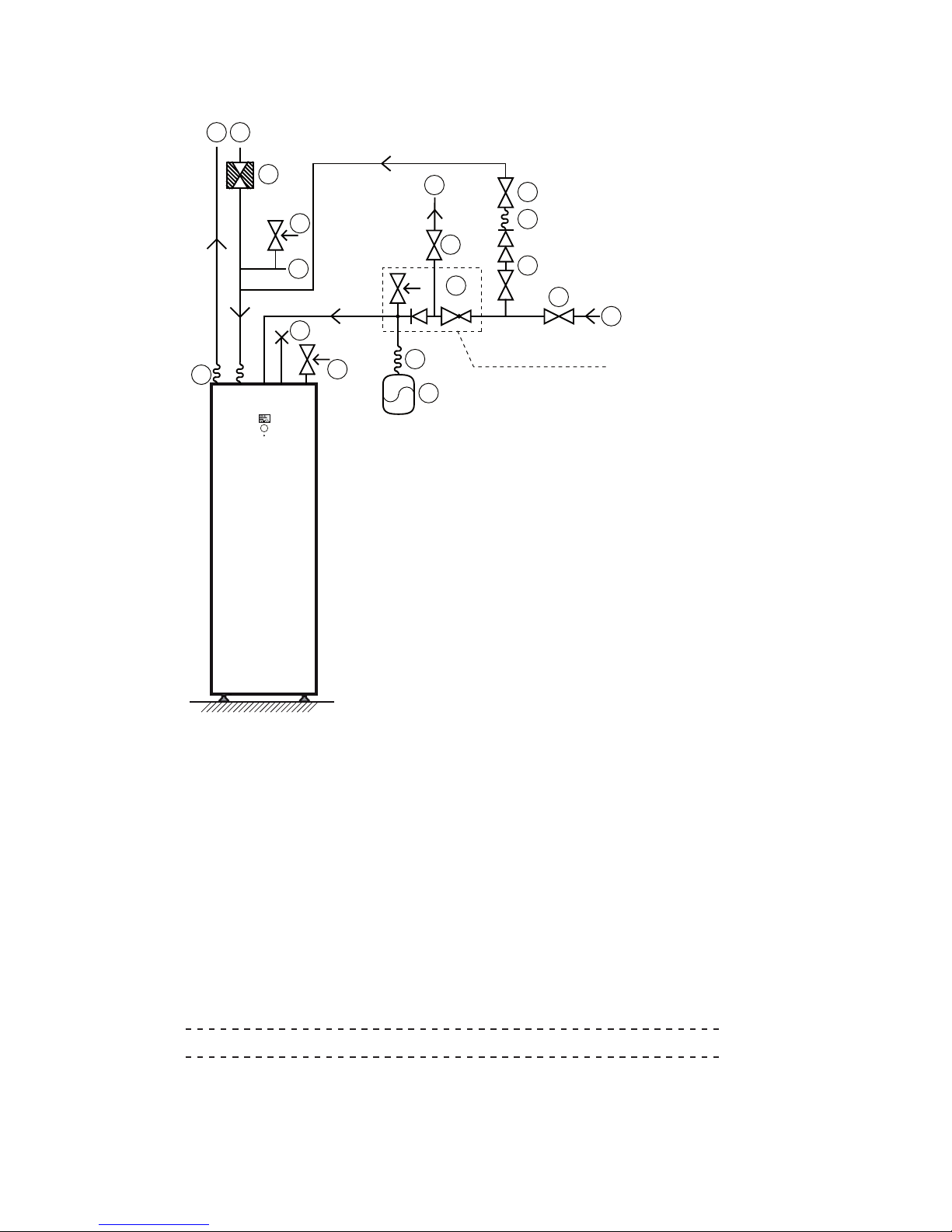

Figure 3. The principal installation solution of the unvented package on DHP-H and DHP-A models.

Position Name

10 Supply line heating system

11 Return line heating system

12 Cold water

80 Shut-off valve

85 Venting valve

86 Safety relief valve heating system

91 Strainer

96 Flexible hose

110 Expansion vessel

113 Expansion heating system

126 Factory fitted combined Temperature and pressure relief valve*

128 Double check valve with Shut-off valve

129 Unvented manifold assembly: Pressure reducing valve, Safety relief valve, Non-return valve

132 Flexible hose Unvented package

*) The water heater tank in DHP-H and DHP-A models is factory fitted with a Temperature and pressure relief

valve. The connection from this valve must not be used for other purposes other than discharge pipe con-

nection. Please see chapter 5.3 Discharge pipe arrangement.

 

Note! No valve should be fitted between the safety relief valve and the storage cylinder.

10 – Appendix UK

3.2.2 Unvented package installation, DHP-L models, DWH 200, DWH 300

DHP-L

126

110

128

104

129

132 Unvented manifold assembly

(see figure 1)

DWH 200

DWH 300

10 11

13 12

113

Figure 4. The principal installation solution of the unvented package on DHP-L models together with DWH.

Position Name

10 Supply line heating system

11 Return line heating system

12 Cold water

13 Hot water

80 Shut-off valve

86 Safety relief valve heating system

91 Strainer

96 Flexible hose

104 Safety relief valve 2,5 bar

110 Expansion vessel

113 Expansion heating system

126 Factory fitted combined Temperature and pressure relief valve*

128 Double check valve with Shut-off valve

129 Unvented manifold assembly: Pressure reducing valve, Safety relief valve, Non-return valve

132 Flexible hose unvented package

*) The water heater tank in DWH is factory fitted with a Temperature and pressure relief valve. The connec-

tion from this valve must not be used for other purposes other than discharge pipe connection. Please see

chapter 5.3 Discharge pipe arrangement.

 

Note! No valve should be fitted between the safety relief valve and the storage cylinder.

Autres manuels pour DHP-A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Danfoss Pompe à chaleur

Danfoss

Danfoss DHP-L Series Manuel utilisateur

Danfoss

Danfoss Optyma Integral Series Manuel utilisateur

Danfoss

Danfoss HHP Series Mode d’emploi

Danfoss

Danfoss DHP-iQ Mini Guide de l'utilisateur

Danfoss

Danfoss DHP-H Varius Pro+ Manuel utilisateur

Danfoss

Danfoss DHP-A Manuel utilisateur

Danfoss

Danfoss DHP-R 26 Manuel utilisateur

Danfoss

Danfoss DHP-H Manuel utilisateur

Danfoss

Danfoss ECL Comfort 100M Manuel utilisateur

Danfoss

Danfoss Optyma Plus Manuel utilisateur

Danfoss

Danfoss Heat Pump Manuel utilisateur

Danfoss

Danfoss DHP-AL Manuel utilisateur

Danfoss

Danfoss DHP-AT Manuel utilisateur

Danfoss

Danfoss DHP-iQ Manuel utilisateur

Danfoss

Danfoss OP-MPHM007NFP00G Manuel utilisateur

Danfoss

Danfoss DHP-S Eco Manuel utilisateur

Danfoss

Danfoss DHP-AT Manuel utilisateur

Danfoss

Danfoss TL3G Manuel utilisateur

Danfoss

Danfoss Bluestar Series Manuel utilisateur

Danfoss

Danfoss Optyma Slim Pack OP-LPQE Series Manuel utilisateur

Danfoss

Danfoss OPTYMA Plus OP-LPQM Manuel utilisateur

Danfoss

Danfoss DHP-AX Guide rapide

Danfoss

Danfoss Optyma OP-SMLZ Series Manuel utilisateur

Danfoss

Danfoss DHP-AQ Mini Mode d'emploi

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
