Danfoss VLT MCD 200 Manuel utilisateur

Installation Guide

PROFINET Module

VLT® Compact Starter MCD 200 and VLT® Soft Starter MCD 500

1.1

1.2

2.1

2.2

2.3

2.4

3.1

4.1

4.2

4.2.1

4.2.2

4.2.3

4.3

4.4

5.1

5.1.1

5.2

5.2.1

5.2.2

5.2.2.1

5.2.2.2

5.2.3

5.2.3.1

5.2.3.2

6.1

6.2

6.3

6.4

Contents

Safety 5

Disclaimer 5

Warnings 5

Introduction 6

Product Design 6

Compatibility 6

Product Versions 6

Network Connection 6

Installation 8

Installing the Communication Module 8

Connection 10

Soft Starter Connection 10

Network Connection 10

Ethernet Ports 10

Cables 10

EMC Precautions 11

Network Establishment 11

Addressing 11

Device Configuration 12

Configuration of Device Name 12

Identifying the Device with Ethernet Device Configuration Tool 12

On-board Web Server 13

Connect to the Device 13

Manage Users and Passwords 14

Adding a User 15

Deleting a User 15

Configure IoT Settings 15

Configuring MQTT Settings 16

Configuring OPC UA Settings 17

Operation 18

Requirements for Successful Operation 18

Device Classification 18

Master Configuration 18

Enabling Network Control 18

Contents

PROFINET Module

Installation Guide

6.5

6.6

7.1

7.2

7.3

7.3.1

7.3.2

7.3.3

7.3.4

7.3.5

7.3.6

7.4

7.4.1

7.4.2

7.5

8.1

8.2

8.3

8.4

9.1

9.2

9.3

9.4

9.5

9.6

9.7

Ensuring Safe and Successful Control 18

Feedback LEDs 18

Packet Structures 20

Important Information 20

Control Commands (Controller to Device) 20

Status Information (Device to Controller) 20

Bytes 0–1: Control Status 20

Bytes 2–3: Starter State 21

Bytes 4–5: Trip Code 21

Bytes 6–7: Motor Current 22

Bytes 8–9: Motor Temperature 22

Bytes 10–63: Extended Information 22

Parameter Management 24

Output 24

Input 24

Trip Codes 25

Network Design 27

Star Topology 27

Line Topology 27

Ring Topology 28

Combined Topologies 28

Specifications 30

Enclosure 30

Mounting 30

Connections 30

Settings 30

Network 30

Power 30

Certification 30

Contents

PROFINET Module

Installation Guide

1 Safety

1.1 Disclaimer

The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is

subject to change at any time and without prior notice. Responsibility or liability is never accepted for direct, indirect, or consequen-

tial damage resulting from the use or application of this equipment.

1.2 Warnings

WARNING

SHOCK HAZARD

Attaching or removing accessories while the soft starter is connected to mains voltage may cause personal injury.

Before attaching or removing accessories, isolate the soft starter from mains voltage.

WARNING

RISK OF PERSONAL INJURY AND EQUIPMENT DAMAGE

Inserting foreign objects or touching the inside of the soft starter while the expansion port cover is open may endanger person-

nel and can damage the soft starter.

Do not insert foreign objects in the soft starter with the port cover open.

Do not touch the inside of the soft starter with the port cover open.

Safety

PROFINET Module

Installation Guide

•

2 Introduction

2.1 Product Design

The PROFINET Module allows the soft starter to connect to an Ethernet network and be controlled or monitored using an Ethernet

communication model.

Familiarity with Ethernet protocols and networks is required to operate the device successfully. For difficulties arising from using

this device with 3rd-party products, including PLCs, scanners, and commissioning tools, contact the relevant supplier.

2.2 Compatibility

The PROFINET Module is compatible with the following Danfoss soft starters:

MCD 200: 24 V AC/V DC and 110/240 V AC control voltage.

MCD 500: All models.

NOTICE

The PROFINET Module is not suitable for use with MCD 200 soft starters using 380/440 V AC control voltage.

2.3 Product Versions

The PROFINET Module is available in 2 different versions. The part number is printed on the label on the side of the module.

175G9905 MCD PROFINET Module

Monitor and control the soft starter over a PROFINET connection.

175G9915 MCD PROFINET Module

Monitor and control the soft starter over a PROFINET connection.

Monitor and control the soft starter over a TCP connection using VLT® Motion Control Tool MCT 10. Refer to the VLT® Motion

Control Tool MCT 10 Operating Guide.

This installation guide is suitable for use with 175G9915. For the manual for 175G9905, contact the local supplier.

2.4 Network Connection

Table 1: Supported Protocols

Protocols

PROFINET

Industrial Ethernet via PROFINET

TCP

Transmission control protocol to connect to port 4000 of a PC

MQTT

Message queue telemetry transport

OPC UA

Open platform communications unified architecture

Introduction

PROFINET Module

Installation Guide

4/T2

READY RUN TRIP LOCAL

Exit

Reset

Store

2/T1 6/T3

1/L1 3/L2

5/L3

VLT

Soft Starter

e77ha805.10

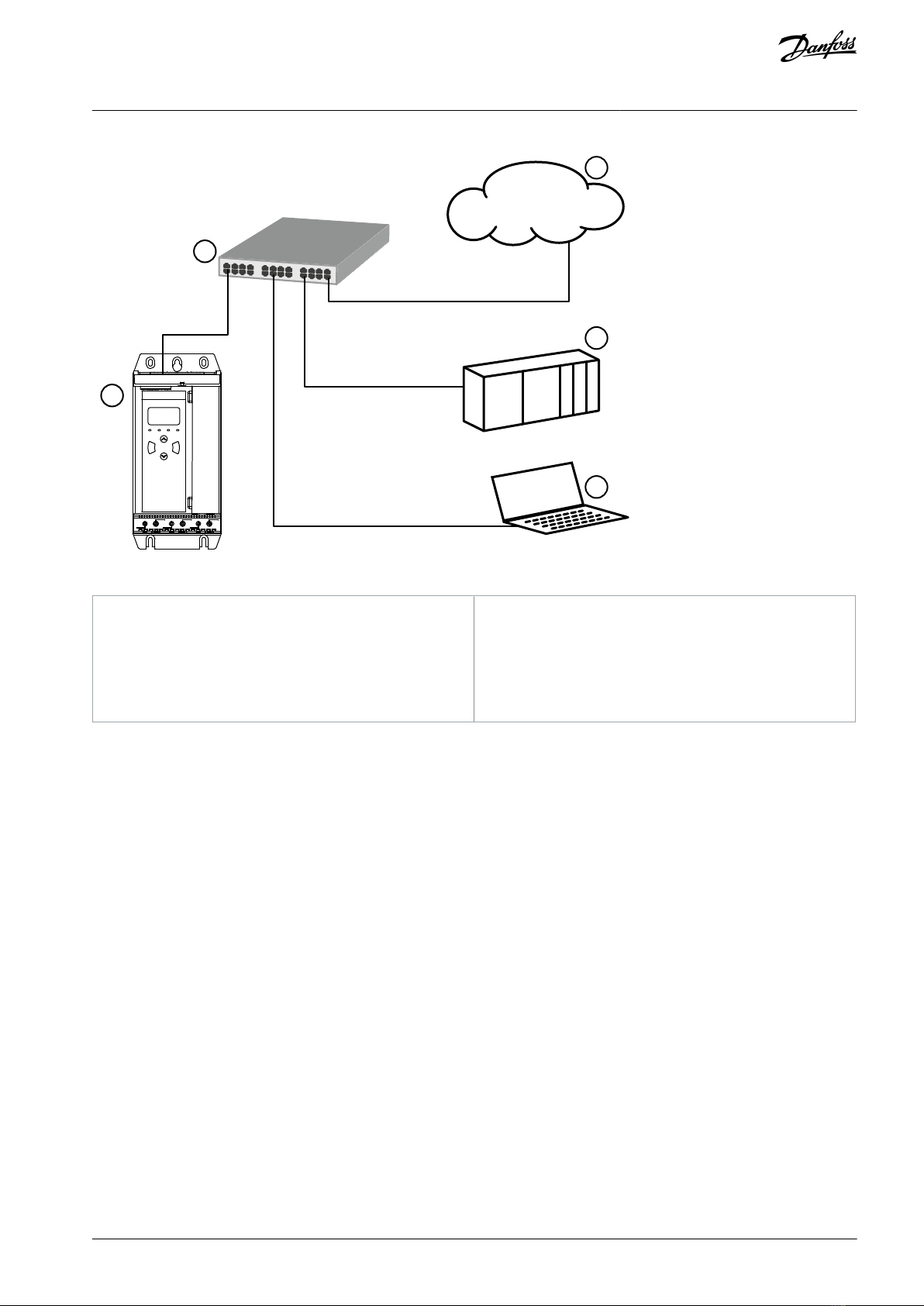

Illustration 1: Overview of Network Connections

Soft starter

Network switch

IoT connection (MQTT/OPC UA)

Industrial Ethernet connection to programmable

logic controller

TCP connection to VLT® Motion Control Tool MCT

10. Refer to the VLT® Motion Control Tool MCT 10

Operating Guide for connection details.

Introduction

PROFINET Module

Installation Guide

3 Installation

3.1 Installing the Communication Module

CAUTION

EQUIPMENT DAMAGE

If mains and control voltage are applied when installing or removing options/accessories, it may damage the equipment.

Remove mains and control voltage from the soft starter before installing or removing options/accessories.

Procedure

Remove control power and mains supply from the soft starter.

Fully pull the top and bottom retaining clips on the module.

e77ha833.10

Installation

PROFINET Module

Installation Guide

Line up the module with the comms port slot.

e77ha834.10

Push in the top and bottom retaining clips to secure the module to the soft starter.

e77ha835.10

Connect Ethernet Port 1 or Port 2 on the PROFINET Module to the network.

Apply control power to the soft starter.

Installation

PROFINET Module

Installation Guide

4 Connection

4.1 Soft Starter Connection

The PROFINET Module is powered from the soft starter.

NOTICE

The PROFINET Module is not suitable for use with MCD 200 soft starters using 380/440 V AC control voltage.

e77ha620.10

Illustration 2: Connecting MCD 200

Soft starter

A1, N2: Stop input

PROFINET Module

RJ45 Ethernet ports

e77ha621.10

Illustration 3: Connecting MCD 500

Soft starter (remote mode)

17, 18: Stop input

25, 18: Reset input

PROFINET Module

RJ45 Ethernet ports

4.2 Network Connection

4.2.1 Ethernet Ports

The device has 2 Ethernet ports. If only 1 connection is required, either port can be used.

4.2.2 Cables

When connecting to the device, make sure that the cables are of 1 of the following categories:

Connection

PROFINET Module

Installation Guide
