FITTING INSTRUCTIONS

Lokk-Bolt is supplied and congured to suit a right-hand

gate when viewed from inside (house side).

Important: In order to re-congure Lokk-Bolt for left-hand

gates, please read the instructions overleaf entitled

ʻRe-conguring the Lokk-Bolt for Left-Hand Gatesʼ.

Tools required: Electric drill, 5/8”–3/4” (16–19mm)

drill-bit (to suit masonry), 5/32” (4mm) drill-bit (for

pilot holes in thick steel), Phillips No. 2 screwdriver

(hand & powered types), level, pencil.

1. Ensure all gates are level to the nished ground

surface. The Upper Bracket (see right) on the Lokk-Bolt

should be located in the upper “detent” groove.

Locate the Lokk-Bolt on the inside of the gate (house

side), positioning it so the bottom of the bolt rests on

the ground surface (concrete, tiles, stone etc). The

Lokk-Bolt must be held or clamped so that the two

mounting brackets sit rmly against the gate frame.

2. Mark a circle on the ground surface around the

bottom of the stainless steel rod. Drill this hole

5/8”–3/4” (16–19mm) to a suitable depth. (The hole

will need to be larger if a pipe is to be inserted.)

3. Locate the Lokk-Bolt back onto the gate, with

the rod inserted into the hole to the required

depth. The position of the Lower Bracket is

important; it should be as low as possible, but

no further from the Upper Bracket than the

maximum measurements shown in Diagram B

overleaf. Use a pencil to mark inside the slots of

both brackets for the mounting screws, using the

brackets as the templates. Remove the Lokk-

Bolt.

4. The Lokk-Bolt is supplied with self-drilling

screws; use these for xing the product

to the gate. If xing to thick-sectioned

steel gates, drill 5/32” (4mm) pilot holes

through the center of the marked slots. For

wooden gates, consult your local hardware

expert to obtain appropriate wood screws.

5. Insert the four Dress Caps supplied into the screw slots.

The Lokk-Bolt is now ready for use.

UPPER

BRACKET

LOWER

BRACKET

Rod

Dress

Caps

DIAGRAM A

Upper

Detent

Groove

(obscured)

Hole depth recommended to be

minimum of 1.1/4” (30mm)

DB000000018PA •Inst_LokkBolt (10/1/07)

MAINTENANCE: Keep Lokk-Bolt rod clean. Lubricate the Lokk-Bolt using only graphite powder. DO NOT use oil or grease.

WARRANTY & LIMITATION OF LIABILITY

D&D Technologies’ (“D&D”) products are warranted to be free of defects in materials and workmanship to the original purchaser for

as long as he/she owns the product. This product will operate properly, and warranty is valid, only if installed in accordance with the

instructions and speciﬁcations shown. If a structural defect appears, the original purchaser may return the item, freight prepaid, to-

gether with proof of purchase to D&D or its approved international agents. D&D or its agent will, at their discretion, repair or replace

the defective item or part without charge to the purchaser. THIS WARRANTY SHALL NOT APPLY WHEN the product has been tampered

with, when repairs or attempted repairs have been made by unauthorized persons, where the item has been subjected to misuse,

abuse, accident or damage in transit, or where the installer has not followed the instructions set out during installation, operations, or

Maintenance Requirements. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. No

warranty is given other than that set out above. No other express or implied warranties (including statutory warranties) apply, other

than warranties which may not be legally excluded.

FITTING INSTRUCTIONS CONTINUED…

DB000000018PA •Inst_LokkBolt (10/1/07)

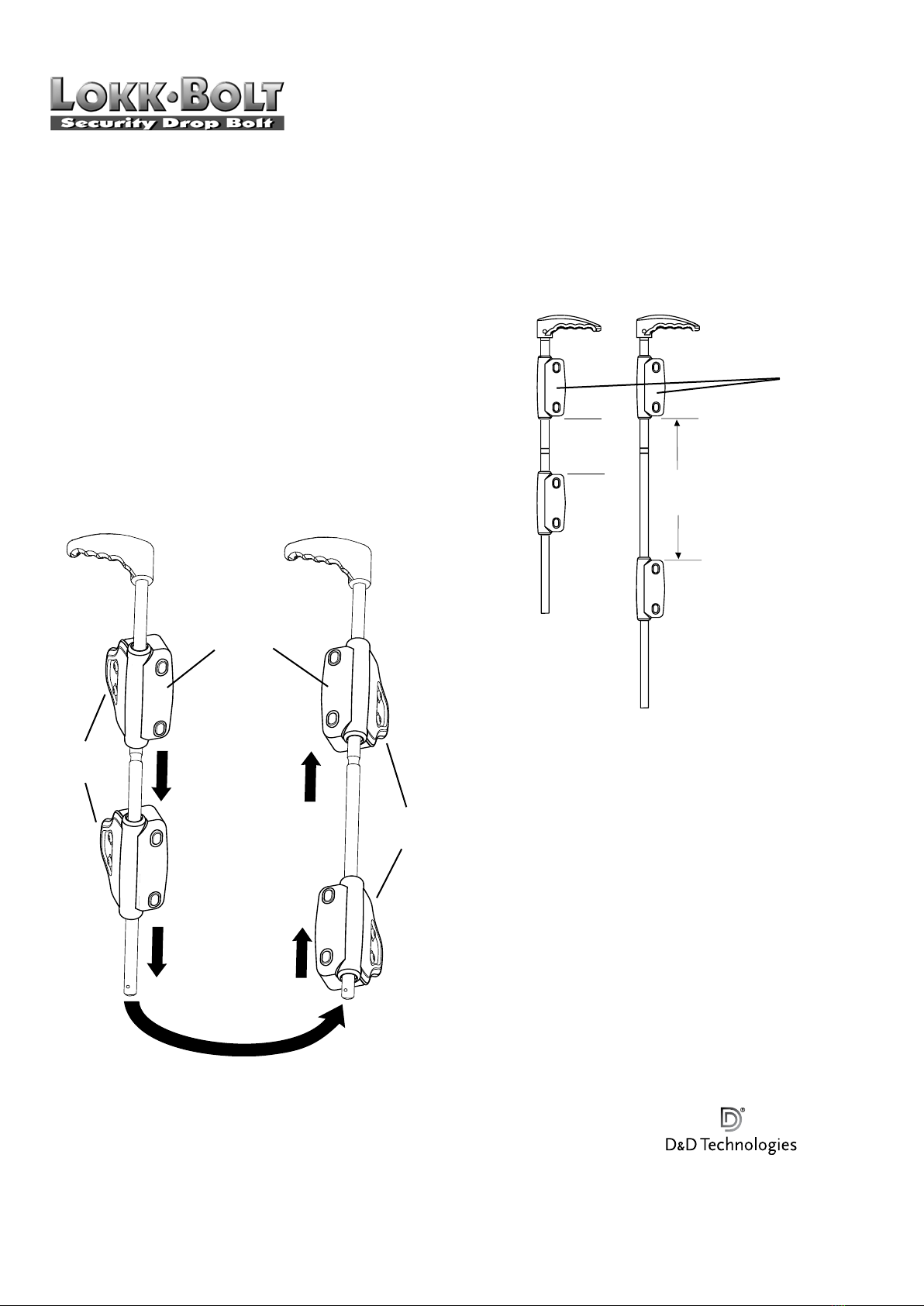

Re-conﬁguring the Lokk-Bolt for Left-Hand Gates

1) Drive the Pin out of the lower end of the stainless steel rod.

Place the Pin in a safe place.

2) Slide the Lower and Upper Brackets off the rod…BUT

remember which of the brackets is the Upper Bracket.

3) Flip over the two Brackets (i.e. rotate them end over end)

and slide them back onto the rod – ensuring that the Upper

Bracket slides onto the rod ﬁrst (as it carries a detent clip within

its housing). The Upper Bracket will meet resistance when it

reaches each of the detent grooves on the rod; simply push it

through the ﬁrst groove and into the second (upper) groove.

4) Insert the Pin back into the end of the rod. Ensure at least

1/16” (nearly 2mm) of the pin is left protruding to prevent the

Brackets sliding off the bolt.

(230mm)

Maximum

3.1/8"

(80mm)

Maximum

21"

(530mm)

Maximum

18"

model

24"

model

36"

model

DIAGRAM B

When the two Brackets

(left) have been

removed, ipped and

re-inserted onto the

rod, the Side-Fixing

Legs will go from

being on the left-hand

side of the Lokk-Bolt

to the right-hand side.

Side-Fixing

Legs

Side-Fixing

Legs

UPPER

BRACKET

Upper

Bracket

www.ddtechglobal.com

USA: 7731 Woodwind Drive, Huntington Beach, CA 92647

AUSTRALIA: U6, 4-6 Aquatic Drive, Frenchs Forest NSW 2086

EUROPE: Vondellaan 58, 3521 GH Utrecht, Pays-Bas

DIAGRAM C
