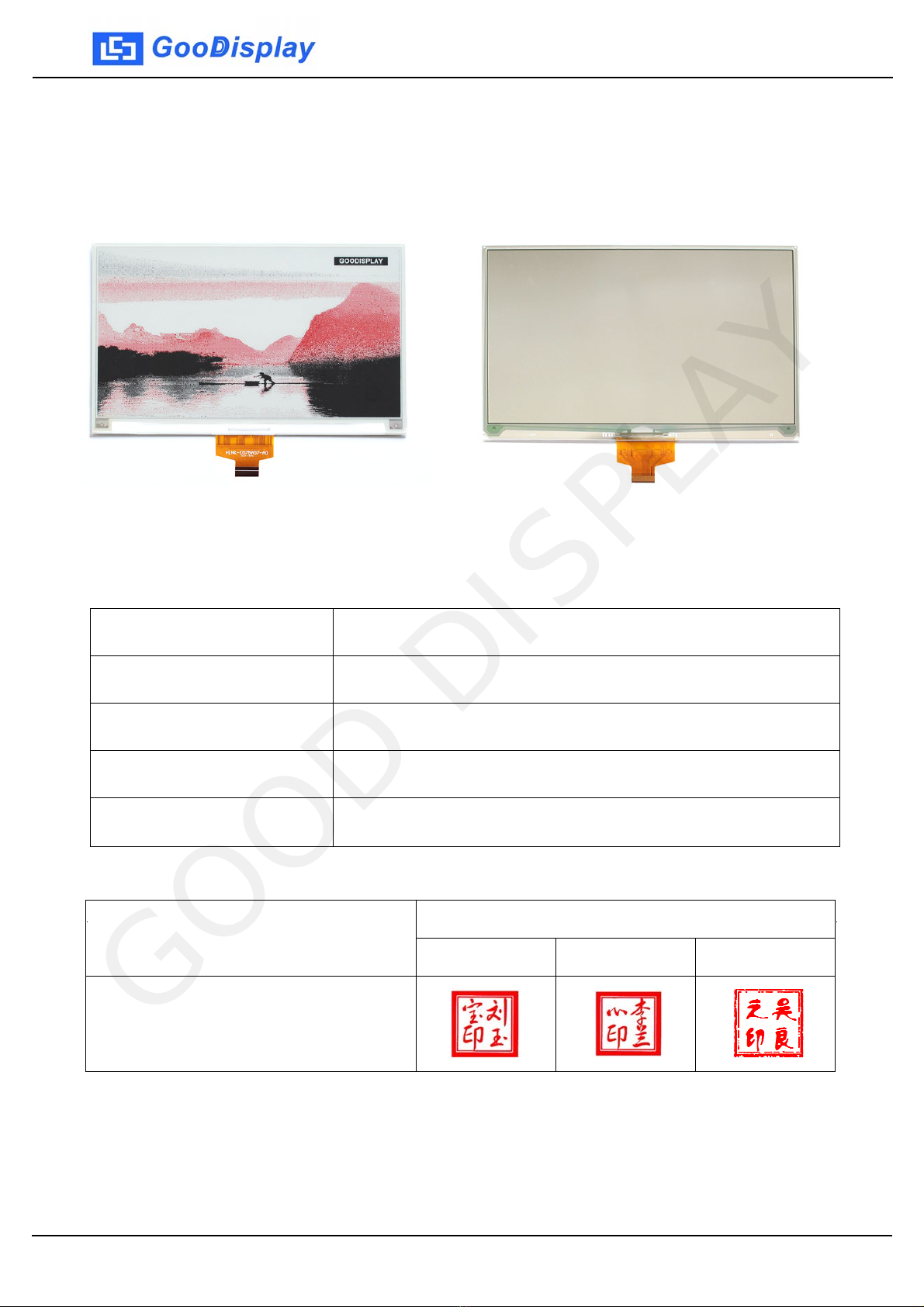

DALIAN GOODDISPLAY CO. E-paper Series Manuel utilisateur
7.5 inch
E-paper Display Series
GDEH075Z90
Dalian Good Display Co., Ltd.
GOOD DISPLAY
Product Specifications
Customer Standard
Description 7.5” E-PAPER DISPLAY
Model Name GDEH075Z90
Date 2020/05/25
Revision 1.2
Design Engineering
Approval Check Design
Zhongnan Building, No.18, Zhonghua West ST,Ganjingzi DST,Dalian,CHINA
Tel: +86-411-84619565 Fax: +86-411-84619585-810
Email: [email protected]
Website: www.good-display.com
GDEH075Z90
2／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
Table of Contents
1. General Description....................................................
1.1 Overview............................................................
1.2 Feature ..............................................................
1.3 Mechanical Specification........................................
1.4 Mechanical Drawing of EPD module .......................
1.5 Input/Output Terminals........................................
1.6 Reference Circuit ................................................
2. Environmental............................................................
2.1 Handling, Safety and Environmental Requirements...
2.2 Reliability test.....................................................
3. Electrical Characteristics .............................................
3.1 Absolute maximum rating.....................................
3.2 DC Characteristics..............................................
3.3 Serial Peripheral Interface Timing .........................
3.4 Power Consumption..............................................
4. Typical Operating Sequence.........................................
4.1 Normal Operation Flow.........................................
5. Command Table.........................................................
6. Optical characteristics.................................................
6.1 Specifications ....................................................
6.2 Definition of contrast ratio...................................
6.3 Reflection Ratio..................................................
7. Point and line standard...............................................
8.Packing.....................................................................
9. Precautions ..............................................................
5
5
5
5
6
7
9
10
11
11
13
14
14
14
15
15
20
20
21
33
33
34
34
35
37
38
1.7 Matched Development Kit .....................................
3.5 MCU Interface..................................................... 16
GDEH075Z90
3／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
Version Content Date Producer
1.0 New release 2019/10/14
GDEH075Z90
4／38
7.5 inch Series
1.1 Updating: 1.6 Reference Circuit 2020/03/30
www.good-display.com
1.2Updating: 1.6 Reference Circuit 2020/05/25
GOOD DISPLAY
1.
General Description
1.1 Overview
GDEH075Z90 is an Active Matrix Electrophoretic Display (AMEPD), with interface and
a reference system design. The 7.5” active area contains528×880 pixels, and has 1-
bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source
buffer, interface, timing control logic, oscillator, DC-DC. SRAM.LUT, VCOM and
border are supplied with each panel.
1.2 Features
● 528×880 pixels display
● High contrast
● High reflectance
● Ultra wide viewing angle
● Ultra low power consumption
● Pure reflective mode
● Bi-stable display
● Commercial temperature range
● Landscape, portrait modes
● Hard-coat antiglare display surface
● Ultra Low current deep sleep mode
● On chip display RAM
● Low voltage detect for supply voltage
● High voltage ready detect for driving voltage
● Internal temperature sensor
● 10-byte OTP space for module identification
● Waveform stored in On-chip OTP
● Serial peripheral interface available
● On-chip oscillator
● On-chip booster and regulator control for generating VCOM, Gate and Source
driving voltage
● I2C signal master interface to read external temperature sensor/built-in
temperature sensor
1.3 Mechanical Specifications
Parameter Specifications Unit Remark
Screen Size 7.5 Inch
Display Resolution 880(V)×528(H) Pixel Dpi:137
Active Area 163.24(H)×97.94(V) mm
Pixel Pitch 0.1855×0.1855 mm
Pixel Configuration Rectangle
Outline Dimension 170.2(H)×111.2 (V) ×1.25(D) mm
Weight 31±0.2 g
GDEH075Z90
5／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
R二V.
HSF
FRONT VIEW SIDE VIEW BOTTOM VIEW
8v "
E
＊一
l·o廿oz"]云0
1 ·
o廿v6 "
l6 l *
05 + 0. 1
NOTES:
1.
DISPALY MODE 7. 5" ARREY FOR EPD;
2.
DRIVE IC: SSD1677
3.
RESOLUTION:528gate X 880source;
4.
pixel size:O. 1855mm X 0. 1855mm;
5.
Unspecified Tolerance:
士
0.20;
6.
Material conform to the ROHS standard
7. * as the focus control si
在
+
妇
DALIAN GOOD DISPLAY CO., LTD
ALL UNITS: mm
DWN:
CHK:
APP:
DATE
2019.10.14
MODEL NUMBER :
GDEH75Z90
1.4 Mechanical Drawing of EPD module
GDEH075Z90
6／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
1.5 Input/Output Terminals
Pin # Single Description Remark
1 NC No connection and do not connect with other NC pins Keep Open
2 GDR N-Channel MOSFET Gate Drive Control
3 RESE Current Sense Input for the Control Loop
4 NC No connection and do not connect with other NC pins e
Keep Open
5 VSH2 Positive Source driving voltage
6 TSCL I2C Interface to digital temperature sensor Clock pin
7 TSDA I2C Interface to digital temperature sensor Date pin
8 BS1 Bus selection pin Note 1.5-5
9 BUSY Busy state output pin Note 1.5-4
10 RES # Reset Note 1.5-3
11 D/C # Data /Command control pin Note 1.5-2
12 CS # Chip Select input pin Note 1.5-1
13 SCL serial clock pin (SPI)
14 SDA serial data pin (SPI)
15 VDDIO Power for interface logic pins
16 VCI Power Supply pin for the chip
17 VSS Ground
18 VDD Core logic power pin
19 VPP Power Supply for OTP Programming
20 VSH1 Positive Source driving voltage
21 VGH
Power Supply pin for Positive Gate driving voltage and
VSH
22 VSL Negative Source driving voltage
23 VGL Power Supply pin for Negative Gate driving voltage,
VCOM and VSL
24 VCOM VCOM driving voltage
GDEH075Z90
7／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
Note 1.5-1: This pin (CS#) is the chip select input connecting to the MCU. The chip
is enabled for MCU communication: only when CS# is pulled LOW.
Note 1.5-2: This pin (D/C#) is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH,
the data will be interpreted as data. When the pin is pulled LOW, the data will be
interpreted as command.
Note 1.5-3: This pin (RES#) is reset signal input. The Reset is active low.
Note 1.5-4: This pin (BUSY) is Busy state output pin. When Busy is High the
operation of chip should not be interrupted and any commands should not be issued
to the module. The driver IC will put Busy pin High when the
driver IC is working such as:
- Outputting display waveform; or
- Communicating with digital temperature sensor
Note 1.5-5: This pin (BS1) is for 3-line SPI or 4-line SPI selection. When it is “Low”,
4-line SPI is selected. When it is “High”, 3-line SPI (9 bits SPI) is selected.
GDEH075Z90
8／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
1.6Reference Circuit
GDEH075Z90
9／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
1.7Matched Development Kit
Our Development Kit designed for SPI E-paper Display aims to help users to
learn how to use E-paper Display more easily. It can refresh black-white E-
paper Display and three-color (black, white and red/Yellow) Good Display ‘s E-
paper Display. And it is also added the functions of USB serial port, Raspberry
Pi and LED indicator light ect.
DESPI Development Kit consists of the development board and the pinboard.
More details about the Development Kit, please click to the following link:
http://www.e-paper-display.com/products_detail/productId=402.html
GDEH075Z90
10／38
7.5 inch Series
www.good-display.com
GOOD DISPLAY
