UsersManual

DMAgCam®

PartNumber:DMAC‐9M‐C1(2)



Contents:Page

1. IncludedComponents.....................................2

2. StandardFeatures

a. Camera................................................3

b. Monitor................................................3

c. Cables..................................................3

3. Installation&Mounting

a. CameraInstallation&Mounting.........4

b. CableInstallation&Mounting............4‐5

c. MonitorInstallation&Mounting........5‐7

4. Monitor&RemoteOperation.........................7‐8

5. StandardMenuSettings..................................8‐9

6. DigitalVideoTunerSettings............................9‐11

7. HiddenMenuSettings.....................................11‐12

8. Specifications...................................................13

9. Warranty..........................................................14

10. Warnings..........................................................15

11. DealerInformation..........................................16



Alwaysreadthemanualspriortooperatingthisequipment.

Pleasefollowallsafetysignsandprecautions.



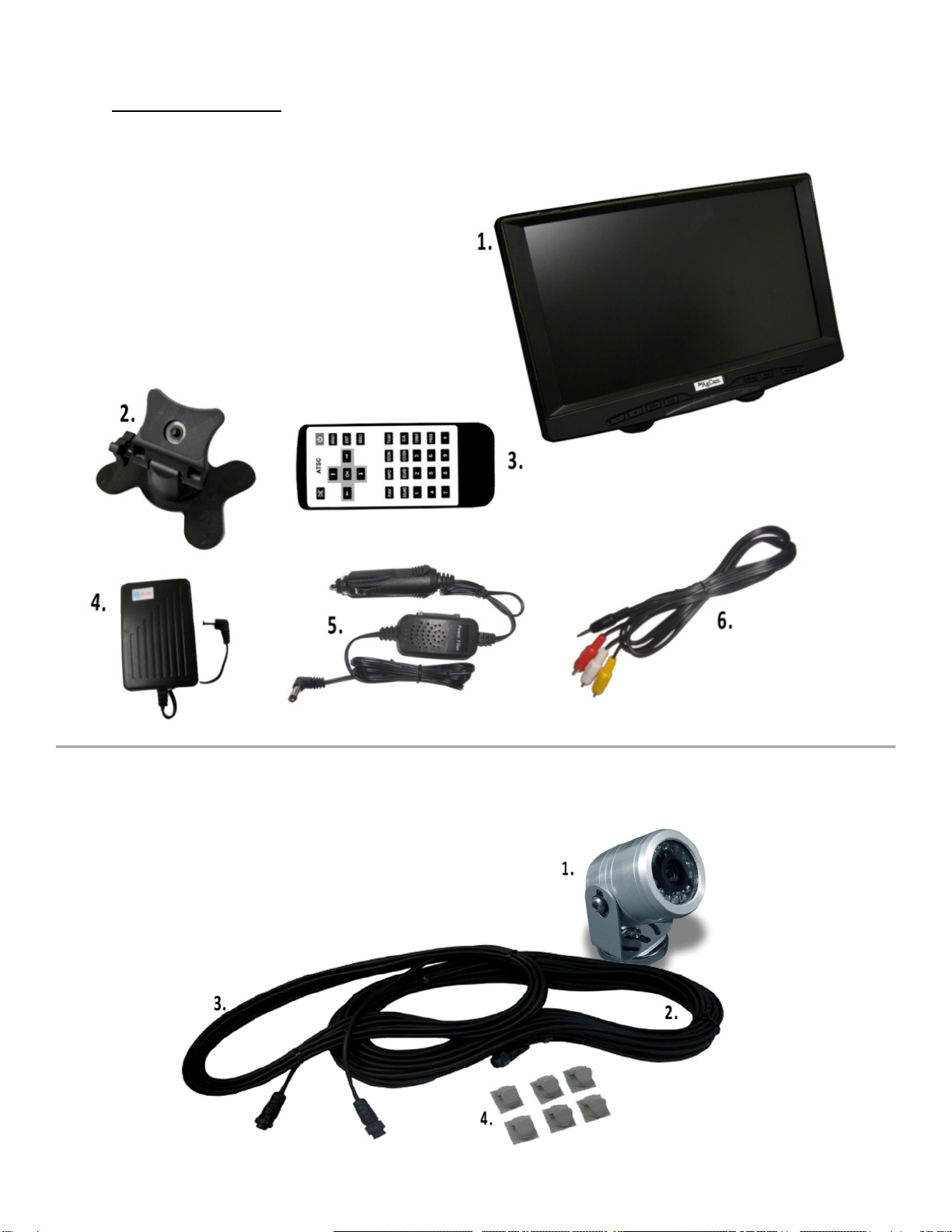

1. IncludedComponents



MonitorKitContents:

1.Monitor

2.MonitorBase

3.MonitorRemote

4.A/Cpoweradaptor(stylemayvary)

5.12v/Hardwirekit

6.A/VIn‐OutCable

7.Misc.Accessories(notshown)



CameraKitContents:

1.Cameraw/bracket&magneticbase

2.60’Cable

3.20’Cable

4.Cableclips







ThankyouforpurchasingtheDMAgCam®.TheAgCam®isadurable,reliablesurveillancesystemwiththe

innovativeabilitytobequicklymovedfromoneapplicationtothenext.



2. StandardFeatures

a. Camera

•Waterproof,shockproof,suitablefornearlyanyuse.

•Minimumfocaldistanceof5”.

•Built‐in,highqualityCCDcamerawithhighperformanceinfrared(IR)illuminatormodules.

•IRhaseffectiverangeofupto35’incompletedarkness

•In‐lineconditionerandsurgesuppressorpreventsover/underpoweringofunit,preventing

damage.

•Built‐inCDSlight‐sourcesensorcanautomaticallyturnon/offtheIR’sbydetectingthelight

intensityoftheenvironment.

•OurexclusivePhotograycamerabodylensdarkensinbrightconditionsandbecomescompletely

transparentunderlowlightconditions.Thislensisalsotransparentofinfraredlight,allowingthe

LED’stopenetrateevenwhenitisdarkened.

•Standardlensfeatures92°fieldofview(3.6mm).

•Optionallensesavailableinclude:6mm,12mm&16mm.(Acompletelensguideisavailableon

ourwebsiteatwww.AgCam.com).

b. Monitors

•FeaturesthelatestinLCDtechnology.TFTor“ThinFilmTransistor”allowsforalargerdegreeof

viewing.

•Color,brightness,contrastandvolumecontrolsthatallowcompensationforuseindifferent

environments.

•Selectableaudiovideoinputs.(Allmonitorscomeequippedwithtwo(2)videoinputs.However,

onlytheonemarkedwithawhitebandiscapableofaudio).

•BuiltindigitalTVtuner.

•Remotecontrol.

c. Cables

•Siliconejacketenableshighflexibilityinalltemperatures

•Ourdurableextensioncablescomein20’and60’standardlengthsandfeaturesturdy,

watertightconnectors.

•Customvideocableslengthsof10’,40’and50’aswellas60’audioenabledcablesareavailable.





3. Installation

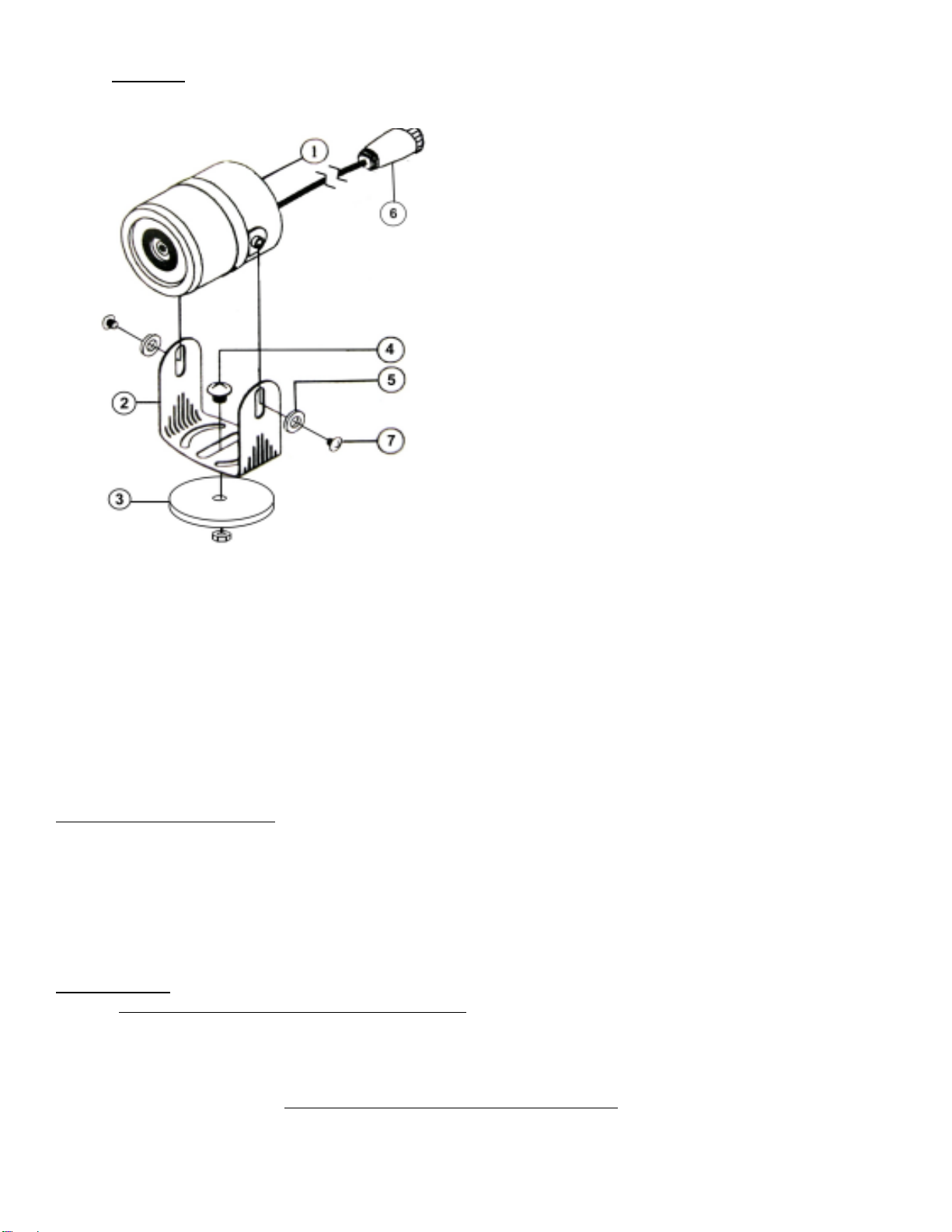

a. CameraInstallation&Mounting



1. CameraBody

2. MountingBracket

3. MagneticBase

4. RetainingScrew

5. FiberWasher

6. Power/VideoInput

7. BracketScrew



TemporaryMount:

Fortemporarymounting,itisrecommendedthatyouusethesupplied#25pullmagnet.Ifusingmagneticmount,fasten

cameracablewithaziptieorotherstylefastener.Thiswillactasa“safetywire”intheeventyourcameraisknockedloose

forsomereason.Whenselectingalocation,makesurethattheequipmentsurfaceiscleanofallforeignmaterialandasflat

aspossibletoensurethatthemagneticcamerabasewillhavegoodcontactandnotvibrateoff.



PermanentMount:

Forpermanentmounting,itisrecommendedthatyouremovethemagnetandattachtoanysolidsurfacewithtwo(2)

screws.



Aftercameraissecurelymounted,plugPower/VideoInput(6inabovediagram)intoAgCam®extensionpower/videocable.Make

suretheyaresecurelyattachedandlocked(¼turnwilllockthecablestogether).



SuggestionsforMountingCamera:

Whendeterminingthelocationforthecameraitisalwaysbesttouseasolidsurfacetominimizevibration.Laddersarenotgood

mountingchoicesduetolackofstability.



IfyouwillbeusingyourAgCam®forassistinginvisibilityforimplement/vehicletowing,youwillwanttopositionthecamerasoyou

canseethedesiredareaandaportionofthevehicleintow,thiswillgiveyousomereferencetodistance.Youwillalsowanttouse

themirroredsettinginthemonitormenusoastoaccuratelyrepresentleftandright(thiswillgiveyoutheeffectoflookinginarear

viewmirror).



CameraWarnings

•NEVERRELYONYOURAGCAM®ASASAFETYFEATURE.Itisuptoyourdiscretiontokeepyourroadtravelandother

operationssafe.YourAgCam®willprovideyouwithinformationonlybasedonwhatitsees.Operationofmachinerysafety

guidelinesstillapply.

•TheAgCam®isequippedwithanarrayofinfraredlightemitterswhichareinvisibletothehumaneye.Thisfeaturewillaid

inlowlightconditionsbuthaslimitations.Theeffectiverangeofthenightvisionfeatureis1to40feetandwillproducea

monochromeimageonly.Donotattempttodrivemachineryusingthisfeature



b. CableInstallation&Mounting

Thereare2lengthsofcablewithyourcamerasystem:One(1)20’andone(1)60’.The20’cableistobeusedtoroutefromthecab

tothehitchofyourtractor.The60’canbeusedtorunfromthehitchendoftheimplement(airseederforexample)tothecamera

mountinglocation.Thiswillallowforeasyseparationofthetractorandimplementwithouthavingtoremovethecamera.Ifthe

cameraistobeusedonatruckorothervehicle,the20’orthe60’cablemaybesufficient.Therefore,extracablewillnotbeneeded.

Ifyouwouldliketopurchasedifferentoradditionalcablelengths,pleasecontactyourdealerwhereyoupurchasedyourAgCam®.



CableWarnings

•Cableroutingisimportant.Whereyouchosetorunthecablesshouldnotinterferewiththenormaloperationofthe

machineoranysafetyequipment.

•ALWAYSbeawareofany“pinchpoints”orotherpotentialhazardstothecable.

•Secureallcablestovehicle/equipmentusingincludedcableclips,ziptiesorotherstylefastener.

•IfyouintendtouseyourAgCam®forshortlengthPTOoperatedimplement,avoidexcesscablelengthsifpossible.When

youdecideonalocationyoushouldfixthecameratoapermanentbracketusing¼inchbolts,andattachanyloosecable

securelysothereisnochanceofentanglementinthePTOorothermovingparts.

•IfyouuseyourAgCam®tomonitoracombinehopperorothercombineoperations,takecaretorememberthatcombines

havemanymovingparts.Useextremecarewhenroutingcables,anditisstronglyrecommendedthatyouuseboltsto

securethecamera.Whileitwouldbesufficienttousethemagneticbaseformonitoringpurposesduringroadtravel,itis

advisedtosecurethecamerawithboltsduringoperationofthecombine.



c. MonitorInstallation&Mounting

Mounting:

Removeyourmonitorcarefullyfrompackaging,andinspectallmountinghardware.Mountinglocationisthemostimportantpartof

themonitorinstallationtoensuremaximumvisualbenefitfromyourAgCam®system.

Keepinmind:

•Leastdirectsunlight.Keepingyourmonitoroutofdirectsunlightwillprolongthelifeoftheunitaswellasensureoptimum

visibility

•Doesnotobstructyourview

•Doesnotinterferewiththenormaloperationofvehicle



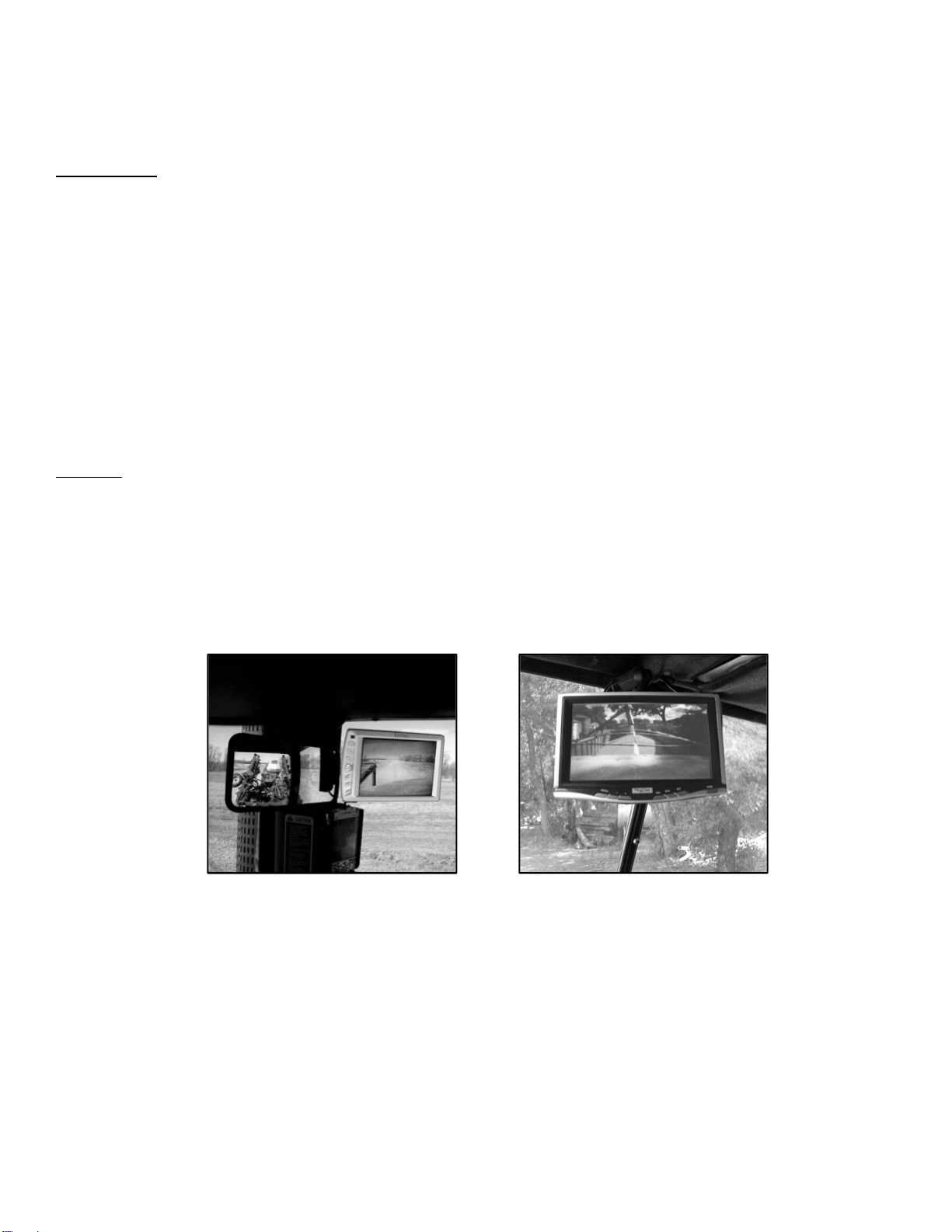

Examples:

  

Tractorw/airseederintow GrainTruck



Drymountthemonitortotheincludeduniversalmountingbracketby:

1. Slidingthesquaremountingstudontopofmountingbracketintotheslotonbackofthemonitor.

2. Tightennutbyturningtheknobonthebackofmountingbracketclockwise.(Optionalstylemonitorbracketsareavailable:

suctioncupstyleandhardmount.Bothofthesestylebracketshaveasquaremountingstudaswell).



Onceyouhaveattachedthemonitortothemountingbracket,followthesestepstofinalizetheinstallation.

1. Withthemountandmonitorattached,findandmarkthedesiredpositionforthemonitor.

2. Removethemonitorfromthemount.

3. Thoroughlycleantheintendedmountinglocationwithalcoholprepwipeorothernon‐oilbasedcleaner.

4. Removethepaperbackingfromthestandandpressfirmlyindesiredlocation.

5. Ifmountinginotherthanaflat,levellocation,usesmallscrewsinthefourcornersofthemountingbrackettopermanently

secure.

6. DONOTexpectthattheadhesivewillholdupyourmonitor(i.e.ontheceilingorsidepostofacab),itisONLYintended

toholdthebracketdown.

7. Attachthemonitortothemountandtightenthewingnut.



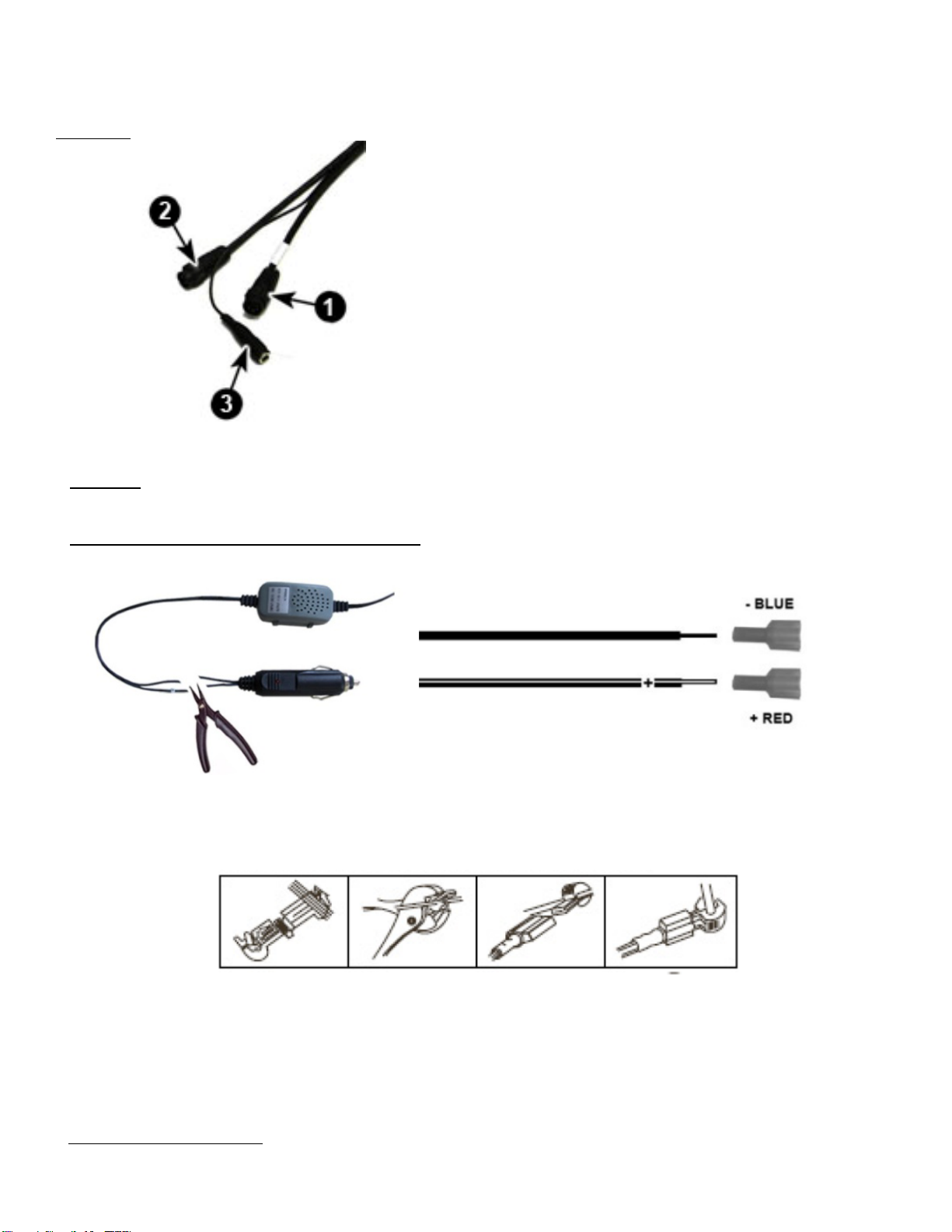

Installation:



1) AV1‐Audio/VideoInput

2) AV2–VideoInput

3) PowerInput



Onlythecablemarkedwithwhite

bandisaudioenabled.



Power:

12vPower:

1. AttachthePowerInputconnector(3above)toyourincluded12vcigarettelighteradaptor

2. Plugcigarettelighteradaptorinto12vpowersource

HardwirePower(7.5ampmaximumcircuitcapability):

1. Clipoff12vadaptorRIGHTABOVEthecigarettelighteradaptor.



2. Split+(withstripe)and–(black)wires

3. Stripbothwirestoexposeapprox.½”barewire

4. Insert+(withstripe)intoREDmaleScotchlokandcrimp

5. Insert–(blackwire)intoBLUEmaleScotchlokandcrimp

6. Attachcorresponding+(RED)/‐(BLUE)femaletapto+/‐keyswitched,max7.5ampfusedcircuit.





*Thereisasmallglassfuselocatedinsideofthetipofthe12vportionofthepoweradaptor.Whenreplacingblownfuses,usea

MAX4ampglassfuse.



Video:

YoucannowplugyourmonitorA/Vinput(s)intoeitheryourroutedAgCam®cable(s)orcamera(s).Makesuretheyaresecurely

attachedandlocked.



4.Monitor&RemoteOperation

Turnthemonitorononlyafterithasbeensecurelymounted,suppliedwithpower,andthecamerasareconnected



1. Antenna

2. EarphonesIn

3. A/V1In.ForusewithAVIn‐Outcable.NOTE:This

inputoverrideexternalAV1port

4. A/V2In.ForusewithAVIn‐Outcable.NOTE:This

inputoverrideexternalAV2port

5. A/VOut.Allowsforoutputofvideosignalto

externaldevice.

6. –=volumedown&menuoptions

7. +=volumeup&menuoptions

8. CH‐=Channeldown&menuoptions

9. CH+=Channelup&menuoptions

10. MENU=enablesmonitormenuaccess

11. A/V=allowsforAudio/Videochannelselection

12. POWER=PowerON/OFF

13. Onlythecablemarkedwithwhitebandisaudio

enabled.







 



Mute

PowerON/OFF

MENU1 AllowsaccesstoStandardmenusettings

EXI

Exitsuserfrommenuscreens

MENU2AllowsaccesstoDigitalTunermenu(if

enabled)

OK Allowsentryselection

SwitchesbetweenAV1/AV2/Tuner

FAV Up/Down/Left/Right(allarrows)

INFO ONLY

RETURNSwitchestothelastchannelyouwere

viewing

TV/AV Providesbasicsettinginfo

SOUND Non‐Functional

GUID VolumeAdjust

CC/ON ChannelInfo

C/A CCON/OFF

FORMAT Channel/Antennainputselection

PROG Displaysaspectratiosetting

1‐0AllowschannelProgramming

ChannelSelectionkeys







GettingStarted:

1. Poweronmonitorbypushing“POWER”buttononthefaceofmonitororremote.

2. Ifyoudonotseevideofromyourcamera,pushtheAVbuttononmonitororTV/AVbuttononremote.Repeatedlypushing

theAVbuttonwillcyclethroughthetwovideochannels(andthetwoTVtunerchannelsifenabled).

3. YourmonitorcomesfromthefactorywiththedigitalTVtunerdisabled.Toenablethisfeaturesee“HiddenMenu”pages

11‐12ofthismanual.



5.StandardMenuSettings

PresstheMENUkeyonthemonitororMENU1ontheremote.PressingMENUmultipletimeswillscrollthroughthedifferent

categoriesshownatthetopofthescreen.

1. UseCH‐/CH+onthemonitor(upanddownarrowsonremote)toselectanitemundereachsection.Selectedmenuitems

turnred.

2. Use‐/+onthemonitor(leftandrightarrowsonremote)tochangethevalueofthehighlighteditem.

3. Toexit:

a. PressMENUkeyonthemonitormultipletimestillthemenugoesaway

b. PressEXITontheremote

c. Allowmonitortotimeout(approximately5seconds).



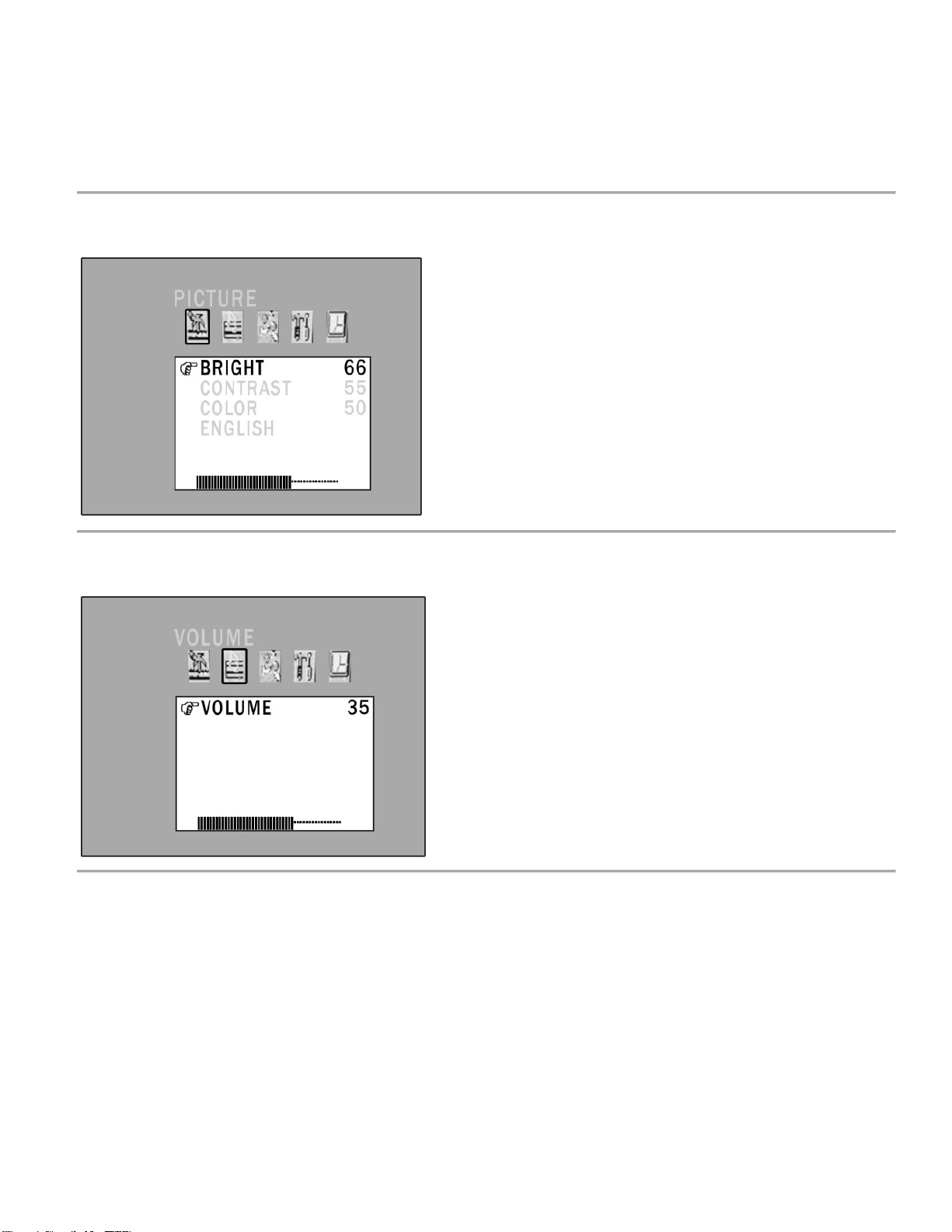

PICTURE



BRIGHT:Adjuststhebrightnessofthe

image



CONTRASTAdjuststhecontrastofthe

image

COLOR:Adjuststhecoloroftheimage

ENGLISH:Selectthemenulanguage

(English,French,orSpanish)



VOLUME



VOLUME:Adjuststhevolumelevel



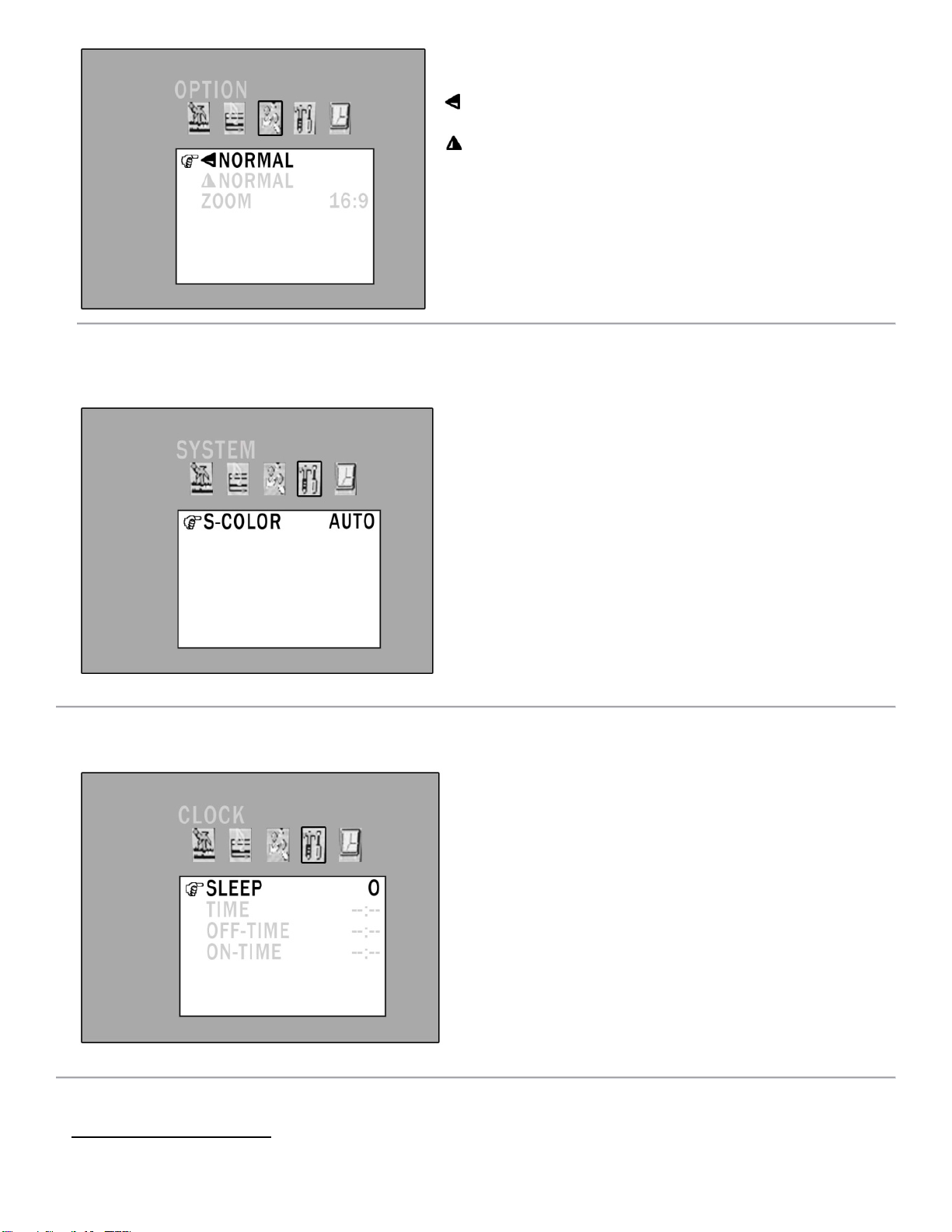

OPTION

Mirrortheimagetopandbottom

Mirrorlefttoright

ZOOM:Adjuststheaspectratioofthe

screen(16:9or4:3)

COLOR:Adjuststhecoloroftheimage



SYSTEM



*S‐COLOR:Adjuststhecolorsystemfor

yourcountry(Auto,PAL,NTSC,orSECAM)

*USonly‐shouldalwaysbeonAutoorNTSC.Anyothersettingmightcausedistortion.



CLOCK



SLEEP:Sethowmanyminutesbeforethe

monitorautomaticallyturnsoff

TIME:Setthecurrenttime

OFF‐TIME:Setthetimeyouwantthe

monitortoautomaticallyturnoff

ON‐TIME:Setthetimeyouwantthe

monitortoautomaticallyturnon



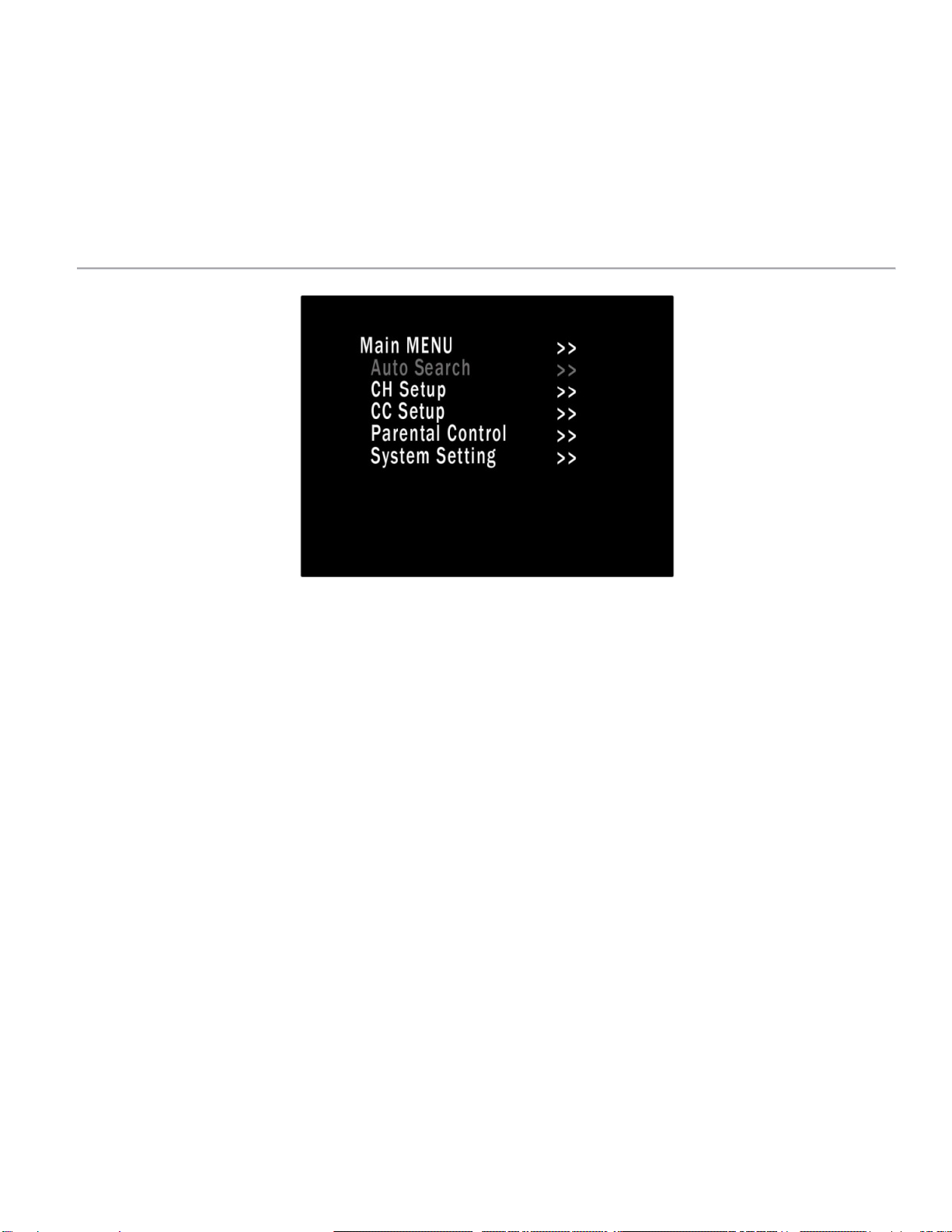

6.DigitalTVTunerMenuSettings

[Thisfeaturewillfirsthavetobeenabledthroughthe“HiddenMenu”.Pleaserefertothe“HiddenMenu”sectiononpage11for

instructions.]



1. ToaccesstheDigitalTunerMenu

a. PresstheA/VbuttononthemonitoruntilyouareinTunermode,thenpresstheMENUbutton

b. ORyoucanpresstheMENU2buttonontheremote,regardlessofthemenuselectiononthemonitor.

2. UseCH‐/CH+onthemonitor(upanddownarrowsonremote)toselectanitem.Theselecteditemturnsgreen.

3. Use‐/+onthemonitor(leftandrightarrowsonremote)toselectthehighlighteditem.

4. Toexitthemenu

a. presstheMENUkeyonthemonitor,EXITorMENU2ontheremoteor

b. letittimeoutonitsownbydoingnothing(approximately25seconds).



AUTOSEARCH–Automaticallyfindsandstoresallthedigitalchannelsavailableinthearea(Includedantennamustbeattached

tomonitor)

•SourceType–Howthetunerreceivesit’ssignal(Antennaorcable)

•StartSearch–Searchesforallavailablechannelsandstorestheminmemory



CHSETUP–Addorremovechannelsinmemory

•Channel–Selectthechannelyouwanttoaddorremove

•Skip–SelectingONwillremovethechannelfrommemorySelectingOFFwillallowthechanneltobeviewed.



CCSETUP–SettingsforClosedCaptioning(CC)

•CCDisplay–TurnCConoroff

•608CCType–Selectthetypeof608CC(C1,C2,C3,C4,T1,T2,T3,orT4)

•708CCType–Selectthetypeof708CC(Service1,2,3,4,5,or6)

•CCMode–UsethebroadcastedCCformatorsetyourownstyle(BroadcastorCustomer)



•Customer–BecomesselectableONLYif“CCMode”issetto“Customer”

oCCSize–Selectthesizeofthelettering(Standard,Large,orSmall)

oCCFont–Selectthefonttypeofthelettering(Font0,1,2,3,4,5,6,or7)

oCCOpacity–SelectthefontOpacity(Solid,Flashing,Trnsl,orTrnsp)

oCCColor–ColoroftheCCletters(White,Red,Green,Blue,Yellow,Magenta,Cyan,orBlack)

oEdgeColor–OutlinecoloroftheCCletters(Black,Gray,Red,Green,Blue,Yellow,Navy,orDarkGray)

oEdgeType–EdgestylefortheCCletters(None,Raised,Depressed,Outline,L.Shadow,orR.Shadow)

oBkgrd.Color–BackgroundcoloroftheCC(Black,Gray,Red,Green,Blue,Yellow,Navy,orDarkGray)

oBkgrd.Opacity–Intensityofthebackgroundcolor(Solid,orTrnsl)



ParentalControl–Setapasswordforthemonitor



SystemSettings–Language,time,andscreensizesettings

•Reset–ResetsONLYthedigitaltunertofactorydefaults

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dakota Micro Accessoires automobiles

Dakota Micro

Dakota Micro OverView DMOV-7M-C2 Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Motorola

Motorola i50sx Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur
