Dakota Alert PIR-4000 Manuel utilisateur
The PIR-4000 transmitter is compatible with all Dakota Alert 4000 series receiv-
ers. The PIR-4000 is designed for indoor applications or outdoor applications in
a protected area such as an eve. When the sensor detects an object it will send a
signal to a receiver which will sound one of the selected tunes for few seconds.
PACKAGE CONTENTS
• PIR
• (1) CR123 A
• Swivel Mount
• Screws (2)
• User Guide
2
SETTING UP YOU IR-4000:
1. Adjust the PIR-4000 Chrome-extension settings.
2. Install (1) CR-123 A battery (included)
3. Program the PIR-4000 to your receiver.
4. Mount your motion detector.
3

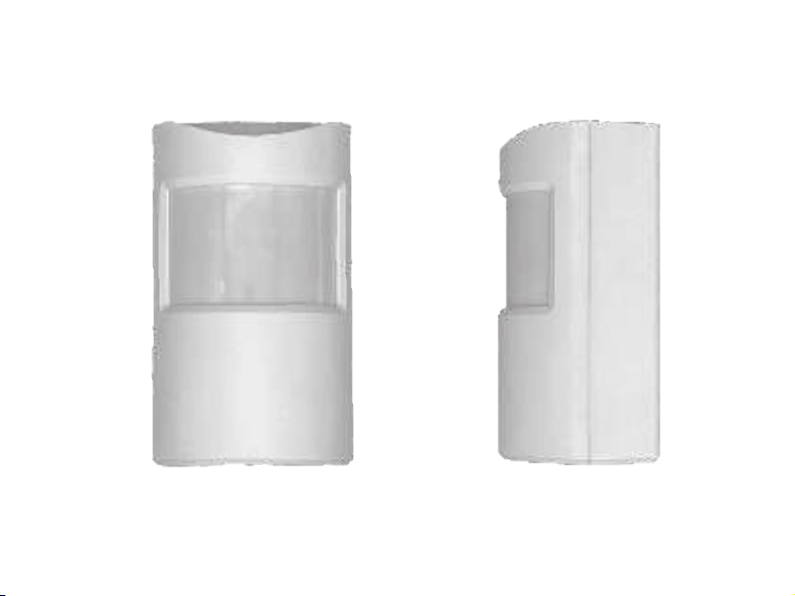

FRONT VIEW SIDE VIEW
4
ADJUSTING MOTION DETECTOR SETTINGS
To adjust your settings, move the jumpers inside the motion detector’s case to
complete a circuit.
1. To open the case, locate the small tab on the
bottom of the case and press with a small at
screwdriver while pulling the lens portion of
the case away from the back portion of the case.
BOTTOM VIEW OF CASE
INSERT FLAT
SCREWDRIVER IN TAB
2. Locate the set of jumpers in the
bottom left hand corner
of the circuit board.
5
3. Gently pull o the jumper for the setting you want to change.
Note: If you can’t move the jumper with your ngers, you can use a tweezers.
4. Gently slide the jumper back onto the pair of jumper pins that corresponds
with the setting you want.
JUMPER SETTINGS
6
• RESET: Changes the minimum time between alarm activations.
OFF
ON
10S
120S
10S (10 Seconds):
Waits 10 seconds before
the alarm activates again
10S
120S
120S (120 Seconds):
Waits 120 seconds before
the alarm activates again
• LED: Turns LEDs on or o
OFF:
For indoor use
ON
OFF
ON:
For outdoor use
ON:
LED lights for 2
seconds when
motion is detected.
OFF:
Turns o LEDs
• FILTER: Changes the sensitivity level of the motion detector to lter out small
movements like leaves moving outside
OFF
ON ON
OFF
7
INSTALLING THE BATTERY
1. Open the case by pressing the small tab at the
bottom of the case with a small screwdriver.
2. Connect a CR-123A battery (included) to the
PIR-4000. Be sure to observe the polarity
(+/-) on the case.
3. Replace the cover Battery
-Negative +Positive
8
Test Button
CODING TO YOUR RECEIVER
1. Refer to the manual for you Dakota Alert 4000 Series
receiver for complete coding instructions.
2. To activate the PIR-4000 either wave your hand over
the sensor or press the test button
NOTE: You can connect up to 16 transmitters to your receiver
9
MOUNTING YOUR PIR-4000
NOTE: For maximum range between the motion detector and receiver, avoid mounting the
sensor on a metal object. Although the maximum range is about one mile, obstructions such as
hills, trees, metal siding and stucco can reduce that range.
1. Select a location to mount the motion detector. For best results mount the sensor on a wall
about 7’ o the ground and pointing down slightly at the area to be monitored. Avoid
pointing towards things that move such as curtains in the wind.
2. Use a drill and the included screws to mount the swivel bracket.
3. Slide the transmitter down onto the bracket.
SPECIFICATIONS
• Power Source: CR-123A lithium battery • Dimensions 3.25” H X 2” W X 1.5” D
• Motion detection range: up to about 40’ • Operating Temperature: -10° to 120° F (-23° to 49° C)
• Wireless Range: Up to 1 mile (1.6 km)* • Operating Frequencies: 433 MHz
*Actual range will vary depending on local terrain and obstructions.
TECH SUPPORT
If you have problems using this product after reading this manual, please contact us. You can reach
us by phone at 605-356-2772 from 8:30 AM to 5:00 PM Monday through Friday (Central Standard
Time). We will be happy to answer you questions and help you in any way we can.
WARRANTY
Dakota Alert warrants this product to be free of defects in materials and workmanship for a period
of one year from the date of purchase. This warranty does not cover damage resulting from
accident, abuse, act of God, or improper operation. If this product does become defective, simply
return it to Dakota Alert. Please include a note describing the troubles along with your name,
address and phone number as well as the original sales receipt. If the product is covered under
warranty it will be repaired or replaced at no charge. If it is not covered under warranty, you
will be notied of any charges before work is done.
