LCD TV

A Wide Array of Screen Settings

You can choose different screen settings depending on the type of program you are

watching or the surrounding conditions (the lighting or the outside weather conditions).

You can switch among the Sport, Movie, Music and Normal options , or you can configure

the screen settings yourself.

A Wide Array of Sound Settings

You can choose an optimal sound setting for the type of program you are watching.

You can switch among the Music, Movie, News and Normal options , or you can configure

the settings yourself.

Favorite Channel Memory

You can store your favorite channels in the order of preference for easy channel selection.

Captions

When you watch a captioned program, you can turn the caption option on to see English

text on the screen. This feature also works with video CDs or videotapes with captions.

NOTICE

If the same pattern is continuously displayed on the Monitor / TV for a long period

of time,it can be the situation when the image “Sticks” to screen.

This apparatus shall not be exposed to dripping or splashing and no object filled

with liquids, such as vases, shall be place on the apparatus.

This symbol is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the

appliance.

WARNING -

To reduce the risk of fire or shock hazard, do not expose the TV to rain or moisture.

CAUTION

WARNING HIGH-VOLTAGE

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

AVERTISSEMENT

RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

TO PREVENT FIRE OR SHOCK HAZARD DO NOT REMOVE COVER.

NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICE QUERIES TO QUALIFIED PERSONNEL.

DO NOT EXPOSE THIS RECEIVER TO RAIN OR MOISTURE.

REMOVE MAINS PLUG FROM WALL SOCKET WHEN NOT IN USE.

CARE SHOULD BE TAKEN WHEN REMOVING BACK CABINET FOR SERVICING,

SUB CHASSIS MAY BE DAMAGED IF ALLOWED TO BECOME UNSUPPORTED.

ENGLISH

Important Safety Instructions

The unit should not be placed in a built-in installation such as

a book-case, limited space rack unless proper ventilation is

provided.

- This may cause fire by overheating or damage the unit by

falling.

Do not use the unit near water, oil or inflammables.

- This may cause a fire.

Do not use a damaged plug and do not let the power cord

touch a heat source.

- This may cause an electric shock or fire.

Place the unit on a flat and stable surface.

- The unit can cause injury or damage the unit by falling.

Do not place any things(vase, stc) on the top of the unit.

- This may cause the damage of the unit by falling.

Do not use the unit in direct sunlight and keep it away from

heaters, stoves, and other sources of heat.

- This may cause a fire.

During storm conditions (especially when there is lighting)

unplug your TV set from the main electrical outlet

and antenna.

Do not connect too many extension cords or plugs to an outlet.

- This may cause a fire.

Do not attempt to service the unit.

Contact an authorized dealer or repair service.

- Servicing the unit yourself may cause an electric shock or fire.

If there are any unusual sounds or smells coming from the unit,

unplug it immediately and contact an authorized

dealer or repair service.

- This may be caused by an electric shock or fire.

Important Safety Instructions

Do not use or store inflammable substances near the unit

- This may cause an explosion or fire.

Place the antenna away from the electric wire, not to touch even though

it falls down by wind.

- This may cause an electric shock.

Be sure to plug in tightly and hold the plug, not the cord when

disconnecting the plug from the wall outlet.

- This may cause a fire.

Unplug the unit from the wall outlet before cleaning. Use a

smooth cloth. Do not use industrial chemicals.

- This may cause an electric shock or fire.

Do not touch the antenna wire and disconnect the plug from

the electrical outlet during storms or lightening.

- This may cause an electric shock or fire.

Place the unit away from the wall for well ventilation.

- This may cause a fire.

Do not touch the plug with wet hands.

- This may cause an electric shock.

If an outside antenna is connected to the unit, do not let the

rain water get into the unit by bending or antenna wire sealing

- This may cause an electric shock or fire.

If the connector between the plug and the pin is dusty or dirty,

clean it. Do not spray detergent directly on the unit.

- This may cause an electric shock or fire.

Disconnect the plug from the outlet if it is not used for a long

period of time.

- This may cause an electric shock or fire.

ENGLISH

Table of Contents

Important Safety Instructions ........................................ 3

Unpacking your TV ..............................................6

Viewing the Control Panels (Front View) .................................. 7

Viewing the Control Panels (Rear View) .................................. 9

Remote Control ................................................10

Inserting Batteries in the Remote Control ................................11

Connecting an Antenna or Cable ......................................11

Connecting to the RCA or S-Video Input (Side AV2) ..........................12

Connecting to the SCART Input ......................................12

Connecting to a DVD or DTV Set-Top Box INPUT (RCA or DVI) ....................13

Connecting the Headphones ........................................14

Connecting the Power Cord and Switching the TV On / Off ......................15

Selecting a Picture from External Sources ................................15

Selecting your Language ..........................................15

Storing Channels in Memory ........................................16

Customizing the Picture ..........................................19

Customizing the Sound ..........................................20

Setting the Date & Time ..........................................21

3D SOUND function ............................................22

Listening to Stereo Sound / Dual Sound ..................................22

Displaying the TV Information ........................................22

PC SET UP ..................................................23

Favourite channel function ..........................................24

Display the Picture in Picture (PIP) ....................................25

Display a Still Image ............................................26

Changing the Picture Size ..........................................27

Noise & OSD Setting ............................................28

Teletext Functions ..............................................28

Displaying the Teletext Information ....................................29

Selecting a Special Teletext Functions ..................................29

Connecting to the PC (DVI) ........................................30

Setting the PC Software ..........................................31

Standard Display Mode ............................................32

Pin Configuration ..............................................33

Troubleshooting ................................................34

Specifications ................................................36

Unpacking your TV

Accessories

Remote Control & Batteries (AAA x 2)

Please make sure the following items are included with your TV set.

If any items are missing, contact your dealer.

Operating Instructions Power Cord

ENGLISH

Viewing the Control Panels

Front View

Right Side

Indicator

Red

Green

Status

Stand-by

Power on

Power Indicator Status

Volume adjustment

Channel selection

Input TV/AV selection

MENU selection

Power

Remote control sensor

LCD - 26”

Viewing the Control Panels

Front View

Bottom Side

Indicator

Red

Green

Status

Stand-by

Power on

Power Indicator Status

123465

MENU selection

Input TV/AV selection

Channel selection

Volume adjustment

Remote control sensor

Power

LCD - 32”

ENGLISH

Rear View

Headphone Jack

AV2 VIDEO Input

AV2 AUDIO Input

AV2 S-VIDEO Input

Right Side

Viewing the Control Panels

Bottom Side

7 8

1 2 3 4 9

10 11

Power Inlet with Switch

DVI Input (PC)

RGB Video Input (PC)

PC Audio Input

COMPONENT1 Video Input (DTV/DVD)

COMPONENT1 Audio Input (DTV/DVD)

COMPONENT2 Video Input (DTV/DVD)

COMPONENT2 Audio Input (DTV/DVD)

EURO-SCART1 Jack

EURO-SCART2 Jack

Antenna Input Jack

LCD - 26” / 32”

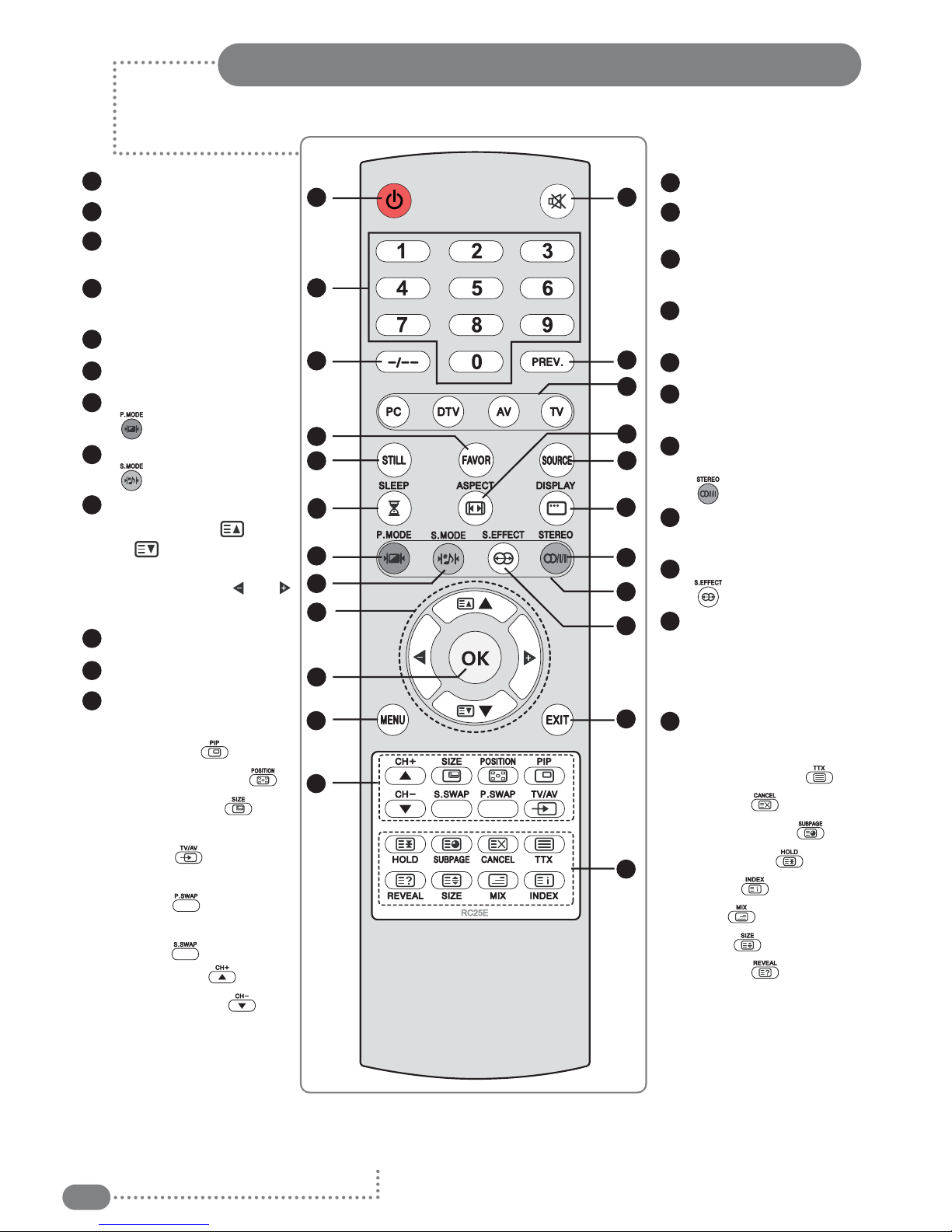

Remote Control

Power On/Off Button

Numeric Buttons

One/Two-Digit Channel

Selection

Favorite Channel Selection

(See page 24)

Picture Still (See page 26)

Sleep Timer (See page 21)

Picture Mode Selection

( ) (See page 19)

Sound Mode Selection

( ) (See page 20)

Control the Cursor in the

OSD Menu ( ) and

( ) (Channel Up /

Down) (Teletext Page Up /

Down, Page 29) and

(Volume Up / Down)

MENU Confirmation

Display OSD Menu

PIP Functions:

(See page 25 ~ 26)

-PIP On/Off ( )

-Position Selection ( )

-Size Selection ( )

-Selecting the Input

Source ( )

-Swapping main and sub

picture ( )

-Swapping main and sub

Sound ( )

-Channel Up ( )

-Channel Down ( )

☛ -

Makes

sure

there

are

objects

between

the

remote

control

and

its

sensor.

Don't

place

the

remote

control

near

heater

damp

place.

strong

blow

the

remote

control

may

cause

not

operate.

Temporary Sound Mute

TV Input Source Selection

(See page 17)

External Source Input

Selection (See page 15)

Picture Size Selection

(See page 27)

Source Input Selection

TV Information Display

(See page 22)

Sound Selection :

Mono/Stereo/Dual Select

( ) (See page 22)

Fastext Functions :

(See page 28)

Sound Effect Selection

( ) (See page 22)

-Exit from the OSD

-Display the current time

when the OSD is off

(See page 21)

Functions :

(See page 29)

-Teletext On/Off ( )

-Cancel ( )

-Sub Page On ( )

-Page Hold ( )

-Index ( )

-Mix ( )

-Size ( )

-Reveal ( )
