INSTALLATION MANUAL

Daikin Altherma

heat pump convector options

DAIKIN EUROPE N.V.

We would first of all like to thank you for having chosen one of our products.

We are sure you will be happy with it because it represents the state of the art in the technology of

home air conditioning.

By following the suggestions contained in this manual, the product you have purchased will operate

without problems, giving you optimum room temperatures with minimum energy costs.

The pictograms in the next chapter provide the necessary

information for correct, safe use of the appliance in a rapid,

unmistakable way.

Symbols

User

Refers to pages containing instructions or information for

the user.

Installer

Refers to pages containing instructions or information for

the installer.

Service

Refers to pages containing instructions or information for

the CUSTOMER TECHNICAL ASSISTANCE SERVICE

installer.

Editorial pictograms

Safety pictograms

Warning

The operation described may cause physical harm if not

carried out in accordance with safety regulations.

Dangerous electrical current

Make personnel aware that the operation described may

lead to electrical shocks if not carried out in accordance

with safety regulations.

High temperature danger

Of safety regulations, the risk of burns caused by contact

with components with high temperatures.

Prohibition

Refers to prohibited actions.

1 GENERAL

1.1 General warnings ............................................................................4

2 EKRTCTRL1

2.1 Assembly, set-up and connection of on-board control panels ...........................................5

2.2 Assembly ..................................................................................5

2.3 Set-up of auxiliary dip-switch functions B and C ......................................................6

2.4 CP presence contact input connection (only for EKRTCTRL1)............................................6

2.5 Air temperature probe assembly (only for model EKRTCTRL1)............................................7

2.6 EKRTCTRL1 connections ......................................................................8

3 EKWHCTRL0

3.1 Continuous modulation circuit board for connecting remote thermostat .....................................9

3.2 LED Indications (Ref. A) ........................................................................9

3.3 EKWHCTRL0 connections ....................................................................10

4 EKWHCTRL1

4.1 Wall-mounted remote control panel assembly EKWHCTRL1 ............................................11

4.2 Spring-loaded terminal connections -AB+ and CP ...................................................12

4.3 CP occupancy contact input connection ..........................................................12

4.4 EKWHCTRL1 Connections ....................................................................13

5 EKRTCTRL2

5.1 Assembly and connections for on-board control panel EKRTCTRL2 ......................................14

5.2 Assembly .................................................................................14

5.3 Air temperature probe assembly ................................................................15

5.4 EKRTCTRL2 Connections .....................................................................15

6 SETUP MENU FOR EKRTCTRL1 - EKWHCTRL1 - EKRTCTRL2

6.1 Setup menu ...............................................................................16

7 EKPCBO

7.1 Assembly and connections for on-board control panel EKPCBO.........................................19

7.2 Assembly .................................................................................19

7.3 EKPCBO Connections .......................................................................20

7.4 Warnings table .............................................................................20

8 VERSIONS WITH CONNECTIONS ON THE RIGH

8.1 Motor connection in versions with hydraulic connections on the right EKREPLH..............................21

1.1 General warnings

- This instruction is an integral part of the booklet of

the appliance on which the kit is installed. Please consult

this booklet for general warnings and fundamental safety

rules.

- This manual is designed only for the qualified

and authorised installation technician, who must be

sufficiently trained and in possession of all psycho-

physical requirements as per the law.

- All operations must be carried out with care and

according to best practices, and in compliance with

workplace safety regulations.

- After unpacking, check that the contents are intact

and that all parts are included. If not, contact the agent

who sold the appliance to you.

- It is forbidden to modify the safety or adjustment

devices without authorisation from and indications of the

manufacturer.

- It is forbidden to dispose of, or leave in the reach of

children, the packaging materials which could become

a source of danger.

- Repairs or maintenance must be performed by the

Technical Assistance Service or by qualified personnel

in accordance with this manual. Do not modify or tamper

with the appliance as this could create dangerous

situations and the manufacturer will not be liable for any

damage caused.

GENERAL

2.1

2.2

Assembly, set-up and connection of on-board control panels

Assembly

The controllers have two independent clean contacts for

controlling a refrigerator unit, a boiler and a presence input.

The 2 tube versions have a 230V output to power the

summer and winter solenoid valve.

The 10 kΩ water temperature probe positioned in the

compartment on the battery regulations the minimum level

when heating (30°C) and the maximum level when cooling

(20°C).

The board also has a function when there is no water

probe, in such cases the fan stop thresholds are ignored.

Slide the control panel into its housing in the upper part

of the device and fix it with the two fixing screws (ref. A).

To install the connection box:

- open the box (ref. B);

- lock the lower tooth into its hole (ref. C) on the side of

the device;

- hook the upper part of the box to the side (ref. D);

- fix it with the two fixing screws (ref. E);

- connect the grounding cable to the fan coil body (ref. M)

using the fixing screws (the minimum force that must be

applied for tightening screws must be around 2N);

- connect the fast connector of the MOTOR to the other

on the board (ref. I) *;

- on the two GRID block terminals (ref. L) there is a

bridge that allows the FWXM-series to work without a

microswitch.

- For other versions, remove the bridge and connect the

two terminals originating on the grill safety microswitch*;

- connect the water probe to the H2 connector on the

device.

The water temperature probe controls the temperature

inside the batteries and determines when the fan starts

according to pre-set parameters (minimum operation

in winder and maximum in summer).** Check that

they are correctly inserted into the compartment on

the battery.

- Connect the electrics, tidy cables and fix them with

the three clevises supplied (ref. G);

- close the box with the 4 screws (ref. H);

- refit the vanity plate on the side of the unit;

- tighten the upper screws on the control panel;

- place the screw head covers in their housing on the

control panel;

* For versions with hydraulic connections on the right,

refer to the relevant paragraph

** The regulation also works without a water probe

connected

EKRTCTRL1

EV1

EV2

H4 H2 AIR

COMM

ASCII

RTU

MOTOR

GRIDGRIDCP

CHILLER BOILER

LED

2.3

2.4

There are two dip switches on the controller circuit board

for configuring unit operation as per requirements.

- The night-time heating operation logic is modified by

using dip switch C:

- in the ON position, the fan is always off, and heats the

room using radiation and natural convection, as with

traditional radiators; in the off position it operates as a

normal fan.

- By positioning dip switch B to ON, when cooling, the

fan operates at the minimum speed even after having

reached the set point, to allow for more uniform

operation of the temperature probe and to avoid

layering in the air. With the cursor in the OFF position,

the functions are cycled (4 minutes ON, 10 minutes

OFF).

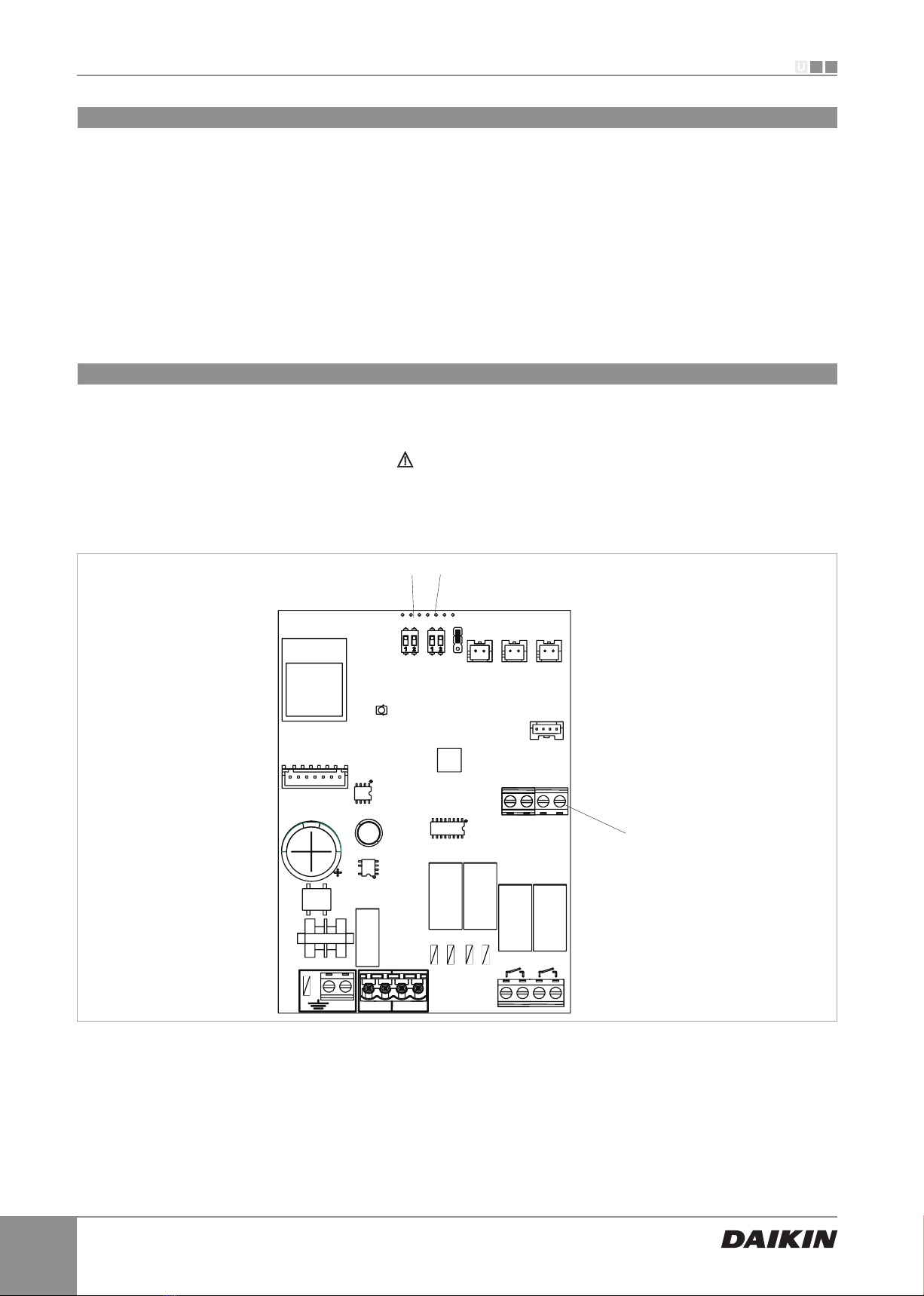

On closing the contact connected to the CP input (ref. A)

the panel is placed in stand-by mode.

If the contact is open the unit is active, if the contact is

closed it is deactivated when a key is pressed the

symbol flashes.

The input cannot be connected in parallel to that of other

electronic boards (use separate contacts).

Set-up of auxiliary dip-switch functions B and C

CP presence contact input connection (only for EKRTCTRL1)

2.5

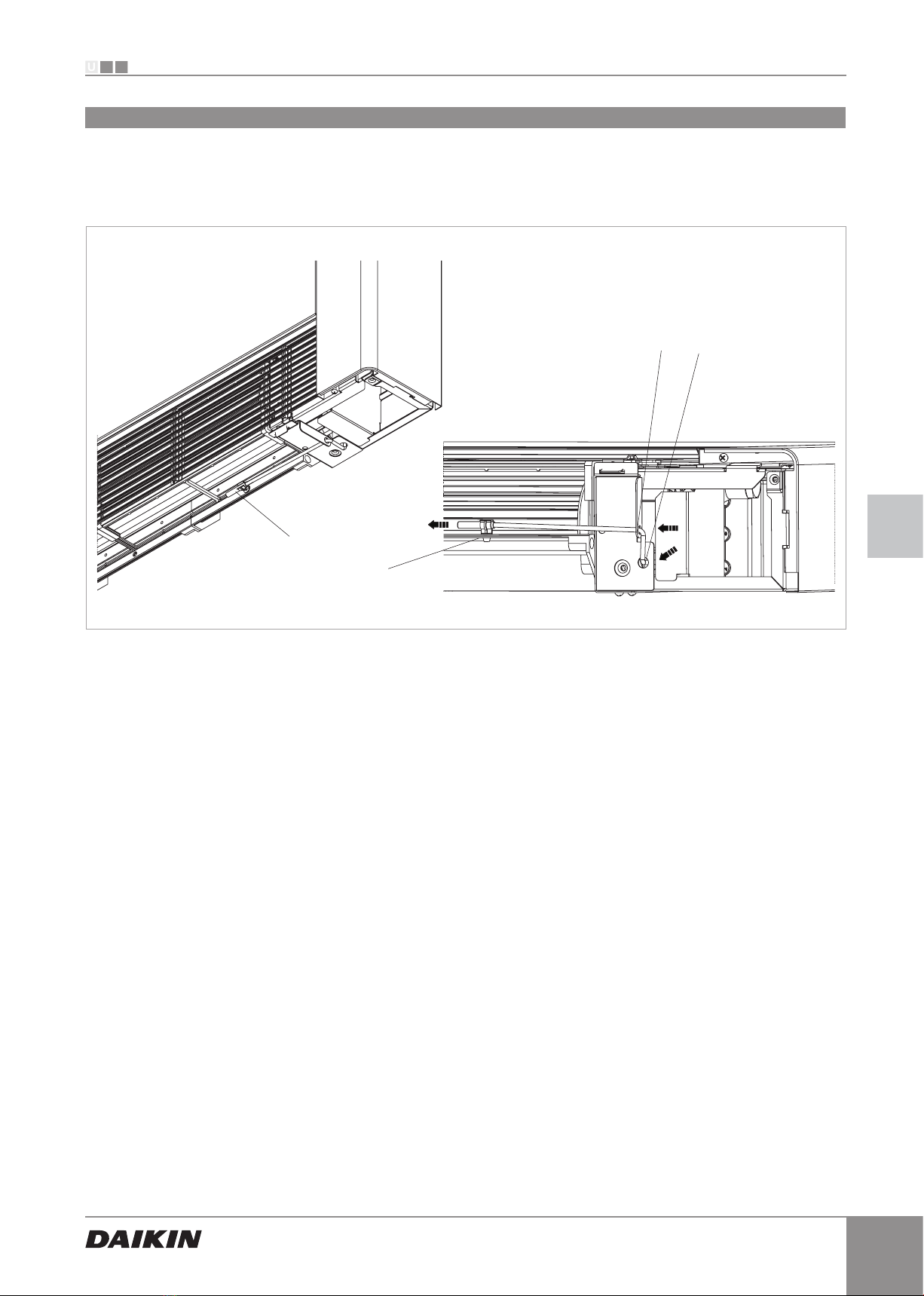

- To position the temperature probe (ref. A):

- pass the probe through the hole on the shoulder (ref. B)

- insert the probe into the lower hole (ref. C)

- fix the probe on the relevant hook (ref. D)

Air temperature probe assembly (only for EKRTCTRL1)

EKRTCTRL1

2.6 EKRTCTRL1 connections

H2* water temperature probe (10 kΩ)

AIR air temperature probe (10 kΩ)

M1 DC inverter fan motor

S1 grill safety micro-switch

Y1 water solenoid valve (230V/ 50Hz 1A output

voltage)

Y2 mobile flap connection

230V/ 50Hz 1A output voltage.

L-N

230V/50Hz electrical power supply

BO boiler consent output (free contact max 1A)

CH chiller consent output (free contact max 1A)

CP presence input sensor (if closed, the fan coil unit

is placed in standby).

*If after switching the power on the board

detects the H2 probe, start-up occurs in normal

conditions with the minimum water temperature

when heating (30°C) and maximum when

cooling (20°C).

The board also has a function when there is no

probe, in such cases the fan stop minimum and

maximum thresholds are ignored.

3.1

3.2

Continuous modulation circuit board for connecting remote thermostat

LED Indications (Ref. A)

EKWHCTRL0

The circuit board for remote control is for all functions of

the fan coil system from the wall-mounted remote control

EKWHCTRL0.

A remote control can be connected to a maximum of

30 fan coils that will be controlled in broadcast mode

(simultaneous commands to all fan coils).

It can be installed on all versions, the board has a green

LED that indicates the operational state and any anomalies.

The main operational parameters, the set point and the

room temperature are transmitted from the wall-mounted

remote control EKWHCTRL0 to all terminals connected to

the network, allowing unified operation.

Refer to the instructions for this control for use of the fan

coils.

The 10 kΩ water temperature probe positioned in the

device battery regulations the minimum level when heating

(30°C) and the maximum level when cooling (20°C).

Green LED: Indicates that the unit is

operational. Flashing indicates an anomaly. LED off: unit is off or has no power.

Error signals

Error Display

Communication error. The circuit board expects continuous information exchange on the serial line

with the wall-mounted control EKWHCTRL1. If this exchange is lost for more than 5 minutes, an

error warning is displayed and the unit deactivated.

6 flashes + pause

Problem with fan motor (e.g. blockage caused by foreign objects, faulty rotation sensor). 2 flashes + pause

Water temperature probe fault (H2).

In this case, ensure that the probe installed is 10 kΩ. 3 flashes + pause

Engaging of grille microswitch S1 due to filter cleaning operation. Continuous rapid

flashing

Water demand detected by probe H2 insufficient (above 20°C when cooling, below 30°C when

heating). Stops the fan until the temperature returns to a suitable level to satisfy the demand*. 1 flashes + pause

* If after having powered the board the water probe is

detected, start-up takes place with the minimum and

maximum water temperature thresholds.

The board also has a function when there is no probe, in

such cases the fan stop thresholds are ignored.

8mm0.2-1.5mm2

EKWHCTRL0

3.3 EKWHCTRL0 connections

-AB+ serial connection for wall-mounted remote

control EKWHCTRL1 (respect AB polarity)

H2** hot water temperature probe (10 kΩ)

M1 DC inverter fan motor

S1 grill safety micro-switch

Y1 hot water solenoid valve (230V/ 50Hz 1A output

voltage)

Y2 mobile flap

(230V/ 50Hz 1A output voltage)

L-N

230V/50Hz electrical power supply

BO boiler consent output (free contact max 1A)

CH chiller consent output (free contact max 1A)

CP not used in this version

AIR Air probe optional (*)

*Alternatively, connect the wall-mounted

controller EKWHCTRL1 to the air probe

** If after switching the power on the board

detects the H2 probe, start-up occurs in normal

conditions with the minimum water temperature

when heating (30°C) and maximum when

cooling (20°C).

The board also has a function when there is no

probe, in such cases the fan stop minimum and

maximum thresholds are ignored.

Rigid or flexible wires with a 0.2 to 1.5 mm² cross-section

(0.75 mm² if two wires are connected to the same terminal

block) can be inserted in the 4 spring-loaded terminal

blocks (ref. A) for connection of the wall-mounted controller

EKWHCTRL1. If the wires have wire end ferrules with a

plastic collar, the maximum cross-section is 0.75 mm².

Strip 8 mm of the wire, then if the wire is rigid, you can

insert it easily whereas, if it is flexible, it is advisable to use

long nose pliers.

Push the wire completely in and check that it is anchored

by pulling it gently.

To disconnect the cables, press the

corresponding white indent (ref. A) with a

screwdriver and remove the conductor.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Daikin Chauffage

Daikin

Daikin KEH041A41 Manuel utilisateur

Daikin

Daikin REYQ8-48PY1B Manuel utilisateur

Daikin

Daikin Altherma 3 H F Manuel utilisateur

Daikin

Daikin KEH041A42 Manuel utilisateur

Daikin

Daikin EHXD Manuel utilisateur

Daikin

Daikin AHKD 20 Manuel utilisateur

Daikin

Daikin KEH094A41E Manuel utilisateur

Daikin

Daikin FWXV15AVEB Manuel utilisateur

Daikin

Daikin KEH041A43 Manuel utilisateur

Daikin

Daikin Altherma 3 GEO Fiche d'information produit

Daikin

Daikin RDXYQ8T7V1B Manuel utilisateur

Daikin

Daikin REYQ8-48PY1B Manuel utilisateur

Daikin

Daikin Altherma 3 GEO EGSAX06UDA9W Fiche d'information produit

Daikin

Daikin DRC Manuel utilisateur

Daikin

Daikin KEH067A41E(A) Manuel utilisateur

Daikin

Daikin Altherma 3 H HT F Manuel utilisateur

Daikin

Daikin FWXV15AVEB Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
