Covered Models

Regarding the features and operation of the unit, the service guide

describes the items which are different from those of the service manual

TR01-09A.

No. Item Different points from service manual

（Maintenance and Repair）

1 Tightening lever for control box cover Quick-lock lever type

2☆MODE Key (Display panel) Refer to the details in the following pages.

3☆Dehumidication control setting

(A26, A26A only)

Refer to the details in the following pages.

4☆Initial setting table into spare controller Refer to the details in the following pages.

For the ☆marked items, refer to the details in the following pages.

5☆Electronic type temperature recorder

(Rechargeable type)

Refer to the details in the following pages.

6☆Cable clamp bracket Provided.

7 Communication MODEM Provided.

8 Temperature setting range ＋30℃〜−30℃

9 Monitoring, receptacle Nothing

10☆Transducer Refer to the details in the following page.

11☆USDA receptacle (A28 only) A11, A26, A26A only

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ1

https://daikin-p.ru

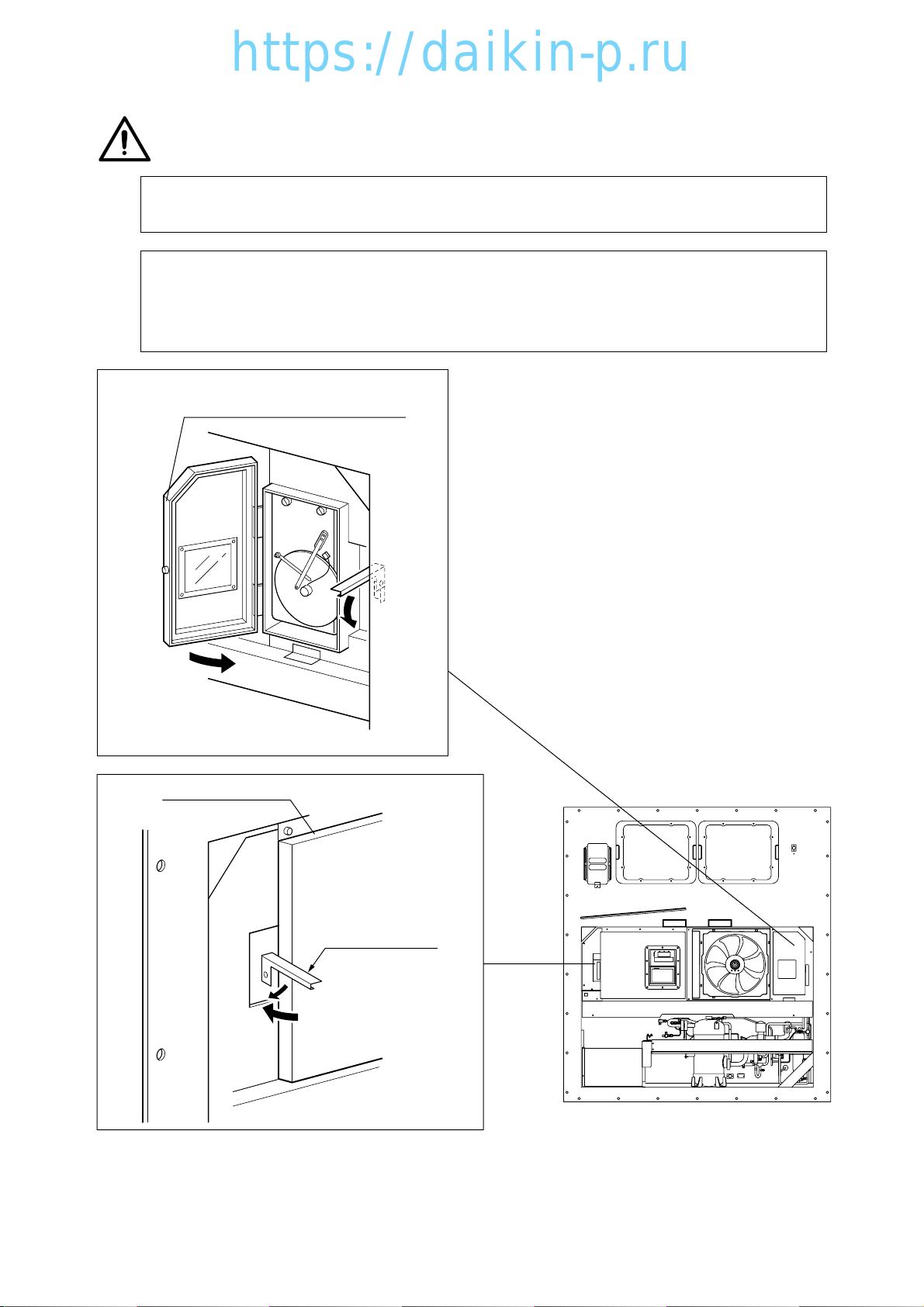

CAUTION

Before starting the unit, run the generator.

Securely close the control box cover and the temperature

recorder box cover (optional).

Otherwise, It will cause water entry.

Temperature recorder box cover

Quick-lock lever

Control box cover

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ2

https://daikin-p.ru

CONTENTS

1. BASIC OPERATION OF ELECTRONIC CONTROLLER ……………4

1.1 Control panel …………………………………………………………4

2. OPERATION PROCEDURE ………………………………………………5

2.1 Operation procedure flow chart ……………………………………5

3. G-SET OPERATION/AUTOMATIC PUMP DOWN OPERATION

MODE/DEHUMIDIFICATION ON-A・OFF SETTING …………………6

4. DEHUMIDIFICATION CONTROL SETTING (A26, A26A only)………8

4.1 Description of setting …………………………………………………8

4.2 Dehumidification control………………………………………………9

5. Initial setting table into spare controller ……………………………10

6. CABLE CLAMP BRACKET ……………………………………………11

7. ELECTRONIC TEMPERATURE RECORDER ………………………11

8. Transducer ………………………………………………………………12

8.1 Low pressure transducer (LPT) ……………………………………12

8.2 High pressure transducer (HPT) …………………………………12

9. USDA receptacle (A11, A26, A26A only) ……………………………13

10. APPENDIX ………………………………………………………………15

10.1 Schematic wiring diagram …………………………………………15

10.2 Stereoscopic wiring diagram………………………………………16

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ3

https://daikin-p.ru

1. BASIC OPERATION OF ELECTRONIC CONTROLLER

1.1 Control panel

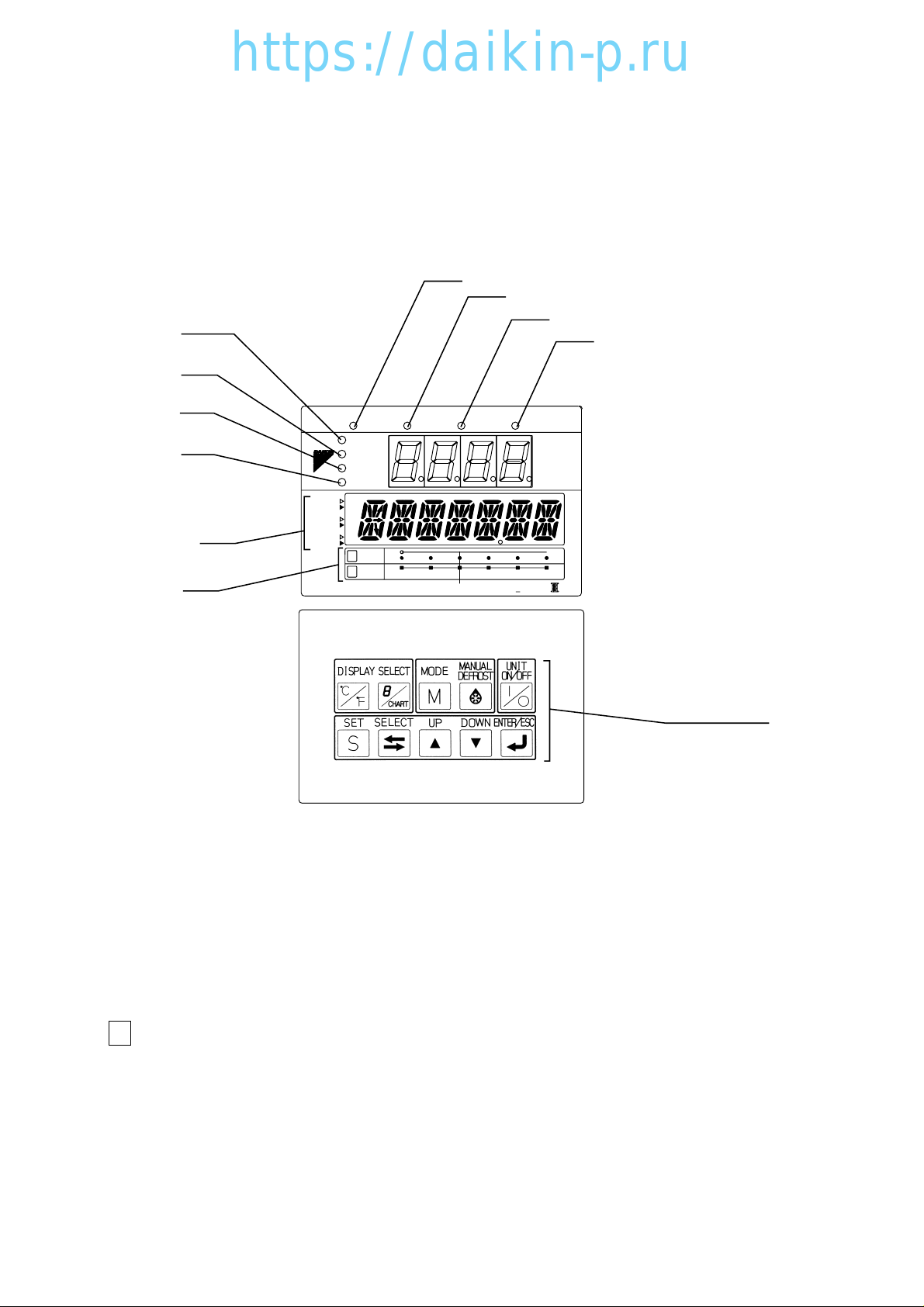

Name and function of each components

Operation key

–12 –10 –8 –6 –4 –2

–2–3–4–5–6 –1

SP–5

OVER

INRANGE

HOURS

DAYS

UNDER

ALARM

R.H.

SUPPLY

RETURN

˚C / ˚F

%R H

DEFROST INRANGED–HUMID

COMP.

˚C

SP+5

DECOS

DAIKIN ELECTRONICCONTAINER OPERATION SYSTEM

①

SUPPLY LED (Lights when "supply air temperature" is indicated.)

②

RETURN LED (Lights when "return air temperature" is indicated.)

③ALARM LED (Lights alarm is generated.)

④R.H.LED (Lights when "relative humidity" is indicated.)

⑤COMP.LED (Lights when the compressor is running.)

⑥

DEFROST LED (Lights when the unit is under the defrosting operation.)

⑦

IN RANGE LED (Lights when the control temperature is in range.)

⑧DE-HUMID.LED (Lights when the controller is the

dehumidification control optional.)

⑨Temperature base (Used for the graphic chart indication

on the LCD.)

⑩

Time base (Used for the graphic chart indication on the LCD.)

※:

Dehumidification control is auailable on A26 and A26A only.

Function of operation key

●MODE Key

Shift from "Current indication mode" G-SET operation." / Automatic pump down mode /

Dehumidication ON-A･OFF setting.

Note: When the dehumidification ON-A・OFF is set to ON, G-Set operating mode will be skipped.

MODE

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ4

https://daikin-p.ru

2. OPERATION PROCEDURE

2.1 Operation procedure flow chart

I/O ON I/O OFF

I/O

I/O Unit On / Off key S key Select key

Enter key 8 / Chart key

CHART

Difference from standard model

★:

Dehumidification control is auailable on A26 and A26A only.

Power OFF

Unit OFF

All indication

light on

(for 3 sec.)

Starting

preparation

(for 18 sec.)

※1

Current

indication

(Operation state)

When no power supply

Non operation for 30 sec.

Circuit Breaker ON

Circuit Breaker OFF

after setting change

( OFF when no settig change)

※3

Battery mode, Operation Condition Setting with back-up battery

(Set Point Temperature˚C / Humidity %, / Defrost Internal)

for 3 sec. for 3 sec. for 3 sec. for 3 sec.

※10

※2 Operation Setting (Set Point Temperature˚C, Humidity %, Defrost Internal)

※6 Sensor Indication

※3.10.1 Chart Indication

※7 Temperature

Record Scroll

※8 Alarm

Record Scroll

※12※11 ※13

or non operation for 5 min.

※G-SET operation

(The energy consumption



reducing operation)

※4 Dehumidification



ON-A･OFF setting

※4 Automatic



pump down

F. PTI

S. PTI

M. CHECK

※14

Logging data can be down loaded even when the power supply OFF, the unit OFF

or the unit in operation.

To down load the data during the power supply OFF, press the key for using

the wake-up battery.

Optional

Function

Setting

Basic

Function

Setting

Optional

Condition

Setting

Container

I.D & Time

Setting

for 3 sec.

MODE

※3.9.2.1

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ5

https://daikin-p.ru

G-SET OPERATION/AUTOMATIC PUMP DOWN OPERATION

MODE/DEHUMIDIFICATION ON-A・OFF SETTING

The energy consunption reducing operation during G-SET operation, automatic pump down operation

collecting refrigerant to the liquid receiver and dehumidification ON-A・OFF setting are executed.

Press the key in current indication mode to go to G-SET operation /

Automatic pump down operation / Dehumidification ON-A･OFF setting.

※After the automatic pump down is completed, the pump down status is

maintained until the power supply is turned off.

Pressing the key changes the mode between G-SET operation and automatic pump down /

Dehumidification ON-A･OFF setting.

The set point can be set by using key or key.

Note: When the dehumidification ON-A・OFF is set to ON, G-Set operating mode will be skipped.

MODE

All indication

light on

(for 3 sec.)

Starting

preparation

(for 18 sec.)

Current

indication

(Operation state)

※

G-SET operation /

Automatic pump

down operation /

Dehumidification

ON-A•OFF setting.

MODE

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ6

https://daikin-p.ru

Setting item LED panel LCD panel Setting method

–– –– ––

ON, OFF diSPOFF Select ON by using

or key, and press

the key to determine

the setting.

ON, OFF P down Select "ON" by using

key and key,

and press the key to

determine the setting.

Current

indication mode

G-SET

operation

Automatic pump

down operation

Dehumidification

ON-A・OFF setting

MODE

Note) Refer to the detail of automotic pump down function in the "4.3.1" of Service manual.

CAUTION

1．To apply the humidification control, be sure to set "ON-A".

2．ON/OFF of the reheating coil and DE-HUMID LED lit/unlit are not

synchronous.

3．When the dehumidification ON-A・OFF is set to ON, G-Set

operating mode will be skipped.

OFF, ON-A dHu Select "ON-A" by using

key and key,

and press the key to

determine the setting.

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ7

https://daikin-p.ru

DEHUMIDIFICATION CONTROL SETTING (A26, A26A only)

This unit features the dehumidification function. Therefore, it is necessary to set whether the

dehumidification control is to be executed or not according to the cargo to be transferred.

You can set whether the dehumidification control is to be executed or not by operating the display

panel of controller.

4.1 Description of setting

Whether the dehumidification control is to be executed or not is switched over according to the setting

of dehumidification control parameter "dHu" under the "4. G-SET operation / Automatic pump down

operation mode / Dehumidification ON-A･OFF setting"

CAUTION

1．ON/OFF of the reheating coil and DE-HUMID LED lit/unlit are not

synchronous.

2．To apply the humidification control, be sure to set "ON-A".

Dehumidification

control

Setting of

dehumidification

control "dHu"

DE-HUMID LED Remarks

To execute ON-A (Applied) ON

Case of the unit without the

humidity sensor

Not to execute

off (Not applied)

OFF

Note) The setting of dehumidification control can also be mode while in optional functional setting

mode. (Refer to 3.3.3 of service manual on page 3-26.)

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ8

https://daikin-p.ru

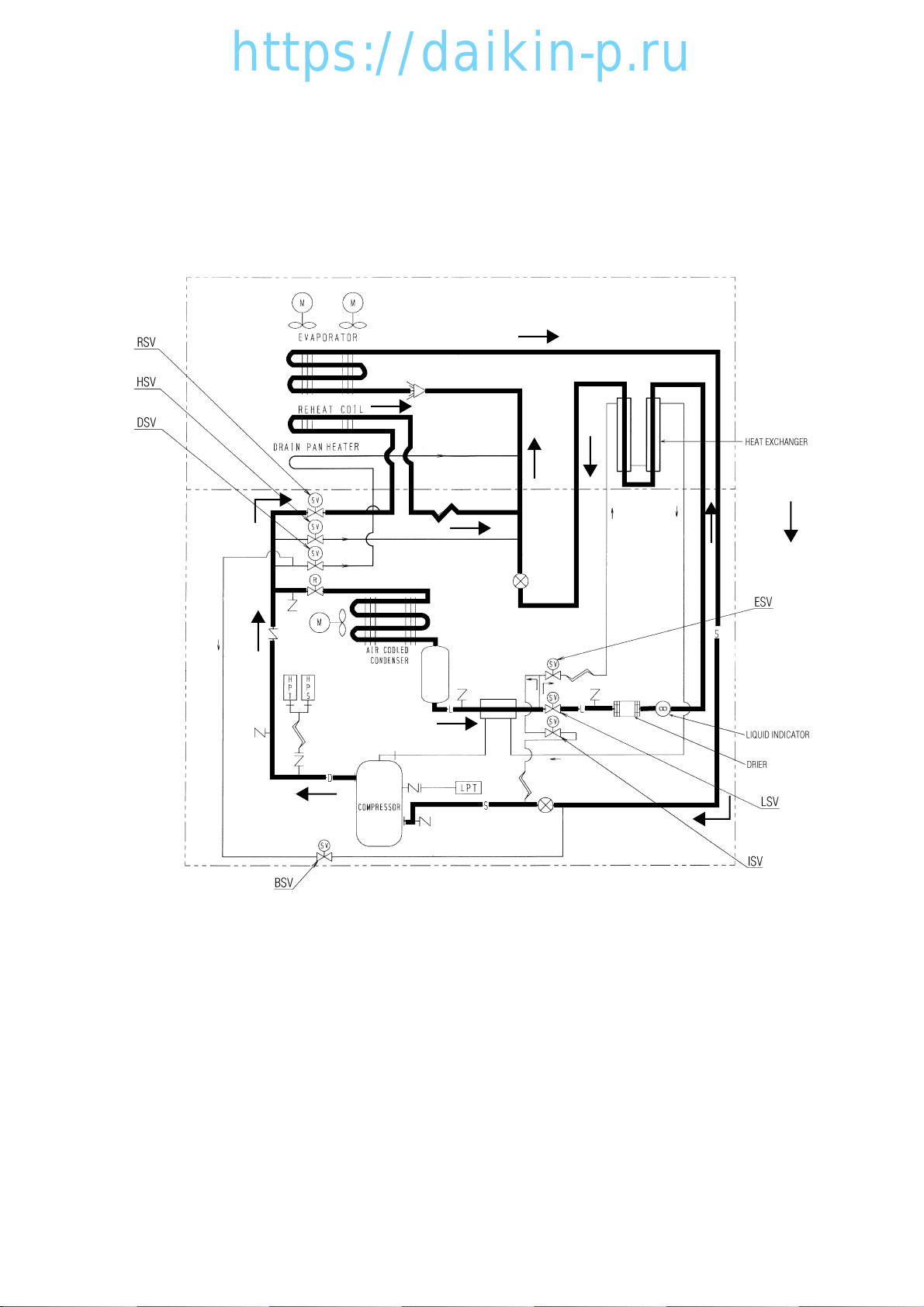

4.2 Dehumidification control

※If reheat coil (Optional) is equipped:

The unit have dehumidification control by a reheat coil, which is under the evaporator coil.

In dehumidification, the Reheat Solenoid Valve (RSV) opens to give high pressurized refrigerant to

reheat coil. The "DEHUMID" LED lamp will light up.

01-14SGLXE10E-A11,20,26,26A  2006.06.13 15:23  ページ9

https://daikin-p.ru
