TOUCH CONTROLLER (Linear and On/Off system)
OPERATION MANUAL
1. Name and Function Buttons
-----------------------------------------
3
2. Main & Sub controller Menu Screen
-------------------------------
5
3. Preparation before Operation
3.1 Time and date settings--------------------------------------------
6
3.2 Dealer Contact------------------------------------------------------
7
3.3 Maintenance--------------------------------------------------------
8
3.4 Change Name-------------------------------------------------------
9
3.5 Screen Brightness-LED Bar---------------------------------------
12
3.6 Software Version---------------------------------------------------
14
3.7 Sensor Selection----------------------------------------------------
15
3.8 Sensor Priority-------------------------------------------------------
16
3.9 Touch Sound---------------------------------------------------------
18
4. Timer Operation
4.1 ON / OFF Timer-----------------------------------------------------
19
4.2 7 Days Timer---------------------------------------------------------
21
4.3 Simple 7 Days Timer----------------------------------------------- 2
3
4.4 Multi 7 Days Timer-------------------------------------------------
26
4.5 Explanation of 7 Days Timer-------------------------------------
27
4.6 Simple 7 Days / Multi 7 Days Timer -Copy Mode Setting
28
5. Energy Saving Options
5.1 Eco Settings List-----------------------------------------------------
29
5.2 Setpoint Range Set-------------------------------------------------
30
5.3 Setpoint Auto Reset------------------------------------------------
31
5.4 Auto Off Timer------------------------------------------------------
32
5.5 Holiday Mode-------------------------------------------------------
33
6. Operation Mode
-------------------------------------------------------- 3
4
7. Zone Control
------------------------------------------------------------ 3
5
8. Fan Operation
-----------------------------------------------------------
37
9. Key Lock
-------------------------------------------------------------------
38
CONTENTS
Start Up Screen
Operation Screen
Off Screen
Name and Functions of icons
3
1
2
3
4
5
6
7
8
9
11
10
12
Name and Functions of Buttons
4
1. ON/OFF Power
Touch this icon to turn the air conditioner ON and OFF
2. Timers
Touch this icon to set the timers
3. Economy options
Touch this icon to access user Economy options
5. Fan speed setting
Touch this icon to select the airflow rate
4. AIRHUB logo
Touch and hold this icon for 5 secs to lock the screen
6. Mode Selector
Touch this icon to select the AUTO / COOL / HEAT /
FAN / DRY mode
7. Master setpoint temperature
Shows main setpoint temperature
8. Master setpoint temperature UP
Touch this icon to increase Main setpoint temperature
10. Zone settings
Touch this icon to make zone setting
9. Master setpoint temperature DOWN
Touch this icon to reduce Main setpoint temperature
11. Date and Time display
Shows date and time
12. Settings menu
Touch this icon to access Settings menu screen
MAIN ControllerSUB Controller
MAIN & SUB Controller Menu Screen
5
Preparation before Operation

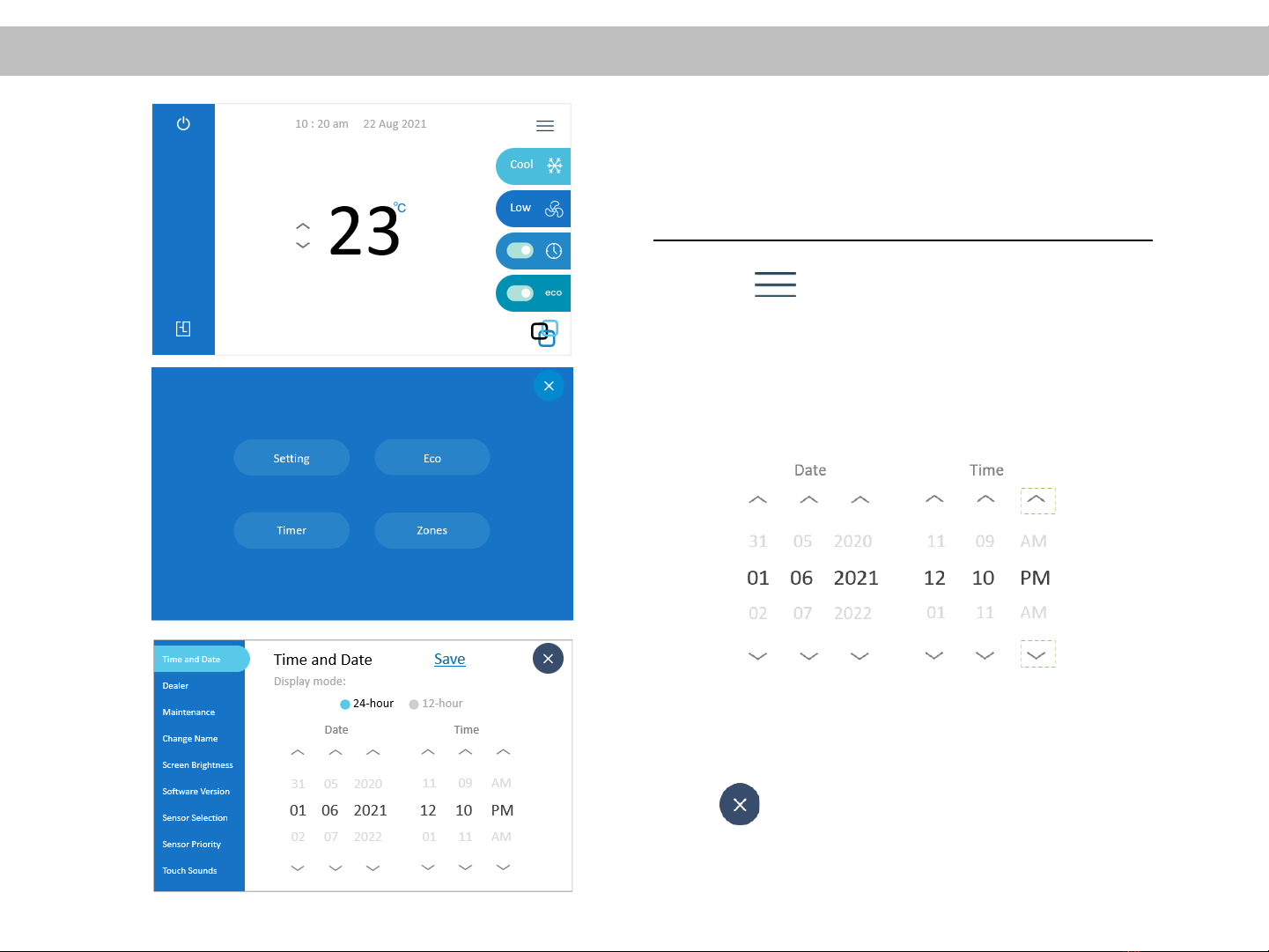

3.1. Time and Date Settings
(1) Tap the on Main Operation Screen to access the Menu
Screen.
(2) Tap the Setting on Menu Screen.
(3) Tap Time and Date.
(4) Tap up /down to set the date and time.
(5) Select either 24-hour time or 12-hour time.The clock on the
main screen will display your preferred setting.
(6 ) Tap the save icon.
(7) Tap to go to main operation screen.
6
Preparation before Operation
3.2. Dealer Contact
(1) Tap the on main Operation screen to access the
Menu Screen.
(2) Tap setting on Menu Screen.
(3) Tap Dealer & then tap the Insert Contact Details Here. The
keyboard will display, you can now enter the company details &
similarly the contact no.
(4) Press Enter and tap Save to update changes or press Esc to
escape from the keyboard.
(5) Tap to go back to main operation screen.
7
Preparation before Operation
3.3. Maintenance
(1) If maintenance warning message such as “Clean the filter”
appears on Main Operation Screen.
(2) Tap the on Main Operation Screen to access the Menu
Screen.
(3) Tap the Setting on Menu Screen.
(4) Tap Maintenance.
(5) Tap Clear filter change message to remove “Clean the filter”
warning message.
NOTE:Clear filter change message will display only when the
Clean the filter sign appears on the main Operation screen.
(6) Tap to go back to Main Operation Screen.
8
Preparation before Operation
3.4. Name Change –Zone Names (Only for Linear control)
(1) Tap on main Operation screen to access the Menu
Screen.
(2) Tap the Setting on Menu Screen to access the Setting
Screen.(*The settings menu screen for On/Off control is
different from that of Linear control.)
(3) Tap Change Name icon to edit Zone names.
(4) Select the desired Zone number you wish to add aname.
(5) Enter the preferred name for the Zone.
(*There are limitations for the number of characters and the
type of characters.Number of characters:Maximum 12 and
Type of characters:A-Z, a-z, 0-9, ‘ and “Blank”.)
(6) Repeat this procedure for all desired Zones.
(7) Tap Save icon to update changes.
(8) Tap to go back to main Operation screen.
9
Note: Your system is Linear Control if your main screen indicates OptiZone on the fan icon.
Preparation before Operation
3.4. Name Change –Zone & sensor Names (Only for On/Off control)
(1) Tap on main Operation screen to access the Menu Screen.
(2) Tap the Setting on Menu Screen to access the Setting Screen.
(3) Tap the Change Name icon to edit Zone names.
(4) Select the desired Zone number you wish to name.
(5) Enter the preferred name for the Zone.
(6) Repeat this procedure for all desired Zones.
(7) Tap Save icon to update changes.
(8) Tap to go back to main Operation screen.
10
Note: Your system is On/Off Control if your main screen DOES NOT indicate OptiZone on the fan icon.
