REMOVAL

PROCEDURE

SERVICE MANUAL

2.5/3.5 kW Class

Outdoor Unit

Non-Inverter

Pair Type

Si011187

Service Manual

Removal Procedure

Outdoor Unit

Applicable Models

zCooling Only

RN25HV1G

RN35HV1G

Si011187

Removal Procedure 1

Table of Contents

1. Removal of Outer Panels / Fan Motor.....................................................2

2. Removal of Electrical Components .........................................................9

3. Removal of Sound Blanket....................................................................15

4. Removal of Compressor ASSY.............................................................16

Note: The illustrations may be slightly different depending on the model.

Removal of Outer Panels / Fan Motor Si011187

2Removal Procedure

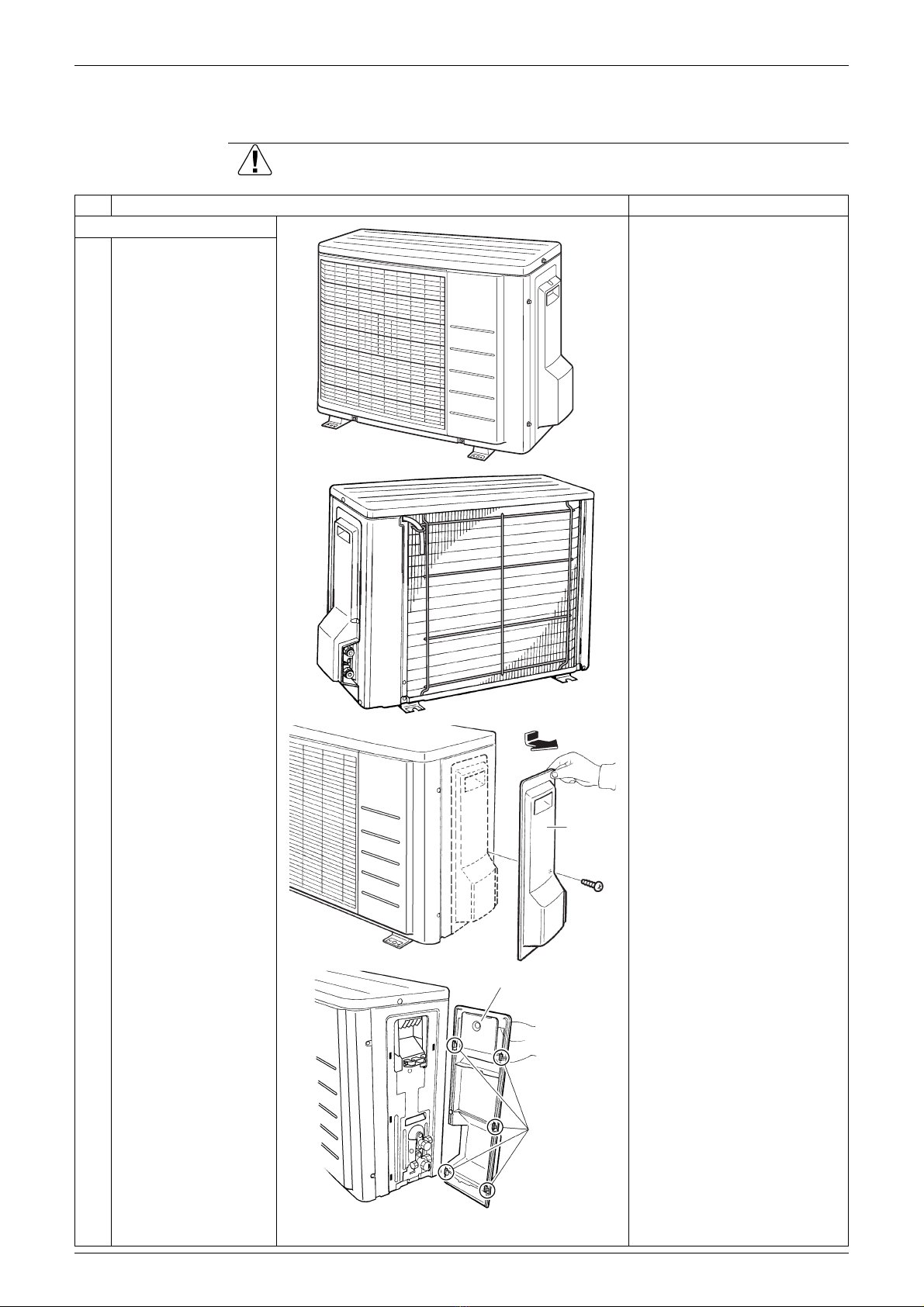

1. Removal of Outer Panels / Fan Motor

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. External appearance

Take care not to cut your

finger by the fins of the

outdoor heat exchanger.

The stop valve cover is

united with the shield plate.

When reassembling, make

sure to fit the 5 hooks.

1Remove the screw of

the stop valve cover.

Pull down the stop

valve cover and remove

it.

(R7186)

(R3236)

(R7188)

Stop

valve

cover

Shield plate

Hook

(R7189)

Si011187 Removal of Outer Panels / Fan Motor

Removal Procedure 3

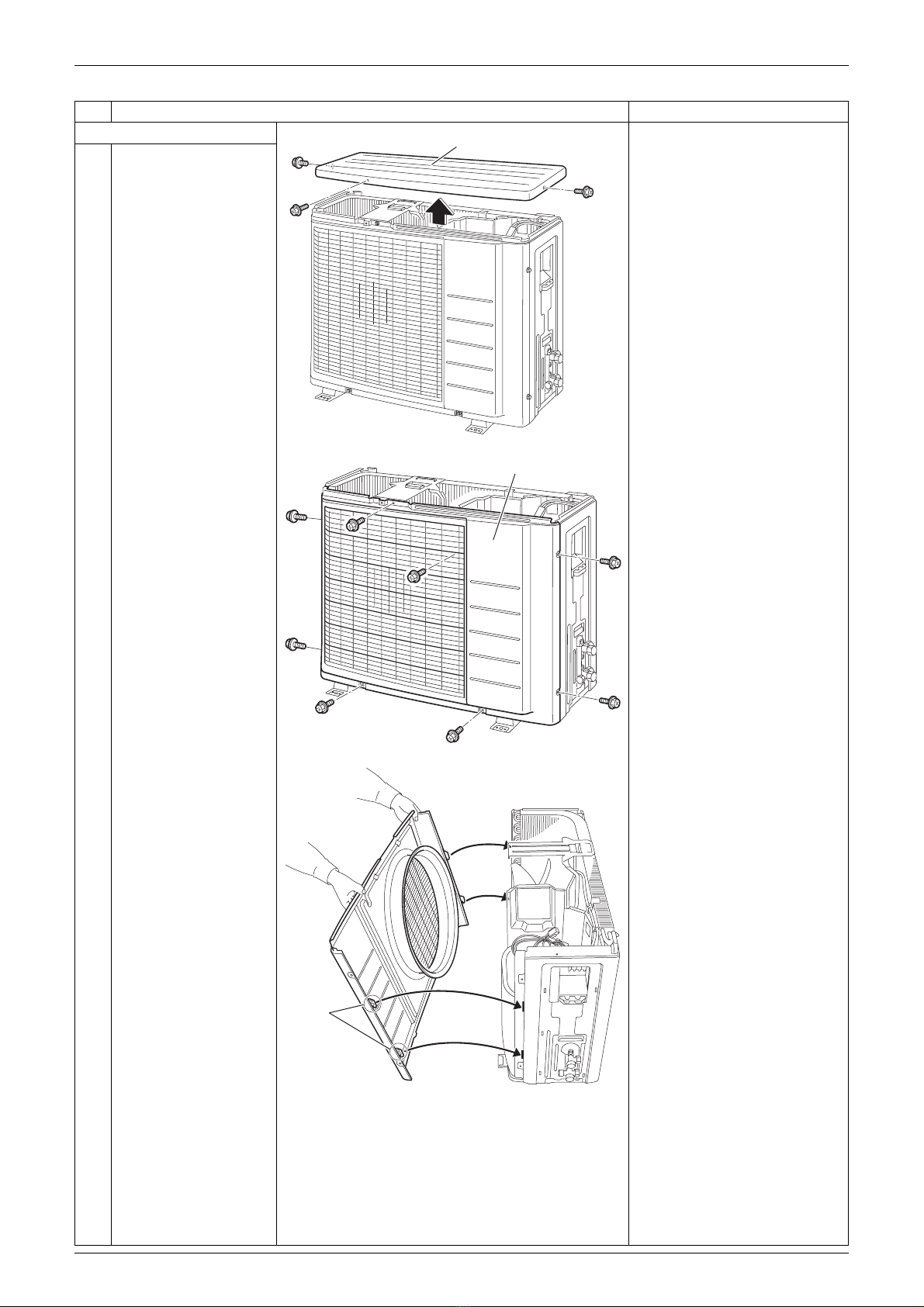

2. Remove the panels.

1Remove the 3 screws

and lift the top panel.

2Remove the 8 screws

of the front panel.

3Release the 4 hooks.

Pull and remove the

front panel.

The front panel has 4 hooks.

Step Procedure Points

Top panel

(R11415)

(R11417)

Front panel

Hook

(R11418)

Removal of Outer Panels / Fan Motor Si011187

4Removal Procedure

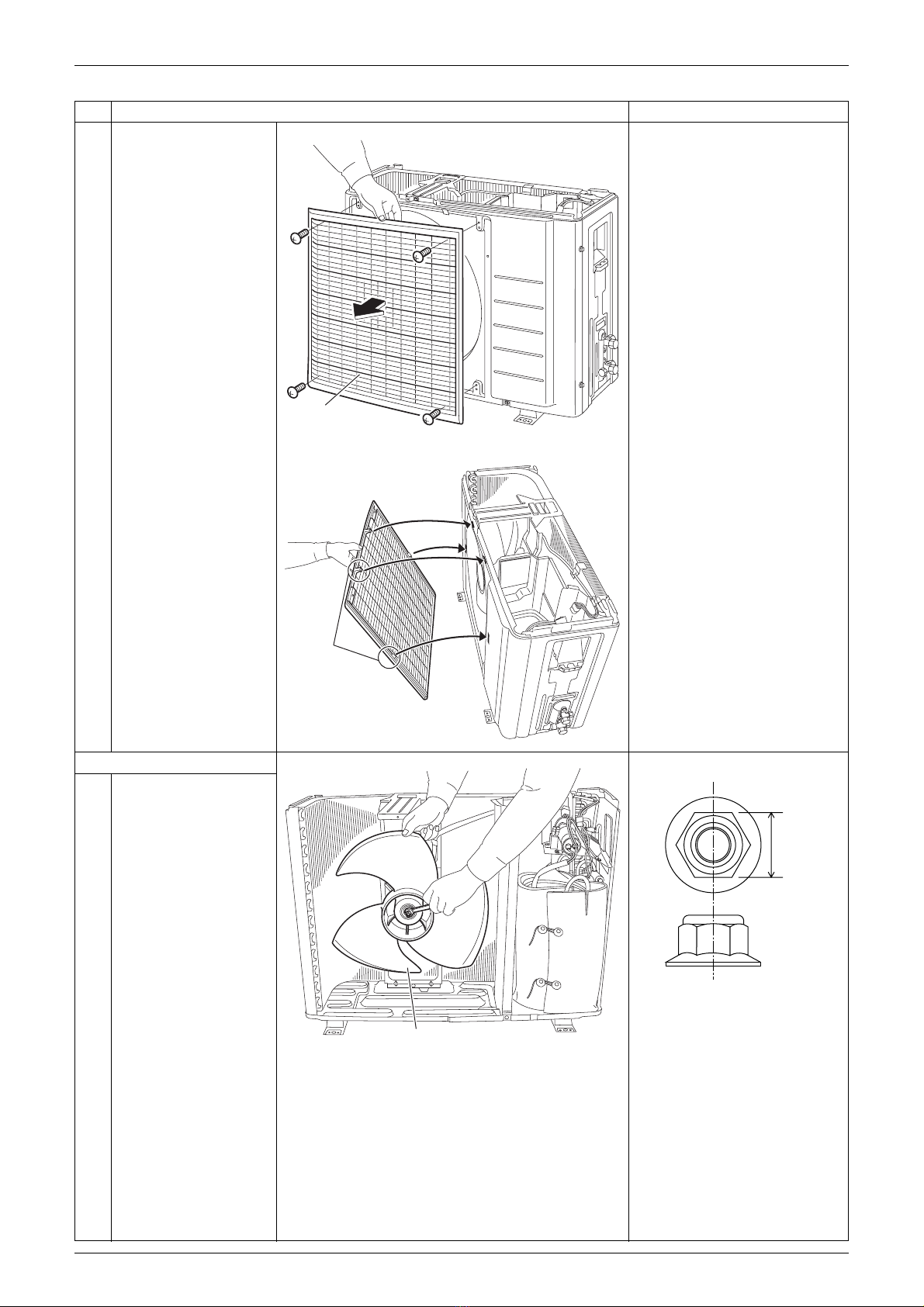

4Remove the 4 screws

of the discharge grille.

The discharge grille can be

removed with the front grille

on.

5Remove the discharge

grille.

The discharge grille has 4

hooks.

3. Remove the fan motor. Nut size: M6

1Unscrew the nut of the

outdoor fan.

Step Procedure Points

(R11419)

Discharge grille

Hook

(R11420)

Outdoor fan

(R15511)

10 mm

(R12236)

Si011187 Removal of Outer Panels / Fan Motor

Removal Procedure 5

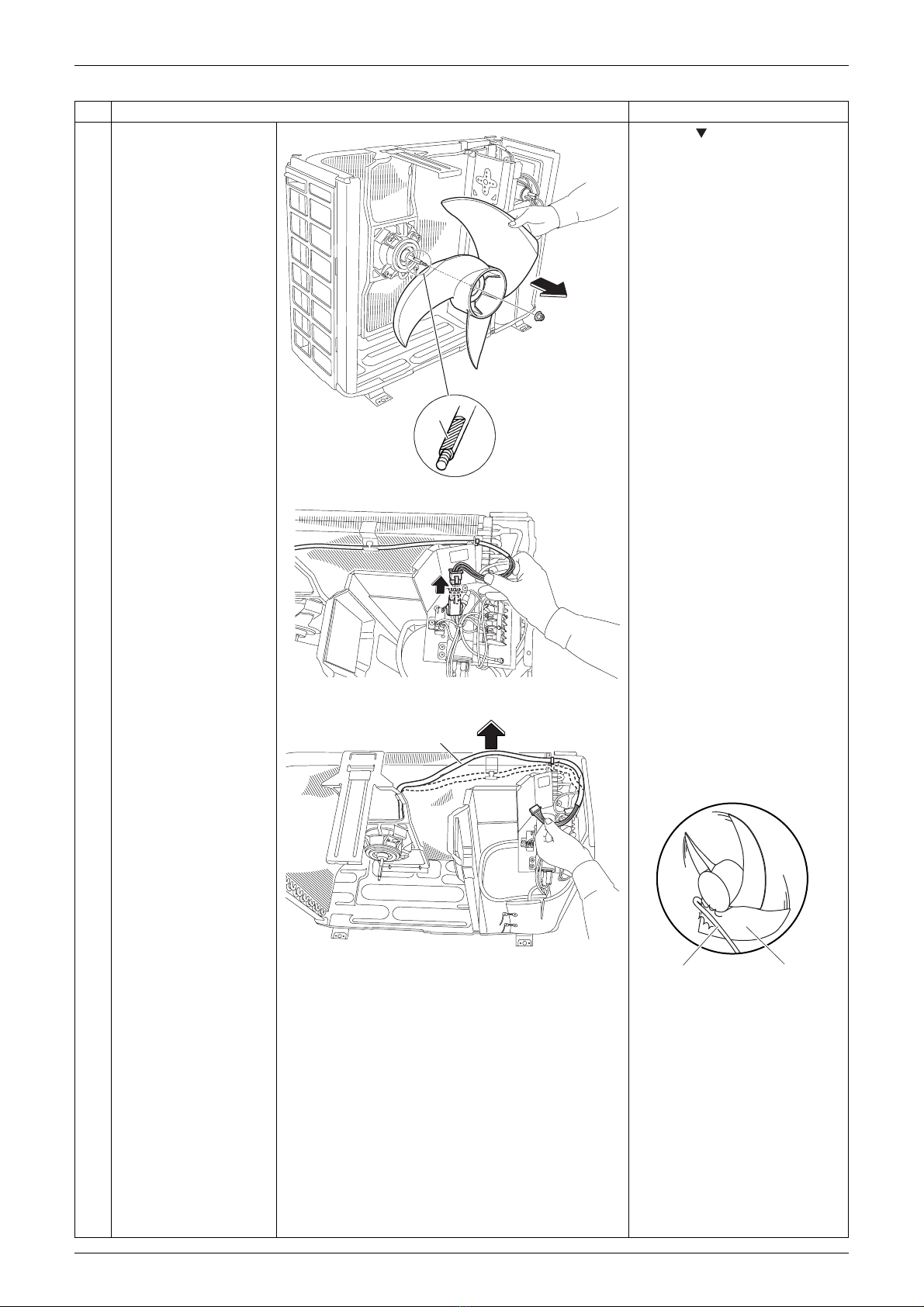

2Remove the outdoor

fan.

Align mark of the outdoor

fan with D-cut section of the

motor shaft when

reassembling.

3Disconnect the relay

connector for the fan

motor.

4Release the fan motor

lead wire from the fixing

hook.

Put the fan motor lead wire

through the back of the fan

motor when reassembling so

as not to be entangled with

the outdoor fan.

Step Procedure Points

D-cut

(R11422)

(R11416)

Fan motor

lead wire

(R11423)

(R3249)

Lead wire Outdoor fan

Removal of Outer Panels / Fan Motor Si011187

6Removal Procedure

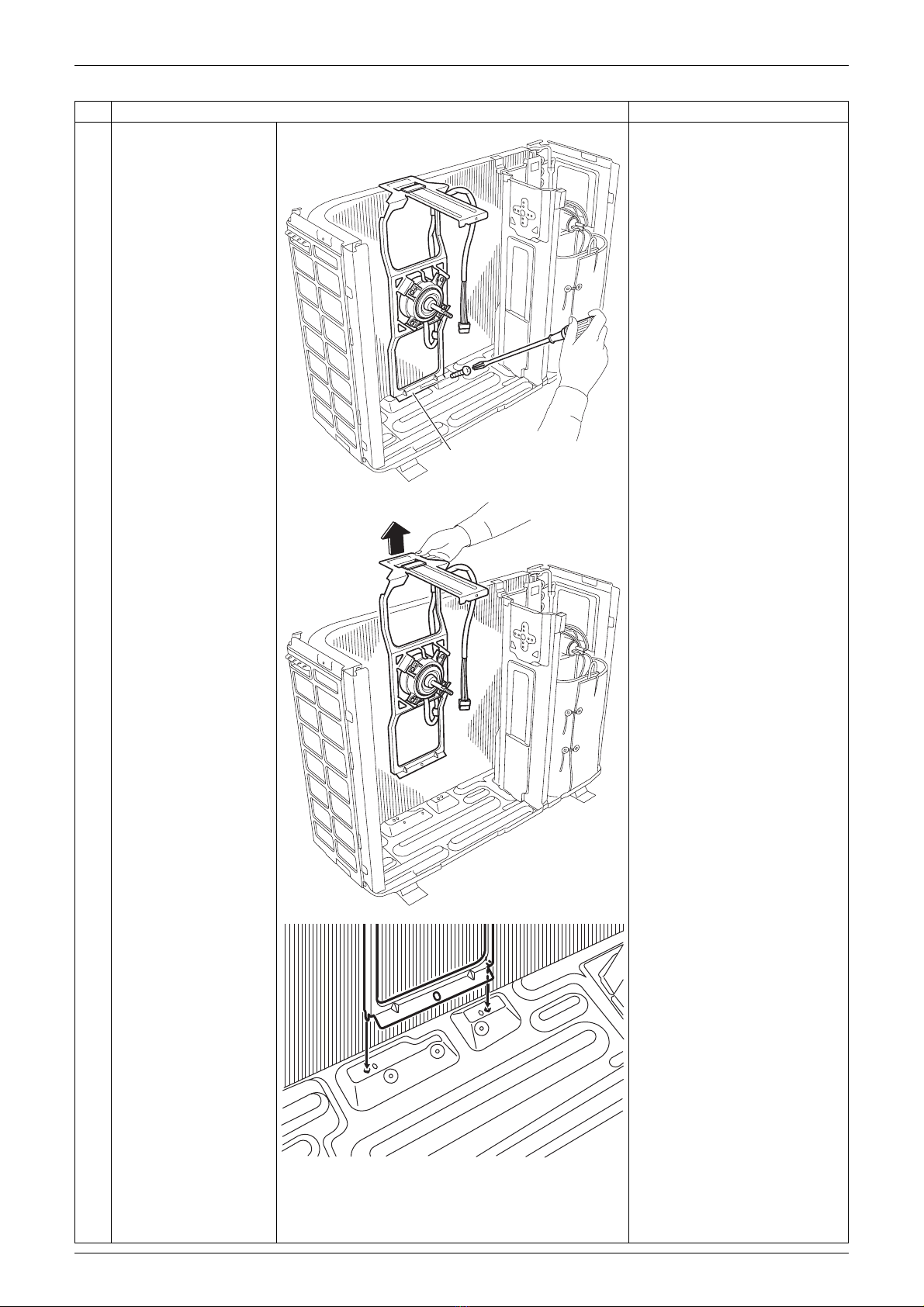

Remove the screw of

the fan motor fixing

frame.

Remove the fan motor

fixing frame.

When reassembling, fit the 2

lower hooks into the bottom

frame.

Step Procedure Points

Fan motor fixing frame

(R11424)

(R11425)

(R7206)

Si011187 Removal of Outer Panels / Fan Motor

Removal Procedure 7

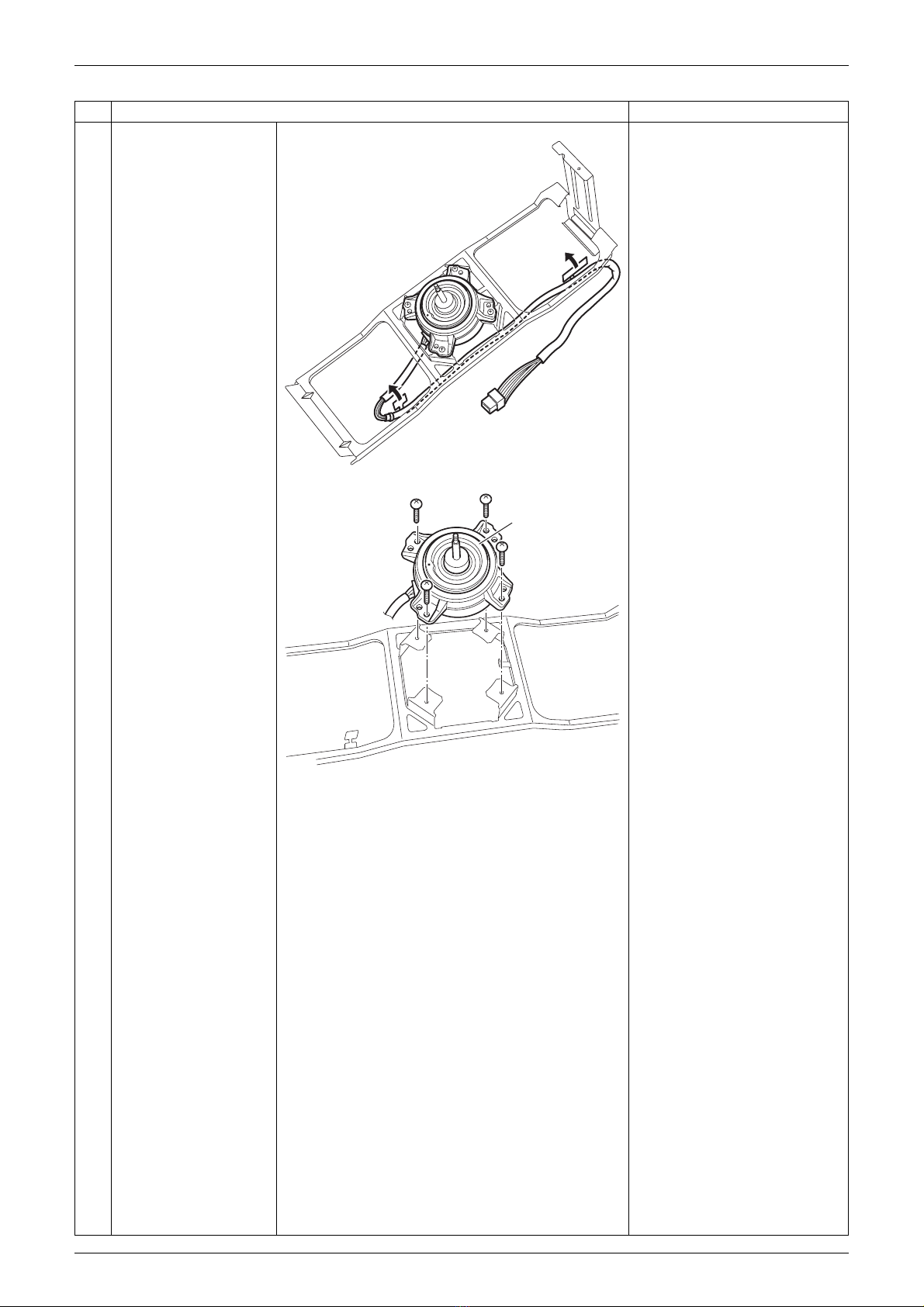

7Release the fan motor

lead wire from the 2

fixing hooks.

8Remove the 4 screws

of the fan motor and

remove the fan motor.

M4 × 16

Step Procedure Points

(R11426)

(R15495)

Fan motor

Removal of Outer Panels / Fan Motor Si011187

8Removal Procedure

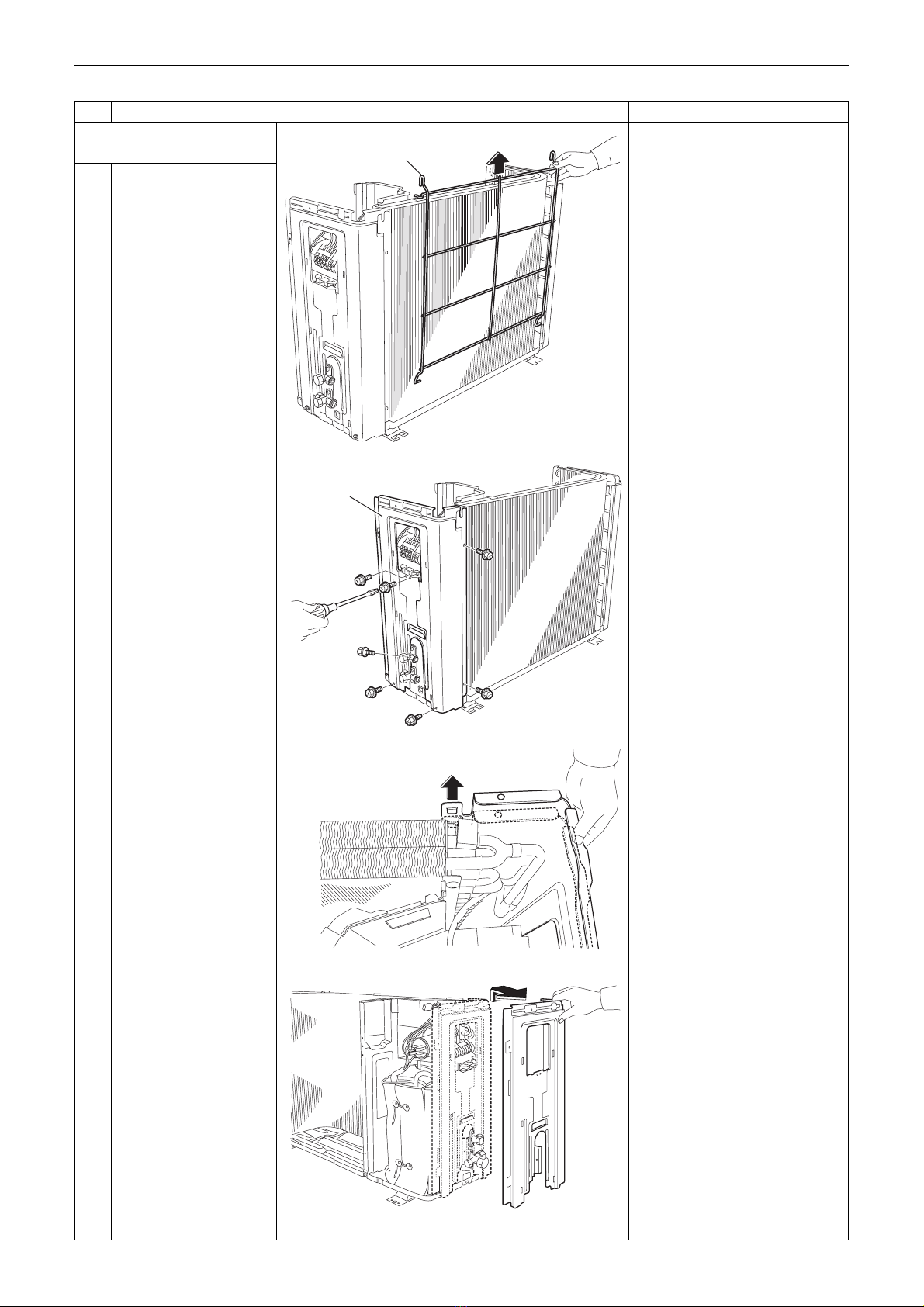

4. Remove the right side

panel.

1Lift up and remove the

guard net.

2Remove the 7 screws

on the right side panel.

3Release the hook. When reassembling, make

sure to engage the hook.

4Lift up the right side

panel and remove it.

Step Procedure Points

Guard net

(R11428)

Right side panel

(R11429)

(R11430)

(R11431)
