Daikin FTXS20K Manuel d'instructions

FTXS-K

Technical Data

Air Conditioners

EEDEN12-100

Wall mounted unit

• Split - Sky Air®• Indoor Unit 1

• Indoor Unit • Wall mounted unit • FTXS-K

TABLE OF CONTENTS

FTXS-K

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4 Centre of gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

• Indoor Unit • Wall mounted unit • FTXS-K

• Split - Sky Air®• Indoor Unit

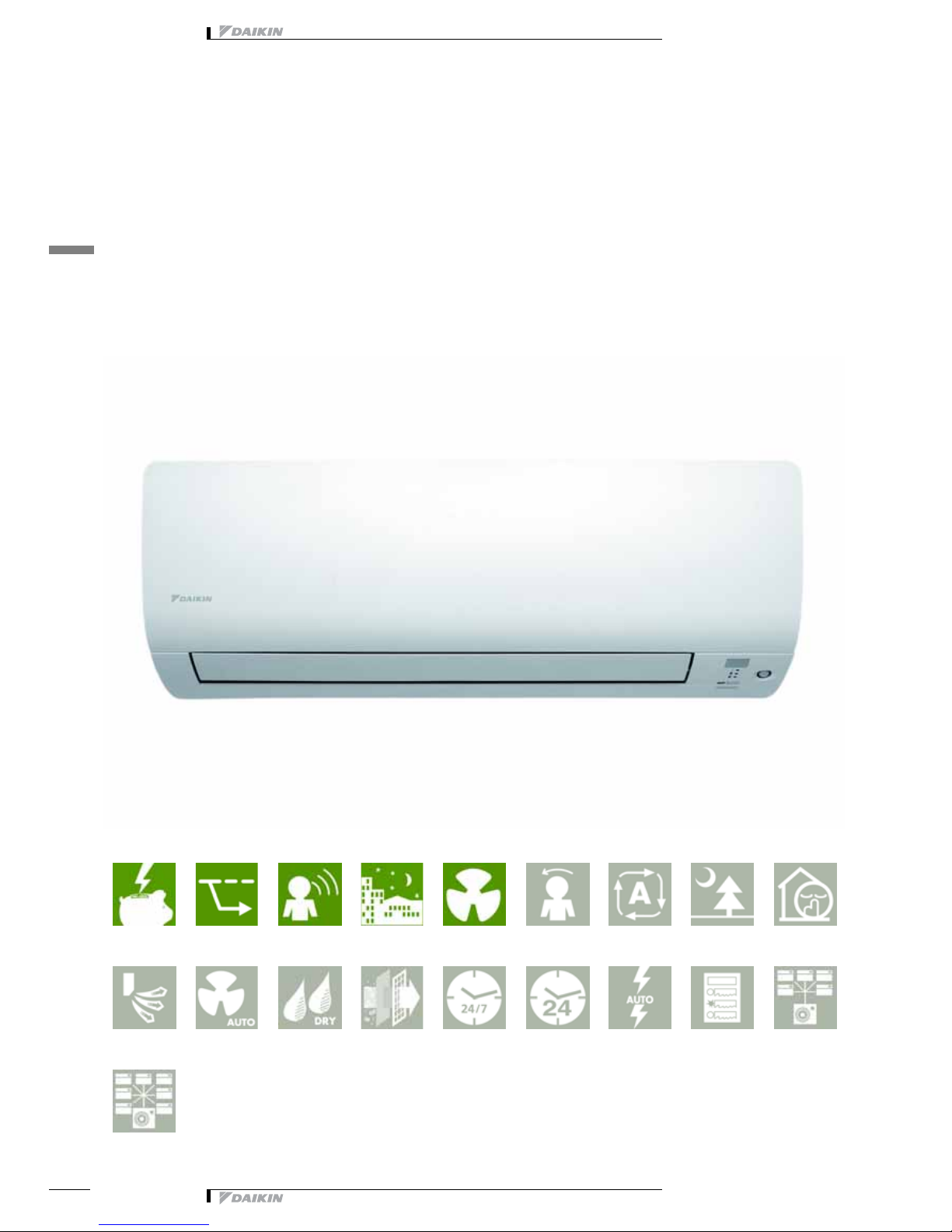

1 Features

IndoorUnit Split-Sk FTXS-KWallmounte

• These models are especially designed for small or well-insulated

rooms.

• Ideal for installation in bedrooms

• Whisper quiet in operation: the operating of the unit can hardly be

heard. The sound pressure level goes down to 19dBA!

• ECONO mode decreases power consumption so that other

appliances that need large power consumption can be used

• Comfort mode guarantees draught free operation by preventing that

warm or cold air is directly blown on to the body

• Titanium apatite photocatalytic air purification filter removes airborne

microscopic particles, powerfully decomposes odours and helps to

prevent the propagation of bacteria, viruses, microbes to ensure a

steady supply of clean air

• Indoor unit silent operation: "silent" button on the remote control

lowers the operation sound of the indoor unit by 3dBA

• Night set mode saves energy by preventing overcooling or

overheating during night time

• Powerful mode can be selected for rapid heating or cooling; after the

powerful mode is turned off, the unit returns to the preset mode.

• Energy saving during standby mode: reduces current consumption

by about 80% when operating In standby. If no people are detected

for more than 20 minutes, the system will automatically switch to the

current-saving mode.

• Split - Sky Air®• Indoor Unit 3

• Indoor Unit • Wall mounted unit • FTXS-K

2 Specifications

Standard Accessories : Titanium apatite photocatalytic air purification filter; Quantity : 2;

Standard Accessories : Indoor unit fixing screws; Quantity : 2;

Standard Accessories : Mounting plate; Quantity : 1;

Standard Accessories : Remote control holder; Quantity : 1;

Standard Accessories : Wireless remote control; Quantity : 1;

Standard Accessories : Batteries; Quantity : 2;

Standard Accessories : Operation manual; Quantity : 1;

Standard Accessories : Installation manual; Quantity : 1;

2-1 Technical Specifications FTXS20K FTXS25K

Power input Cooling Nom. kW 0.04

Heating Nom. kW 0.04

Casing Colour White

Dimensions Unit Height/Width/Depth mm 289/780/215

Packed unit Height/Width/Depth mm 346/850/274

Weight Unit kg 8

Packed unit kg 12

Heat exchanger Length mm 610

Rows Quantity 2

Fin pitch mm 1.4

Stages Quantity 14

Tube type ø7 Hi-XA

Fin Type ML fin (Multi louver)

Fan Type Cross flow fan

Air flow rate Cooling High m³/min 8.8 9.1

cfm 311 321

Nom. m³/min 6.7 7.0

cfm 237 247

Low m³/min 4.7 5.0

cfm 166 177

Silent operation m³/min 3.9

cfm 138

Heating High m³/min 9.5 10.0

cfm 335 353

Nom. m³/min 7.8 8.0

cfm 275 282

Low m³/min 6.0

cfm 212

Silent operation m³/min 4.3

cfm 152

Fan motor Model MM6C02J2VA

Speed Steps 5 + silent, + auto

Cooling High/Medium/Low/Silent operation rpm 1,330/1,050/780/670 1,370/1,090/820/670

Heating High/Medium/Low/Silent operation rpm 1,360/1,140/920/690 1,410/1,160/920/690

Output High W 16

Sound power level Cooling Nom. dBA 56 57

Heating Nom. dBA 56 57

Sound pressure level Cooling High/Nom./Low/Silent operation dBA 40/32/24/19 41/33/25/19

Heating Super high/High/Nom./Low/Silent operation dBA -/40/34/27/19 -/41/34/27/19

Piping connections Liquid OD 6.35

Gas OD 9.5

Drain 18

Heat insulation Both liquid and gas pipes

Temperature control Microcomputer control

Air direction control Right, Left, Horizontal,Downward

• Indoor Unit • Wall mounted unit • FTXS-K

• Split - Sky Air®• Indoor Unit

2 Specifications

Notes

(1) 220V

(2) 230V

(3) 240V

2-2 Electrical Specifications FTXS20K FTXS25K

Power supply Phase 1~

Frequency Hz 50

Voltage V 220-240

Current Nominal running current (RLA) - 50Hz Cooling A 0.19 (1) / 0.18 (2) / 0.17 (3) 0.19 (1) / 0.18 (2) / 0.17 (3)

Heating A 0.19 (1) / 0.18 (2) / 0.17 (3) 0.19 (1) / 0.18 (2) / 0.17 (3)

Current - 60Hz Nominal running current A -

Wiring connections - 50Hz For power supply Remark 3 for power supply, 4 for interunit wiring (Earth wireincluded)

• Split - Sky Air®• Indoor Unit 5

• Indoor Unit • Wall mounted unit • FTXS-K

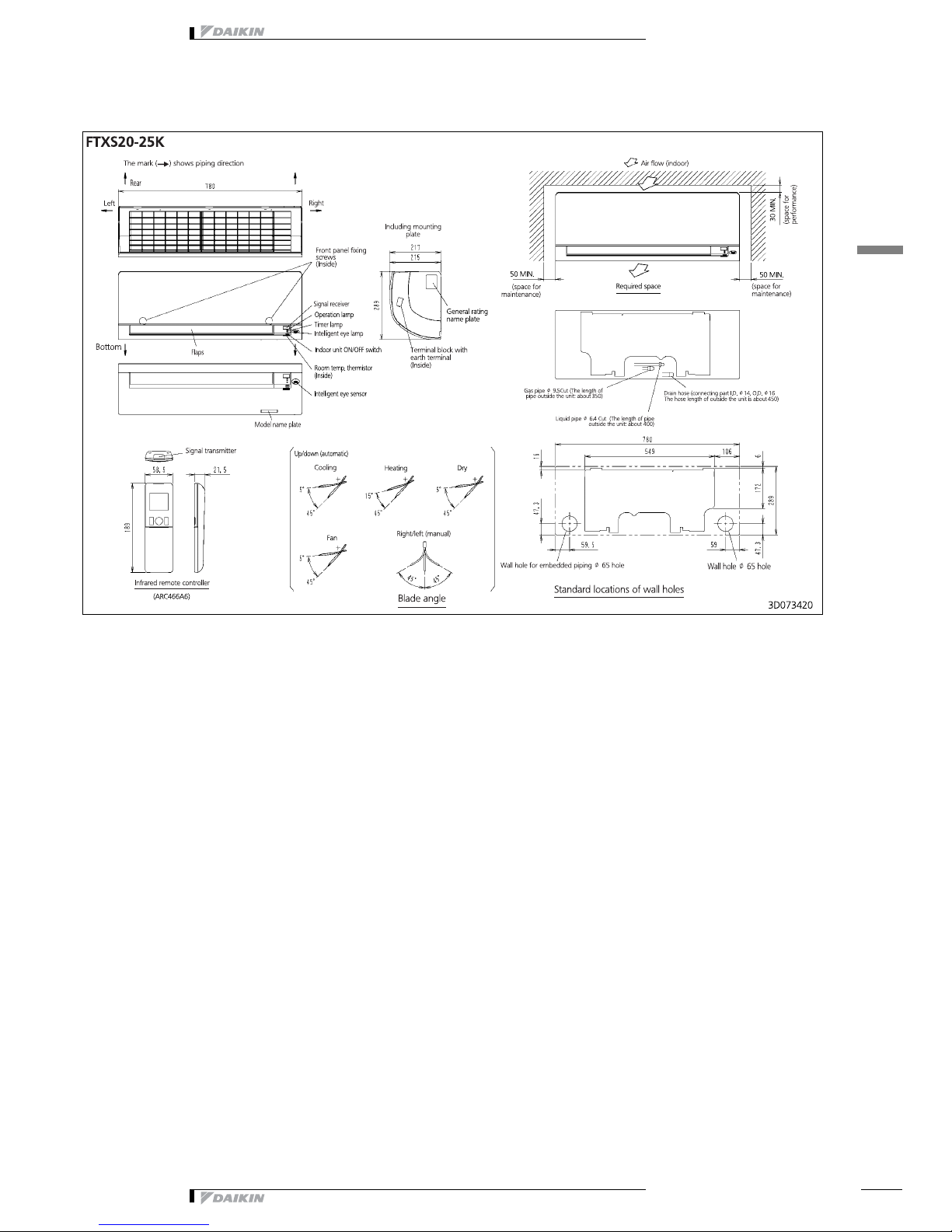

3 Dimensional drawings

3 - 1 Dimensional Drawings

• Indoor Unit • Wall mounted unit • FTXS-K

• Split - Sky Air®• Indoor Unit

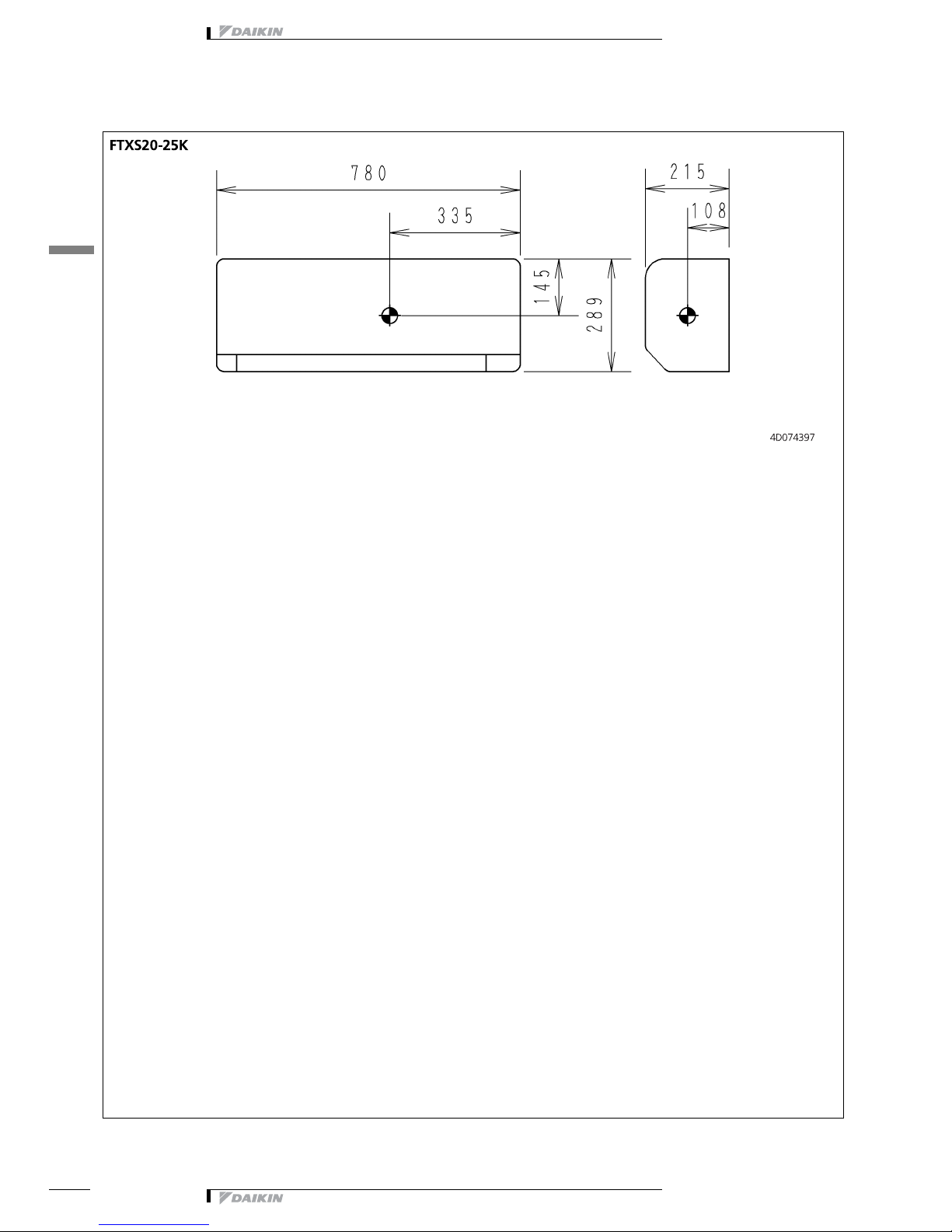

4 Centre of gravity

4 - 1 Centre of Gravity

• Split - Sky Air®• Indoor Unit 7

• Indoor Unit • Wall mounted unit • FTXS-K

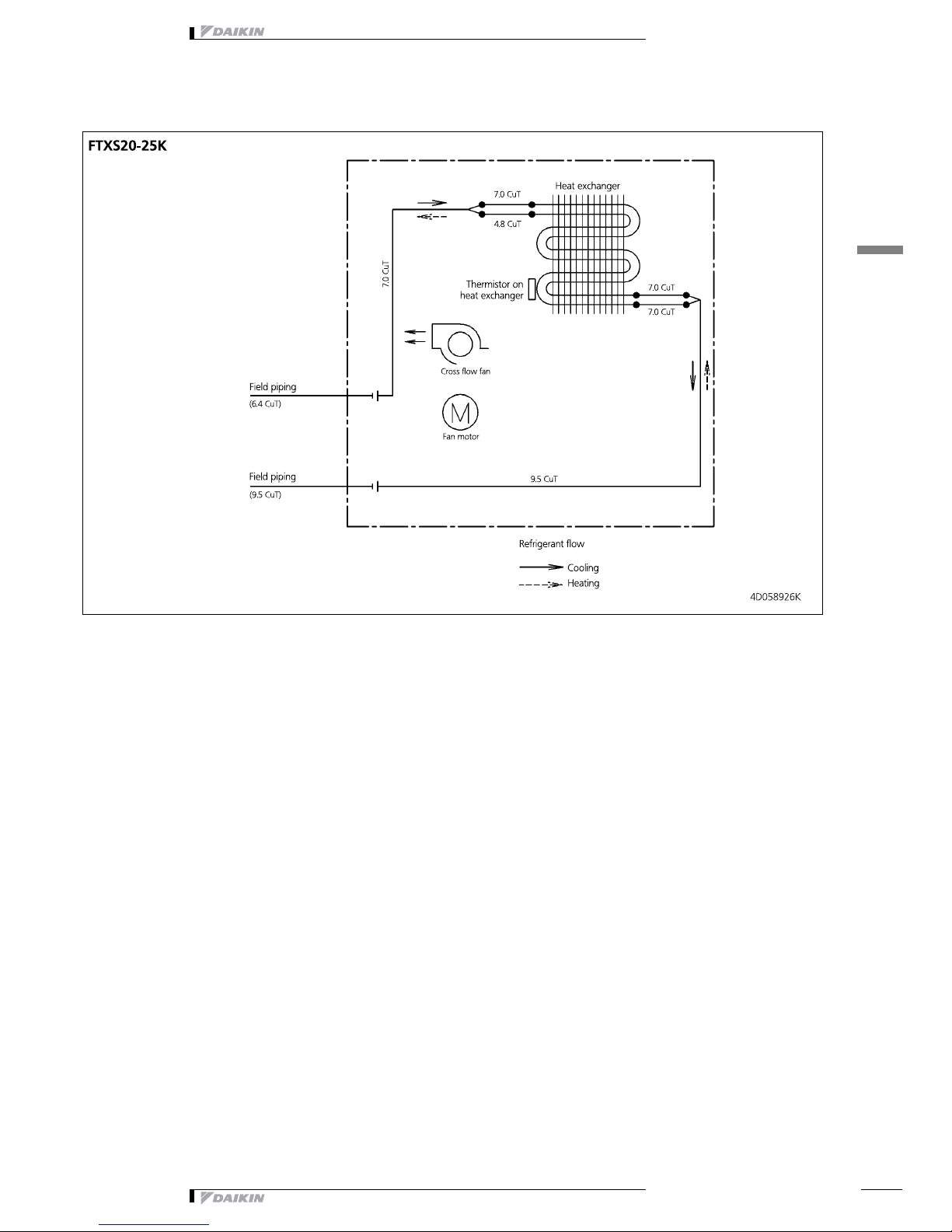

5 Piping diagrams

5 - 1 Piping Diagrams

• Indoor Unit • Wall mounted unit • FTXS-K

• Split - Sky Air®• Indoor Unit

6 Wiring diagrams

6 - 1 Wiring Diagrams - Single Phase

∼

• Split - Sky Air®• Indoor Unit 9

• Indoor Unit • Wall mounted unit • FTXS-K

7 Sound data

7 - 1 Sound Pressure Spectrum
