SERVICE MANUAL

Indoor Unit

Inverter/Non-Inverter

Wall Mounted Type

9000/12000 Btu/h Class

Si04-960

Service Manual

Removal Procedure

Indoor Unit

zCooling Only zHeat Pump

FTE09JV2S

FTE12JV2S

FTXS09HVJU

FTXS12HVJU

Si04-960

Removal Procedure 1

Table of Contents

1. Removal of Air Filter................................................................................2

2. Removal of Front Grille ...........................................................................4

3. Removal of Horizontal Blades / Vertical Blades......................................6

4. Removal of Electrical Box / PCB / Swing Motor......................................8

5. Removal of Indoor Heat Exchanger......................................................13

6. Removal of Drain Plug (Right / Left Replacement) ...............................16

7. Removal of Fan Rotor / Fan Motor........................................................17

Note: The illustrations may be slightly different depending on the model.

Removal of Air Filter Si04-960

2Removal Procedure

1. Removal of Air Filter

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1. External features

If ON/OFF button is pressed

for 5 seconds, a forced

cooling operation is carried

out for approx. 15 minutes.

2. Remove the air filters.

1Hold the protrusions on

the left and right sides

of the front panel and

open the front panel

until it stops with a click.

2Lift the center section of

the air filter and

disengage the hooks.

Remove the air filter by

pulling it forward.

Left and right filters are

interchangeable.

When reassembling, insert

air filter along the guide.

ON/OFF button

Operation

lamp (Green)

Timer lamp

(Yellow)

Signal

receiver

(R4108)

Front panel

(R3089)

Air filter

(R2511)

Si04-960 Removal of Air Filter

Removal Procedure 3

3. Remove the front panel.

1Open up the panel to

the position higher than

where it stops.

Support the front panel by one

hand, while remove the rotation

axis at the upper center by the

other hand.

2Remove the front panel

from the unit.

When reassembling the front

panel, make sure that the

rotation axes are in the guide

groove, and then shut the

panel.

Step Procedure Points

Slide the center rotation axis to the left and remove it out.

Rotation axis

(R2512)

(R2513)

(R2514)

Removal of Front Grille Si04-960

4Removal Procedure

2. Removal of Front Grille

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

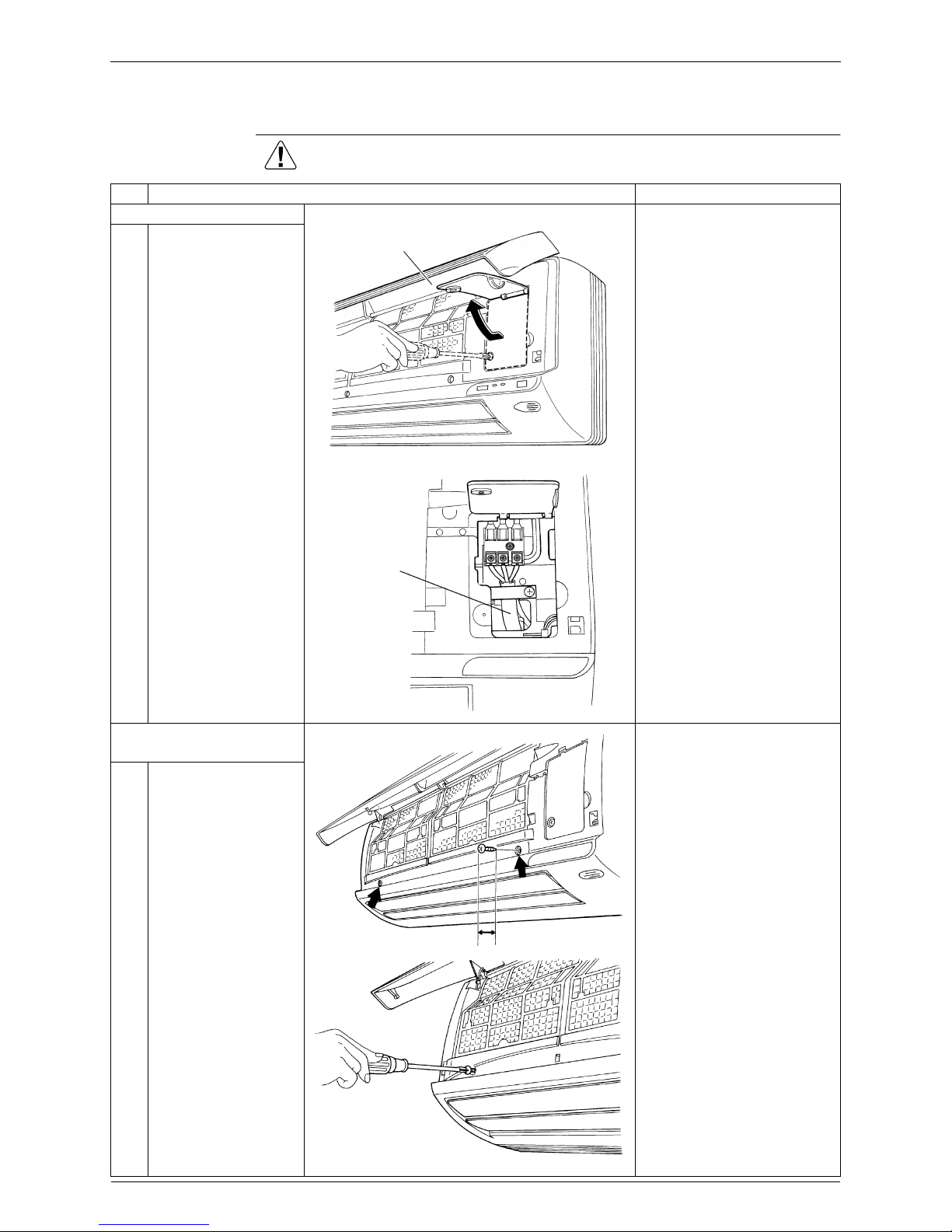

1. Remove the service cover.

1Remove the screw of

the service cover.

Open the service cover

upward.

2. Remove the front grille

assembly.

1Remove the 2 screws,

which fix the front grille

to the main body.

(R2022)

Service cover

Connection

wires

(R10729)

(R2517)

16mm

(R2518)

Si04-960 Removal of Front Grille

Removal Procedure 5

2Release the 2 hooks on

the upper part.

In case that the hooks

cannot be pressed from

above, remove the front

panel and then remove

the front grille while

pushing the hook

through a clearance

between the front grille

and the heat

exchanger.

At the upper part there are 2

hooks.

Release the hooks by

pressing knobs with a flat

screwdriver.

3The front grille can be

removed by pulling out

the upper part forward

and lifting up the lower

part.

When reassembling the

front grille, make sure

whether each hook is set as

it was.

Step Procedure Points

Front

grille

Hook

(R2519)

(R2520)

Front grille

(R2521)

Removal of Horizontal Blades / Vertical Blades Si04-960

6Removal Procedure

3. Removal of Horizontal Blades / Vertical Blades

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1. Remove the horizontal

blades.

1Open the horizontal

blade.

2Disengage the

horizontal blade from

the retaining section.

3Bend the horizontal

blade slightly and

remove it from the unit.

Horizontal blade

(R2522)

(R2523)

(R2524)

Si04-960 Removal of Horizontal Blades / Vertical Blades

Removal Procedure 7

For reassembling.

1. Since the key pattern hook

is provided on the right side,

insert the edge of the blade

to the pivot while rotating it.

2. Fit the horizontal blade to

the other 2 pivots.

2. Remove the vertical blades.

1Disengage the vertical

blades from the fixing

plate.

2Remove the vertical

blades forward.

5 vertical blades are

integrated with the joint rod.

(Only one blade cannot be

exchanged.)

Step Procedure Points

(R2032)

Vertical blades

(R3090)

Fixing plate

(R2527)

Removal of Electrical Box / PCB / Swing Motor Si04-960

8Removal Procedure

4. Removal of Electrical Box / PCB / Swing Motor

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

Remove the front grille.

1. Remove the electrical box.

1Disconnect the

connecting wires.

2Remove the screw on

the wire fixture.

Pay attention to the direction

of the retainer of the

thermistor so that the

retainer does not touch the

harness.

3Disconnect the

connectors for fan

motor [S1] [S7].

4Disconnect the

connector for swing

motor [S6].



5Pull out the indoor heat

exchanger thermistor.

Terminal board

Indoor heat exchanger

thermistor

Swing motor

Earth screw

[S1]

[S7]

[S6]

(R18517)

Wire

fixture

(R18518)

Indoor heat

exchanger

thermistor

Retainer of

thermistor

[S1]

Connector

for fan motor

[S7]

Connector

for fan motor

[S6]

Connector

for swing

motor

(R18519)
