Daikin FT15HV2S Manuel utilisateur
REMOVAL
PROCEDURE
SERVICE MANUAL
Indoor Unit
Inverter / Hybrid /
Non-Inverter
Wall Mounted Type
4.2/5.0/6.0/7.1/8.0/9.0 kW Class
15000 Btu/h Class
Si04-855
Service Manual
Removal Procedure
Indoor Unit
zCooling Only zHeat Pump
FT15HV2S FTXS50FVLT
FTXS60FVLT
FT50GV1G FTXS71FVLT
FT60GV1G
FTXS50FVMA
FTKE15GV2S FTXS60FVMA
FTXS71FVMA
FTKE42GV1 FTXS80FVMA
FTXS90FVMA
FTKS50FVLT
FTKS60FVLT FTXS50GVMA
FTKS71FVLT FTXS60GVMA
FTXS71GVMA
FTKS50FVM FTXS80GVMA
FTKS60FVM
FTKS71FVM FTYN50GV1A
FTYN60GV1A
FTKS50FVMA FTYN71GV1A
FTKS60FVMA
FTKS71FVMA
FTKS50GVMA
FTKS60GVMA
FTKS71GVMA
FTKS50GVMG
FTKS60GVMG
Si04-855
Removal Procedure 1
Table of Contents
1. Removal of Air Filters / Front Panel ........................................................2
2. Removal of Front Grille ...........................................................................5
3. Removal of Horizontal Blades / Vertical Blades......................................7
4. Removal of Electrical Box / PCBs / Swing Motors ..................................9
5. Removal of Indoor Heat Exchanger ......................................................15
6. Removal of Fan Motor / Fan Rotor........................................................18
Note: The illustrations may be slightly different depending on the model.
Removal of Air Filters / Front Panel Si04-855
2Removal Procedure
1. Removal of Air Filters / Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Appearance features
Warning
Dangerous: High voltage
A high voltage is applied to all
the electric circuits of this
product including
thermistors.
When the signal receiver
catches a signal from the
remote controller, the
receiving tone sounds and
the operation lamp blinks
immediately to confirm the
signal reception.
When the [ON/OFF] button
is kept pressed for 5
seconds, the forced cooling
operation is performed for
about 15 minutes.
Some models have no
HOME LEAVE lamp.
2. Remove the air filters.
1Open the front panel to
the position where it
stops.
2
3
Slightly push up the
center knob of the air
filter and unfasten the
hooks.
Pull out the air filter
downward and remove
it.
The air filter is not marked
for difference between the
right and left sides.
Insert the air filter with the
"FRONT" mark faced up.
The air filter can be set
easily by inserting it along
the guides.
Be sure to insert the hooks
(at 2 lower positions) when
mounting the air filter.
(R12786)
Operation lamp
Signal receiver
TIMER lamp
[ON/OFF] button
(R17229)
Room temperature thermistor
HOME LEAVE
lamp
(R6701)
Front panel
Air filter
(R6702)
Si04-855 Removal of Air Filters / Front Panel
Removal Procedure 3
3. Remove the Titanium
apatite photocatalytic air-
purifying filters.
The right and left filters are
interchangeable.
Some models have no
Titanium apatite
photocatalytic air-purifying
filter.
Some models have Air-
purifying filters with
photocatalytic deodorizing
function instead.
Some models have air filters
only.
1Push up the bottom of
the Titanium apatite
photocatalytic air-
purifying filter to
unfasten the hooks (2
on lower, 3 on upper)
and take the filter out.
Step Procedure Points
Hook
Hook
(R2751)
Titanium apatite
photocatalytic air-
purifying filter
(R12788)
Removal of Air Filters / Front Panel Si04-855
4Removal Procedure
4. Remove the front panel.
1While opening the front
panel further than it
stops, release both the
shafts and remove the
front panel.
Slide the front panel from
side to side to release each
shaft.
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them into position.
Step Procedure Points
(R2753)
(R2754)
(R2755)
Si04-855 Removal of Front Grille
Removal Procedure 5
2. Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the service
cover.
Preparation
Remove the front panel
according to "Removal of the
Air Filters / Front Panel".
You can remove the front
grille without detaching the
service cover.
1Remove the screw and
remove the service
cover.
2. Remove the front grille.
1Remove the 3 screws
of the front grille.
Refer to the removal
procedure in a reverse way
when reassembling.
Service cover
(R2756)
(R2757)
(R2758)
Front grille

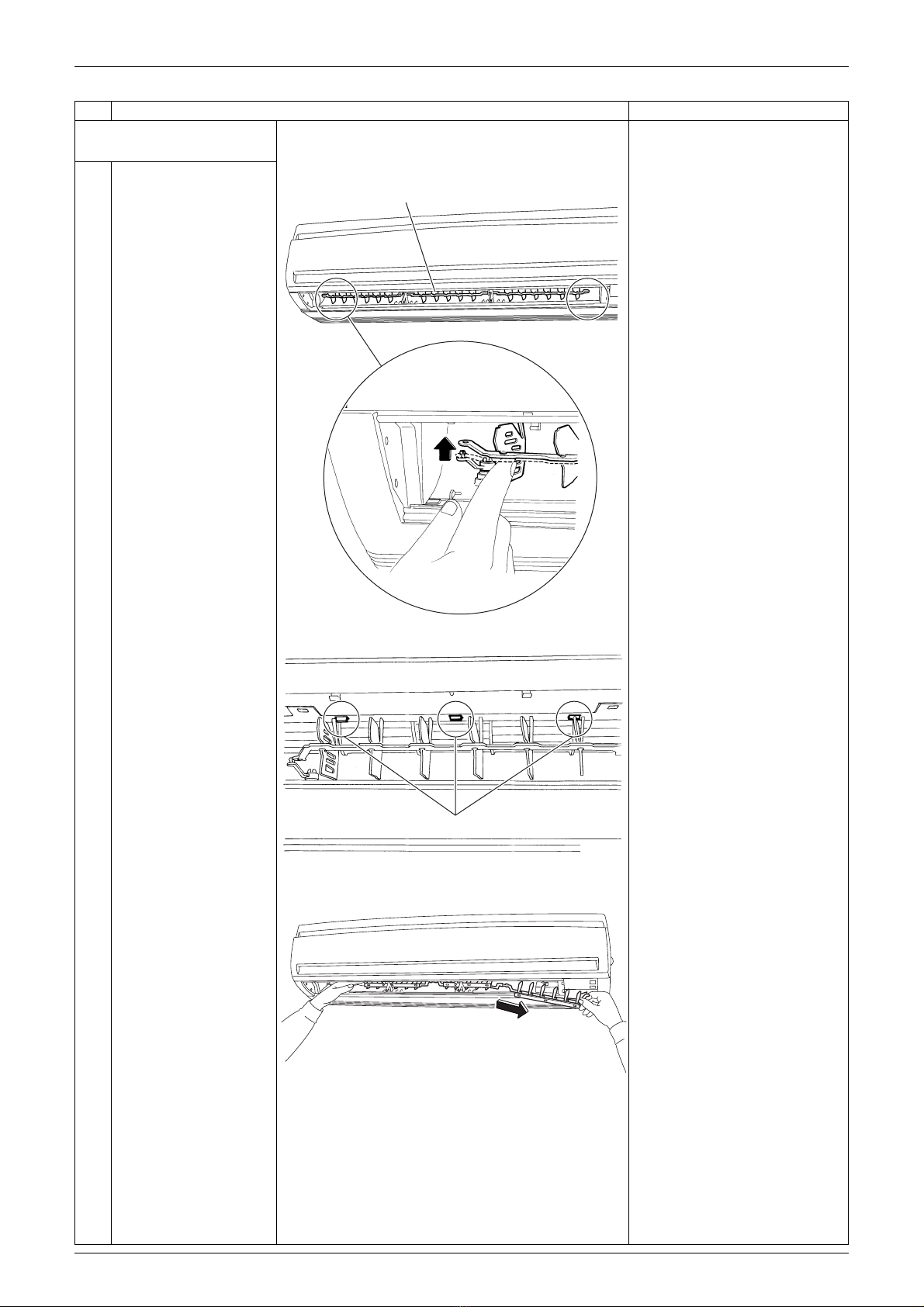

Removal of Front Grille Si04-855
6Removal Procedure
2Unfasten the 3 hooks
on the top of the front
grille.
The convex marks (...) on
the front panel indicate the
position of the hooks.
3Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.
Make sure that all the 3
hooks are engaged securely
when reassembling.
Step Procedure Points
Hook
(R2759)
Hook
(R2760)
(R2761)
(R2762)
Si04-855 Removal of Horizontal Blades / Vertical Blades
Removal Procedure 7
3. Removal of Horizontal Blades / Vertical Blades
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the horizontal
blades.
1Open the horizontal
blades.
2Bend the horizontal
blade slightly and
release the center
shaft. (2 locations)
Remove both the horizontal
blades (upper and lower) in
the same way.
3Release the left shaft.
4Slide the horizontal
blade to the left and
release the right shaft.
Installation procedure
1. Since the key pattern hook is
provided, rotate the blade
and fit it to the right shaft
first.
2. Fit the blade to the center
and left shafts.
Horizontal blade
(R6703)
(R2765)
Center shaft
Left shaft
Center shaft
(R12894)
Right shaft
(R2766)
Removal of Horizontal Blades / Vertical Blades Si04-855
8Removal Procedure
2. Remove the vertical
blades.
The unit has 3 sets of
vertical blades linked to one
another with interlock rods.
1Release the right and
left shafts.
2Unfasten the 3 hooks
for each set of vertical
blades.
3Pull the vertical blades
rightward and remove
them.
Step Procedure Points
Vertical blade
(R6705)
Hook
(R2768)
(R6706)
