Fully flat cassette

EEDEN13-100-

FFQ-C

• Split - Sky Air • Indoor Unit 1

• Indoor Unit • Fully flat cassette • FFQ-C

TABLE OF CONTENTS

FFQ-C

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

9 External connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

External Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

10 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Sound Pressure Spectrum - Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Sound Pressure Spectrum - Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Indoor Unit • Fully flat cassette • FFQ-C

• Split - Sky Air • Indoor Unit

1 Features

IndoorUnit Split-Sk FFQ-CFullyflat

• Unique design in the market: integrates fully flat into the ceiling and

fits flush into architectural ceiling modules

• Remarkable blend of iconic design and engineering excellence with

an elegant finish in white or a combination of silver and white

• The presence sensor (optional) adjusts the set point with standard

1ºC if no one is detected in the room, it is possible to adjust the set

point with 2, 3 or 4ºC (optional). It also automatically directs air flow

away from any person to avoid draught.

• The floor sensor (optional) detects the average floor temperature and

ensures even temperature distribution between ceiling and floor.

Cold feet will become history.

• Individual flap control: one flap can be easily closed via the wired

remote control (BRC1E52) in case you would refurbish or rearrange

your interior

• Low energy consumption thanks to specially developed small tube

heat exchanger, DC fan motor and drain pump

• Fresh air intake for healthy living

• No optional adapter needed for DIII-connection, link your unit into the

wider building management system.

Inverter Home leave

operation

Fan only Draught

prevention

Auto cooling-

heating

changeover

Whisper quiet Ceiling soiling

prevention

Vertical auto

swing

Fan speed

steps

Dry programme Air filter Weekly timer Infrared remote

control

Wired remote

control

Auto-restart Self diagnosis Drain pump kit Twin/triple/

double twin

application

Multi model

application

Super Multi

Plus

• Split - Sky Air • Indoor Unit 3

• Indoor Unit • Fully flat cassette • FFQ-C

2 Specifications

Standard Accessories : Clamps; Quantity : 7;

Standard Accessories : Sealing pad; Quantity : 4;

Standard Accessories : Insulation for fitting; Quantity : 2;

Standard Accessories : Paper pattern for installation; Quantity : 1;

Standard Accessories : Screws; Quantity : 4;

2-1 Technical Specifications FFQ25C FFQ35C FFQ50C FFQ60C

Casing Material Galvanised steel plate

Dimensions Unit Height/Width/

Depth

mm 260/575/575

Packed unit Height/Width/

Depth

mm 270/780/616

Weight Unit kg 16 17.5

Packed unit kg 19 20.5

Decoration panel Model BYFQ60CW

Colour White (N9.5)

Dimensions Height/Width/

Depth

mm 46/620/620

Weight kg 2.8

Decoration panel 2 Model BYFQ60CS

Colour White (N9.5) + Silver

Dimensions Depth/Height/

Width

mm 620/46/620

Weight kg 2.8

Decoration panel 3 Model BYFQ60B2

Colour White (RAL9010)

Dimensions Height/Width/

Depth

mm 55/700/700

Weight kg 2.7

Heat exchanger Inside length mm 1,295 1,248

Outside length mm 1,342

Rows Quantity 2 3

Fin pitch mm 1.2

Passes Quantity 5 7

Face area m² 0.290 0.300

Stages Quantity 12 16

Empty tubeplate

hole

Quantity 0

Fin Type Cross fin coil (multi slit fins and hi-XA tubes)

Fan Type Turbo fan

Quantity 1

Air flow rate Cooling High m³/min 9 10 12 14.5

Nom. m³/min 8 8.5 10 12.5

Low m³/min 6.5 7.5 9.5

Heating High m³/min 9 10 12 14.5

Nom. m³/min 8 8.5 10 12.5

Low m³/min 6.5 7.5 9.5

Fan motor Model QTS32D15M

Speed Steps 3

Output High W 50

Sound power level Cooling High dBA 48 51 56 60

Sound pressure level Cooling High/Nom./Low dBA 31/28.5/25 34/30.5/25 39/34/27 43/40/32

Heating Super high/High/

Nom./Low

dBA -/31/28.5/25 -/34/30.5/25 -/39/34/27 -/43/40/32

Refrigerant Type R-410A

Piping connections Sound absorbing insulation Foamed Polyurethane

Liquid Type/OD mm Flare connection/6.35

Gas Type/OD mm Flare connection/9.52 Flare connection/12.7

Drain VP20 (I.D. 20/O.D. 26)

Heat insulation Foamed polystyrene/polyethylene

Air filter Type Resin net with mold resistance

• Indoor Unit • Fully flat cassette • FFQ-C

• Split - Sky Air • Indoor Unit

2 Specifications

Standard Accessories : Washer for hanger bracket; Quantity : 8;

Standard Accessories : Metal clamp for drain hose; Quantity : 1;

Standard Accessories : Drain hose; Quantity : 1;

Standard Accessories : Installation manual; Quantity : 1;

Standard Accessories : Operation manual; Quantity : 1;

Notes

(1) Dimensions do not include control box

(2) The sound power level is an absolute value indicating the power which a sound source generates.

2-2 Electrical Specifications FFQ25C FFQ35C FFQ50C FFQ60C

Power supply Name VE

Phase 1~

Frequency Hz 50

Voltage V 220-240

• Split - Sky Air • Indoor Unit 5

• Indoor Unit • Fully flat cassette • FFQ-C

3 Safety device settings

3 - 1 Safety Device Settings

• Indoor Unit • Fully flat cassette • FFQ-C

• Split - Sky Air • Indoor Unit

4 Options

4 - 1 Options

• Split - Sky Air • Indoor Unit 7

• Indoor Unit • Fully flat cassette • FFQ-C

5 Dimensional drawings

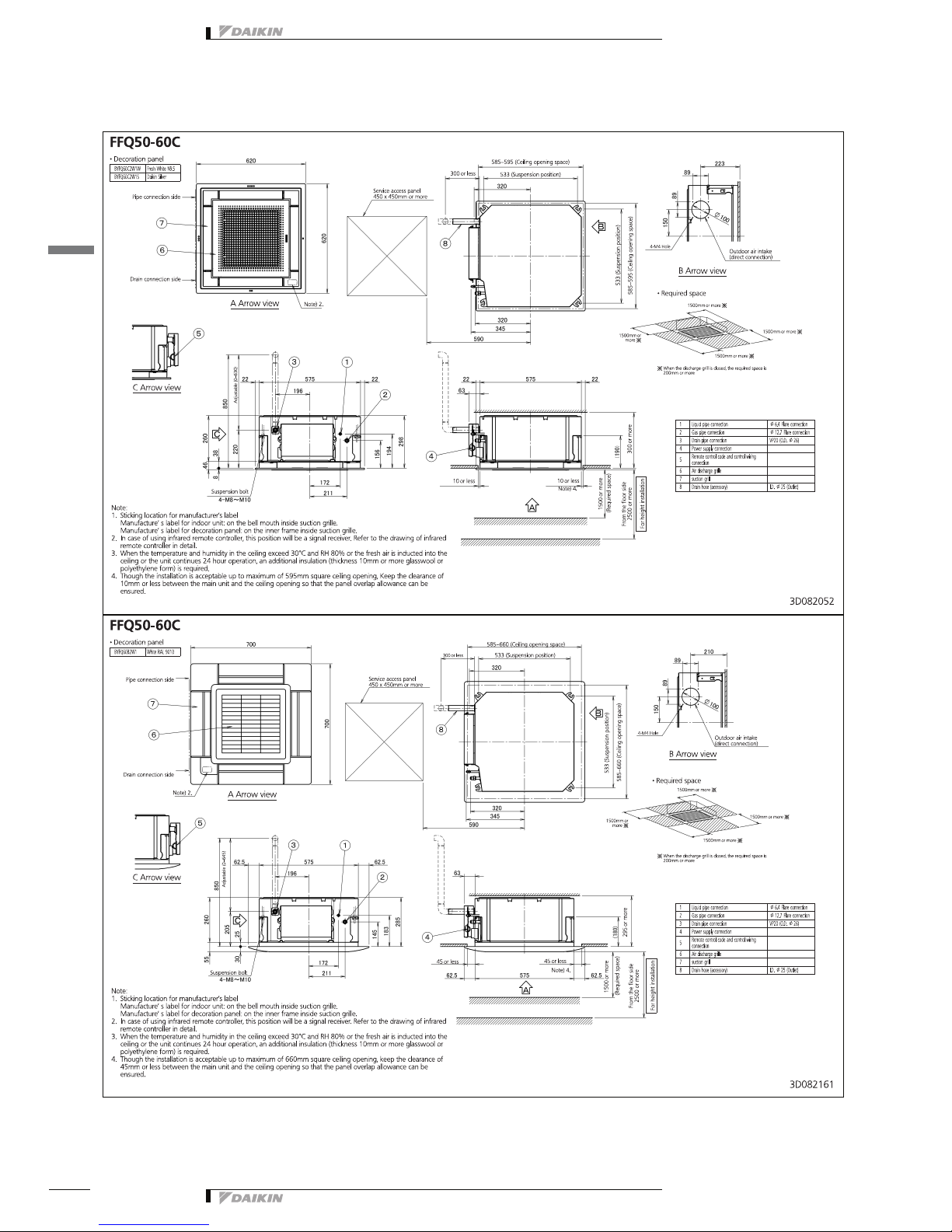

5 - 1 Dimensional Drawings

• Indoor Unit • Fully flat cassette • FFQ-C

• Split - Sky Air • Indoor Unit

5 Dimensional drawings

5 - 1 Dimensional Drawings
