Daihan Scientific WiseSpin CF-10 Manuel utilisateur
WiseSpin® CF-10
Personal Centrifuge
Operation Manual
(Version 1.4.2)
written for
Model CF-10
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 2/37
Contents
Page
1. Safety Instructions ........................................................................…….....….. 3
2. Before Use …......................................................................................……..... 5
3. Introduction ....................................................................................... 6
4. Package Contents ......................................................................................... 7
5. Appearance and Naming .................................................................................. 8
6. Controller Details .......................................................................................... 9
7. Installation ..................………………............................................................ 10
8. Cautions in Use ………………....................................................................... 12
9. Operation ........................................................................................... 14
10. Specifications …………........................................................................ 18
11. Maintenance …………………..................................................................... 19
12. Certificate ........................……….............................................................. 20
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 3/37
SafetyInstructions 1
Please read this carefully for the safety before using the device. The indicated cautions are
related to the safety and you should observe all safety and warning instructions.
Symbols (Pictograms) and the meaning
This symbol indicates caution
(Including warning). There will be
concrete descriptions.
This symbol indicates inhibition.
There will be concrete
description.
This symbol indicates inhibition
regarding modification.
This symbol indicates caution
regarding heat.
This symbol indicates the risk of
explosion or fire.
This symbol indicates the user
must be kept away while
operation.
Please read following warning for safety and proper use.
WARNING
Do not use a power source other than which the unit is designed to operate on.
Inappropriate power supply may result in damage to the equipment. Adhere to all
electrical codes.
Please do not touch with wet hands. It may be caused an electric shock.
Do not handle the power cord harshly. Disconnection or short may cause if you
bend or put a heavy thing on the device.
When you take a plug out in a wall socket, turn the power off and then take the plug
out carefully.
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 4/37
Insert the plug securely into a wall socket.
Loose connections result in excessive heat generation to the device and may cause
arcing to occur at the connection.
Avoid using multi-point extension power cords. It may cause excessive heat
generation and be the cause of a fire.
If you extend the power cord, use the cord to have sufficient electric capacity.
Be sure to operate the device only with the specified power supply.
When you connect the product specified by 100V to 200V, it may be caused to
over-heat, electric shock or a short circuit to each part.
Do not connect wrong electricity since it is the cause of a fire.
Disconnect the power supply plug if the unit is not going to be used for an extended
period of time.
Refer to the Warnings regarding Installation stated in the Section 7.
Refer to the Warning and Cautions regarding use of the device
stated in the Section 8.
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 5/37
BeforeUse 2
Thank you very much for purchase of WiseSpin®CF-10 Centrifuge.
This operation manual describes performance, proper usage, cautions and notices for use of the
purchased product. Before use, please confirm this manual and use properly.
Please read carefully and thoroughly all the safety instructions described in the Section 1 again.
And also, please keep this manual.
Modifications of exterior, interior, mechanism, electric/electronics or any other specifications
could be made without notice to improve the quality and performance of the product.
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 6/37
Introduction 3
WiseSpin®Digital Personal Table-top Centrifuges has very low noise level (≤57dB at Max.
RPM) even though it has high performance (max. 13,500rpm (rcf: 12,225 x g)) and extremely
compact with small footprint
Key features are as follows;
■Unbelievably quiet operation with maintenance-free drive (Brushless DC motor)
■Very low noise level: ≤57dB at max. rpm
■High performance - Max. 13,500rpm (rcf: 12,225 x g) by digital feedback speed control
■Extremely compact design with small footprint
■Simplest user interface by Jog-Shuttle Switch - Patented user interface
■Exclusive ‘Spin Down’ button: Two types of simple operation for repetitive use of a certain
RPM & time. (Timer operating & Return operating)
■Acceleration and braking times lower than 15 sec (for max. Speed)
■Digital Back-Light LCD, with Power bar graph
■Digital timer function with continuous running mode (99hr 59min)
■Storage function for the set values of RPM and Timer
■Locking mode supported for experimental Safety
■Safety system for motor error and automatic stop when opening door
■Capacity: 12 x 1.5/2.0 ml tubes
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 7/37
PackageContents 4
CF-10 Personal table top Centrifuges ……………….……….................................................... [ 1 ]
CFAR1512 Angle Rotor, 12 x 1.5/2.0 ml tubes ....................................................................... [ 1 ]
Power Code ………………………………………………………..……………………………... [ 1 ]
Operation Manual .................................................................................................................... [ 1 ]
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 8/37

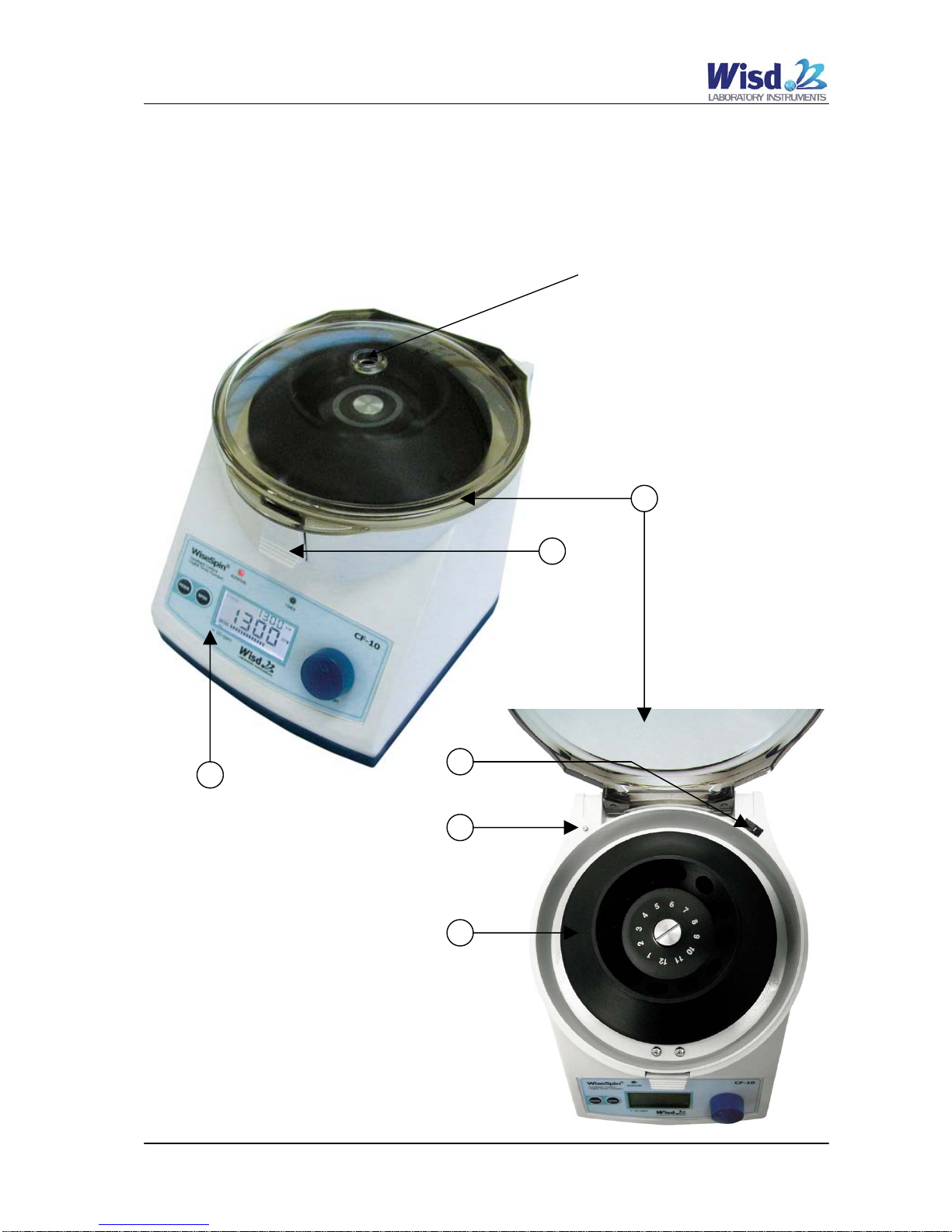

Appearance and Naming 5
Control Panel
Lid Clamp
Lid
Lid Shover
Lid Open Sensor
Rotor - CFAR1512 (12 x 1.5/2.0 ml tubes)
3
1
4
2
5
6
Air hole
closed by a rubber cap in the factory
setting.
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 9/37

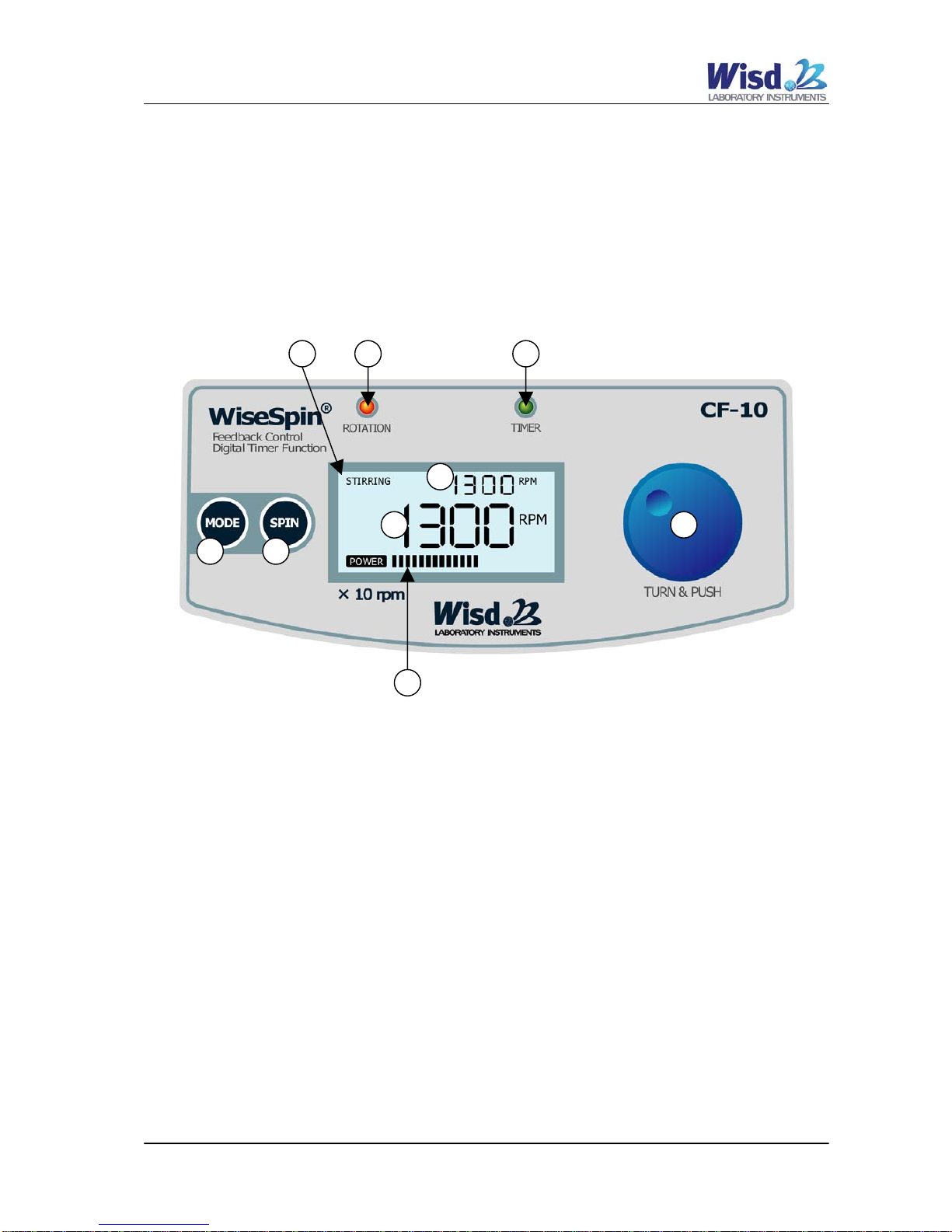

Controller Details
6
(NOTE) SV : Set Value, PV : Present Value
Operation Status
SV of rotation speed (set rpm : x 10) or Timer
PV of rotation speed (measured rpm : x 10) or Timer
Power bar graph indicating the power of the motor operating
ROTATION (operating) lamp : indication of rotation setting and status.
TIMER lamp : indication of Timer setting and status.
MODE button : Selection of main operation mode. (Set Rotation Speed mode, Set Timer
mode and Safety Locking mode)
SPIN-DOWN button : Go to ‘SPIN DOWN’ mode.
○
15 Jog-shuttle knob : Turn + Push
- Setting the value of Rotation Speed or Timer by Turing.
- Start and stop by Pushing
7
9
10
15
8
11 12
13 14
DAIHAN-Sci.com / ALL
for
LAB.com
WiseSpin
®
CF-10 Personal Table-top Centrifuge 10/37
Installation 7
1. After receiving the unit and putting it on the specified place of use remove the wrapping.
2. Check the unit whether there are eventual transport damages or not. In case there are some
transport damages found please inform the forwarder and your contractor. If there is no
damage, please go to next point 3.
3. Push the Lid Clamp and open the lid. You can find the rotor, CFAR1512 (12 x 1.5/2.0 ml
tubes) equipped in the centrifuging room. Please check carefully if there is anything wrong
including loose fixing of the rotor or leaning of the rotor. In case there is any kind of damage
found, please inform the forwarder and your contractor. If you cannot find anything wrong,
please go to next point 4.
4. Connect the main power cord to the socket.
