Dahua DSS4004 Manuel utilisateur

DSS4004 Platform Initialization User’s Manual

V1.0.2

Table of Content

1OPEN PACKAGE INSPECTION..............................................................1

1.1 Steps of Inspection...............................................................................................................1

1.2 Front Panel..............................................................................................................................1

1.3 Rear Panel...............................................................................................................................1

2INITIALIZATION SETUP..........................................................................2

2.1 System IP Address................................................................................................................2

2.1.1 Local Setting...........................................................................................................................2

2.1.2 Web Setting.............................................................................................................................4

2.2 Other Basic Config................................................................................................................5

3WEB MANAGER......................................................................................6

4TECHNICAL SUPPORT...........................................................................7

Welcome

Thank you for using our platform!

This initialization user’s manual is designed to be a reference tool for the installation and

operation of your system.

Before installation and operation please read the following safeguards and warnings

carefully!

Please keep it for future reference!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by

improper handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation,

storage and installation.

3．Installation

Keep upwards. Handle with care.

Do not apply power to the device before completing installation.

Do not place objects on the device.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted

repair.

5．Environment

The device should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

This series product shall be transported, storage and used in the specified environments.

6. Lithium battery

Improper battery use may result in fire, explosion, or personal injury!

When replace the battery, please make sure you are using the same model!

7. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailerASAP if something is broken in your package.

1 Open Package Inspection

1.1 Steps of Inspection

When you receive the device from the forwarding agent, you shall inspect as follows:

Step 1. Please check whether there is any visible damage.

Step 2. The protective materials used for the package of the device can protect most

accidental clashes during transportation. Then you can open the box to check the

accessories. Please check the items in accordance with the list.

Step 3. Finally you can remove the protective film of the device.

1.2 Front Panel

The front panel is shown as below. See Figure 1- 1.

Figure 1- 1

Please refer to the following sheet for front panel button information.

Name

Function

Power button

Press it to turn off the device.

USB port

HDD4

HDD indicator. HDD4 is blue light by default. If it turns red, there must

be abnormality.

HDD3

HDD indicator.

HDD2

HDD indicator.

HDD1

HDD indicator.

Alarm Indicator

When device has alarm, alarm indicator turns on. If alarm indicator

turns red, it means the temperature has gone over 80℃, or the fan

does not work.

Network

Indicator

When device connects to Internet, network indicator flashes blue. If

network indicator turns red, there must be abnormality in connection.

1.3 Rear Panel

The rear panel is shown as in Figure 1- 2.

Figure 1- 2

Please refer to the following sheet for rear panel button information.

Function

Power socket

Video VGAoutput

Audio output

HDMI1

Audio input

HDMI2; reserved, not open by default.

Network 1-2

USB port

Network 3-4

eSATA port

RS232 convertor

Alarm input, alarm output

2 Initialization Setup

Before you use the platform, please follow the steps listed below to set the initialization

information.

2.1 System IP Address

Before you use the platform, please set system IP address.

DSS4004 default IP address:

port 1:192.168.1.108

port 2:192.168.2.108

port 3:192.168.3.108

port 4:192.168.4.108

DSS4004 has local setting and WEB setting.

2.1.1 Local Setting

Steps for local setting operation are listed below:

Step 1. Connect VGA(or HDMI) monitor.

Enter login username and password, you will enter initial configuration interface.

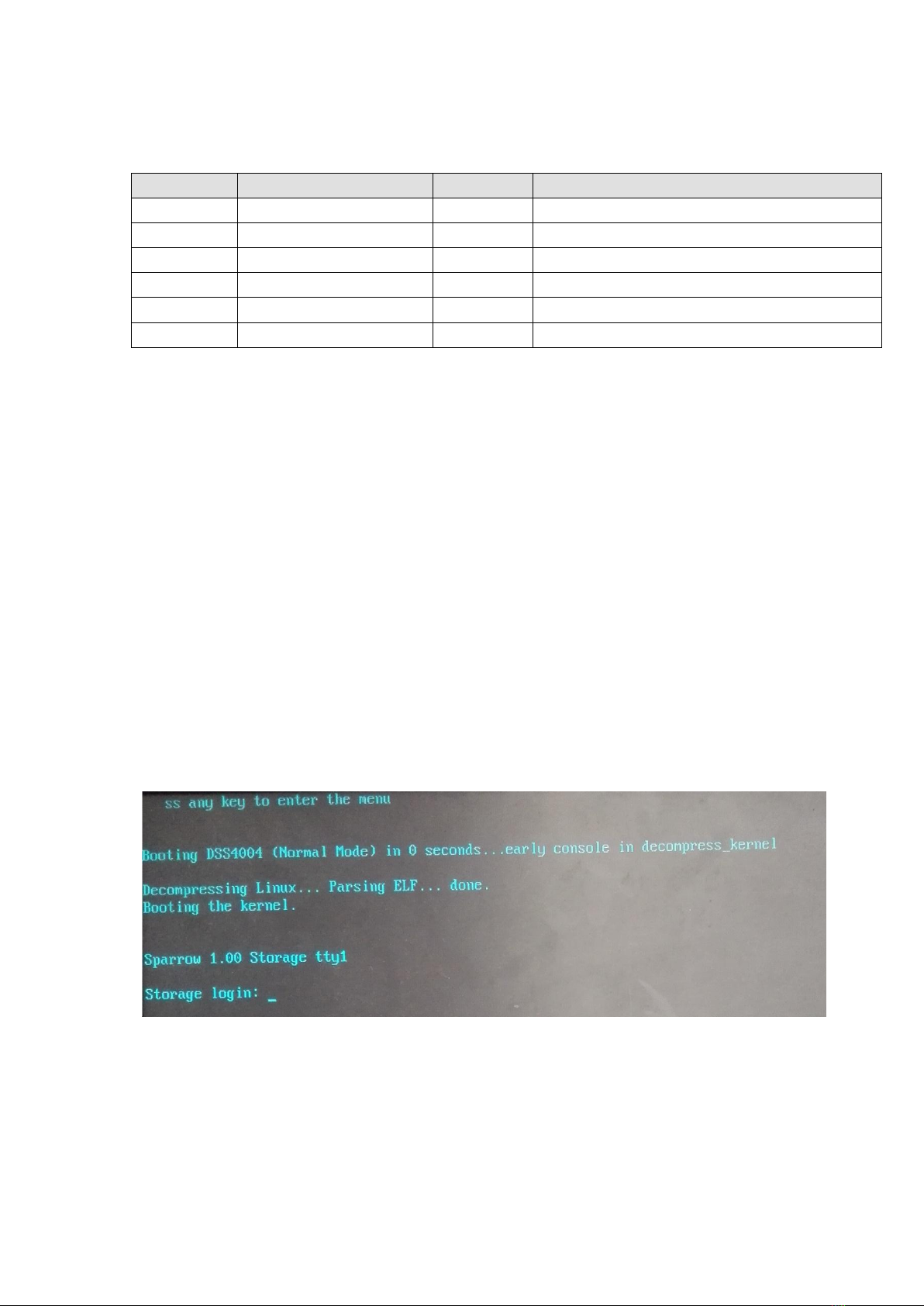

Figure 2- 1

Step 2. Press 【↓】button, select 2 “Network Configuration”, and press Enter. See Figure 2- 2.

Figure 2- 2

Step 3. Press 【↓】button, move cursor to 2 “Set Network Card Info”, and press Enter. See

Figure 2- 3.

Figure 2- 3

Step 4. Press 【↓】, you shall select port to configure.

Eth0 corresponds to port 1; eth1 corresponds to port 2 and so on. Select port, and

press Enter. See Figure 2- 4.

Figure 2- 4

Step 5. Enter IP address. See Figure 2- 5.

Figure 2- 5

Step 6. Press 【Tab】button, move cursor to <OK>, and press Enter.

A pop-up window shows “Save network configuration?” select OK to save. The IP

configuration is now complete.

2.1.2 Web Setting

Step 1. Please input http://ip/config on the IE and then click Enter button. System pops up the

following dialogue box. See Figure 2- 6.

Figure 2- 6

Step 2. Please input user name and password. System default user name is admin and

password is 123456.

Step 3. Select Maintenance, and can modify the IPAddress, then Apply.

Figure 2- 7

2.2 Other Basic Config

After you set platform IP address, please access the platform via a PC to config system basic

infomation.

Please refer to Ch 2.1.2.

Please follow the steps listed below.

Step 1. System maintenance.

i. Select Maintenance>Account tab, manage user account/password.

ii. Select Maintenance>Maintenance tab, switch master-slave mode, shutdown,

reboot and restore default.

iii. Select Maintenance>Net Card tab, configure network mode, net card, IP address

and etc.

iv. Select Maintenance>Time Setup tab, set time zone, date, time and NTP server.

v. Select Maintenance>Port tab, set server port for WEB.

Step 2. Storage config.

There are local disk and network disk two storage methods.

i. Select Storage Config>Local Disk interface, you can refresh, format disk and

perform other operations.

ii. Select Storage Config>Network Disk interface, you can add, format, refresh disk

and perform other operations.

Step 3. Link config.

Select Link Config>Mail Link interface. See Figure 2- 8. When you configure alarm

scheme at Master-end, select main link and set main receiver. If alarm occurs, an

email will be sent to that email address.

Figure 2- 8

i. Configure parameter, click Application. SMTP server’s listening port is 25 by

default.

ii. Check Enable.

3 WEB Manager

You can refer to the following steps to login DSS manager.

Note: Details please see the document “DSS Client User's Manual” and “DSS Manager

User's Manual”

Step 1. In Internet Explorer, input IP address of DSS, press Enter. You will see Figure 3- 1.

Default username is system. Default password is 123456.
