Dahua HAC-HFW2100EP/N Manuel utilisateur

1 Megapixel HDCVI Camera User’s Manual

Version 1.0.0

Table of Contents

1General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

1.3 Functions .......................................................................................................................1

1.4 Specifications................................................................................................................1

2Framework...................................................................................................................................4

2.1 Dimensions....................................................................................................................4

2.2 Structure ........................................................................................................................4

3Installation ...................................................................................................................................6

4Menu.............................................................................................................................................8

Appendix Toxic or Hazardous Materials or Elements ...............................................................10

Welcome

Thank you for purchasing our HDCVI camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC in the IEC60950-1.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

If this product is installed in the ceiling, please make sure the installation position can sustain the min

50N.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series HDCVI camera should be installed in a cool, dry place away from direct sunlight or strong

light, inflammable, explosive substances and etc.

This series camera shall work on the specified working temperature. Please keep it away from the

electromagnetic radiation object and environment.

Please make sure the CMOS component is out of the radiation of the laser beam device. Otherwise it

may result in CMOS optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the

mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.

Please put the dustproof cap to protect the CMOS component when you do not use the camera.

1General Introduction

1.1 Overview

This series megapixel HD camera conforms to the HDCVI standard. It supports video signal

high-speed long distance transmission without any delay. It can be controlled by the DVR

conforming to the HDCVI.

1.2 Features

zHigh-performance CMOS image sensor, megapixel definition.

zHD video, coaxial cable to transmit the control signal.

zSupport 75-3 coaxial cable transmission without any loss. Transmission distance is over

500m.

zSupport HD and standard definition switch.

zSupport 720P@25, 720P@30, 720P@50, 720P@60.

zHigh speed, long distance real-time transmission.

zSupport OSD (on-screen display), suitable for user self-defined setup.

zSupport DC12V power supplying.

zSupport 3D noise reduction(denoise),excellent performance in low illumination

environment.

zIP66 compliance.

zSupport ICR switch to realize surveillance both in the daytime and at night.

zSupport intelligent IR function.

1.3 Functions

HDCVI Specification

HDCVI（High Definition Composite Video Interface）is an over-coaxial –cable HD video

transmission standard. The technology renders two HD video formats by progressive scanning.

OSD

User-friendly on-screen display for you to select the different functions.

ICR

The IR cut removal is to filter the IR light in the daytime and then auto switch to the general

fitter at night. This function allows the camera to output the high sensitivity and clear video.

Smart IR technology

The sensor controls the IR light on/off via the combination work of the hardware and software,

which realizes the automatically IR light compensation according to the environment

illumination.

1.4 Specifications

Please refer to the following sheet for specification.

1 Megapixel HDCVI Camera

Model

Parameter HAC-HFW2100EP/N

Video Processor 1/3" 1.3 Mega Pixels CMOS

Video Format PAL/NTSC

Effective Pixel 1280（H）×960（V）

Min Illumination 0.01Lux@（F1.2,AGC ON），0 Lux with IR

Electronic Shutter PAL：4/25s～1/45,000s

NTSC：4/30~1/54,000s

Video Standard HDCVI/CVBS compliance

Video Frame Rate 1280×720@25 fps；1280×720@30 fps；

1280×720@50 fps；1280×720@60 fps

Lens Port M12

Lens Type 2.8/3.6/6/8mm optional

Day/Night Switch ICR mechanical auto switch

Video Output 1-channel HDCVI high definition video output/ CVBS standard definition video

output (Can switch.)

Denoise (Noise

Reduction) Support 2D/3D denoise.

OSD Menu Control Support coaxial cable control

EXPOSURE Global/BLC/ Front Light/ Distinguish/ Return

WHITE

BALANCE AWB-GW /AWB-PRO/AWB-TEMPORAL/AWB-AI/ Return

DAY/NIGHT Auto/B&W/Color/ Return

FUNCTION 3DNR

ADVANCED Mirror/Language/RS485/Video/ Version/Return

IMAGE Sharpness /Contrast/Saturation/ Brightness / Return

OSD

EXIT SAVE/CANCEL/RESET

Max IR Distance 20m

IR Light Control Plan Advanced non-photosensor control plan

Transmission

Distance Over 500m via 75-3 coaxial cable.

Protection Level IP66

Working Temperature

/Humidity -30℃~+60℃. Humidity is less than 95%(no condensation)

Power DC 12V±10%

Power Consumption 3.5W MAX

(Input: 12V 0.29A)

Dimension(mm) 69.9×178.4×70 (Provide internal cable exit bracket )

Angle Adjustment Pan: 0°～360°: Tilt: 0°～90°: Flip: 0°～360°

Weight 500g

Installation Mode Wall mount

2Framework

2.1 Dimensions

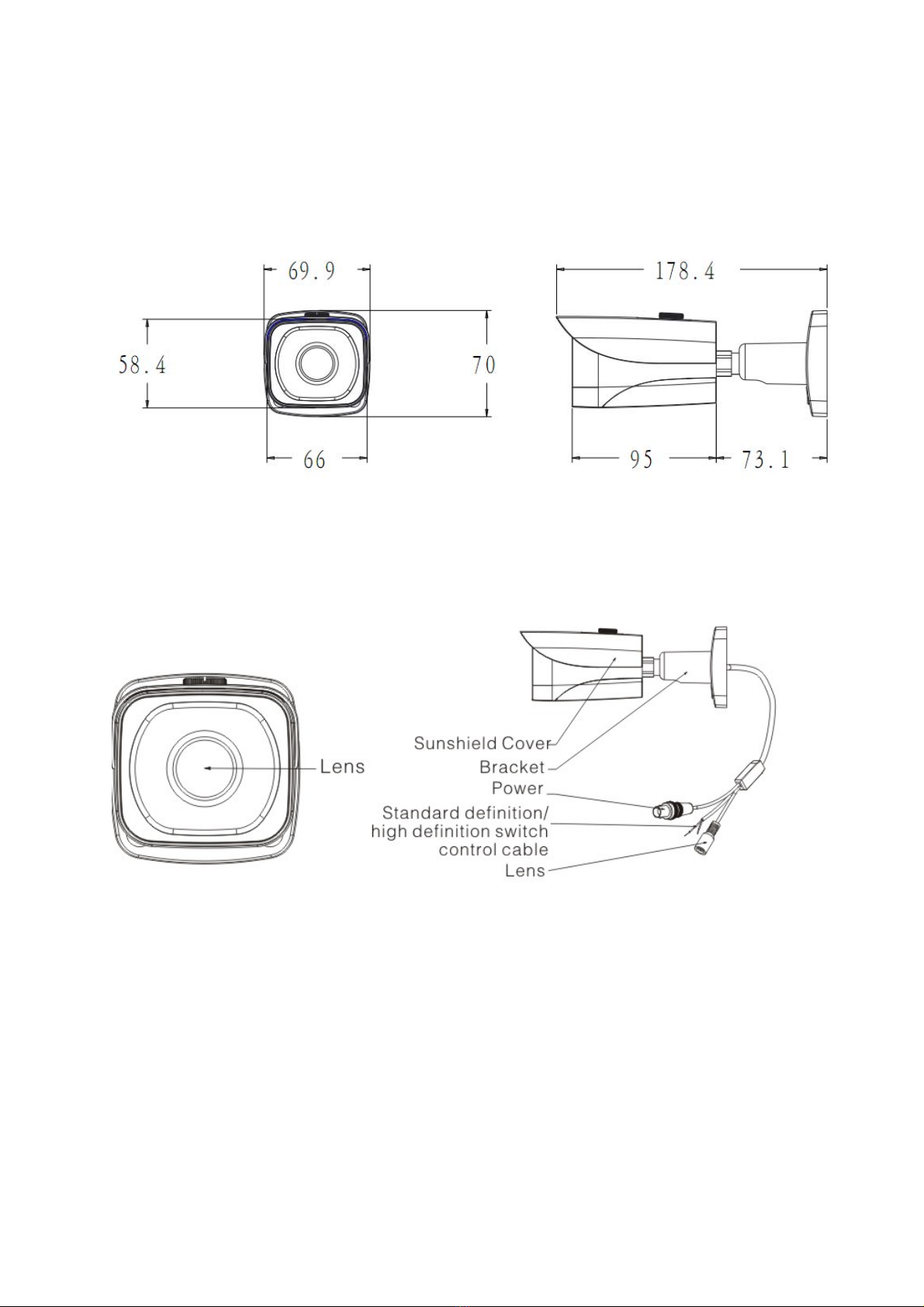

Please refer to the following for dimension information. The unit is mm. See Figure 2-1.

Figure 2-1

2.2 Structure

Please refer to the following figure for structure information. See Figure 2-2.

Figure 2-2

Please refer to the following sheet for detailed information.

SN Name Function

1 Lens It is to receive the optical signal from the environments.

2 Sunshield Cover /

3 Bracket Support camera body and rotate to adjust monitor angle.

4 Power input port Connect to the DC 12V power to input the power.

5 Video output port

BNC port is to output HDCVI/CVBS standard definition video signal.

You can connect to the devices such as the DVR or the NVS

conforming to the HDCVI specifications.

Standard

definition/high

definition switch

control cable

When the standard definition/high definition switch control cable is

short circuit, system outputs standard definition video. Otherwise,

when the circuit is open, system outputs the high definition video.
