Dahua DHI-ARD1731-W2 Manuel utilisateur

Wireless PIR–Camera

User’s Manual

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.1

User’s Manual

Foreword

General

This manual introduces the installation, functions and operations of the Wireless PIR–Camera

(hereinafter referred to as the "PIR–Camera"). Read carefully before using the device, and keep the

manual safe for future reference.

Model

DHI-ARD1731-W2; DHI-ARD1731-W2 (868)

Safety Instructions

The following signal words might appear in the manual.

Signal Words

Meaning

DANGER

Indicates a high potential hazard which, if not avoided, will result in

death or serious injury.

WARNING

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

CAUTION

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, reductions in performance, or

unpredictable results.

TIPS Provides methods to help you solve a problem or save time.

NOTE Provides additional information as a supplement to the text.

Revision History

Version Revision Content Release Time

V1.0.1

●Added information on the versions of the DMSS

app and the hub.

●Added a note that the PIR–Camera does not

support the function of the repeater (DHI-ARA43

series) to transmit images from the PIR–Camera to

the hub.

August 2022

V1.0.0 First release. June 2022

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy

protection laws and regulations to protect the legitimate rights and interests of other people by

implementing measures which include but are not limited: Providing clear and visible identification

to inform people of the existence of the surveillance area and provide required contact information.

User’s Manual

About the Manual

●The manual is for reference only. Slight differences might be found between the manual and the

product.

●We are not liable for losses incurred due to operating the product in ways that are not in

compliance with the manual.

●The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

the electronic version and the paper version.

●All designs and software are subject to change without prior written notice. Product updates

might result in some differences appearing between the actual product and the manual. Please

contact customer service for the latest program and supplementary documentation.

●There might be errors in the print or deviations in the description of the functions, operations

and technical data. If there is any doubt or dispute, we reserve the right of final explanation.

●Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

●All trademarks, registered trademarks and company names in the manual are properties of their

respective owners.

●Please visit our website, contact the supplier or customer service if any problems occur while

using the device.

●If there is any uncertainty or controversy, we reserve the right of final explanation.

User’s Manual

III

Important Safeguards and Warnings

This section introduces content covering the proper handling of the PIR–Camera, hazard protection,

and protection of property damage. Read carefully before using the PIR–Camera, and comply with

the guidelines when using it.

Operation Requirements

●Make sure that the power supply of the PIR–Camera works properly before use.

●Do not pull out the power cable of the PIR–Camera while it is powered on.

●Only use the PIR–Camera within the rated power range.

●Transport, use and store the device under allowed humidity and temperature conditions.

●Prevent liquids from splashing or dripping on the device. Make sure that there are no objects

filled with liquid on top of the PIR–Camera to avoid liquids flowing into it.

●Do not disassemble the PIR–Camera.

Installation Requirements

●Connect the PIR–Camera to the adapter before power on.

●Strictly abide by local electrical safety standards, and make sure that the voltage in the area is

steady and conforms to the power requirements of the PIR–Camera.

●Do not connect the PIR–Camera to more than one power supply. Otherwise, the PIR–Camera

might become damaged.

●Observe all safety procedures and wear required protective equipment provided for your use

while working at heights.

●Do not expose the PIR–Camera to direct sunlight or heat sources.

●Do not install the PIR–Camera in humid, dusty or smoky places.

●Install the PIR–Camera in a well-ventilated place, and do not block the ventilator of the device.

●Use the power adapter or case power supply provided by the device manufacturer.

●The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no

higher than PS2. Note that the power supply requirements are subject to the device label.

●Connect class I electrical appliances to a power socket with protective earthing.

User’s Manual

Table of Contents

Foreword ........................................................................................................................................................................................................I

Important Safeguards and Warnings............................................................................................................................................ III

1 Introduction ............................................................................................................................................................................................ 1

1.1 Overview........................................................................................................................................................................................ 1

1.2 Technical Specifications......................................................................................................................................................... 1

2 Checklist.................................................................................................................................................................................................... 4

3 Design......................................................................................................................................................................................................... 5

3.1 Appearance................................................................................................................................................................................... 5

3.2 Dimensions ................................................................................................................................................................................... 6

4 Power On................................................................................................................................................................................................... 7

5 Adding the PIR–Camera to the Hub ............................................................................................................................................ 9

6 Installation.............................................................................................................................................................................................10

6.1 Field of View...............................................................................................................................................................................10

6.2 Installing the PIR–Camera...................................................................................................................................................10

7 Configuration .......................................................................................................................................................................................12

7.1 Viewing Status ..........................................................................................................................................................................12

7.2 Configuring the PIR–Camera .............................................................................................................................................13

Appendix 1 Cybersecurity Recommendations........................................................................................................................16

User’s Manual

1 Introduction

1.1 Overview

With its built-in 2-MP HD camera and CMOS image sensor, wireless PIR–Camera detects intrusions

and captures high-definition snapshots. It is a wireless passive infrared detector that sends

snapshots through the Wi-Fi and Ethernet connection to your phone and ARC (alarm center), for the

causes of intrusions to be effectively identified.

The camera is also uniquely designed to only take snapshots when an intrusion occurs, eliminating

the need to install cameras to constantly monitor scenes. Built to keep your family and business safe,

the entire data transmission process is encrypted and the camera does not actively obtain your

private information.

1.2 Technical Specifications

This section contains technical specifications of the PIR–Camera. Please refer to the ones that

correspond with your model.

Table 1-1 Technical specifications

Type Parameter Description

Video

Field of View 88° (H); 68° (V)

Image Type JPEG

Resolution 1600 × 1200; 1280 × 960; 640 × 480; 320 × 240

Detection Speed 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

Frame Rate 2

Illumination Mode Infrared Light

Illumination

Range 12 m (39.37 ft)

Day/Night Switch Color/Black & White

Function

Indicator Light 1 × green alarm indicator

Button 1 × power switch

Remote Update Cloud update

Low Battery

Detection Yes

Battery Level

Display Yes

Tamper Tamper alarm

Signal Strength RF Signal test

RF-HD signal test

User’s Manual

Type Parameter Description

Carrier Frequency DHI-ARD1731-W2(868):

868.0 MHz–868.6 MHz

DHI-ARD1731-W2:

433.1 MHz–434.6 MHz

Communication

Distance

DHI-ARD1731-W2(868):

RF: Up to 1,600 m (5,249.34

ft) in an open space

RF-HD: Up to 300 m

(984.25 ft) in an open

space

DHI-ARD1731-W2:

RF: Up to 1,200 m

(3,937.01 ft) in an open

space

RF-HD: Up to 300 m

(984.25 ft) in an open

space

Communication

Mechanism Two-way

Frequency

Hopping Yes

Encryption Mode AES128

General

Power Supply CR123A × 3

Battery Life 4 years (if triggered twice a week with a battery

efficiency of 70%)

Operating

Temperature –10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating

Humidity 10%–90% (RH)

Product

Dimensions 127.6 mm× 71.0 mm× 53.2 mm (5.02" × 2.80" × 2.09")

Packaging

Dimensions 121.0 mm× 65.0 mm× 170.0 mm (4.76" × 2.56" × 6.69")

Net Weight 202 g (0.45 lb)

Gross Weight 333 g (0.73 lb)

Installation Wall mount

Casing PC + ABS

Certifications CE CE; FCC

Technical

Detection Mode PIR

Sensitivity 3 levels adjustable

Detection Range 12 m (39.37 ft) (86°) with installation height of 2.2 m

(7.22 ft)

Detection Speed 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

Pet Immunity

Level ≤18 kg (39.68 lb)

White Light

Resistance Level 2000 lux

Two-way Digital

Temperature

Compensation

Yes

User’s Manual

Type Parameter Description

Scenario Indoor

Operating Current 65 μA

Alarm Current Day: 170 mA (Avg); 800 mA (Max) Night: 230 mA (Avg);

2.8 A (Max)

User’s Manual

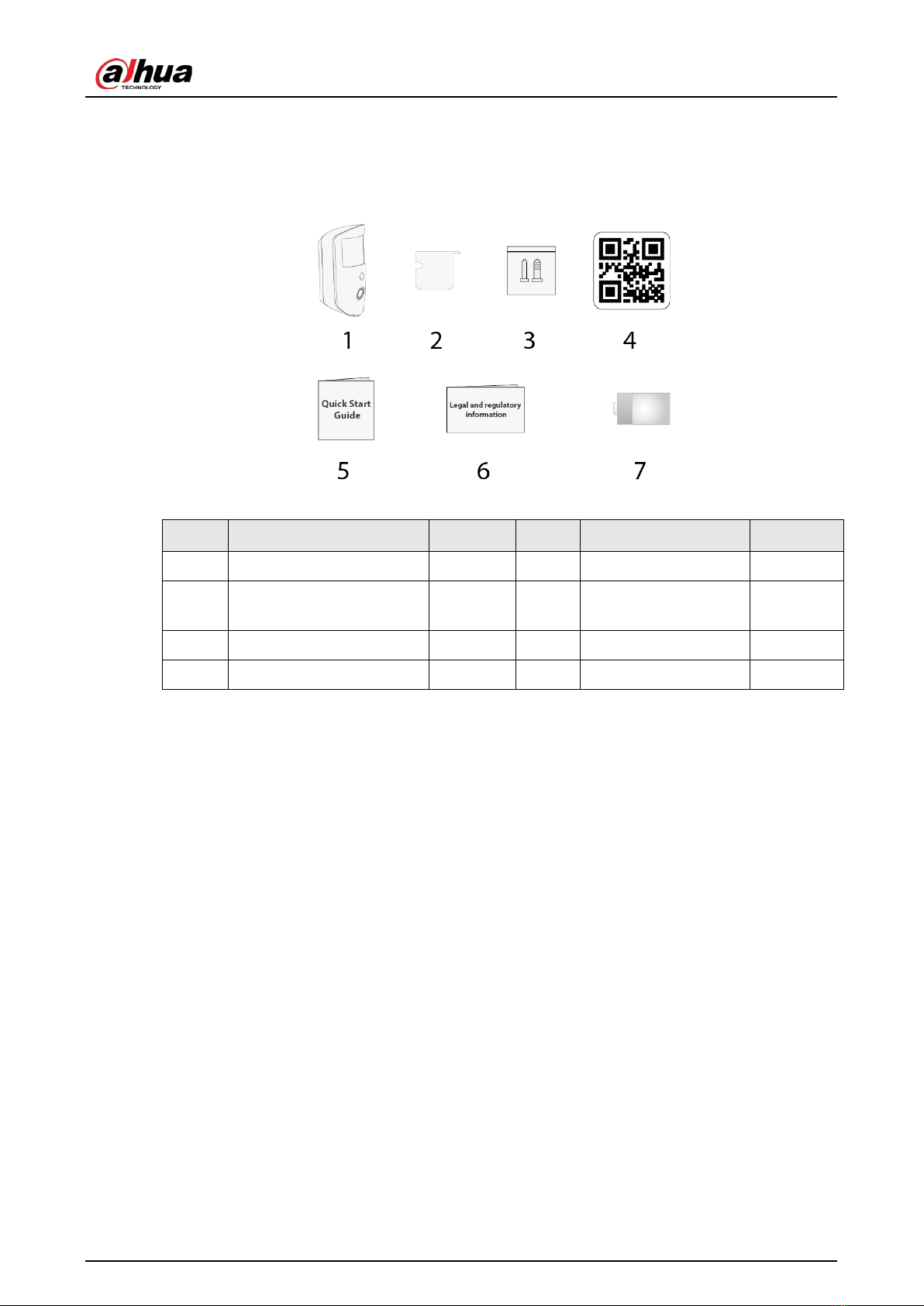

2 Checklist

Figure 2-1 Checklist

Table 2-1 Checklist

No. Item Name Quantity No. Item Name Quantity

1 PIR–Camera 1 5 Quick start guide 1

2 Double-sided adhesive

tape 1 6 Legal and regulatory

information 1

3 Screw package 2 7 Battery 3

4 QR code 1 - - -

User’s Manual

3 Design

3.1 Appearance

Figure 3-1 Appearance

Table 3-1 Structure

No. Name Description

1 IR light Provides IR light for dark environments.

2 Camera Captures images when an intrusion alarm is triggered.

3 Indicator

●Flashes green quickly: Pairing mode or reduced

sensitivity mode.

●Solid green: An alarm event was triggered.

●Solid green for 2 seconds: Pairing successful.

●Slowly flashes green for 3 seconds: Pairing failed.

4 Tamper switch When the tamper switch is released, the tamper alarm will be

triggered

5 Bracket tamper switch (Optional) If the bracket is removed, the tamper alarm will be

triggered.

6 Battery Insert batteries to power on the PIR–Camera.

7 On/off switch Turn on or turn off the PIR–Camera.

8 Back cover If the back cover is opened, the tamper alarm will be

triggered.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dahua Caméra de sécurité

Dahua

Dahua N45EFNZ Manuel utilisateur

Dahua

Dahua DH-EPC PTZ Series Manuel utilisateur

Dahua

Dahua DH-SD49225I-HC-S3 Mode d’emploi

Dahua

Dahua SD6A230I-HC Manuel utilisateur

Dahua

Dahua IPC-HDBW1435E-W-0360B Manuel utilisateur

Dahua

Dahua HAC-HFW1100RP/N-VF Manuel utilisateur

Dahua

Dahua SD63230I-HC Manuel utilisateur

Dahua

Dahua HAC-HFW2501T-Z-A Manuel utilisateur

Dahua

Dahua N65CL5Z Manuel utilisateur

Dahua

Dahua DH-HAC-HF3231EP Manuel utilisateur

Dahua

Dahua DH-IPC-HFW3200S Manuel utilisateur

Dahua

Dahua TPC-KF2241-T Manuel utilisateur

Dahua

Dahua K Series Manuel utilisateur

Dahua

Dahua IPC-HDBW2231E-S-S2 Manuel utilisateur

Dahua

Dahua DH-IPC-HUM4001P Manuel utilisateur

Dahua

Dahua IPC-HDBW1100E Manuel utilisateur

Dahua

Dahua A Series Manuel utilisateur

Dahua

Dahua K6 Manuel utilisateur

Dahua

Dahua NK8BB7Z Manuel utilisateur

Dahua

Dahua IPC-EBW81230 Guide d'installation et d'utilisation

Dahua

Dahua SD4E425GB-HNR-A-PV1 Manuel utilisateur

Dahua

Dahua HDW2501TP-Z-A Manuel utilisateur

Dahua

Dahua DH-IPC-MBW4231-AS Manuel utilisateur

Dahua

Dahua IPC-HDBW2431R-ZS-27135 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
