Dahua MP06 Manuel utilisateur
Mobile Intercom
User’s Manual
Version 1.0.0
1
Welcome
Thank you for purchasing our device!
This user’s manual will help you become familiar with our device in a very short time.
Before installation and operation, please read the following safeguard and warning carefully!
Important Safeguard and Warning
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
We assume no liability or responsibility for all the fires or electrical shock caused by improper
handling or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Keep upwards. Handle with care.
Do not apply power to the device before completing installation.
Do not place objects on the device.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
The device should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
6. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included:
Contact your local retailer ASAP if something is missing in your package.
Important
Check the cable connection is OK or not before connecting the device to the power.
Otherwise, it may damage the device or affect the operation effect.
When there is welding work on the vehicle, do not use the device. It is to protect the
electronic components.
2
1 Product Introduction
Note: All the installation and operations here should conform to your local
electric safety rules.
1.1 Overview
Mobile Intercom works with DVR/NVR. It is suitable to realize the full duplex bidirectional talk
between the driver and the surveillance center.
1.2 Appearance
The product is shown as below. See Figure 1-1.
Figure 1-1
1.3 Dimensions

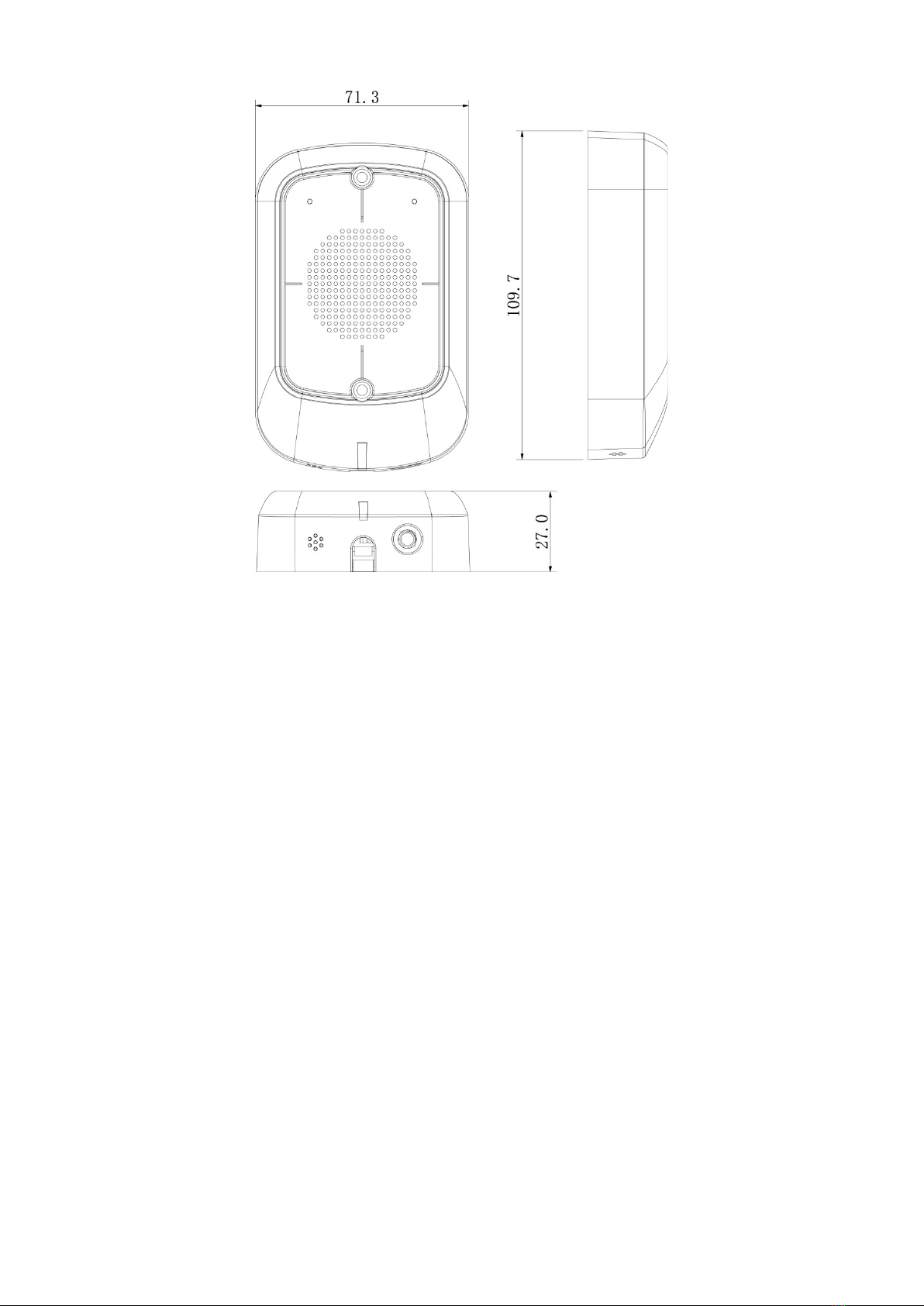

Please refer to Figure 1-2 for dimension information. The unit is mm.
3
Figure 1-2
1.4 Features
Neat and compact body, easy to move.
Click button to trigger DVR/NVR to start bidirectional talk with the platform.
Support amplifier function to drive the loudspeaker on the vehicle.
Standard aviation port, connection and installation are easy and reliable.
4
2 Installation and Connection
2.1 Installation
2.1.1 Bracket Installation
Refer to Figure 2-1 to install the bracket.
1. Dig holes on the vehicle according to the installation map (1 in Figure 2-1).
2. Insert the expansion bolt on the hole.
3. Use screws (4 in Figure 2-1) to secure the bracket (3 in Figure 2-1) on the vehicle.
4. Turn the intercom (5 in Figure 2-1) to fix it on the bracket (3 in Figure 2-1).
Figure 2-1
2.1.2 Screws Installation
Use the self-tapping screws (provided) to secure the intercom on the vehicle. See Figure 2-2.
5
Figure 2-2
2.2 Connection
The mobile intercom and the DVR/NVR connection have two modes.
Full duplex bidirectional talk connection cable. See Figure 2-3.
Figure 2-3
6
Full duplex bidirectional talk (+vehicle loudspeaker output)cable connection is shown as below.
See Figure 2-4.
Figure 2-4
2.3 Port definition
SN Socket Type Socket Image Pin Definition
1
4-pin M12
aviation female
port
1. NC NC
2. GND GND
3. Audio Input AUDIO_IN
4. NC NC
2
6-pin M12
aviation male
port
1. Audio Output SPK_OUT
2. Signal GND GND
3. Audio Input MIC_IN
4. Simulation
GND PGND
5. Power 12V 12V
6. Simulation
12V 12V_P
3 Black and white
bare wire
1. GND GND（Black）
2. Alarm
activation ALARM（White）
4 Green and
white bare wire
1. Audio Output+
VOICE_OUT+
（Green）
2. Audio Output
-
VOICE_OUT-
（White）
5 6-pin black port
1. Power 12V 12V
2. Signal GND GND
3. Audio Input MIC_IN
4. Audio Output SPK_OUT
7
3 Functions
3.1 Buttons
Refer to Figure 3-1 for buttons information.
Figure 3-1
Button Introduction
Alarm /call platform
Press the button to call the platform, the indicator light is on.
Press the button again, cancel the alarm/call the platform.
Microphone
Press the button, the indicator light is on. Now it can speak via the
device MIC and output to the peripheral loudspeaker. Now the
volume button can control the peripheral loudspeaker volume.
Press the button again to close the microphone.
Volume+ Increase volume.
Volume- Decrease volume.
3.2 Full Duplex Bidirectional Talk
Refer to Figure 2-3, login the DVR/NVR to open audio talk function. It can start DVR/NVR full
duplex bidirectional talk.
3.3 Peripheral Amplifier Driver
8
Refer to Figure 2-4, press the Microphone button, the microphone indicator light is on. Now the
peripheral microphone audio is from the local MIC. If the microphone indicator light is off, the
audio is from the A/V OUT port of the DVR/NVR.
3.4 Peripheral MIC
Standard 3.5mm audio port. When there is a peripheral MIC, the built-in MIC is null. The audio is
from the peripheral MIC.
9
4 Specifications
Parameters Name Details
Function
Working Mode Full duplex
Operation Mode
Button
Audio 1-channel audio input, 1-channel loudspeaker
output
Pickup Range 90cm
Indicator Light 2
General
Voltage DC 12V
Power ≤1.5W
Peripheral
Loudspeaker
Max Power
7W
Working
Temperature
－30℃～＋70℃
Working
Humidity
0%～90%
Pressure
Atmosphere
86kPa～106kPa
Case Dimension
109.7（mm）×71.3（mm）×27.0（mm）
Cable Length Device fixture wire：1700mm
Note
Slight difference may be found in user interface. All the designs and software here are
subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their
respective owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website for more information.
