Daewoo DAVC 90-30L Manuel utilisateur
Manufactured under license of Daewoo International Corporation, Korea
www.daewoopowerproducts.com
USER'S MANUAL
DAVC 90-30L
Vacuum cleaner
1
INDEX
1
.PRODUCTS CHARACTERISTICS ........................................................................................................... 2
2
.PARTS NAME ........................................................................................................................................... 2
3
.SAFETY INSTRUCTIONS ........................................................................................................................ 4
4
.OPERATION METHOD ............................................................................................................................. 5
5
. PROTECTIVE DEVICE ............................................................................................................................. 7
6
.MAINTENANCE ........................................................................................................................................ 7
7
.TECH DATA .............................................................................................................................................. 7
WARRANTY
................................................................................................................................................. 8
2
1. PRODUCT CHARACTERISTICS
(1) Vacuum cleaner for wet and dry
(2) Jacks on the base, easy for depositing accessories
(3) Blowing function, satisfy different requirements
2. PARTS NAME
HANDLE
SWITCH
AIR
INLET
MOUTH
SMALL
WHEEL
BARREL
CAP
TOP COVER
PEDESTAL
CORD
& PLUG
BARREL
BARREL
LOCK
3
HOSE ASSEMBLY
FLOOR BRUSH FLITER BAG CREVICE
NOZZLE
ROUND
BRUSH
TUBES
Use the right accessories according to different situations.
Bristle for bookshelves, windows and bibulous brush for floor and carpet, tables, etc.
Crevice nozzle for crevice, corner, etc. Blowing mouth for blowing the dust away in the crevice of the
machine
4
3. SAFETY INSTRUCTIONS
(1) Check before operation that the local power supply is the same as the specification on the rating
label.
(2) Do not use machine in the combustible and explosive place in case the motor spark causes fire.
(3) Do not jam the air inlet mouth, in case temperature rises and damaging the motor.
(4) Do not collect combustible and explosive objects such as glowing cigarette, gasoline, etc.
* Do not collect sharp objects.
* Do not collect objects which can easily attach on the filter such as calcareousness powder, gesso
and graphite powder. Because those will block the ventilation damage motor.
5
(5) Do not overturn the machine in case water goes into the motor and damages the motor.
(6) Warning: If water is out from air outlet mouth, do not overturn the machine when being repaired
in case water goes into the motor and causes damage. Do not use this machine as pump in case of
damaging the motor.
(7) Turn off the machine and remove the plug each time after using or when being repaired.
(8) Keep machine away from strong sunlight and high temperature place in case plastic is distorted.
(9) Do not wrest, tramp, or haul hose in case of making it damaged.
(10) Do not immerse the barrel cap into the water or wash with water in case water goes into the
electrophorus parts and causing person injured
The correct way should be: immerse the dishcloth firstly, and then dry it. Finally, wipe the dirty part
gently.
(11) The power cord must be replaced by the designated repairing center or professionals.
4. OPERATION METHOD
(1) Connection
Insert the hose connector into the air inlet mouth, as shown in the picture; make sure the connector
is tightly fastened.
Press the connector button as shown in the picture, and pull the connector out when you want to
pull hose connector from machine.
6

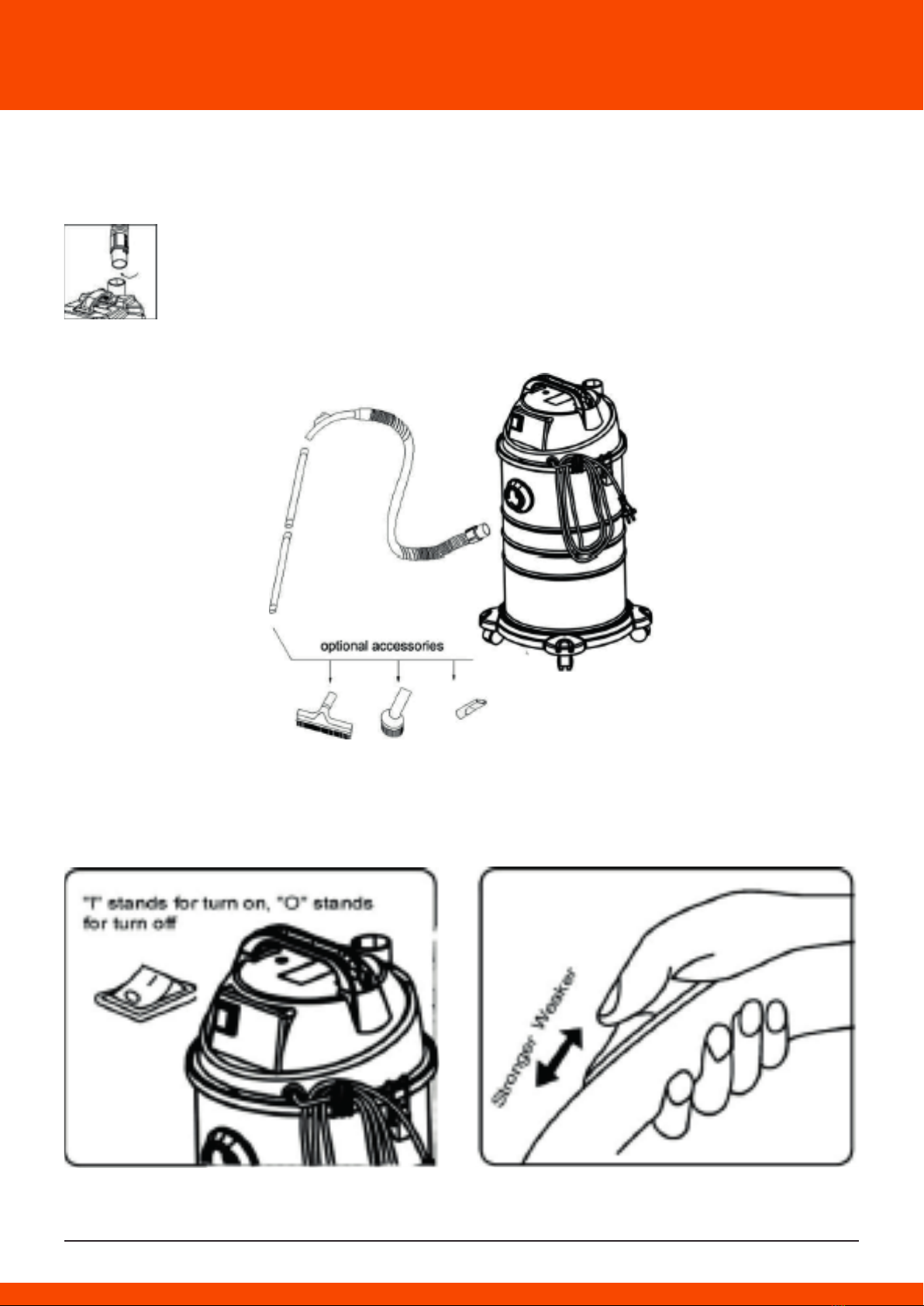

Insert hose connector into the blowing mouth as shown in the picture when you want to use its
blowing function.
As shown in the picture, connect all the accessories for wet & dry cleaning.
(2) Operation
1. Insert the plug into the supply socket.
2. Press switch button, the machine begins to work.
3. You can adjust the airflow by pushing the sliding block up and down.
7
5. PROTECTIVE DEVICE
Special instruction concerning protective device.
(1) When the water in the barrel is full, the device begins to work.
The suction power will vanish at this moment. The machine will make some noise which indicates the
motor is running at a high speed.
Under this circumstance, you should cut off the electricity, and clean out the water. Then equip the
machine and turn it on, it will begin to work normally.
(2) When the machine was overturned, the device will become to work. You should cut off the electri-
city and make it upright, then turn on the machine.
(3) When the device is working, the motor will be damaged and cause fire if you use the machine.
Under this circumstance, you should stop using and clean out the water, then you can begin to use it.
6. MAINTENANCE
(1) Barrel Cleaning
* After working or when the barrel is full of dust which causes suction decrease considerably, you
should cut off the electricity and clean the dust away from the barrel.
1) Unfasten the locking knob, lift up the top cover.
2) Take off the filter bag, clean the dust away in the dust barrel.
3) Install the filter bag back and place the top cover.
(2) Filter bag cleaning
* Filter bag should be washed by clean and warm water when it is covered with dust. If necessary,
you can use litmus less scour to wash.
1) Take off the filter
2) Wash
3) Dry
7. TECH-DATA
MOTOR
Power: 1200 W
EQUIPMENT
Vacuity: ≥20 Kpa
Airflow rate: ≥1.5m3/min
Power cord length: 4.5 m
Suction hose diameter: 32 mm
Suction hose length: 1.5 m
Tank: Stainless steel
Tank capacity: 30 L
SOUND AND NOISE
Sound power level: ≤78dB (A)
ACCESSORIES
1 pc cloth filter, 1pc sponge
filter, 1pc 1.5 hose assembly,
1pc round brush, 1pc floor
brush, 2 plastic tubes
www.daewoopowerproducts.com
Manufactured under license of Daewoo International Corporation, Korea
