MODEL NO. : DTE-29G3ZZR,DTE-29G3KZR

Colour Television

Instruction Manual

CONTENTS

Features on the television 3

The remote control buttons Television mode, Teletext mode 4

Setting up your television 5

Safety and care, Make the connections 5

Putting batteries in the remote control 5

Supply power, Switch on 5

Stand-by mode, switching off, Automatic power saving feature 6

Tuning in the programmes (ATSS) 7

Picture interference from other equipment 8

Menus for controlling and setting up the television, Picture controls,

Sound controls 9

The install menu - automatic tuning (ATSS), programme editing menu and

manual tuning 10

Manual tuning 10

Current programme number, TV system selection by country, Tuning by broadcast channel

number, Fine tuning, Tuning by frequency, Channel name, Programme storage number

Copying a programme to another number 10~12

Editing programmes 13

Move a channel, Delete a channel, Skip 13

The features menu 14

How to display the features menu, Language - for the on-screen menus,

Picture format - normal or wide-screen, Child lock, Clock, Wake time and

wake-up Programme number 14

How to use the wake-up timer 15

The sleep function 16

Teletext 17~18

The scart and AV sockets 19

Selecting the scart channels, Video and RGB, S-video or S-VHS, NTSC

and tint control 19

Automatic video switching, Equipment that can be connected. 19

Connecting other equipment-about various combinations of equipment 20

If something doesn't seem to work - help line number and troubleshooting guide 22~23

Safety information 24

domestic use warning, Mains plug, Mains plug wiring 24

Cord clamp, Mains fuse, Symbols 24

Using and caring for your television 25

Position 25

Moving the television ,coloured patches and magnetism 25

Ventilation, Water and Moisture, Stands and supports, Cleaning, Good advice,

Electrical safety warnings 25

Notice

Although we have made every effort to ensure these instructions are correct, we cannot

accept responsibility for errors and omissions which may occur due to circumstances beyond

our control.

•You can get to the front controls by pushing the triangle at the top centre of the cover flap. The flap

will fall open. Push the flap again to close it.

The channelVbutton increases the programme number and the channelWbutton decreases it.

The volume controlVbutton makes the sound louder and the volume controlWbutton makes the sound

quieter.

The headphone socket takes a 3.5mm diameter plug.

Warning! Prolonged listening through headphones at high volume can result in hearing damage.

Features on the television and the remote control

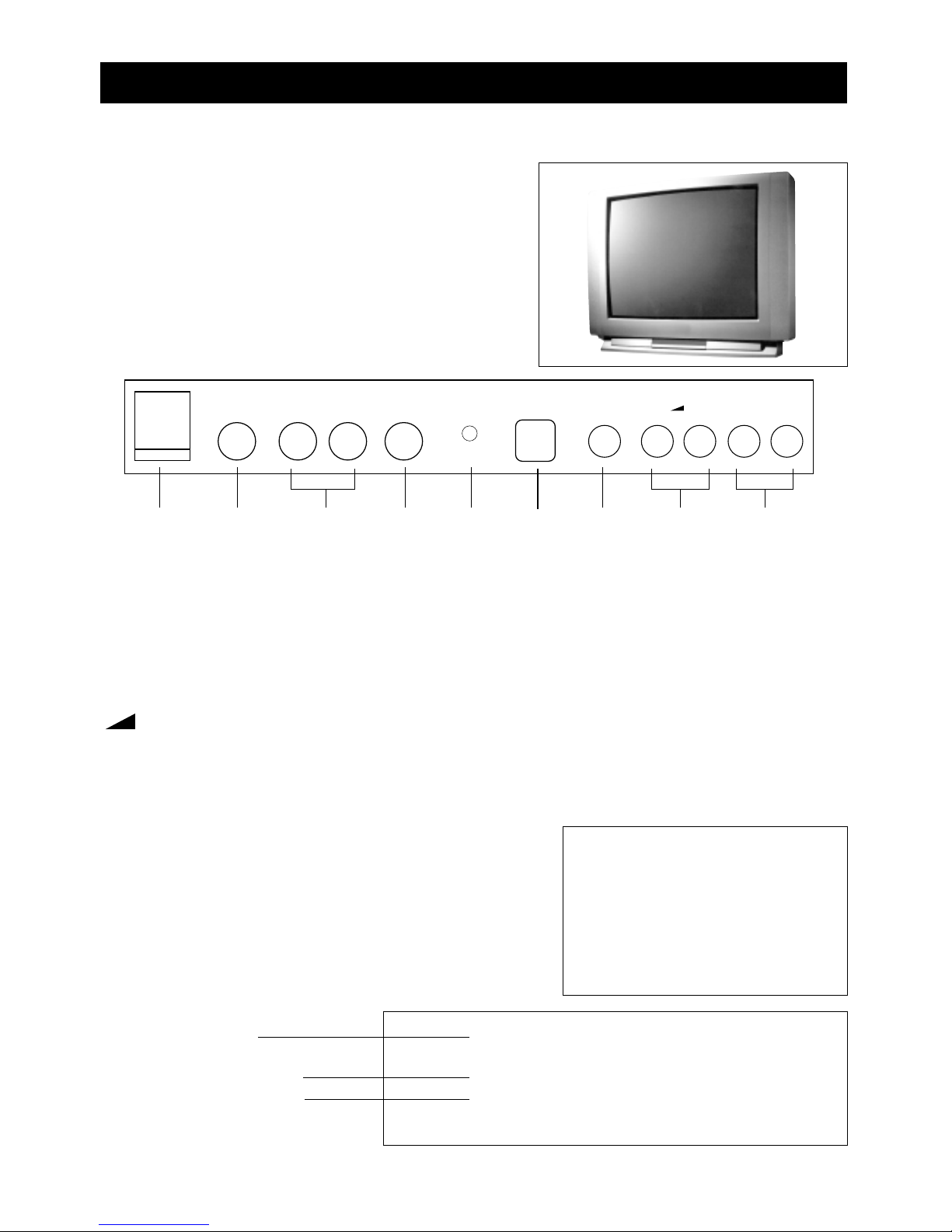

Features on the front of the television

Features on the back of the television

Aerial socket

Scart AV socket (1)

Scart AV socket (2)

VIDEO L-AUDIO-R nB I/b W V W PR V

ON/OFF

Main

power

button

Video

input Audio Head

inputs

phone

socket

Stand-by

indicator Remote

sensor AV

button Volume

control Channel

buttons

Teletext mode

Only the buttons listed below will work

when the television is in teletext mode.

1 Stand-by button.

2 The number buttons are used to

select teletext page numbers.

3 The index button displays the

teletext index page.

4 The mix button shows the

normal picture behind the text.

5 This PR button increases the page

number by one for each press.

6 The sub-page button is for

selecting a particular sub-page.

7 The MENU button switches

between brightness and volume

controls and fast text headings

while you are watching teletext.

8 This PR button decreases the

page number by one for each

press.

9 The hold button stops the

displayed page from changing.

10 Sound mute button.

11 The reveal button reveals and

hides answers to quizzes.

12 The size button changes the

size of the text on the screen.

13 The cancel button displays the

normal picture but leaves teletext

mode working.

14,15, 17 and 18 coloured buttons

select from a list of headings

which have the same colours as

the buttons.

16 The teletext button switches

between teletext and normal

television modes.

See pages to about teletext.

The remote control buttons

Television mode

1 BBThe stand-by button switches

the television on or puts it back on

stand-by (page 6).

2 The number buttons are mainly for

programme selection.

3 NORMAL means this button

selects different picture settings

(page 9), OK means it confirms

choices in the on-screen menus or

stores a setting (page 9).

4 bThis button selects audio and

video (AV) inputs (page 19).

5, 8The PR buttons change the pro-

gramme number up or down and

choose controls in the on-screen

menus.

6 The volume increase button

makes sound louder or changes

settings in the on-screen menu

controls.

7 The MENU button displays on-

screen menus for tuning in pro-

grammes and adjusting, sound,

picture and special feature con-

trols (page 9).

9 The voulme decrease button

makes sound quieter or changes

settings in the on-screen menu

controls.

10 cThe mute button turns the

sound on and off.

11 The recall button turns the pro-

gramme information display on

and off.

12 The SLEEP button sets the televi-

sion to go on stand-by after a pre-

set number of minutes(page 16).

14 MOVE, 15 SKIP,17 DELETE, 18

MODE buttons are for editing the

programme list (page 13 ).

Buttons 13 and 16 are only for

teletext

123

456

789

NORMAL/OK

SLEEP

RECALL

MOVESKIP

MODEDELETE

(Note to Plain English

Menu button in teletext

mode....

Press once, gives Bright-

ness & volume

Press again, goes back to

fast text headings)

Setting up your television

1 Please read the safety and care information at the back of this booklet before you

connect this television to the electricity supply. Then follow steps 2 to 5.

2 Make the connections

The aerial

Connect the aerial lead to the ANTgsocket at the back of

the television. You will need a good quality aerial to receive

teletext and nicam sound.

Other equipment

If you have a video recorder you will need to connect the aerial lead

to the video recorder and connect the aerial output lead from the video recorder to the television aerial socket.

Information about connecting aerials and other equipment is given in 'Connecting other equipment' on page 21.

The scart AV sockets

This television has two special interconnecting sockets called 'scart' (AV). You don't have to use these straight

away, but using scart cables gives you the best picture and sound quality and can cure some picture interference

problems. And you will only get stereo sound from other equipment if it is connected with a stereo scart cable. If

you have other equipment with scart sockets please read 'Connecting other equipment' on page 21.

3 Put the batteries in the remote control

Press the edge of the catch at the top of the battery cover towards the cover

and lift off the cover.

Put in the two batteries that came with your television (size AAA or LR3)

Make sure that the (+) and (-) marks on the batteries agree with the (+) and (-)

marks inside the battery compartment.

Replace the cover by engaging the two tabs at the bottom and pressing down

the end with the catch until it clicks into place.

•Throw away old batteries carefully. Do not put them on a fire.

•Keep within 30 degrees and 7 metres of the remote sensor.

•Bright sunlight and some fluorescent light falling on the remote sensor may

stop the remote from working properly.

4 Supply power

Plug your television into the mains supply (220 to 240 volts, 50Hz).

5 Switch on

Switch the set on with the main power button (ON/OFF) on the television, then

press the stand-by buttonBB, a number button or one of the 'PR' buttons just

once. After a few moments the screen should light up.

You are now ready to tune in the broadcasts you can receive,

but please take a moment to read 'Stand-by mode' and 'Switching

off' on the next page before you turn to 'Tuning in the programmes'.

ANT

Picture of the television

showing a hand pressing

the main power switch

Stand-by mode

Stand-by mode allows you to;

•turn the television on and off with the remote control;

•turn the television on with the wake-up timer; and

•turn the television off with the sleep timer.

When the television is on stand-by, the stand-by indicator lights up in

red. In this condition the television uses little power, but you should

switch off at the main power switch to save energy and be safe when

you are leaving the television unattended for a long time.

You can switch the television on from stand-by if you press any of the

following buttons.

The stand-by button BB

One of the number buttons 0 to 9.

One of the PR buttons on the remote control.

The PRVor PRWbutton on the front panel of the television.

When the television is switched on the stand-by indicator will change from red to green and after a few

seconds the screen will light up. Press the red stand-by button on the remote control again to put the

television back on stand-by. BB

Switching off

Press the red stand-by BBbutton on the remote control to put the television back on stand-by, or press the

main power button to switch off completely.

Automatic power saving feature

If no signal is received through the aerial cable or from any external equipment, after about thirty minutes

the television will automatically go on stand-by.

123

456

789

NORMAL/OK

Press the OK button to display the INSTALL menu.

•Make sure the country listed against 'ATSS' is the

country in which you live (GB stands for Great Britain).

If you need to change the country, press either

volume

()

button until the correct abbreviation

shows.

1 Make sure you have followed steps 1 to 5 under 'Setting up your television' and read 'Stand-by mode'.

2 If you have a video recorder connected with the aerial lead, switch it on to produce a test picture, or play a

video tape.

3 If you have a satellite receiver (or any other piece of equipment as well as the video recorder) connected

with the aerial lead, make sure that mains power is supplied to it and that it is on stand-by.

4 Switch on. (If the screen does not light up, please check previous sections '3 Supply power', '4 - Switch on'

and 'Stand-by mode'.)

Tuning in the programmes

Before you start

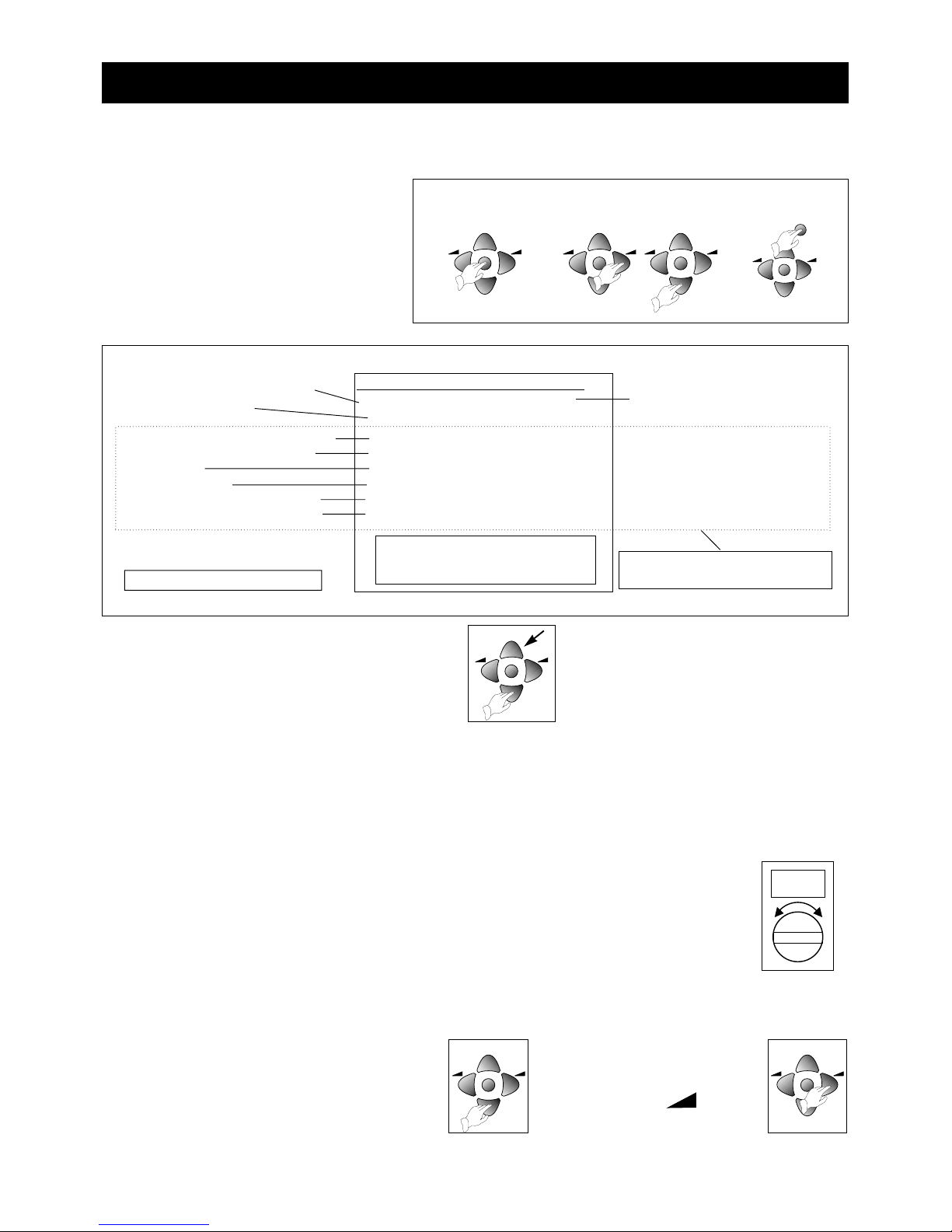

Press the MENU button to make the picture, sound,

features and install boxes appear on the screen.

•Whenever a menu is displayed, if you do not press a

button within 30 seconds the menu will go off.

•You might already find a menu prompting you to set

the on-screen menu language. In this case, press the

volume increase button to change the setting (GB

stands for Great Britain). Press the MENU button to

finish.

Press the volume increase button and

then the PR down button to move the

green highlight to 'INSTALL'.

PICTURE SOUND

FEATURES INSTALL

PICTURE SOUND

FEATURES INSTALL

INSTALL

ATSS GB

EDIT

SYSTEM GB

CHANNEL C55

FREQ 743.25

NAME BBC1

PROGRAM 01

STORE TO 01

VPosition CBAdjust

WOK Access

MENU Exit

NORMAL/OK

1 menu

3OK

2volume increase, PR down

4 OK The 'ATSS' line will be highlighted by green colour.

Press and hold the OK button for at least three

seconds to start the automatic tune, search and store

process (ATSS).

The on-screen display asks you to wait and you will

see the frequency changing ('freq'). 'Program' and

'store to' numbers increase as each station is stored

in the television's memory.

When the ATSS process has finished you will see the

edit menu which shows you what program numbers

the stations have been stored under. You can use the

edit menu to re-arrange the programs and so on, but if

all is correct just press the MENU button or wait a few

seconds until the edit menu goes off.

•Your television might not name a satellite receiver or

video recorder properly, so you will need to change

the name yourself using the edit menu.

•Sometimes the ATSS process will not store the

best quality signal on the program number you

would like, so you will see a grainy picture or a

distorted picture. You will need to change the

program number using the edit menu.

•If you need to change anything using the edit

menu, please read 'Editing programs'.

•Bad pictures or interference ? - Please read

'Picture interference from other equipment'

This completes tuning in the programs

INSTALL

ATSS GB

EDIT

SYSTEM GB

CHANNEL C55

FREQ 743.25

NAME BBC1

PROGRAM 01

STORE TO 01

MENU Exit

PLEASE WAIT!

EDIT

PR NAME CH SKIP

05 CH5 C37

04 CH4 C64

03 ITV C59

02 BBC2 C62

01 BBC1 C55

00 ------ - ---

99 ------ - ---

MENU Exit

Picture interference from other equipment

If you have used the aerial lead to connect a video recorder, satellite receiver or other piece of equipment,

switch the equipment on one piece at a time and check the picture on all your programmes. The pieces of

equipment that are not switched on must be on stand-by. If any of your programmes have wavy lines on the

picture when the equipment is switched on you will have to change the output frequency of the equipment.

Please read the instruction book for the equipment to find out how to do this. Change the output frequency a

little at a time (or in 8MHz steps) and keep checking all your programmes.

When there are no wavy lines (or other interference) on any of the pictures, re-tune the programme number

that you have chosen for your equipment (see 'Manual Tuning'). Do the same for each piece of equipment ,

but after you've finished with each one, leave it switched on while you check the next piece of equipment.

Continue until you have all the pieces of equipment working together without interfering with each other. If you

cannot get rid of the interference you may have to connect the equipment with a scart cable (see 'Connecting

other equipment') .

NORMAL/OK

•Select and adjust the level of each function: •Select and adjust the level of each function:

‘bright’, ‘contrast’, ‘colour’, ‘sharpness’. •VOLUME

•Selected values are automatically alored in •BASS

favourite mode. •TREBLE

Which is recalled by pressing the • BALANCE

NORMAL/OK button during and SOUND ‘EFFECT

normal viewing. The normal button

When the speakers on the screen face

also recalls two fixed picture settings.

out wards the sound effect makes mono sound

like stereo and it makes stereo sound as if the

speakers are further apart.

Bass and treble change the volume of low and

high frequency sounds. Blance shifts the sound

between the left and right speakers.

1 Display the sub-menu as described 2 Adjust function using

in steps 1 and 2 in ‘Main menu’ Remote control CURSORS LEFT or RIGHT button.

then select the function you want

to change using the PR buttons.

There are some variations on the 3 Return to the main menu by pressing the MENU

general method in the install menu. button. Press it again to return to normal viewing.

In the install menu you

press OK to access the

programme editing

menu or store a

channel.

Menus for controlling and setting up the television

1 Press the remote control MENU button to display the main menu. A choice of several sub-menus appears

on the screen.

2 To select one of the sub-menus, press the 3 To get back to normal television, just press the

PR or (volume) buttons to move the MENU button repeatedly until all the menus have

green highlight to the one you want, then gone from the screen.

press the OK button.

All menu go off the screen within 30 seconds if you don’t press any button.

A box on the lower part of the screen reminds you what the buttons do.

MAIN MENU

HOW TO USE SUB MENUS

Right

Left

Down

Move up

Move Down

Decrease Increase

NORMAL/OK

SOUND MENU

PICTURE MENU

The install menu lets you tune in broadcast channels and other equipment, automatically or manually, and

edit the list of stations stored under programme numbers. You can change the name given to a channel or

enter a name for a piece of equipment you tuned in.

Select the install menu and select items

using the volume and PR buttons (see

'Menus for controlling and setting up the

television).

Remember if you do not press a button within

30 seconds the menu will go off.

At any time you can press the MENU button

repeatedly to return to normal viewing.

Highlight a line in the menu with the PR buttons.

Automatic tuning (ATSS)

The automatic tune, search and store process (ATSS) is described in 'Tuning in the programmes'.

Editing programmes

See this heading on the next page.

Manual tuning

•Use manual tuning to tune in any extra item of equipment connected by the aerial lead.

•Manual tuning by frequency is very useful if you are trying to tune a non-standard frequency,

which might be generated by some types of external equipment. An example would be an

older video recorder or analogue satellite receiver which has a simple output signal modulator

with an adjustment screw on the back: this illustration shows a typical adjuster. See

'Frequency' below.

Current program number

Using this feature you can check what has already been tuned in or use an already-tuned channel as a starting

point for manual tuning.

Highlight this line by pressing one of the PR buttons.

You can see the picture that goes

with the current programme num-

ber as you change the number with

the volume buttons( ).

The install menu

INSTALL

ATSS GB

EDIT

SYSTEM GB

CHANNEL C55

FREQ 743.25

NAME BBC1

PROGRAM 01

STORE TO 01

VPosition CB Adjust

WOK Access

MENU Exit

TV system selection by contry

Broadcast channel number

Frequency

Channel name

Current programme number

Programme storage number

ADJ

Automatic tuning and sorting

system

Editing programmes

Country for automatic tuning.

Items in the dotted line are

described under ‘Manual tuning’.

Display content may vary.

Press the menu button Select ‘INSTALL’ Press the OK button

NORMAL/OK

Autres manuels pour DTE-29G3ZZR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Daewoo TV

Daewoo

Daewoo DSD-9251M Manuel utilisateur

Daewoo

Daewoo 2898ST Manuel utilisateur

Daewoo

Daewoo KR29M2 Manuel utilisateur

Daewoo

Daewoo DTQ 13V6FC Manuel utilisateur

Daewoo

Daewoo DTD-29U9WPT Manuel utilisateur

Daewoo

Daewoo DTQ-29M2FS Manuel utilisateur

Daewoo

Daewoo DTQ-21A24N Manuel utilisateur

Daewoo

Daewoo DTQ-29S5SC Manuel utilisateur

Daewoo

Daewoo DTH-2930SSFV Manuel utilisateur

Daewoo

Daewoo DTQ 25G1TS Manuel utilisateur

Daewoo

Daewoo DTR-14D9ME Manuel utilisateur

Daewoo

Daewoo DTJ-28 Manuel utilisateur

Daewoo

Daewoo DTA-14C4TFF Manuel utilisateur

Daewoo

Daewoo DTD-14D3 ME Manuel utilisateur

Daewoo

Daewoo DTH-21S7NAV Manuel utilisateur

Daewoo

Daewoo DLT-26C2, DLT-26C3, DLT-32C1, Manuel utilisateur

Daewoo

Daewoo DTQ-20U4SC Manuel utilisateur

Daewoo

Daewoo DTW-28W2 Series Manuel utilisateur

Daewoo

Daewoo DTH-20D5FS Manuel utilisateur

Daewoo

Daewoo DTC-14 Manuel utilisateur

Daewoo

Daewoo DTY-29Z9 Manuel utilisateur

Daewoo

Daewoo CHASSIS : SC-150 Model : DSC-3220E Manuel utilisateur

Daewoo

Daewoo DTH-291F Manuel utilisateur

Daewoo

Daewoo DTQ-29S3FC Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
