Daewoo DLN-15D3AHS Manuel utilisateur

LCD TELEVISION

INSTRUCTION MANUAL

DLN-15D3AHS

DLN-17D3AHS

DLN-20D3AHS

DLN-15D3SHS

DLN-17D3SHS

DLN-20D3SHS

P/N : 48586110E21V-R0

Important

Information

OUTDOOR USER MARKING

WARNING : To reduce the risk of fire or electric shock hazard, do not expose this appliance to rain or

moisture.

WET LOCATION MARKING

“Apparatus shall not be exposed to dripping or splashing and no objects filled with lipuids, such as vases,

shall be placed on the apparatus.”

Service Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage” with-

in the product’s enclosure that may be of sufficient magnitude to constitute a risk

electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and servicing instructions in the literature

accompanying the appliance.

Important

Information

FCC RF INTERFERENCE STATEMENT

NOTE : This equipment has been tested and found to comply with the limit for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If these equipment does cause harmful interference to radio or television reception which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measure.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Correct the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio, TV technical for help.

• Only shielded interface cable should be used.

WARNING : FCC regulations state that any unauthorized changes or modifications to this equipment not

expressly approved by the manufacturer could void the user’s authority to operate this

equipment. U.S.A. ONLY

Note to CATV system installer : This reminder is provided to call the CATV system installer’s attention to

Article 820-40 of the National Electrical Code that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building, as close to the point

of cable entry as practical.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury.

Disposal of these materials may be regulated due to environmental considerations. For disposal or

recycling information, please contact your local authorities or the Electronic Industries Alliance :

www.eia.org

Safety

Precautions

1. CLEANING

Unplug this TV equipment from the AC power outlet before cleaning.

Do not use liquid cleaner or aerosol cleaners. Use a soft and damp cloth for

cleaning.

2. ATTACHMENTS

Do not use attachments not recommended by the TV equipment manufacturer

as they may result in the risk of fire, electric shock or other injury.

3. WATER AND MOISTURE

Do not place this TV equipment near water, for example, near bathtub,

kitchen sink, laundry tub, in a wet basement, or near a swimming pool, or

the like.

4. HEAT

Keep the TV equipment away from the heat sources such as radiator, heater,

stoves and other heat-generating products.

5. SETTING

Do not place this TV on unstable cart, stand, or table. Placing the TV on an

unstable base can cause the TV to fall, resulting in serious personal injuries

as well as damage to the TV. Use only a cart, stand, bracket or table

recommended by the manufacturer or salesperson.

6. WALL OR CEILING MOUNTING

When mounting the product on a wall or ceiling, be sure to install the

product using the designated mounting tool according to the method

recommended by the manufacturer.

7. POWER

This TV equipment should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power

supplied to your home, consult your TV dealer or local power company.

8. PIXEL

The LCD panel is a very high technology product with 2,359,296(15")

2,949,120(17”) 1,440,000(20”) thin film transistors which give you fine

picture details. Occasionally, a few non-active pixels may appear on the

screen as a fixed point of blue, green or red please note that this does not

affect the performance of your product.

9. SET MOVING

When moving the product, place your fingers of one hand in the socket on

the back of the TV and support the front of the TV with the other hand.

SAFETY

PRECAUTIONS

Contents

IMPORTANT INFORMATION 2

SAFETY PRECAUTIONS 4

IMPORTANT SAFEGUARDS 6

SUPPLIED ACCESSORIES 7

FUNCTIONAL OVERVIEW 8

Front (Control panel) 8

Remote Controller 9

PREPARATION 10

Inserting Batteries into the Remote Control Unit 10

Mains Connection 10

CONNECTIONS 11

Antenna Connection 11

Connecting External Equipment 14

BASIC OPERATIONS 16

Switching On / Off 16

TV/AV Mode Selection 16

Volume Control 17

Channel Selection 17

MENU ADJUSTMENT 18

Channel Adjustment 18

Picture Adjustment 19

Sound Adjustment 20

PC Adjustment 21

Utilities Adjustment 23

WALL/ARM MOUNTING 27

TROUBLE SHOOTING 28

SPECIFICATIONS 30

Important

Safeguards

Location

Heat, Moisture, Dust, Vibration

Position your set so that bright light or sunlight doesn't fall directly onto the screen.

Care should be taken not to expose the set to any unnecessary vibration, moisture, dust or

heat.

Do not expose the set to dripping or splashing.

Ventilation

Also ensure that the set is placed in a position to allow a free flow of air.

Do not cover the ventilation openings on the back cover.

Leave at least 10 cm around each side of the TV set.

Mounting

This set can be positioned by using the table top stand or wall mounting bracket.

When you install the set using the wall mounting bracket, fix it carefully so it is secure.

Object Entry

Do not insert foreign objects, such as needles and coins, into the ventilation openings.

Lightning striking

You should disconnect your set from the mains and the aerial system during thunderstorms.

Cleaning

Unplug the set from the mains before cleaning.

Dust the set by wiping the LCD screen and the cabinet with a soft, clean cloth.

If the screen requires additional cleaning, use a clean, damp cloth.

Do not use liquid cleaners or aerosol cleaners.

Do not rub or strike the LCD with anything hard as this may scratch, or damage the LCD

permanently.

Service

Never remove the back cover of the set as this can expose you to high voltage and other

hazards.

If the set does not operate properly,unplug it and call your dealer.

Supplied

Accessories

Make sure that the following accessories are provided with the product.

AC cord

AC/DC adapter

123

456

789


MODE SOUND

MODE

DISPLAY MTS

TV AV

COMPONENT

POWER

MUTE

VOL VOL

PREV.CH

CAPTION

SLEEP

TV/CABLEADD/DEL

ASPECT

100

Remote controller

Batteries (Option)

(2x1.5V, AAA)

Instruction manual

Functional

Overview

Front (Control panel)

Remote

sensor LED

indicator

STAND-BY

ON/OFF CH VOL

TV/VIDEO

Power

On/Off CH

Up/Down Volume

Up/DownTV/VIDEO

LED Indicator : Lights up red in Stand-By mode and Lights up green in TV on mode.

Remote Sensor : Receives signals from the remote controller.

Power On/Off Button : Use this button to power on/off.

CH Up/Down Buttons : Use these buttons to change channels on your TV or to move the cursor in the menu.

VOL Up/Down Buttons : Use these buttons to change your TV’s volume or to move the cursor in the menu.

TV/VIDEO Button : Each time you press the TV/VIDEO button, the TV will cycle through:

TV / AV / S-VIDEO / COMPONENT 1 / COMPONENT 2 / PC

MENU Button : Use this button to enter and exit the MENU.

Functional

Overview

Remote Controller

1. MUTE : Press this button, and the sound goes off. Press again,

and the sound returns.

2. POWER : Power on/off button in Stand-By mode.

3. CH : Change channels on your TV or move the cursor (up/down)

in the menu.

4. VOL : Adjust the volume or move the cursor (left/right) in the

menu.

5. MENU : Menu display button.

6. DISPLAY : Display the current channel number and broadcasting

sound mode, or the external mode.

7. MTS (Multi CH TV Sound) : You can select sound mode in Mono,

Stereo, SAP (Second Audio Program). Choose the sound

mode you want. It works only in TV mode.

8. TV : Select TV input mode.

9. AV : Select AV / S-VIDEO input mode.

10. COMPONENT : Select COMPONENT1 / COMPONENT2 input

mode.

11. PC : Select PC input mode.

12. NUMBER : Press the numbers on this board, you can select

channels directly in TV mode.

13. PREV. CH : Previous channel button.

14. PICTURE MODE : Picture modes change as follows : Standard /

Soft / User

15. SOUND MODE : Select Super bass on / off.

16. ASPECT : Select screen aspect ratio : Normal / 16:9(15”,20”) /

4:3(17”) / Zoom

17. CAPTION : Select CC1, CC2, CC3, CC4, T1, T2, T3, T4 and off

the Closed Caption mode.

18. ADD / DEL : Channel ADD or DELETE button.

19. TV / Cable : Select Air / CATV broadcasting mode.

20. SLEEP : Sleep Timer setting. (Sleep 0 ->Sleep 15 ->Sleep 30

->Sleep 45 -> Sleep 60 -> Sleep 90 -> Sleep 120)

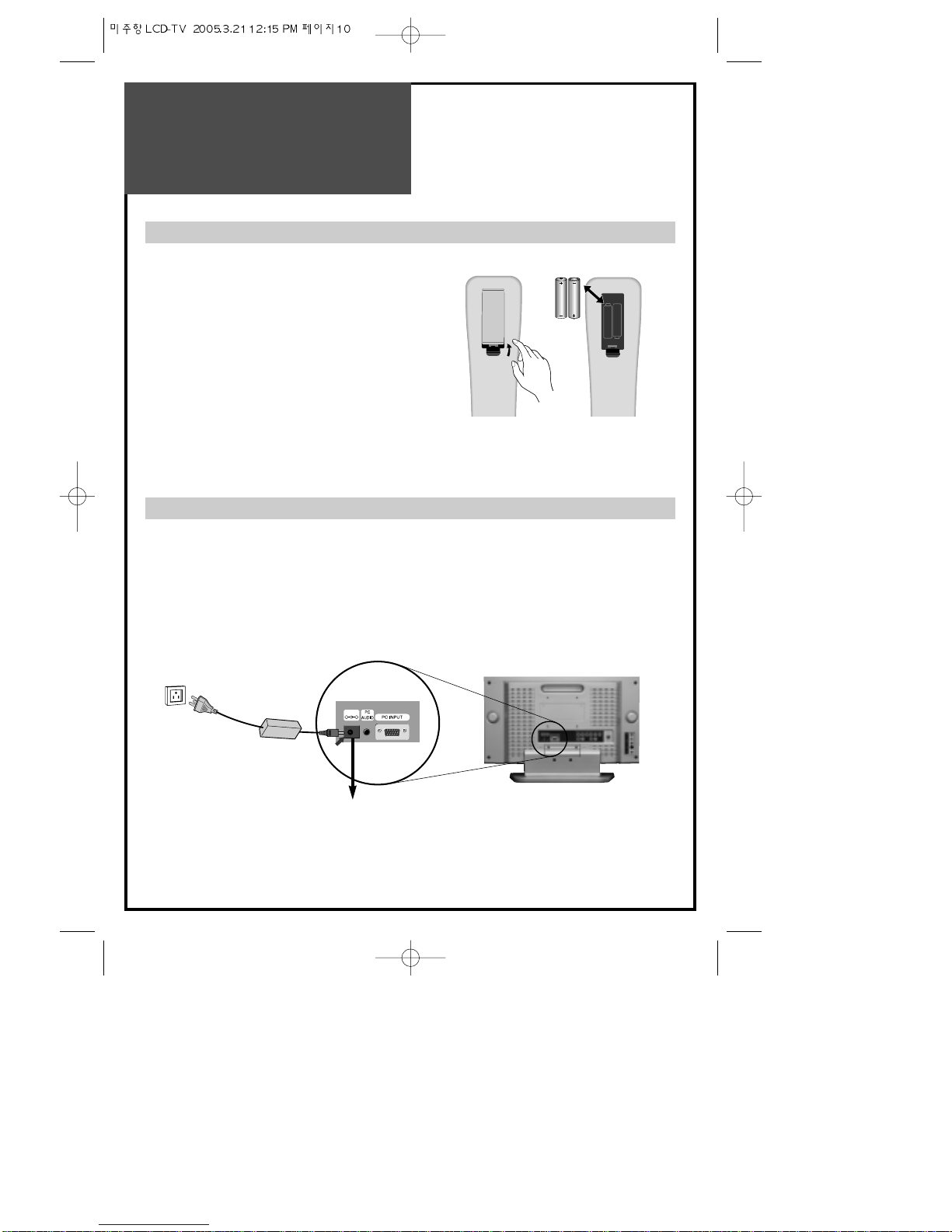

Preparation

Inserting Batteries into the Remote Control Unit

Mains Connection

1. Connect the DC plug of the AC adaptor to the DC 12V(DC 15V-only 20”) input terminal of

the set.

2. Connect the AC adaptor and AC cord.

3. Plug the other end of AC cord into a Power outlet with 100V~240V AC, 60Hz.

To load the batteries, turn the remote control

handset over and open the battery compartment.

Insert the batteries (two 1.5v, type R03 or AAA).

Make sure that the polarity matches with the (+)

and (-) marks inside of the battery compartment.

Note: To avoid damage from possible battery

leakage, remove the batteries if you do not

plan to use the remote control handset for

an extended period of time.

DC IN 12V

－+

Power outlet

AC/DC Adapter

AC Cord

DC 12V input terminal

(DC 15V-only 20”)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Daewoo Téléviseur LCD

Daewoo

Daewoo LV32L1B1LM Manuel utilisateur

Daewoo

Daewoo DLX-20J1BHS Manuel utilisateur

Daewoo

Daewoo DLT-26H1 Manuel utilisateur

Daewoo

Daewoo DLM-26C3AMBS Manuel utilisateur

Daewoo

Daewoo DLP-32G1P Manuel utilisateur

Daewoo

Daewoo DLP-3212L Manuel utilisateur

Daewoo

Daewoo DSL19M1WC Manuel utilisateur

Daewoo

Daewoo DLT-26C2, DLT-26C3, DLT-32C1, Manuel utilisateur

Daewoo

Daewoo DLT - 42U1GMB Manuel utilisateur

Daewoo

Daewoo DLT-19W4 Manuel utilisateur

Daewoo

Daewoo DSL19M1WC Manuel utilisateur

Daewoo

Daewoo DLM-32C3 Series Manuel utilisateur

Daewoo

Daewoo DSL15M1TC Manuel utilisateur

Daewoo

Daewoo DLP-26C2F Series Manuel utilisateur

Daewoo

Daewoo LX32L1 Series Manuel utilisateur

Daewoo

Daewoo DLP-20J1 Manuel utilisateur

Daewoo

Daewoo DSL-15D1T Manuel utilisateur

Daewoo

Daewoo DLM Series Manuel utilisateur

Daewoo

Daewoo DLT-32G1 Manuel utilisateur

Daewoo

Daewoo DLP-26C2 Manuel utilisateur

Daewoo

Daewoo EX236E2BCFA Manuel utilisateur

Daewoo

Daewoo DLV-26T1 Manuel utilisateur

Daewoo

Daewoo DLA-32C7LAB Manuel utilisateur

Daewoo

Daewoo DLM-42U1 Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur
