Daewoo DFZ-233 Manuel utilisateur

DFZ

233

Content:

Parts Names.................................. 2

General Information........ .................. 3

Reminders Before Use ......................... 3

Reminders During Use......................... 4

Operation Tips................................ 5

Electrical Diagram............................ 6

Trouble-shooting .............................. 7

1.Door lock 5.Swirl castor

2.Foam door 6.Control panel

3.Fruit basket 7.Brand plate

4.Foam body 8.Light(opitional)

Your freezer may not conform with figures illustrated due to product

modifications.

Parts Names

than

30cm

Heat sourcesHeat sources

The refrigerating system for this freezer is mainly composed of a fully-closed refrigerating

compressor, an interior evaporator closely compacted, properly processed with a good

cooling result. It is convenient for use, quiet and saves on electricity.

The hard polyaminoester foam (made from spot high-pressured foaming) is used for the thermal

insulation which results in good performance and durability.

The Interior door case is non-poisonous and odorless and formed by easy-to-clean ABS plastic.

It is made of a specially treated embossed aluminium sheet, which results in a generally good;

clean-looking,and durable unit.

The cabinet and door are made of imported cold-rolled sheets which have been bonderized

and electrostatic-painted, is consistent in thickness, corrosion-resistant, flexible and

scratch-resistant.

Keep upright as possible during handling, tilt 45 ,

never upside down or horizontally and do not roll unit over

uneven surface.

The freezer should be placed in ventilated area avoiding

sunlight direct sunlight, heat source and rain. There should be no

corrosive gases in surrounding air. Keep stable by adjusting

the four castors when necessary.

All packaging material should be removed. Do not use bottom

foam as vibration-proof material.

Reminders Before Use

General Information

Poi sonous

Flammable

Never put in flammable or explosive articles,

and corrosive or volatile organic solvents.

Do not put flammable or explosive articles

and corrosive or volatile organic solvents

into the freezer so as to prevent accidents

and to protect freezer cabinet from corrosion.

Temperature of articles to be put into the freezer should not be too high.

Articles may be wrapped in a plastic-cling beg. Its weight 2kg and

arranged with a 15-10mm clearance among them in order to keep convection

of the air inside the cabinet and maintain excellent freezing effect.

Avoid putting beverage cans and containers in the freezer to prevent

breakage.

To reduce power consumption, avoid keeping door

open for a long time.

If the frost on the interior walls is more than 5mm,

defrosting should be done.

Reminders During Use

In DFZ-336, the knob of the thermostat should

be selected to the freezing range of 1 ~ 7

(usually set at 5 ). Position 1 is in

weak cold condition and Position 7 is in

strong cold condition. If fast freezing is needed,

the knob of the thermostat should be set to the position 7

Turn it to its original position when the articles are frozen. Do not fast-freeze for

more than 4~5 hours as it is not good for the refrigerating system.

In refrigeration mode the knob of the thermostat is adjusted to the position

of refrigeration , When the knob of the thermostat is set to different position,

the temperature in the freezer will be changed accordingly.

When it is set to the position of weak , temperature in the freezer will be high;

When it is set to the position of strong , temperature in the freezer will be low.

Note: Never use metal utensils to scrape off frosting layers.

In normal condition, power interruption should be avoided. Should

power be interrupted accidentally, do not power on within five minutes to

avoid damage to compressor.

It is suggested that the freezer be cleaned periodically generally clean it

every 30~45 days. Unplug before cleaning and use soft cloth with neutral

soap water or mild detergent to scrub inside and outside of the cabinet.

Dry it with a soft cloth. Never use water to rinse the freezer.

Operation Tips

Cooling

OFF

Refrigeration

NOTE: A green light and red light are installed on the temperature

control panel. The red light is power indicator when power is connected to the

freezer. The green light indicates compressor is running or otherwise

This makes it convenient to determine if there is power or not or if the

refrigerating system is working or not.

The following conditions are not considered problems to the unit:

1) The refrigerating system runs for a long time when the freezer is used

for the first time or more articles are put into it.

2) Sound of running water. This is merely the sound of running refrigerants.

3) Condensation is normal when ambient humidity is high, drops of water

appear on the exterior wall of the cabinet.

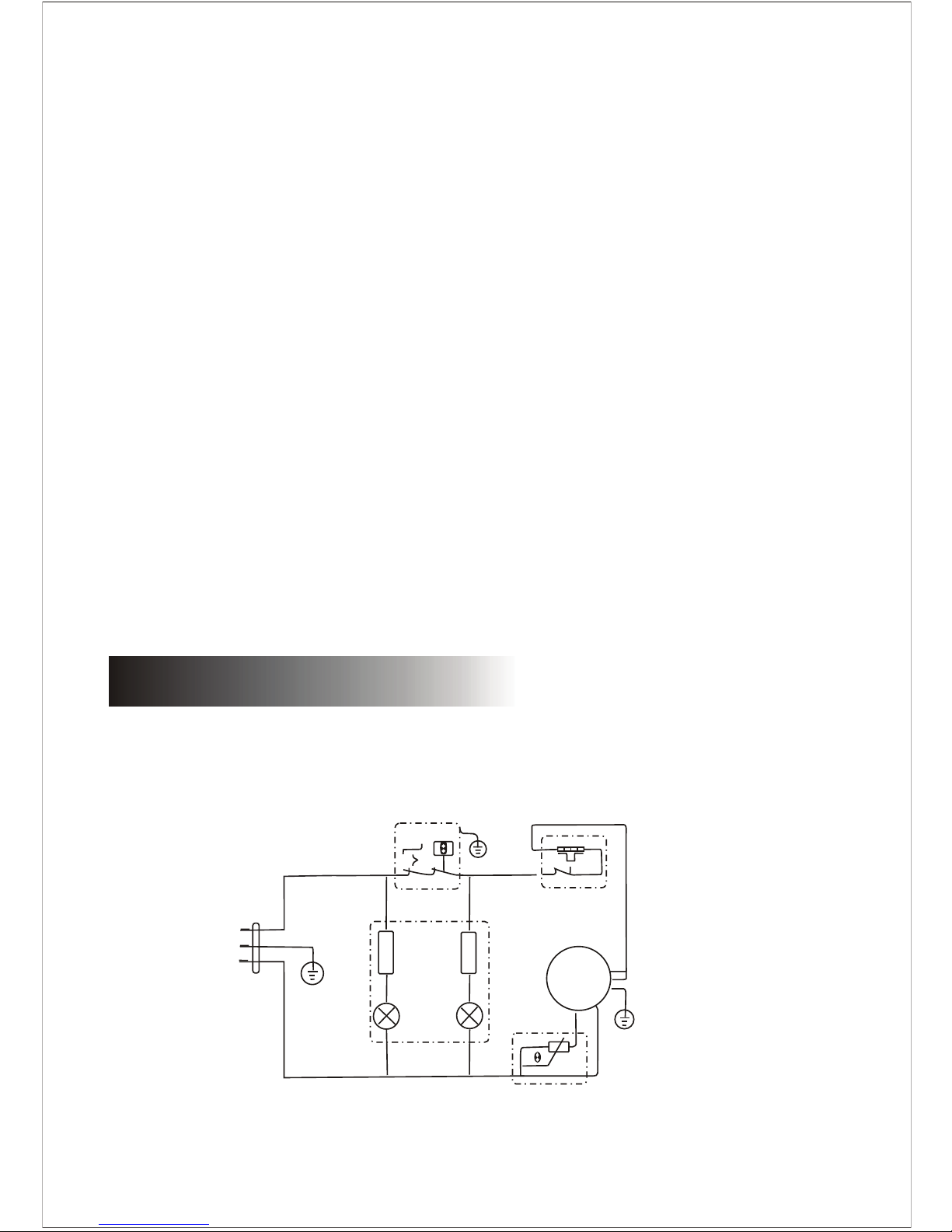

Electrical Diagram

NRM

GRN

RED

STARTING RELAY

THERMOSTAT MOTOR PROTECTION

COMPRESSOR

BROWN

BLUE

YELLOW/GREEN

Questions and Answers

Should you find that your freezer does not work properly, please check

and treat as per the following table, before contacting your Service Center.

Trouble-shooting

Trouble

Compressor works non-stop

Possible

reason

Compressor is

not work

Tmperature is

reached

The cabinet is not in level surface

are not

The knob of thermostat

is not correctly place

The door is being opened

too much

Temperature sensor tube is off

not

ends

Remove it to check

Check for loose ends

Remove the thermostat

assembly to check

Frost is more than

5mm thick

Checked if cool crrent

is blocked

Checked if temperature sensor

tube is off

Checked if castors are

all level on the ground

Check if the screw is secured

Check fuse

Repair or replaced

socket

Defrost in time

Remove same article

from unit

Secure the tube

Send for electrician

to repair when

necessary

Send for

electrician

to check

Send for

electrician

to check
