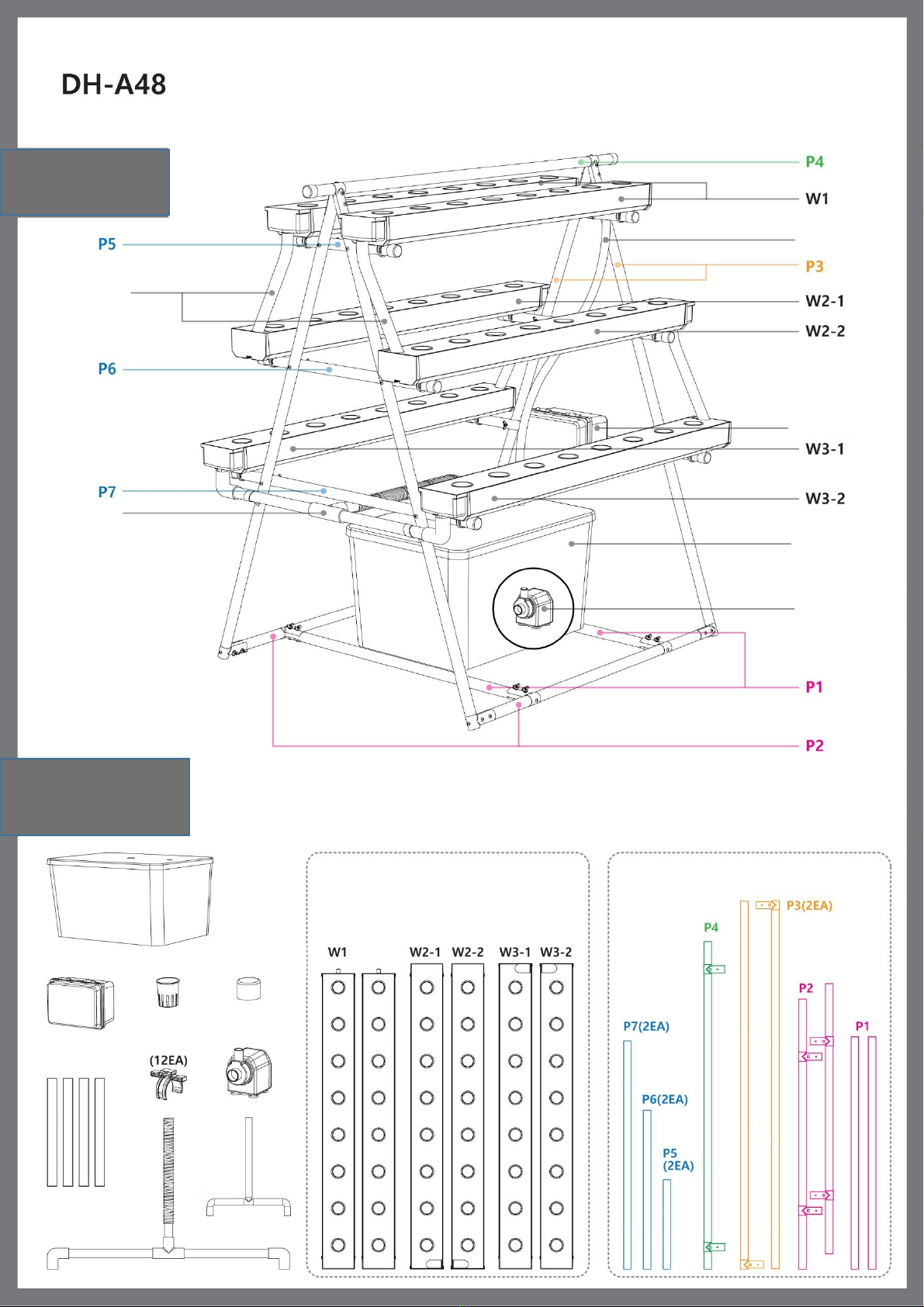

3D TYPE HYDROPONICS
Part No.
Components
IN HOSE
OUT
HOSE
OUT
PIPE/
HOSE
WATER
TANK
WATER
PUMP
CABLE BOX
STRUCTURAL PIPE
WATERWAY
WATER
TANK
3D TYPE HYDROPONICS
CABLE BOX POT(48EA)
RUBBER
CAP(14EA)
WATER
PUMP
WATERWAY
HOLDER
OUT HOSE
IN
HOSE
OUT PIPE
/HOSE
Screws connecting each pipe should be set in concrete.
Close up ends of pipes with stoppers on completion of assembling for safety’s sake.
4mm BOLT(BUTTERFLY NUT)
SET RIGHT ON AND
TIE UP WITH CABLE TIE
4mm BOLT
(BUTTERFLY NUT)
4mm BOLT(BUTTERFLY NUT)
6mm BOLT(BUTTERFLY NUT)
6mm
BOLT
BUTTERFLY NUT
OUT HOSE
IN HOSE
CABLE BOX
OUT PIPE/HOSE
SADDLE
WATER PUMP
WATER
TANK
4mm BOLT(BUTTERFLY NUT)
4mm BOLT(BUTTERFLY NUT)
TIE UP WITH CABLE TIE
SHADING NET
4mm BOLT(BUTTERFLY NUT)
DAESAN PRECISION CO., LTD.
35-4 GORAEDEUL-GIL, UIWANG-SI, GYEONGGI-DO, SOUTH KOREA
TEL. +82-31-451-2042 / FAX +82-31-451-2044
www.365grow.co.kr/english
FLAT TYPE HYDROPONICS
Part No.
Components
OUT
PIPE/
HOSE
IN HOSE
WATER
TANK
CABLE BOX
WATER
PUMP
STRUCTURAL PIPE
WATERWAY
WATER TANK
CABLE BOX POT(32EA)
RUBBER
CAP(6EA)
WATERWAY HOLDER WATER PUMP
IN HOSE
OUT PIPE/HOSE
FLAT TYPE HYDROPONICS
Screws connecting each pipe should be set in concrete.
Close up ends of pipes with stoppers on completion of assembling for safety’s sake.
4mm BOLT(BUTTERFLY NUT)
4mm BOLT
(BUTTERFLY NUT)
4mm BOLT(BUTTERFLY NUT)
OUT PIPE
/HOSE
IN HOSE
SET RIGHT ON AND
TIE UP WITH CABLE TIE
SADDLE(2EA)
4mm BOLT
(BUTTERFLY NUT)
CABLE
BOX
WATER
TANK
WATER
PUMP
SHADING NET
TIE UP WITH
CABLE TIE
4mm BOLT(BUTTERFLY NUT)
4mm BOLT
(BUTTERFLY NUT)
DAESAN PRECISION CO., LTD.
35-4 GORAEDEUL-GIL, UIWANG-SI, GYEONGGI-DO, SOUTH KOREA
TEL. +82-31-451-2042 / FAX +82-31-451-2044
www.365grow.co.kr/english
