PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 5.7

60” Wide,

Epicure®Range

ERD60

1/2

Revised

06/25/08

27" (686mm)

26" (660mm)

28 1/2" (724mm)

37”

(940mm)

35 3/4"

(908mm)

Finished Side Panel

24 3/8" (619mm) Rear of Control Panel/Oven Door

Face of Control Panel/Oven Door

Front Edge of Bullnose

Handle

6” (152mm) Backguard

When Backguard and

Side Panels are

removed, the overall

depth decreases

by 1" (25mm)

Accessory 3” (76mm) Side Panels

(Dacor Model No. AESP03)

1 9/16"

(40mm)

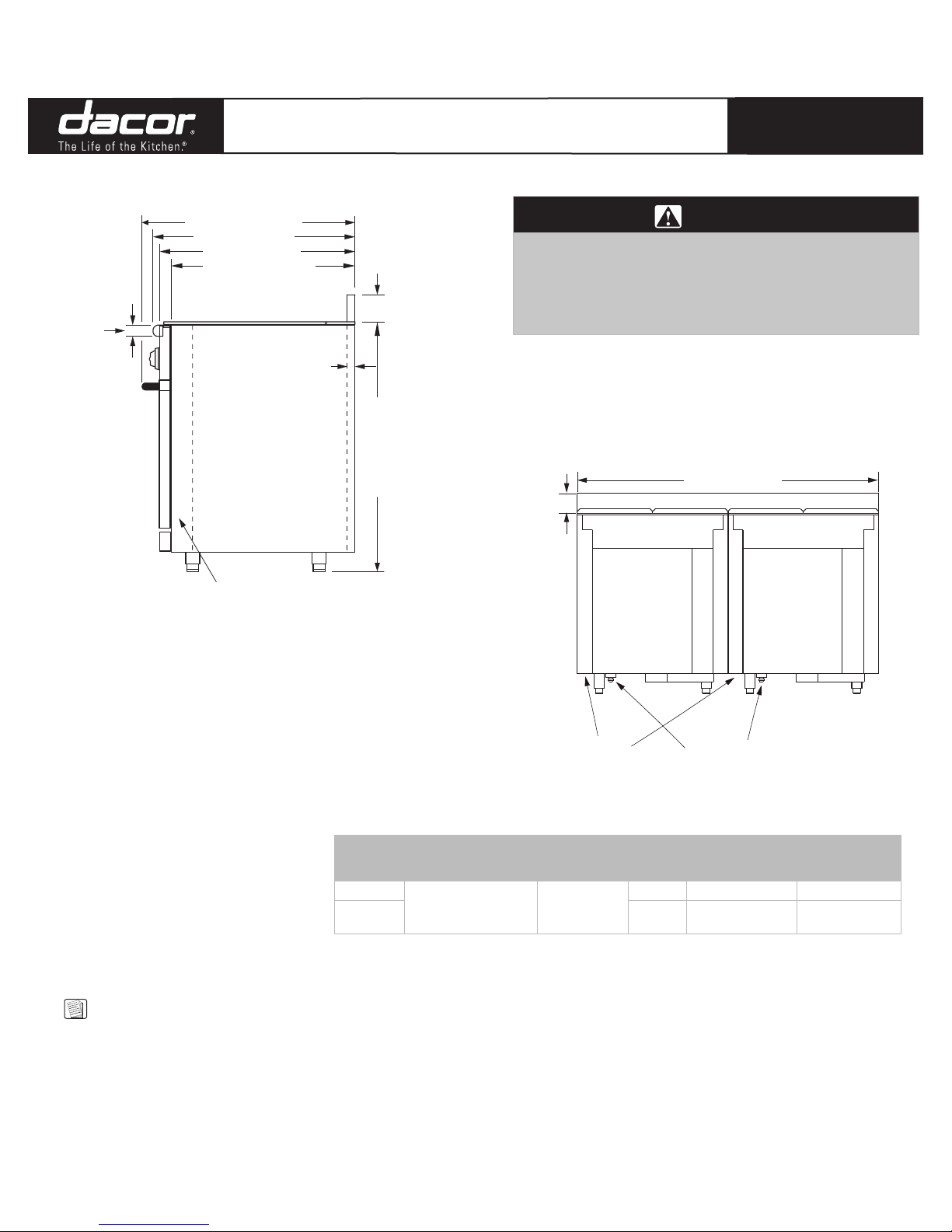

ERD/EGR30, ERD60 OVERALL DIMENSIONS

SIDE VIEW

NOTES:

1. Utilities may be located in the lower left corner of

the adjacent right cabinet. (Recommended)

2. Contact your local building department to verify

compliance with local code interpretation.

3. Two electrical circuits and gas supplies required.

WARNING

Observe all governing codes and ordinances during◊

planning and installation. Contact your local building

department for further information.

This appliance must be installed in accordance with the◊

accompanying installation instructions.

Dacor®

Model No.

Dedicated Circuit*

Required

Total

Connected

Load

Gas

Type

Manifold

Pressure

Min. Gas Supply

Pressure

ERD60 240 Vac, 4-wire, 60 Hz,

30 Amp (Breaker) X2

4.1 kW

(21Amp) X2

Natural 5” Water Column 6” Water Column

ERD60LP Liquid

Propane 10” Water Column 11” Water Column

ELECTRICAL AND GAS SUPPLY REQUIREMENTS

*Two separate dedicated circuits are required, one for left and one for the right side of the range.

REAR VIEW

Power Cords

60" (1524mm)

Factory installed 3/4” regulators

(1/2” supply ok)

6" (152mm)

Backguard

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 5.8

60” Wide,

Epicure®Range

ERD60

2/2

Revised

06/25/08

NOTE:

1. When backguard is removed, the side panels must

be removed.

** Cabinet depth is at discretion of customer

but cabinet face MUST NOT protrude further

than rear of front panel, see product dimesions

* Vertical to combustible surface

Non-Combustible

surface along

back wall

Suggested

location of

utilities

30” (762mm)

min.*

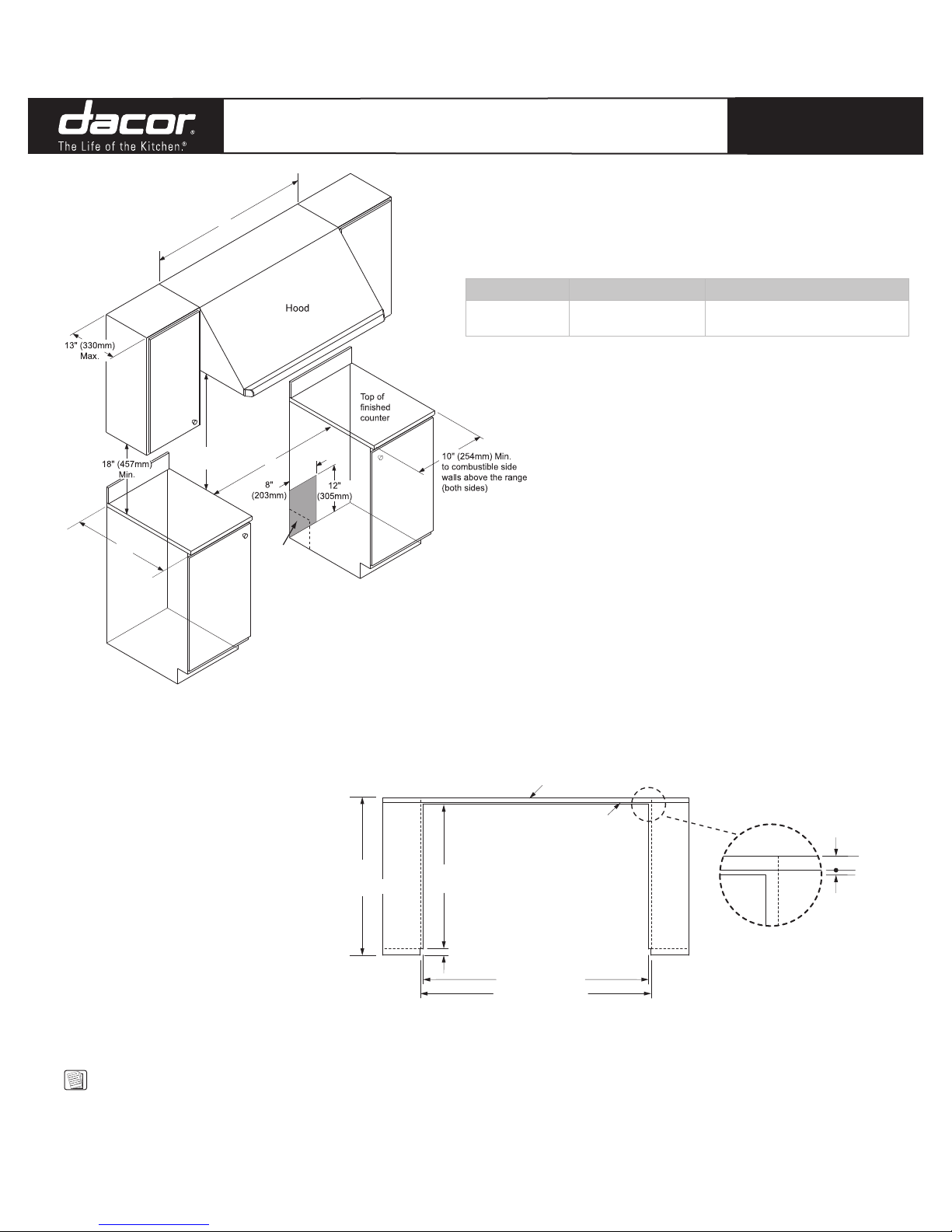

COUNTERTOP CUTOUT DIMENSIONS

(Slide-In, Freestanding Installation)

CUTOUT DIMENSIONS

(Slide-In, Self-Rimming Installation with Side Panels and Backguard Removed)

59 1/4" (1505mm)

60 1/8" (1527mm)

3/4" (19mm)

Max. backsplash

1/4" (6mm)

Min. flat ledge

13/16" (21mm)

23 3/16"

(589mm)

Vertical

non-combustible

surface

Rear wall

25”

(635mm)

Countertop

Model Number “A” Cutout Width “B” Hood Width

ERD60 60 1/8” (1527mm)

Minimum

60” (1524mm)

66” (1676mm) Recommended

CUTOUT DIMENSIONS
