D-Link DIR-605 Manuel utilisateur

DIR-605

D-Link® Fuzion™

Broadband Aggregation Router

with Fuzion™ Cloud Service

Quick Install Guide

Business Class Networking

Package Contents

• D-Link DIR-605 Fuzion™ Broadband Aggregation Router

• Power Adapter

• CAT5 Ethernet Cable

• Quick Install Guide

If any of following items are missing, please contact your reseller:

Introduction

Welcome to the line of D-Link® Fuzion™ Broadband Aggregation Routers. Fuzion powered

routers provide downstream and upstream speed aggregation, as well as resiliency via

failover when connected to two to four broadband lines. One router is required for each

broadband line.

Leverage the power of the Cloud using the Fuzion™ Aggregation Service to centrally and

remotely congure, deploy, secure and manage your entire network at a per-site level.

Note: Product features, screen shots, and Fuzion™ Portal are subject to change without notice, and actual

product appearance may dier from that depicted herein. All features and screen shots are based on

current version/rmware at time of print.

Important: Before connecting, you must register your Fuzion™ Router online.

System Requirements

• Internet connectivity (two to four broadband lines, operational and congured)

• Computer with a Windows®, Macintosh®, or Linux-based operating system

• Browser with Firefox 3.6, Chrome 5.0, Safari 4.0, Internet Explorer 8.0, or later versions

Note: your Router includes a one-year subscription to the Fuzion Cloud Aggregation service. After

one year, the service requires an annual subscription.

To properly congure your Router, you will need:

Antennas

Used to broadcast wireless network

and receive connections from clients.

Power Receptor

Receptor for the included power adapter.

Reset Button

Resets the router to factory defaults.

LAN Ports

Connects DIR-605 to your clients via Ethernet

cable. See Connecting your Network.

Internet Port

Connects to your broadband modem

via Ethernet cable.

Hardware Overview

Registering Your Fuzion Router Online

Step 1: Before you can use the DIR-605 router, you must register it online through the Fuzion™

Portal. Open a web browser and go to https://fuzion.dlink.com.

New Customer: If you don’t have an existing Fuzion™ account, create one by clicking Register.

Follow the on-screen instructions.

Existing Customer: If you already have a Fuzion™ account, click Log In and enter your User

Name and Password.

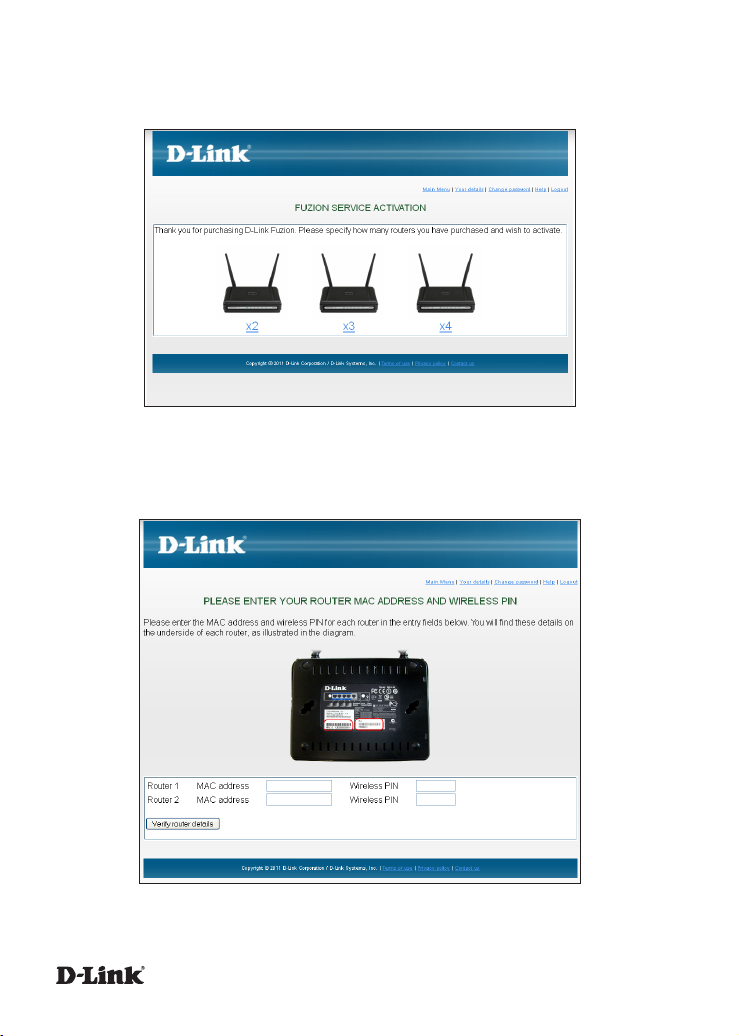

Step 2: Once you successfully log in to your router, click Add New Router and select the

number of routers to add.

Step 3: Enter the MAC address and PIN code for each of the routers you want to register.

The MAC and PIN are located on the label on the bottom of the router. Once entered, click

Verify router details.

Deploying: WAN using Dynamic IP Addressing

OPTION 1:

If your ISP Modem/Gateway automatically assigns IP addresses (DHCP service), connect the

Fuzion™ Router directly to the Modem/Gateway.

Step A: Insert one end of an Ethernet cable into the WAN port on DIR-605 rear

panel.

Step B: Insert the cable’s other end into the LAN Port of your existing Modem/

Gateway with Internet connectivity.

Step C: Connect the power supply to the DIR-605. Once powered, the green Power

LED will turn ON. Do not block the vents on the router to prevent overheating.

No additional conguration is required. Within a few minutes the Fuzion™ router will

Auto-Provision and become ready to use.

Step D: Repeat Steps A to C to connect additional Fuzion™ routers. Two to four

routers are supported. One Fuzion™ router is required for each line.

Step E: Skip to Step 5 - Conrming Successful Provisioning to continue.

Step 4: Congure/provision your routers with one of the following two options: Dynamic

or Static/PPPoE. For Dynamic IP Addressing, refer to Option 1 and for Static or PPPoE IP

Addressing, refer to Option 2.

DIR-605 Broadband Modem or

Gateway Internet

Deploying: WAN using Static IP Addressing or PPPoE

OPTION 2:

If your ISP Modem/Gateway requires Authentication or Static IP Addressing, follow these

steps to properly congure your Fuzion™ Router:

Step A: Connect any LAN port on the Fuzion™ Router directly to your computer

using an Ethernet cable. Connect the power unit to the router. Do not block the

vents on the router to prevent overheating.

Step B: Launch a web browser and type the IP address of the Fuzion™ Router

(http://192.168.3.17)

Step C: Once you enter the IP address, the login screen will appear. Enter your

username and password and then click Log In.

DIR-605 Computer

Step D: Once logged in, you will be able to change the Fuzion™ Router’s WAN

(Internet) Interface’s conguration to match what your ISP has provided as the

required connection specic setting.

Step E: Click Save Settings to activate your changes. No additional conguration

is required. Within a few minutes the Fuzion™ Router will Auto Provision and

become ready to use.

Step F: It is recommended to set the router's time settings before continuing. Click

Tools and then click Time on the left side. Congure and then click Save Settings.

Step G: Repeat Steps A to F to connect additional Fuzion™ routers. Two to four

routers are supported. One Fuzion™ router is required for each line.

Step H: Skip to Step 5 - Conrming Successful Provisioning to continue.

Connecting to your Network

Conrming Successful Provisioning

Step 6: Read the following information before you connect devices to your LAN.

• Recommended: For optimal operation, D-Link recommends to connect an

Ethernet cable from one LAN port from each router to a common Ethernet

switch. Other devices on your network can connect to the switch for local

networking and Internet access. This method has the best fail over functionality

since failure of any line or router will not aect Internet access by any connected

devices once Fuzion™ fails over to a functional DIR-605 router.

• Alternative: You may connect an Ethernet cable directly between your router's

LAN ports in a daisy chain fashion and use the remaining ports on any router as

your LAN connections. The router LAN ports are auto-MDIX/auto-crossover. This

method does not provide as much fail over protection since a router's failure

will stop Internet connectivity to any devices connected to the LAN ports on

the failed router. Be sure not to create a ring by connecting the last router to

the rst.

• By default, the LAN DHCP will use the network addressing:

192.168.3.x : 255.255.255.0

• See the DIR-605 Fuzion™ router and Fuzion™ Cloud Service User Manuals for

more information.

Step 5: It may be necessary to reboot each broadband modem after provisioning each of

the attached corresponding routers or after WAN/Internet cable connections are changed

to allow the ISP connectivity to properly initialize. This is best done after the provisioning

process has completed and the DIR-605 has rebooted a couple times as part of the

provisioning phase.

You can verify a successful provisioning and broadband initialization of an individual router if

the computer attached to the LAN port of the router is assigned by DHCP a Default Gateway

of 192.168.3.250. If the Default Gateway is 192.168.3.17 then DIR-605 has not connected to

Cloud portal and it will be necessary to reboot the corresponding modem.
