D-Link DIR-514 Manuel utilisateur

iD-Link DIR-514 User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to

notify any person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the

United States or other countries. All other company or product names mentioned herein are trademarks or registered

trademarks of their respective companies.

from D-Link Systems, Inc.

Revision Date Description

1.1 August 24, 2012 First Release

Preface

1D-Link DIR-514 User Manual

Section 1 - Product Overview

Product Overview

If any of the above items are missing, please contact your reseller.

Package Contents

D-Link DIR-514 Wireless N300 3G Router

Ethernet cable

Power Adapter

2D-Link DIR-514 User Manual

Section 1 - Product Overview

Network Requirements

• An Ethernet-based Cable or DSL modem

• IEEE 802.11 n/g wireless clients

• 10/100 Ethernet

Web-based Conguration

Utility Requirements

Computer with the following:

• Windows®, Macintosh, or Linux-based operating

system

• An installed Ethernet adapter

Browser Requirements:

• Internet Explorer 6 or higher

• Opera 10.6 or higher

• Safari 3.2.1 or higher (with Java 1.3.1 or higher)

• Chrome 1.0.154.43 or higher

• Firefox 3.03 or higher

Windows® Users: Make sure you have the latest version

of Java installed. Visit www.java.com to download the

latest version.

System Requirements

3D-Link DIR-514 User Manual

Section 1 - Product Overview

• Faster Wireless Networking - The DIR-514 provides up to 300Mbps* wireless connection with other

802.11n wireless clients. This capability allows users to participate in real-time activities online, such as

video streaming, online gaming, and real-time audio.

• Compatible with 802.11g Devices - The DIR-514 is still fully compatible with the IEEE 802.11g standard,

so it can connect with existing 802.11g PCI, USB and Cardbus adapters.

• 3G Internet Connection Support - Connect a 3G USB dongle to the DIR-514 to access 3G Internet

Services.

• Advanced Firewall Features - The Web-based user interface displays a number of advanced network

management features including:

• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or

Domain Name.

• Filter Scheduling - These lters can be scheduled to be active on certain days or for a

duration of hours or minutes.

• Secure Multiple/Concurrent Sessions - The DIR-514 can pass through VPN sessions.

It supports multiple and concurrent IPSec, PPTP, and L2TP sessions, so users behind the

DIR-514 can securely access corporate networks.

• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-514 lets you

control what information is accessible to those on the wireless network, whether from the Internet or from

your company’s server. Congure your router to your specic settings within minutes.

* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions

will adversely affect wireless signal range.

Features

4D-Link DIR-514 User Manual

Section 2 - Installation

Before you Begin

This section will walk you through the installation process. Placement of the router is very important. Do

not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Please congure the router with the computer that was last connected directly to your modem. Also, you

can only use the Ethernet port on your modem. If you were using the USB connection before using the

router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable to

the Internet port on the router, and then turn the modem back on. In some cases, you may need to call

your ISP to change connection types (USB to Ethernet).

If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software

such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to

the Internet.

Installation

5D-Link DIR-514 User Manual

Section 2 - Installation

Wireless Installation Considerations

The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within

the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of

walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary

depending on the types of materials and background RF (radio frequency) noise in your home or business. The key

to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and other network devices to a

minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position

your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a

45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet

(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead

of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on

range. Try to position access points, wireless routers, and computers so that the signal passes through

drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water

(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that

generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and

home security systems), your wireless connection may degrade dramatically or drop completely. Make

sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits

a signal even if the phone in not in use.

6D-Link DIR-514 User Manual

Section 3 - Conguration

Conguration

This section will show you how to congure your new D-Link wireless router using the web-based conguration

utility.

Web-based Conguration Utility

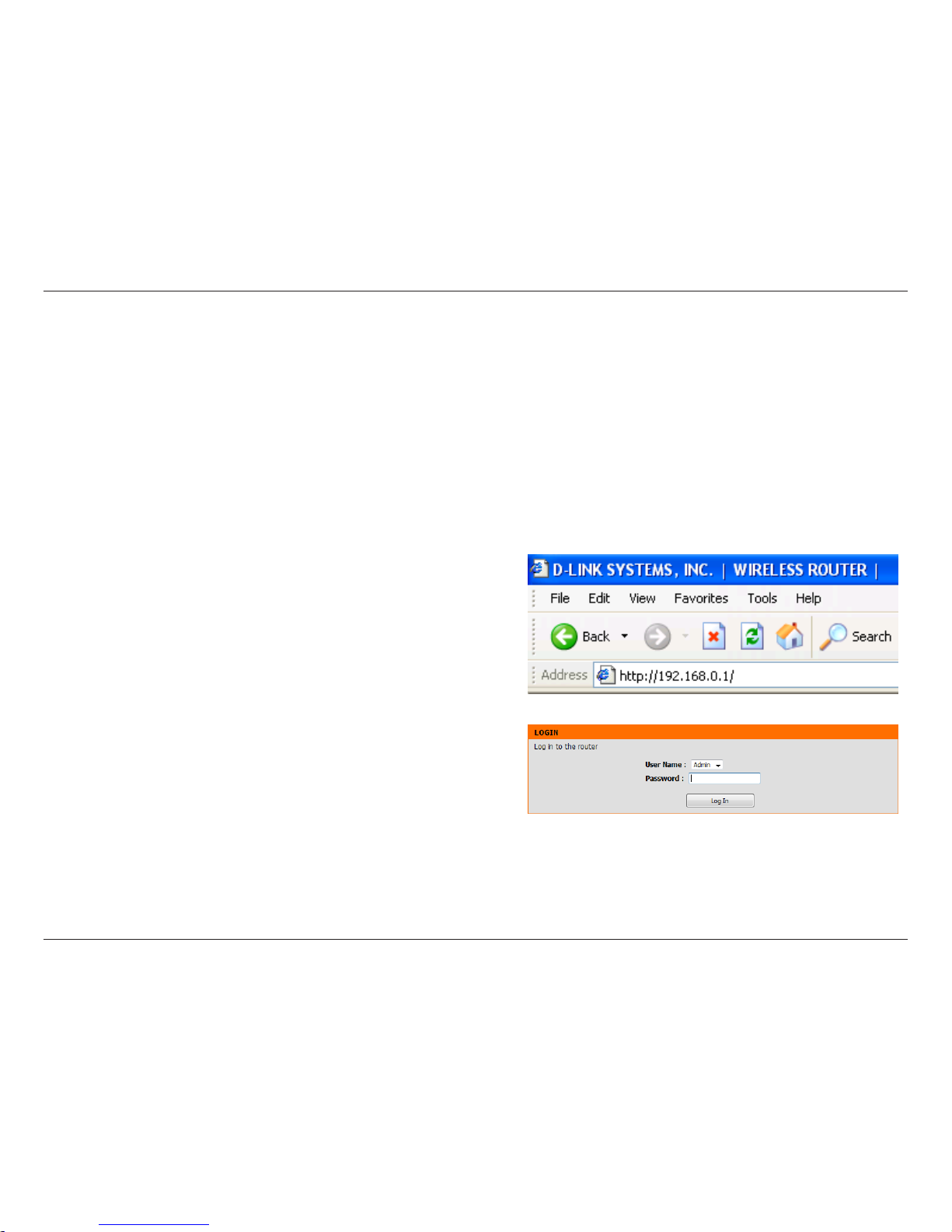

To access the conguration utility, open a web-browser

such as Internet Explorer and enter the IP address of

the router (192.168.0.1).

Type Admin in the User Name eld and then enter your

password. Leave the password blank by default.

Click the Login button to log in to the router.

If you get a Page Cannot be Displayed error, please

refer to the Troubleshooting section for assistance.

7D-Link DIR-514 User Manual

Section 3 - Conguration

Setup

This wizard will guide you through a step-by-step process to congure your D-Link router

to connect to the Internet.

Click Next to continue.

Note: While using the wizard, you can click Prev to go back to the previous page or

you can click Cancel to close the wizard.

Internet Connection Setup Wizard

The SETUP pages allow you to congure your Internet and wireless settings, as well

as manage your SMS inbox. To view the Setup conguration pages, click on SETUP at

the top of the screen.

The Internet page allows you to congure how your router connects to the Internet. There

are two ways to set up your Internet connection.

You can click on the Internet Connection Setup Wizard button to start a wizard that

will guide you through setting up your Internet settings.

If you want to manually congure your settings, click Manual Internet Connection Setup .

Internet

8D-Link DIR-514 User Manual

Section 3 - Conguration

Create a new password and then click Next to continue.

Select the Internet connection type you use. The connection types are explained on the

following page. If you are unsure which connection type you should use, contact your

Internet Service Provider (ISP).

Click Prev to go back to the previous page or click Cancel to close the wizard.

Note: The DIR-514 has a WAN Failover feature that allows the router to switch to a 3G

connection if the WAN connection is down or unavailable.

Select your time zone from the drop-down box and then click Next to continue.
