D-Link AirPro DI-754 Manuel utilisateur

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6.0, Netscape

Navigator 6.2.3.

DI-754

5GHz Multimode

Wireless Router

5V DC, 3A Power Adapter

specifications subject to change without notice. DI-754.09252002

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or DSL modem with an

established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for configuring

the DI-754 Multimode Wireless Router. The DI-754 acts as a DHCP Server by

default and will assign all the necessary IP address information on your network.

See Appendix at the end of this Quick Installation Guide or the Manual on the

CD-ROM for setting each network adapter to automatically obtain an IP

address.

Check Your Package Contents

DI-754 Multimode Wireless Router

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power

supply with a

different voltage rating

will damage and void

the warranty for this

product.

If any of the above items are missing, please contact your reseller.

Connecting The DI-754 Multimode

Wireless Router To Your Network

A. First, connect the power adapter to the receptor at the back panel of

the DI-754 and then plug the other end of the power adapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper

operation.

B. Insert one end of an Ethernet cable to the WAN port on the back panel

of the DI-754 and the other end to the Ethernet port located on your

Cable or DSL modem. The WAN LED light will illuminate to indicate

proper connection.

C. Insert one end of an Ethernet cable to LAN port 1 on the back panel of

the DI-754 and the other end to the Ethernet port on the network adapter

in the computer you will use to configure the DI-754. The LED light for

LAN Port 1 will illuminate to indicate proper connection. (Note: The LAN

ports on the DI-754 will automatically sense the cable type when

connecting Ethernet-enabled computer, meaning it will work with either a

straight through or cross-over cable.

D. Computers equipped with 802.11a wireless adapters will be able to

connect to the DI-754. The DWL-A650 AirPro Wireless Cardbus Adapter

and the DWL-A520 AirPro Wireless PCI Adapter will be able to connect

out of the box with the router using their default wireless settings.

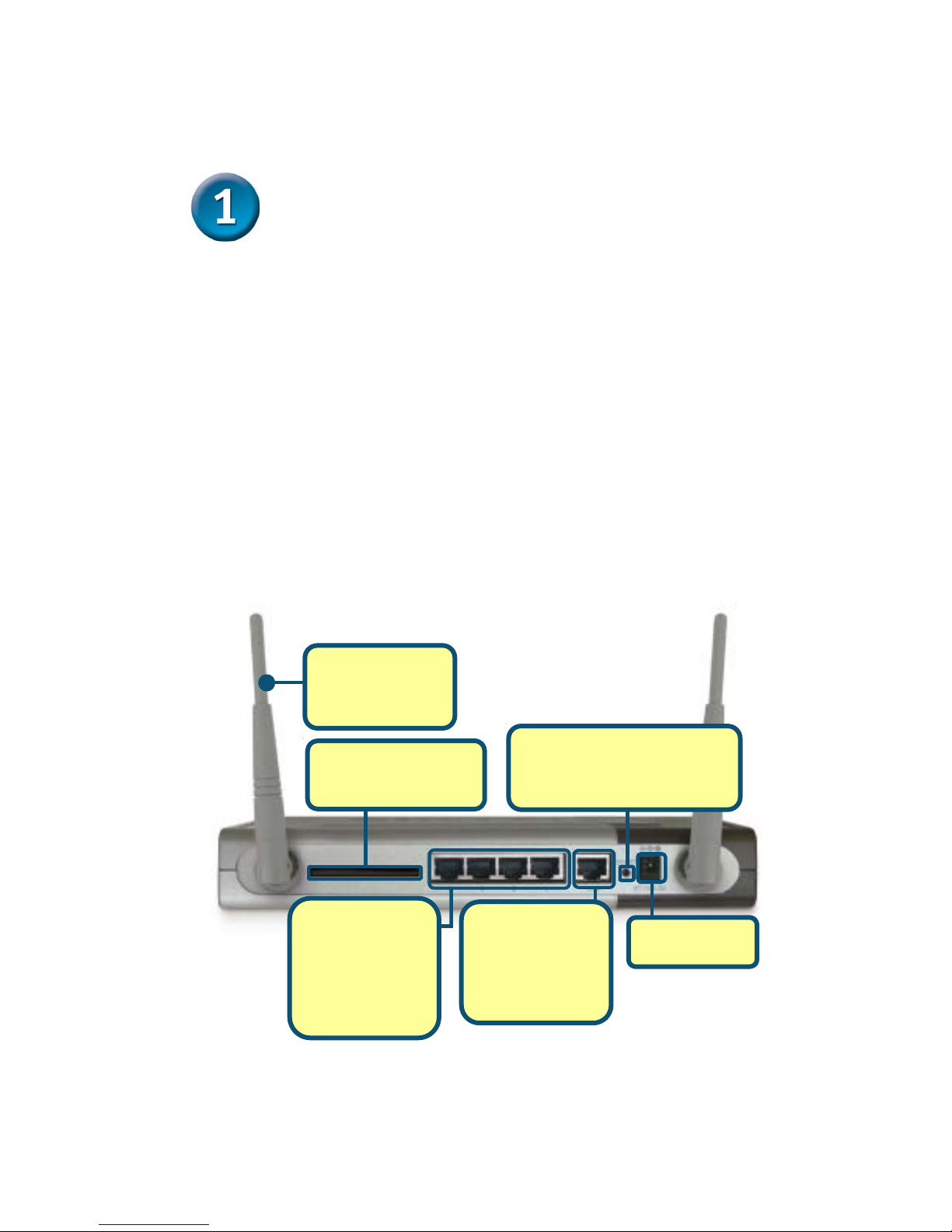

C.LAN Ports

These are the

connections for

Ethernet cables to

your Ethernet-

enabled

computers.

D.Antenna

Used to wirelessly

connect to

802.11a ada

ters.

.Receptor for

Power Ada

ter

Reset Button

Pressing this button restores

the router to its original factory

default settings.

B.WAN Port

This is the

connection for the

Ethernet cable to

the Cable or DSL

Modem.

E.Expansion Slot

For optional DWL-650+

Cardbus Adapter.

Restart Your Computer

E. When a D-Link AirPlus DWL-650+ Wireless Cardbus Adapter is inserted into the

Expansion Slot on the back of the DI-754, computers equipped with 802.11b

wireless adapters will be able to connect to the DI-754. The DWL-650+ AirPlus

Wireless Cardbus Adapter and the DWL-520+ AirPlus Wireless PCI Adapter will be

able to connect out of the box with the router using their default wireless settings.

Continued...

The Expansion Slot on the DI-754 will only work with a

D-Link DWL-650+. Make sure the DI-754 Router is

completely powered off before inserting the DWL-650+

into the Ex

ansion Slot

Connecting Additional Computers To

The DI-754

Using additional Ethernet (CAT5 UTP) cables, connect your

Ethernet-equipped computers to the remaining Ethernet LAN ports

on the back panel of the DI-754

M1 LED – a solid

light indicates

that the DI-754 is

ready.

Power LED – a solid

light indicates a

proper connection to

the power supply

WAN LED – a

solid light indicates

connection on the

WAN port. This

LED blinks during

data transmission.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Local Network LEDs

– a solid light on the

port indicates a

connection to an

Ethernet enabled

computer on ports 1-4.

This LED blinks during

data transmission.

11a/11b Wireless

LEDs – a solid light

indicates that the

wireless segment is

ready. These LEDs

blink during wireless

data transmission.

M2 LED – A solid light

indicates that the unit is

defective.

Using The Setup Wizard

Click OK

Type “admin” for the

username and leave the

password field blank.

The logon pop-up screen will appear.

Open your Web

browser and type

“http://192.168.0.1” into

the URL address box.

Then press the Enter or

Return key.

If the logon screen does not

automatically appear, please follow

the step shown below. If the logon

screen does appear, proceed to the

next screen.

Click Configure DI-754

Insert the DI-754 CD-ROM

The Install Screen will appear.

The Setup Wizard (continued)

Click Run Wizard

Once you have

logged in, the

Home screen

will appear.

You will see the following

screens

Step 1 - Set up your new

password.You have the

option to establish a

password.

Click Next

The Setup Wizard (continued)

Step 2 - Choose your

time zone. You will be

prompted to select your

time zone for your router

Step 3 – Select your Internet Connection. You will be

prompted to select the type of Internet connection for your router.

Select one of

these settings

Click Next

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

Click Next

The Setup Wizard (continued)

Click the “Clone MAC

Address” button to

automatically copy the MAC

address of the network adapter

in your computer. You can also

manually type in the MAC

address.

What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already include

built-in network adapters.

Click Next

If you selected Dynamic IP

Address, this screen will

appear:

Enter the IP address

information originally

provided to you by your ISP.

You will need to complete all

the required fields.

Click Next

If your ISP requires a Static

IP Address, and this option

is selected, then this

screen will appear:

Do not use

the numbers

displayed in these

fields. They are only

shown as an example.

The Setup Wizard (continued)

Enter in the username

and password provided

to you by your ISP.

Click Next

Please be sure

to remove any

existing PPPoE client

software installed on

your computers.

If your ISP uses PPPoE

(Point-to-Point Protocol

over Ethernet), and this

option is selected, then

this screen will appear:

Click Next

Step 4 – Wireless

Setup.

The default wireless

settings for your 802.11a

wireless network are:

SSID = default

Channel = 52

Turbo Mode = Off

You can change these

settings to match an

existing wireless network.

The Setup Wizard (continued)

If you wish to use encryption

for your 802.11a network,

the DI-754 is capable of

three levels of wireless

encryption - 64-bit, 128-bit,

and 152-bit. By default the

encryption is disabled.

You can change the encryp-

tion settings for more secure

wireless communication.

Click Next

The default wireless settings

for your 802.11b wireless

network are:

SSID = default

Channel = 6

You can change these

settings to match an existing

wireless network.

Click Next

If you enable encryption on the DI-754 make sure to also

enable encryption on all 802.11a wireless clients or

wireless connection will not be established

The following steps are required if you have added the

DWL-650+ Wireless Cardbus adapter in the Expansion

Slot on the DI-754.
