D-Link DCS-6510 Quick Install Guide 1

ENGLISH

DCS-6510 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-6510 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD included in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. SD Card Installation

4. Hardware Installation

5. Conguration with Wizard

6. Adjusting the Zoom/Focus

1. Package Contents

DCS-6510 Network Camera

Manual and Software on CD-ROM

Power Adapter

Quick Install Guide

Screwdriver

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

D-Link DCS-6510 Quick Install Guide

ENGLISH

2. Hardware Overview

Infrared LEDs

Used to illuminate the camera's

eld of view at night

Camera Lens

DC iris varifocal lens

BNC Connector

Analog video output

Power Connector

Connects to 12 V DC power

Power Wiring

Connects to 24 V AC power

Ethernet Jack

RJ-45 connector for Ethernet

which can also be used to

power the camera using Power

over Ethernet (PoE)

Audio Wiring

Audio Input / Output

DI/DO Wiring

I/O connectors for external devices

Vandal-Proof Cover

Protects the camera from

damage

Install the SD Card

Push the SD card into the camera with the

gold contacts oriented towards the base of

the camera. To eject the SD card, push the

SD card into the slot.

3. SD Card Installation

Disassemble the Camera

Open the camera enclosure by removing

the 4 screws. Lift the dome off the base of

the camera.

D-Link DCS-6510 Quick Install Guide 3

ENGLISH

4. Hardware Installation

Mounting Installation

Please see the User Manual for detailed instructions regarding installation and mounting

of the camera using a mounting bracket.

Flush Mount (DCS-33-1)

Inner Mounting Ring

Ceiling

Recessed

Bracket

Plastic

Ring

Dome

Camera

Tether

Height: 60 mm (2.36 inches)

Diameter: 190 mm (7.48 inches)

Weight: 272.5 g (0.60 lbs)

D-Link DCS-6510 Quick Install Guide

ENGLISH

Plastic

Ring

Surface

Bracket

Ceiling

Dome

Camera

Surface Mount (DCS-33-2)

Tether

Height: 25 mm (0.98 inches)

Diameter: 190 mm (7.48 inches)

Weight: 167.5 g (0.36 lbs)

D-Link DCS-6510 Quick Install Guide 5

ENGLISH

Pendant Mount (DCS-33-3)

Suspension

Bracket

Cap

Tether

Dome

Camera

Height: 201 mm (7.91 inches)

Diameter: 150 mm (5.90 inches)

Weight: 534.7 g (1.17 lbs)

D-Link DCS-6510 Quick Install Guide

ENGLISH

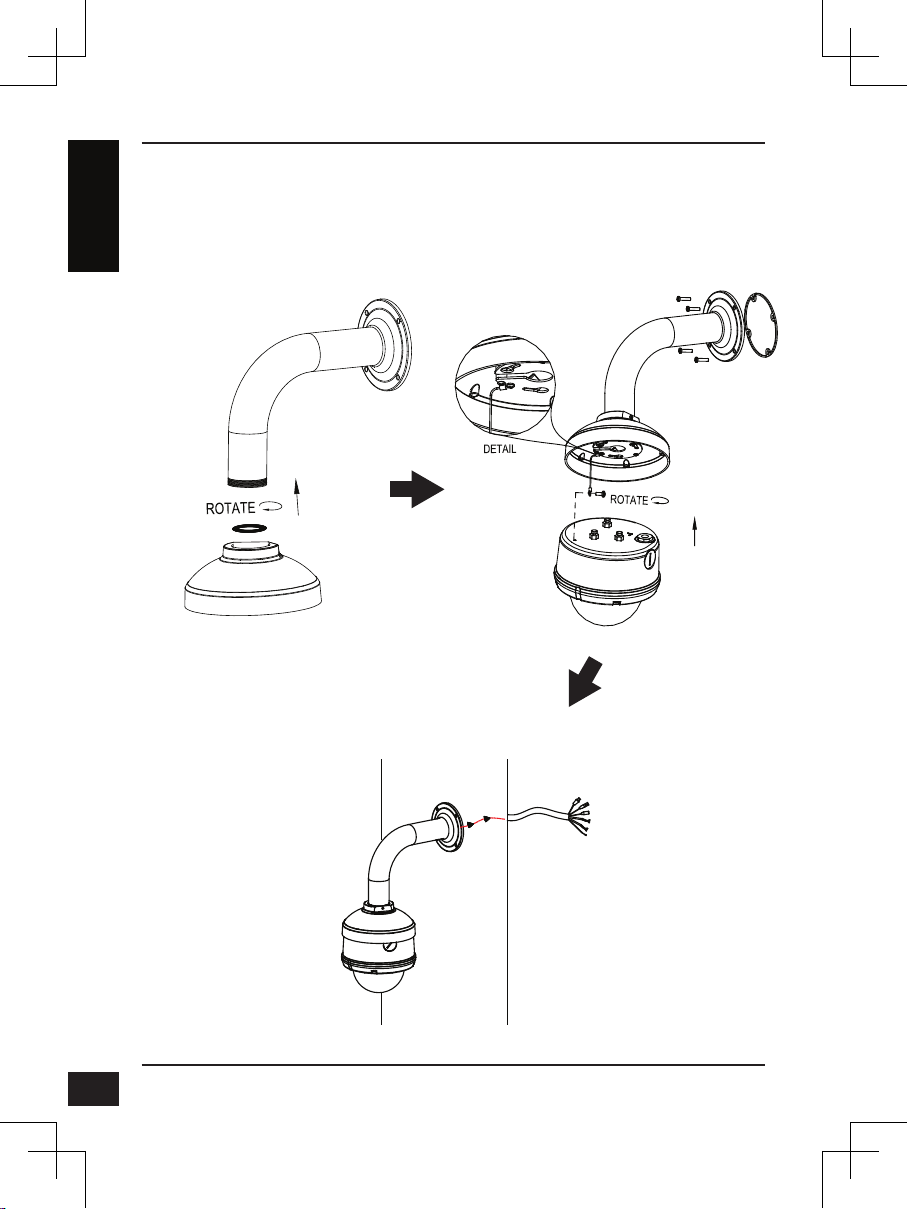

Bent Mount (DCS-33-4)

Bracket

Cap

Tether

Dome

Camera

Bent

Bracket

Height: 253 mm (9.96 inches)

Diameter: 150 mm (5.90 inches)

Weight: 640.7 g (1.41 lbs)

D-Link DCS-6510 Quick Install Guide 7

ENGLISH

Connection with a PoE Hub

If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,

which will provide transmission of both power and data over a single cable.

General Connection Using 24 V AC Power Wiring

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power source such as your

building's emergency power.

General Connection Using 12 V DC Power Adapter

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6510 Quick Install Guide

ENGLISH

5. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-6510 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setuop Wizard, the following window will

open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.
