D-Link DUB-A2 Manuel utilisateur

This Installation Guide includes instructions for:

§Windows XP

§Windows 2000

§Windows Me

§Windows 98/98SE

Installation Guide Contents:

Section 1:Installing the DUB-A2 into your PC

Section 2:Windows XP Driver Installation

Section 3:Windows 2000 Driver Installation

Section 4:Windows Me Driver Installation

Section 5:Windows 98/98SE Driver Installation

Section 6:Hardware Diagram

Section 7:Technical Support

Package Contents:

Verify that your D-Link DUB-A2 package contains the following items. If

any items are missing, please contact your reseller.

§D-Link DUB-A2 Hi-Speed USB 2.0 2-Port PCI Adapter

§This Installation Guide

§CD with Drivers and PDF version of Installation Guide

Minimum System Requirements:

For proper usage, you must have at least the following...

§Pentium 233-MHz or faster or equivalent with 32MB RAM

§One Available PCI Slot on your Motherboard

§Windows XP, 2000, Me, 98, 98 SE

D-Link DUB-A2

USB 2.0 2-Port PCI Adapter

Installation Guide

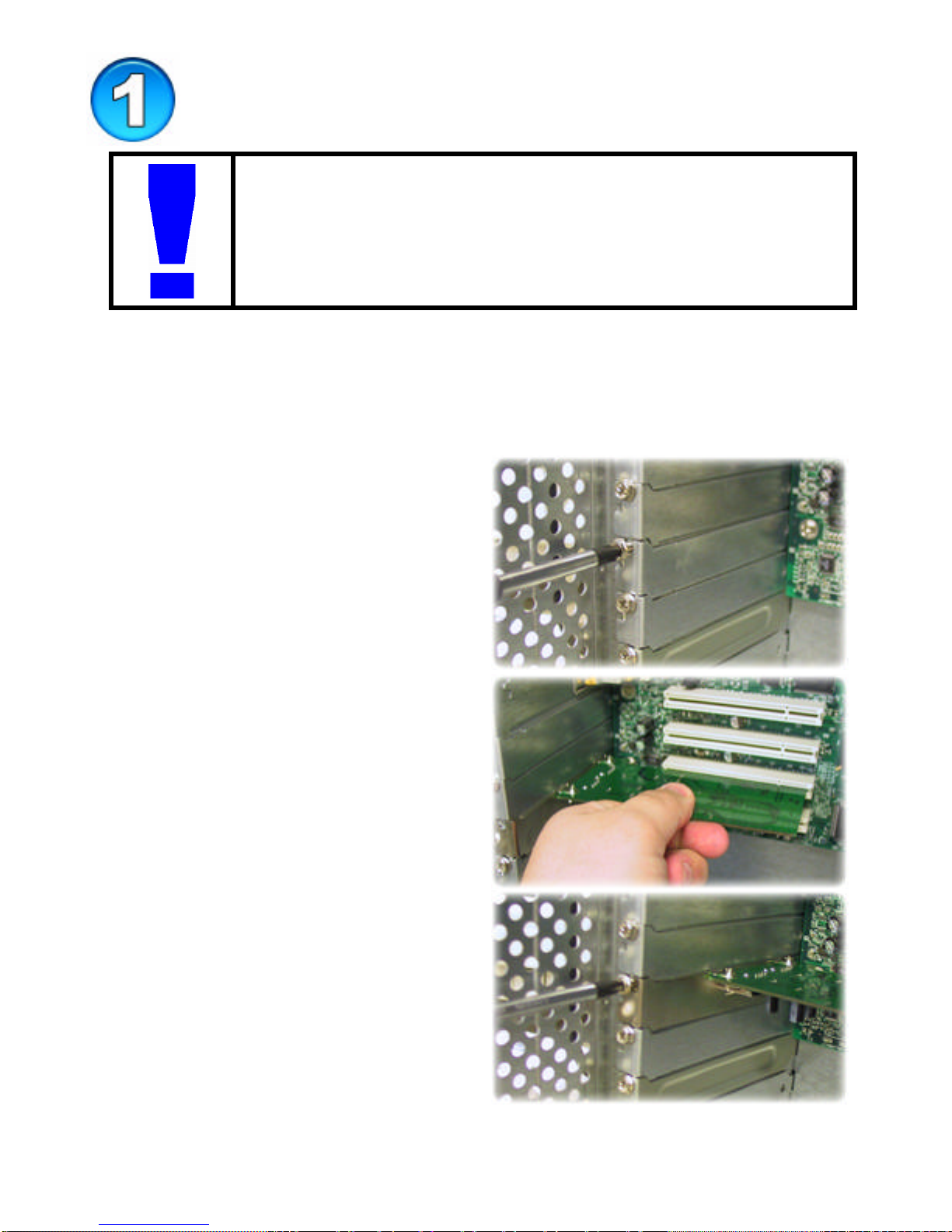

Installing the DUB-A2 into your PC

Opening the case of your computer may compromise the

warranty of your computer. Consult the manufacturer of

your computer before opening the case to ensure that you

adhere to warranty guidelines. In some cases, the DUB-A2

may need to be installed by your computer manufacturer.

A. Turn off your computer and unplug the power cord.

B. Remove the outer cover of your computer.

(Refer to your computers manual if needed.)

C. Locate an available PCI slot. (usually white or cream colored)

D. Remove the backplate.

(The small piece of metal that

covers the opening for the PCI

card).

E. Insert the DUB-A2 carefully

into the PCI slot.

F. Secure the DUB-A2 with the

screw from the backplate.

G. Replace your computer’s

cover.

H. Plug in the power cordand

turn on your computer.

I. Please refer to the following section that corresponds with the

operating system that you are using.

Windows XP Driver Installation

A. Insert the DUB-A2 Driver CD into your CD-ROM drive.

B. Select “Next”.

C. Select “Continue Anyway”.

D. Select “Finish”.

E. Windows will continue to

load drivers for the Root

Hub. Once completed, you

will be able to connect USB

devices to your DUB-A2.

Windows 2000 Driver Installation

A. Insert the DUB-A2 Driver CD into your CD-ROM drive.

B. Select “Next”.

C. Select “Next”.

D. Select “Next”.

E. Make sure that “CD-ROM

drives” is the only option

selected and click “Next”.

F. Select “Next”.

G. Select “Finish”to complete

the installation.

Windows Me Driver Installation

A. Insert the DUB-A2 Driver CD into your CD-ROM drive.

B. Windows will load drivers

built-into the OS and ask you

to restart your computer.

Select “Yes”.

C. (1) Right-click on the My

Computer Icon on the

Windows desktop and (2)

select “Properties”.

D. Select the “Device

Manager”tab.

E. (1) Select the “VIA Tech…”

line that shows next to it

and (2) select “Properties”.

F. Select “Update Driver”.

G. Select “Next”.

H. Select “Finish”.

I. Select “Yes” to restart the

computer and complete the

installation.

Windows 98/98SE Driver Installation

A. Insert the DUB-A2 Driver CD into your CD-ROM drive.

B. Select “Next”.

C. Select “Search for the best

driver from your device”

and click “Next”.

D. Put a check next to “CD-

ROM drive” and uncheck

all other options and select

“Next”.

E. Select “Next”.

F. Select “Next”.

G. If prompted for the Windows 98 CD, insert the Windows 98 CD

into the CD-ROM drive and click “OK”.

H. Specify the correct location of the Windows 98 setup files in the

“Copy files from:” box. If the CD-ROM drive is the “D”drive, then

type “D:\Win98”in the box. Note: Some computers will have these

files in the “C:\Windows\options\cabs\”directory. After typing in

the location, click OK.Windows will copy the necessary files.

I. Select “Finish”.

J. Repeat steps B through Ione more time.(Windows 98 requires

that this driver be installed twice in order to support USB 2.)

K. Select “Next”.

L. Select “Next”.
