D-Link DMC-300SC - Media Converter - External Manuel utilisateur

10/100BASE-TX to

100BASE-FX

Media Converter

User’s Guide

Rev. 01 (JUN. 2002)

1907M110MM16003

RECYCLABLE

TABLE

ON TENT S

TABLE OF CONTENTS ... 2

INTRODUCTION ............. 3

BOUT

EDIA

ONVERTER

.....................................3

RODUCT

EATURES

...............................................3

INSTALLATION ............... 4

ELECTING A

ITE FOR THE

QUIPMENT

...................4

ONNECTING TO

OWER

.........................................5

LIDING

WITCH

.......................................................5

ONNECTING TO

OWER

.........................................6

NSTALLING IN A

HASSIS

........................................6

LED

NDICATOR

.......................................................7

SPECIFICATIONS ........... 8

RECYCLABLE

Rev. 01 (Jan. 2002)

6012-9600128

1907M110MM16001

Printed In Taiwan

NTR ODUC TION

Thank you for choosing the 10/100BASE Fast Ethernet

Media Converter, The Converter introduced here

provides one channel media conversion between

10/100BASE-TX and 100BASE-FX.

About Media Converter

The Media Converter is a network technology specified

by IEEE 802.3 10BASE-T, IEEE802.3u 100BASE-TX,

100BASE-FX standards.

Product Features



One-channel media conversion between

10/100BASE-TX and 100BASE-FX



Fiber media allows: multi-mode fiber using SC, LC

or MT-RJ connector; single-mode fiber using SC

connector



Auto negotiation of speed and duplex mode on TX

port



Auto MDI-X on TX port



One slide switch for configuring fixed half/full

duplex modes



Store-and-forward mechanism



Back-pressure & IEEE802.3x compliant flow

control



Full wire-speed forwarding rate



Front panel status LEDs



Used as a stand-alone device or with a chassis



Hot-swappable when used with a chassis

NSTALLATION

This chapter gives step-by-step installation instructions

for the Converter.

Selecting a Site for the Equipment

As with any electric device, you should place the

equipment where it will not be subjected to extreme

temperatures, humidity, or electromagnetic interference.

Specifically, the site you select should meet the

following requirements:

1. The ambient temperature should be between 32

and 104 degrees Fahrenheit (0 to 40 degrees

Celsius).

2. The relative humidity should be less than 90

percent, non-condensing.

3. Surrounding electrical devices should not exceed

the electromagnetic field (RFC) standards for

IEC 801-3, Level 2 (3V/M) field strength.

4. Make sure that the equipment receives adequate

ventilation. Do not block the ventilation holes on

each side of the switch or the fan exhaust port on

the side or rear of the equipment.

The power outlet should be within 1.8 meters of

the switch.

Connecting to Power

1. This Converter is a plug-and-play device.

2. Connect the supplied AC to DC power adaptor

with a power voltage of 7.5Vdc/1.5Amp to the

receptacle on the rear panel of the converter, and

then attach the plug into a standard AC outlet

with a voltage range from 100 to 260 Vac.

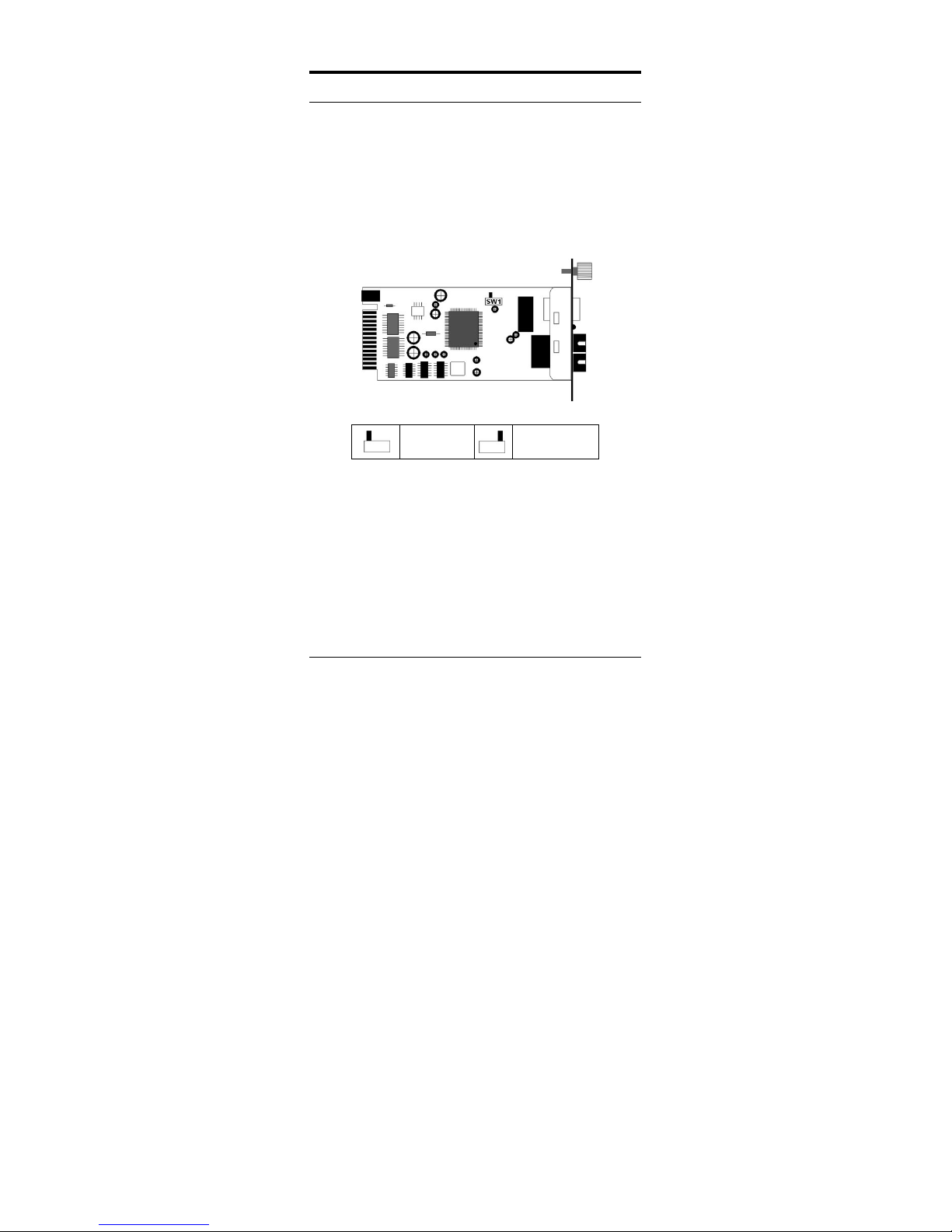

Sliding Switch

There is a sliding switch for duplex mode setting for

fiber port. Refer to the table below for more details.

Half

Duplex

Full Duplex

(default)

Connecting to Power

3. This Converter is a plug-and-play device.

Connect the supplied AC to DC power adaptor

with a power voltage of 7.5Vdc/1.5Amp to the

DC-Jack on the converter, and then attach the

plug into a standard AC outlet

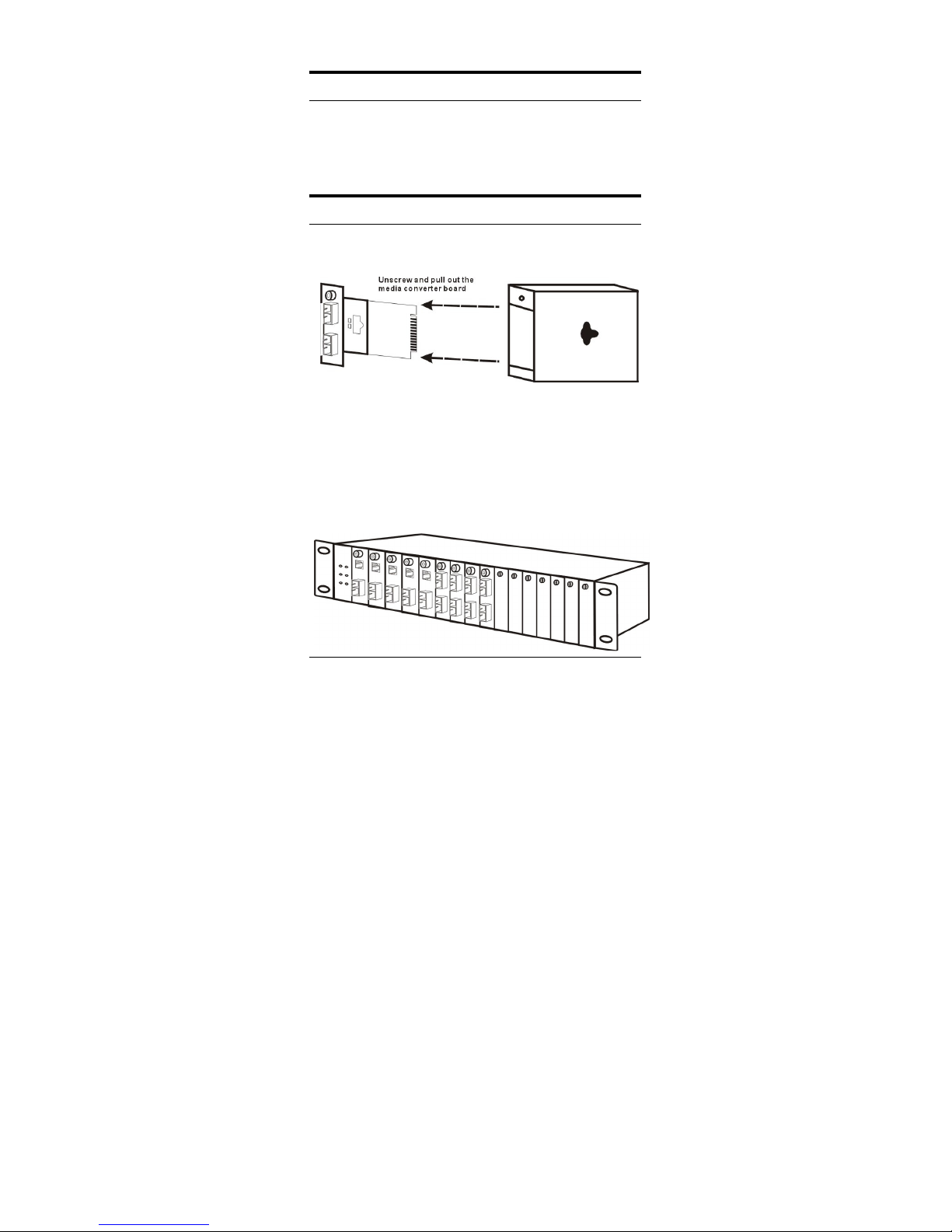

Installing in a Chassis

The Converter can be fit into any of the expansion slots

on a special designed chassis.

First, install the converter onto a carrier supplied with

the chassis:

Step 1- Unscrew and pull out the media converter

board.

Step 2- Plug in the media board to any of the vacant

slot.

Step 3- Fit the converter onto the carrier and use the

screw to secure it.

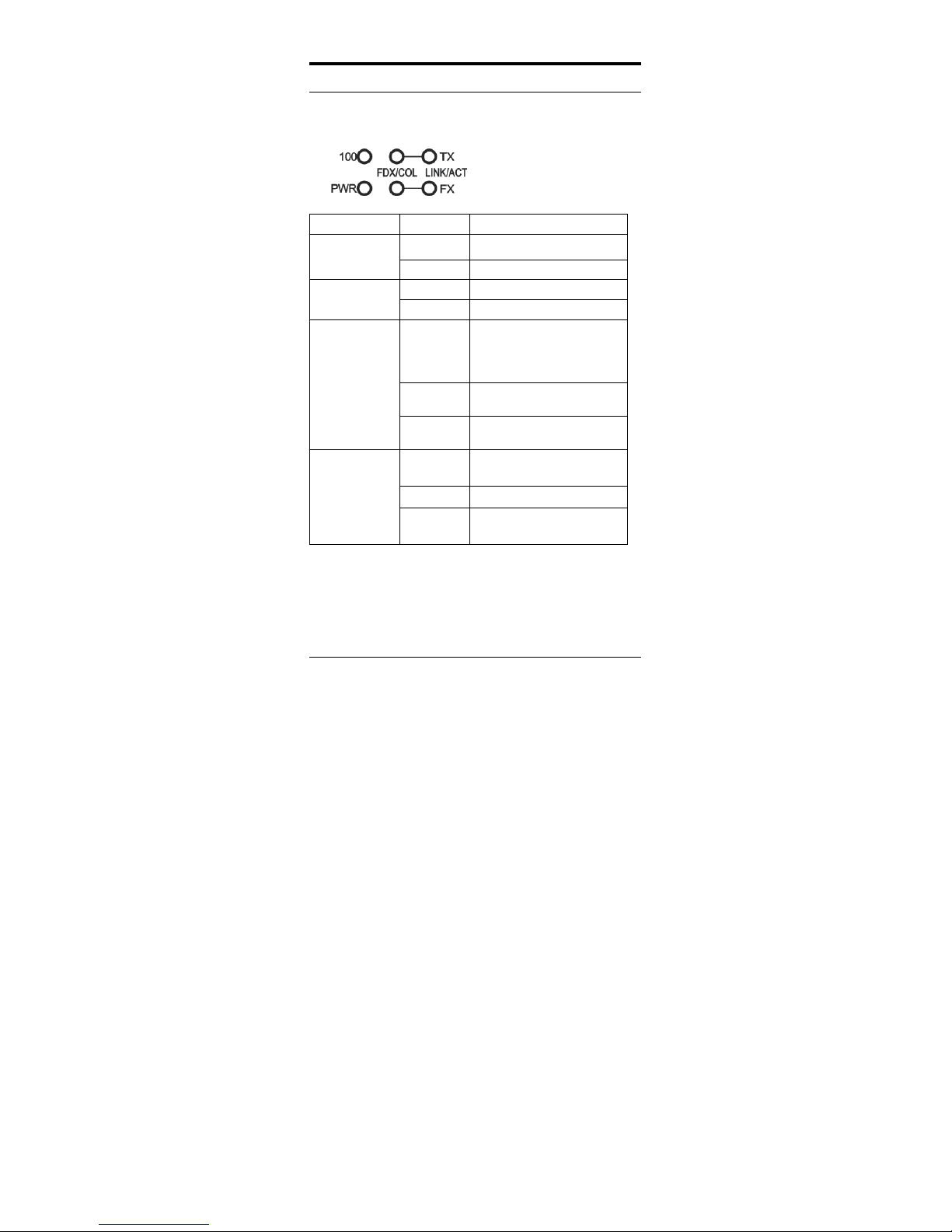

LED Indicator

The LED indicators give you instant feedback on status

of the converter:

LEDs State Indication

Power

(PWR)

Steady Power on

Off Power off

100 Mbps

(100)

Steady Runs at 100Mbps on TX port

Off Runs at 10Mbps on TX port

TX Port (TX)

FX Port (FX)

FDX/COL

Steady

(FDX)

Connection in full duplex

mode

FDX stands for

FULL-DUPLEX

Lights off Connection in half duplex

mode

Blinking

(COL)

Data collision

TX Port (TX)

FX Port (FX)

LINK/ACT

Steady

(LINK)

A valid network connection

established

Lights off Not Linking

Blinking

(ACT)

Transmitting or receiving data

ACT stands for Activity

PECI FIC ATIO NS

Applicable

Standards

IEEE 802.3 10BASE-T

IEEE802.3u 100BASE-TX & 100BASE-FX

Fixed Ports 1 TX port, 1 FX port

Speed 10/20Mbps for half/full-duplex

100/200Mbps for half/full-duplex

Forwarding

rate

148,800pps

LED Indicators Per Unit- (2 LEDs): Power; Speed( 100 )

Per Port- (2 LEDs): FDX/COL, LINK/ACT

Cable 10BASE-T –

2-pair UTP Cat. 3,4,5, up to 100 m (328 ft)

100BASE-TX --

2-pair UTP Cat. 5, up to 100 m (328 ft)

100BASE-FX --

62.5/125um multi-mode fiber optic cable,

up to 2 km

10/125um single-mode fiber optic cable, up

to 75 km

Dimensions L120 × W88 × H25 mm

Weight 305 g

Power External power adaptor 7.5V 1.5A

Power

Consumption

7.2W Max.

Temperature Operating:0°C ~ 40°C (32°F ~ 104°F)

Storage: -25°C ~ 70°C (-13°F ~ 158°F)

Humidity 10 ~ 90%, non-condensing

Emissions FCC part 15 Class B, CISPR ClassB, VCCI

Class B, CE Mark
