D-Link DAP-1520 Manuel technique

Your WiFi Conﬁguration Card which is included in

the box. See image below

Correct placement of the WiFi Extender is very important

Plug your Extender into a power outlet located in an area that

still receives good signal from your wireless access point. A

good starting point is approx half way between the access

point and the area you want to get signal to

Quick Placement Tips

Access Point

Access Point

1.

2.

3.

4.

http://www.deltacable.com/Internet/WiFi/WiFiModemFAQ.aspx

Solid Green Successfully connected to a network

Solid Red Device is booting up

Blinking Red The device is in recovery or the device malfuctioned

Blinking Amber Device is powered on, but not connected to a network

Off Device is not receiving power

Power Status LED

1. Plug your WiFi Extender into a power outlet and wait for a blink-

ing amber status to show on the indicator LED

3. Click on the Wireless Network Name (SSID) for your WiFi Extender

and connect. It will appear as a name closely resembling dlink-XXXX,

the last four characters vary by device. This will allow your computer

or mobile device to link to your new WiFi Extender.

Locate your WiFi Conﬁguration Note/Card for more information

on the exact Wireless Network Name (SSID) of your WiFi

Extender

These last four

characters will be

different with each

device

Power Status LED

4. Enter the password found on your D-Link WiFi Conﬁguration

Card and click ‘OK’ to connect. You will now see the status of your

unit change to ‘Connected’.

5. To conﬁgure the WiFi Extender, open a web browser and enter

http://dlinkap.local./ Windows XP users can enter http://dlinkap.

(Choose from Internet Explorer, Firefox, Safari or Chrome)

6. Once on the web page, the login will appear.

Enter your password and click Log In. By default the password is

blank. If this is the ﬁrst time logging in to your WiFi Extender,

you will be directed to the Setup Wizard automatically.

1. Select your Language

2. Select option to setup network manually

(Note: WPS not supported)

3. The setup wizard will now scan your home for WiFi signals

4. Select the WiFi network you wish to pair your WiFi Extender with

Setup Wizard

Note: The WiFi network names above will vary

Congratulations – you are ready to connect any device to your

extended WiFi network.

If you need assistance at any time, please call 604-946-7676

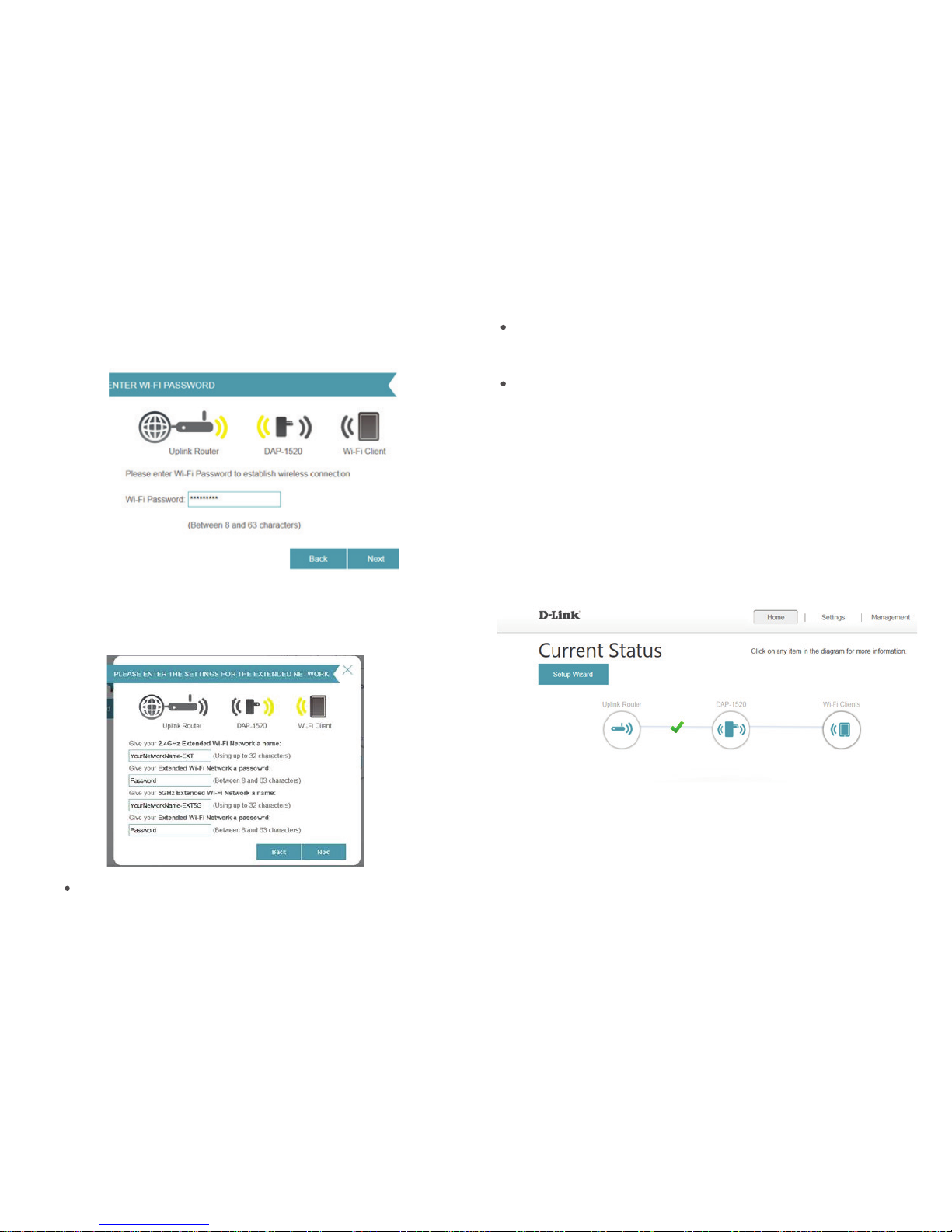

5. Enter the WiFi Password, if applicable, required to connect with

the network you choose

6. The Setup Wizard will automatically populate the ﬁelds as shown

Note: Device may take up to 20 seconds to connect with your WiFi network

7. Device will reboot and save your settings

8. The home page will display your current status: A green check

mark represents a successful connection to your wireless modem or

Access Point (AP).

If a red X appears between the Uplink router and the DAP-1520, you may

troubleshoot this issue by clicking on the Uplink Router icon.

Note: Your changes are being saved, and the device will need to reboot

Your existing home network name will be carried over from

the previous screen, EXT added for the 2.4 GHz band and

EXT5G added to the 5 GHz band

The same password used to connect to your home network

will be pre-populated in the password ﬁelds

The default settings will work effectively. Simply click Next.
