ABIG7/5 LED HEADLIGHT USER MANUAL
Thank you for choosing CyronMotor products! We are committed to provide
the latest lighting technology without any compromises. Please read instructions
completely before starting installation.
TOOLS NEEDED
Consult your vehicle/motorcycle user manual for process of gaining access to headlight
housing and assembly. No special tools needed for CyronMotor headlights.
CAUTION: HOT SURFACES. DO NOT TOUCH THE
METAL SURFACES OF THE HEADLIGHT. THEY CAN BE
EXTREMELY HOT.
OPERATING IN HIGH-BEAM FOR EXTENDED PERIOD
OF TIME WHILE THE VEHICLE/BIKE IS STATIONARY
WILL CREATE EXCESSIVE HEAT AND WILL
ULTIMATELY CAUSE DAMAGE.
Look for the installation video of this product on CyronMotor.com
and Cyron YouTube channel.
INSTRUCTIONS
ABIG integrated series LED headlights replace vehicle's entire reflector assembly which
normally includes glass reflector, bulb, mounting rings, rubber boots, etc. Follow vehicle
user manual to gain access to the headlight reflector.
Install the new light in place of the old glass reflector and secure the same method as the
vehicle's reflector was secured. Pay attention to the orientation of the light. It keyed such
that it should only fit in one position to provide secure mounting and correct light pattern.

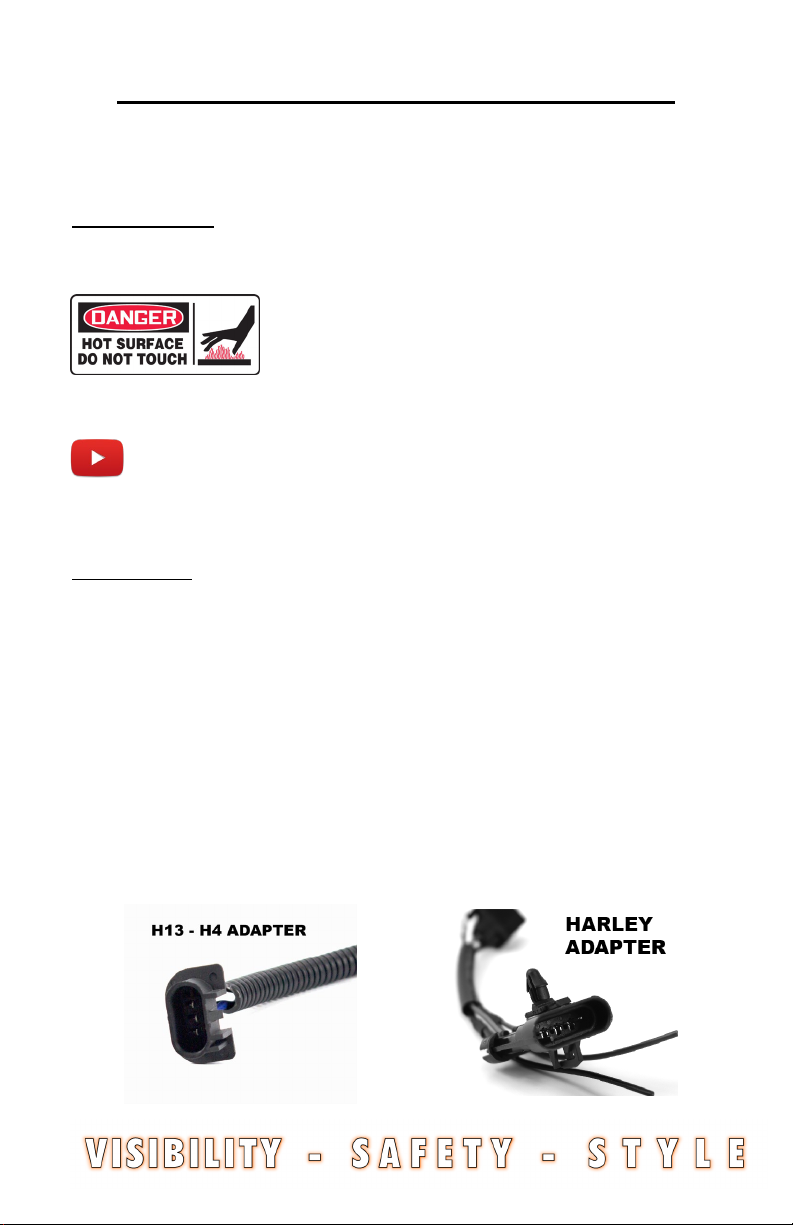

Wire harness should be a simple plug-in for H4 sockets. 7" lights are provided with two
adapters which should be used as needed; an H13 and Harley 4-pin. H13 fits several
automotive applications. Harley adapter (Cyron# ABIGC2A) is mostly used on 2014 and
newer bikes. (Exception is Roadking 2016+ which needs Cyron ABIGC3A adapter). YOU
MAY NOT BE USING EITHER ADAPTER IF YOUR BIKE/CAR ALREADY HAS AN H4
PLUG. For bikes with dual bulb arrangements follow the wire harness and find the black
plug placed inside the fairing. Unplug and replace with the adapter provided. This adapter
is provided with a blue lead for DRL connection.
2
DAYTIME RUNNING LIGHTS (DRL) - 7" LIGHTS that are provided with DRL have
separate wires from the main 3-pin H4 plug. This is an optional hook up and does not affect
the headlight operation.
___ DRL Wire for Urban7 is Red wire
___ DRL Wire for Beast-II is Yellow Wire (DO NOT connect the short back lead)
Connect DRL wire to vehicle/motorcycle DRL wire. Harley motorcycles DRL wire is an
orange/white wire. If you are using ABIGC2A Harley adapter and your bike has the
orange/white wire, connect DRL to BLUE wire of the adapter.
If vehicle/car is not equipped with DRL, it can be connected to marker lights. On older bikes
that do not have DRL wire, it can be spliced into the low beam wire (white). This can be
easily done with a wire tapping crimp connector (not provided). As a final alternative DRL
can be connected via an accessory switch to +12VDC and make it operate manually or as
an accent light.
"URBAN" ABIG7-A6K has a 2nd lead (green wire) for amber DRL lights. This can be used
as standard DRL or as directional lights in cars.
ALIGNMENT
For proper operation it is vital to check the aim of the headlight. See guideline. During
testing make sure:
a. The vehicle is on
level surface
b. There are no
excessive loads in the
vehicle affecting its
leveling
c. For motorcycles it is
a good idea to align
with the rider on the
bike
d. After alignment do
a road test to assure
proper visibility has
been achieved.
Further adjustment
may be necessary to
get the optimum
performance.
Ensuring undisturbed visibility of other drivers is vital to your safety.
Drive & Ride Safe!
3
WARRANTY
Cyron warrants this product against any defects in materials or workmanship for a period of 1 year (Beast-II 2 years) from the date of
purchase. The warranty covers normal usage as intended by the factory and does not cover misuse, abuse, accidents, or damages
caused due to the acts of God. Proof of purchase is required.
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL CYRON, INC. BE LIABLE, WHETHER IN CONTRACT OR
TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT,
ACCESSORY OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT
THESE DAMAGES MAY BE DISCLAIMED BY LAW.
CUSTOMER AGREES TO INDEMNIFY AND HOLD HARMLESS CYRON INC, ITS OFFICERS, DIRECTORS, EMPLOYEES
AND SUCCESSORS FROM AND AGAINST ANY AND ALL LOSS, LIABILITY, DAMAGES, COSTS, ATTORNEYS’ FEES
OR OTHER EXPENSES ON ANY KIND, ON ACCOUNT OF ANY AND ALL CLAIMS, SUITS JUDGMENTS AND COSTS
ARISING OUT OF ANY ACTUAL OR ALLEGED (I) BODILY INJURY OR DEATH TO ANY PERSON; (II) LOSS, DAMAGE
OR DESTRUCTION OF PROPERTY; (III) DEFECTS IN THE PRODUCTS OR SERVICES; (IV) CLAIMS THAT A PRODUCT
OR THE SALE OF THAT PRODUCT VIOLATED ANY LOCAL, STATE OR FEDERAL LAW OR REGULATION.
Some LED Headlight products are not DOT/SAE approved. Although efforts have been made to maximize road visibility and safety,
all risks are sole responsibility of the user. For warranty claims please visit cyronmotor.com Support link or email
SPECIFICATIONS
ABIG7-A6K
URBAN
ABIG7B2
BEAST2
ABIG5-A6K
URBAN5
Operating
Voltage
10-30VDC 10-30VDC 10-30VDC
Socket H4 / H13/H.D. H4 / H13/H.D H4
Peak LED
Power, Watts
105 105 40
Nominal Power,
High Beam
48 46 36
Nominal Power,
Low Beam
28 31 24
EMI Filter Built-in Built-in
Other quality automotive lighting accessories from CyronMotor
Part Number Description/Application
ABxxD LED bulb Standard Mini, Fitment with ease
ABxxE LED bulb ELITE-II, all models, Cars, Trucks, Bikes
ABIG4.5-A6K Driving Lamp, Integrated LED, 4.5" Harley fog lamp
ABIG7-RNG Mounting trim ring, 7" integrated, Chrome
ABIG7-RNG-B Mounting trim ring, 7" integrated, Black
ABIGC3A Adapter H9/11 to H4, Roadking 2016+
AC1156 /57A 2" Harley turn signal LED insert, avail in Red, Amber, White Halo
AC1156 /57PF Pancake Harley turn signal LED insert, avail in Red, Amber, White Halo
ACT1156/7 Torch 2" Harley turn signal LED insert, avail in Red, Amber, White Halo
AB1157H2 Light bulb Ultra High Power LED 1157 dual, Amber, Red, White
AB3157H2 Light bulb Ultra High Power LED 3157 dual contact, Red, White
ABFT100-xx Canbus and EMI noise filter for LED headlights, H4/H7/H9 and more
RC3A12 Tri-Zone accent lighting remote
MLKP7CZ Accent light kit Platinum, Pro grade for mid size cruisers, avail in all 6 solid colors
MLKT10C2FZ Accent light kit Titanium, Pro grade for large cruisers, avail in all 6 solid colors
4
HEADLIGHT FOGGING UP?
Fogging or condensation in the
headlight is a temporary condition
and does not cause a problem with
normal operation of your headlight.
This condition is NOT a defect. In
fact our lights are designed to allow
moisture to slowly escape the
housing, therefore minimizing
reoccurrence of condensation. The
evaporation process may take some
time.
WHY IS THIS HAPPENING?
Often times during the
manufacturing process polymers as
resins absorb small amounts of
moisture. Once the light heats up
the moisture is released and shows
up as condensation on the lens
which is the coolest part of the light.
WHY STOCK LIGHTS NEVER DID
THIS?
LEDs do not run as hot as halogen
or HIDs lamps so the moisture takes
longer to evaporate.
SIGNS OF FUTURE DAMAGE?
If large droplets or pooling of water
is present then this is a sign of
damage and can lead to a system
failure. If a pool of liquid water is
clearly visible and was NOT the
result of physical abuse and or
misuse please contact your local
dealer or Cyron tech support.
