CYCLOPS X3 Manuel d'utilisation





User and Installation Manual

Version 2.01

Please read this manual carefully before installing and turning on the X3 Alarm System and

store it in a safe place.

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page1



TableofContents

Notesonsafetyandusingthismanual.........................................................................................................2

IntendedUse.................................................................................................................................................2

ComponentsoftheX3..................................................................................................................................3

Features........................................................................................................................................................4

WirelessSirenandSensorModule...........................................................................................................4

PressureSensorModule...........................................................................................................................5

RemoteFOBs.............................................................................................................................................5

ArmandDisarm....................................................................................................................................6

PanicModeorVehicleLocator

.............................................................................................................6

ProgrammingandDiagnostics..............................................................................................................6

Sleepmode...........................................................................................................................................6

SafetyandInstallationInstructions..............................................................................................................7

InstallingtheX3.............................................................................................................................................8

InstallingtheSirenandSensorModule....................................................................................................8

ProgrammingRemoteFOBsandPressureSensorsintotheAlarm........................................................10

InstallingtheLowPressureSensor.........................................................................................................10

ProgrammingMode....................................................................................................................................10

ReportDiagnostics(3).............................................................................................................................11

AdjustingShockSensorSensitivity(5)....................................................................................................11

Programminganewremote(7)..............................................................................................................12

Toggleshocksensoron/off(9)................................................................................................................12

Togglemillivoltsensoron/off(11).........................................................................................................12

ProgrammingLowFrequencySensor(13)..............................................................................................13

Troubleshooting..........................................................................................................................................14

Anti‐nuisancefeature.............................................................................................................................14

InitialConnectionandLearnMode........................................................................................................14

ProgrammingthelowpressuresensortotheX3...................................................................................15



X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page2



Notesonsafetyandusingthismanual



Foryoursafety,pleaseobservethesafetyinstructionsandproceduresindicatedbythesymbolsbelow.



Caution!SafetyInstruction:

Failuretoobservethisinstructioncancausematerialdamageorpersonalinjuryand

impairthefunctionofthedevice.





Caution!ElectricalSafetyInstruction:Failuretoobservethisinstructioncancause

dangerfromelectricalcurrentorvoltageresultinginpersonalinjury.



Advisorynotice:

Supplementaryinformationforoperatingthisdevice



►



Action:Thissymbolindicatesthatactionisrequiredonyourpart.Therequired

actionisdescribedstep‐by‐step.



9



Observation:Thissymboldescribestheresultofanaction.



IntendedUse

TheX3isanalarmsystemdesignedforoperationinmoststandardpassengervehiclemodelsunder

normaloperatingenvironments.Itmaynotbesuitableforuseforcertaincommercialvehiclesorin

certainenvironmentalconditions.

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page3



ComponentsoftheX3

DescriptionQuantity

SirenandSensorModule1

PressureSensor1

RemoteFOBs2

OperatingManual1

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page4



Features

TheX3isaDIYalarmsystemthatisdesignedformostpassengervehiclesandprotectsthevehicleand

itscontentfromtheft.TheX3systemconsistsof3maincomponentswiththefollowingfeatures.

Pleasenotedependingyou’reyourmodelpurchased,componentsandfeaturesmaydifferentslightly

fromthoseshown.

WirelessSirenandSensorModule



TheSirenandsensormoduleisthecoremoduleoftheX3system.Itisveryeasytoinstallrequiringonly

2wiresforpower.The3rd,shorterwireistheantennaforthesystem.

Themoduleincludesasirenaswellastwoin‐builtsensors:

•Milli‐voltSensor–Thissensorconstantlymonitorsthebatteryvoltageofthecarandistriggeredby

smallvoltagedropscausedbythedoorsortrunkbeingopened

•ShockSensor‐Alarmistriggeredwhenthevehicleisbumped,disturbedortowed

Thesystemisarmed,disarmedaswellasprogrammedbytheRemoteFOBs.Themodulealsoincludes

theabilitytobetriggeredbyadditionalwirelesssensorssuchasthePressureSensormoduleshown

below.

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page5



PressureSensorModule

Thepressuresensormoduleisoneofthewirelesssensorsthatcanbeusedtotriggerthealarm.This

sensormonitorschangesinairpressurewithinthevehicleandifadoorortrunkisopened,thisshould

triggerthesensor.



Pleasenotethattoworkcorrectly,thissensorrequiresthatwindows,sunrooforanyothervehicle

openingsareclosed.

Thesensorischargedbyinsertioninyourvehicleauxiliarypowerplugandoncechargedcanbe

removedifrequiredanditwillcontinuetofunctionelsewhereinthevehicleaslongasthebattery

remainscharged.

`



Althoughpre‐configuredattimeofmanufacture,thesensordoeshaveasensitivityadjustmentonthe

sidewhichcanbechangedusingasmallPhillips‐headscrewdriver,shouldthisberequired.



RemoteFOBs



YoursystemwillbesuppliedwithoneormoreremoteFOBs.TheremotecontrolsusedfortheX3are

code‐hoppingtoensuremaximumsecurity.EachFOBhas2buttons.Thefeaturesanduseofthese

buttonsisdescribedinthefollowingsection.

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page6



ArmandDisarm

Thelargebuttonshowinglockandunlocksymbolsisusedtoarmanddisarmthesystem.Thesirenwill

respondwithtwochirpswhenarmedandasinglechirpwhendisarmed.

PanicModeorVehicleLocator

Holdingthelargebuttondownformorethan3seconds(wheneitherarmedordisarmed)willtriggerthe

sirenfor30seconds.Iftheremoteispressedtocancelthesiren,theunitwillreturntothedisarmed

state.Ifthealarmisnotcancelledbytheremoteandtimesout,theX3willreturntothepreviousstate

(armed/disarmed).



Pleasenote:inthefinalproductionversion,itisintendedtomovethevehiclelocatorfunctiontothe

smallbutton,whereitwilltriggeradifferentrepeatingchirpsequence.Holdingdownthesmallbuttonin

thesamplebatchwillinvokeasleepfunctionwheretheremoteswillbedisabledfor1minute–this

functionwasinsertedfortestingpurposesonly.

ProgrammingandDiagnostics

TheX3hasanumberofprogramminganddiagnosticfeatureswhichareselectedviaacombinationof

buttonpresses.Thesefunctionsaredescribedindetaillaterinthismanual.

Sleepmode

Thesleepmodeisforfuturecompatibilitywithplannedenhancementstothesystem.Whendisarmed,

holdthebottombuttonformorethan3secondsandthesirenwillchirpquickly.Theunitwillnowbe

asleepfor1minuteandwillnotrespondtoanyremotebuttons.After1minutetheunitwillagainchirp

quicklytosignalthatitisnowawake

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page7



SafetyandInstallationInstructions

Pleaseobservetheprescribedsafetyinstructionsandstipulationsprovidedbyyourvehiclemanufacturer

andanyserviceworkshops.



Caution



TheManufacturerwillnotbeheldliableforclaimsfordamageresultingfromthe

following:

•Installationerrors

•Damagedtothedevicesfrommechanicalinfluencesandovervoltage

•AlterationsmadetothedevicewithouttheexplicitpermissionoftheManufacturer

•Useforpurposesotherthanthosedescribedintheoperatingmanual





Warning

Inadequateorincorrectcableconnectionscouldresultinshortcircuitswhichcouldhave

thefollowingconsequences:

•Cablefire

•Airbagtriggering

•Damagedtovehicleelectronic,electrical,controlandsignalingdevices



Observation

Pleaseobservethefollowinginstructions:

•Securetheparkingbrakeandotheraidsinstalledinthevehicleinsuchawaythatthe

vehiclecannotbemovedinadvertentlyunderanycircumstancesandcauseinjury.

•SecureandinstallanypartsoftheX3systeminsuchamannerthattheycannot

becomelooseandcausedamagetootherpartsinthevehicleorimpairvehicle

functions(steering,brakes,etc)

•Alwaysfollowthesafetyinstructionsofthevehiclemanufacturer.Someworkon

certainvehiclesmayonlybeperformedbyqualifiedspecialists.

•Whenmakingelectricalconnections,ensurethattheyarenotkinkedortwisted;they

donotrubonedgesandarenotlaidinsharpedgedductswithoutprotection.

•Securethecableagainstmechanicalwearwithcablebindersorinsulatingtape.



Ifyoudisconnectthenegativeterminalofthevehiclebattery,somedatastoredin

volatilememorymaybelost.Thefollowingareexamplesofsomevehicleequipment

whichmaybeaffected:



•RadioCode,On‐boardcomputer,Vehicleclock,Seatposition

Youwillfindinstructionforthesesettingsintheirrespectiveoperatinginstructions.

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page8



InstallingtheX3

InstallingtheSirenandSensorModule



Warning

Topreventtheriskofshortcircuits,donotwearmetallicobjectssuchasrings,watchesandthelike

whenconnectingtheX3tothebattery.Ensurethatyoudonotshortthepositivebatteryterminalto

ground(suchasthebodyofthecar)viatheinstallationtools.

►Locatethevehiclebatteryandcarefullyremovetheprotectivecoversthatarecoveringthepositive

andnegativeterminals.



Warning:SoundHazard–Soundlevelfromsirenspeaker(>120dBA@1meter)maycausehearing

damage.Donotoperatesirenwithoutadequatehearingprotectionforyouandanyoneinthe

immediatevicinity.

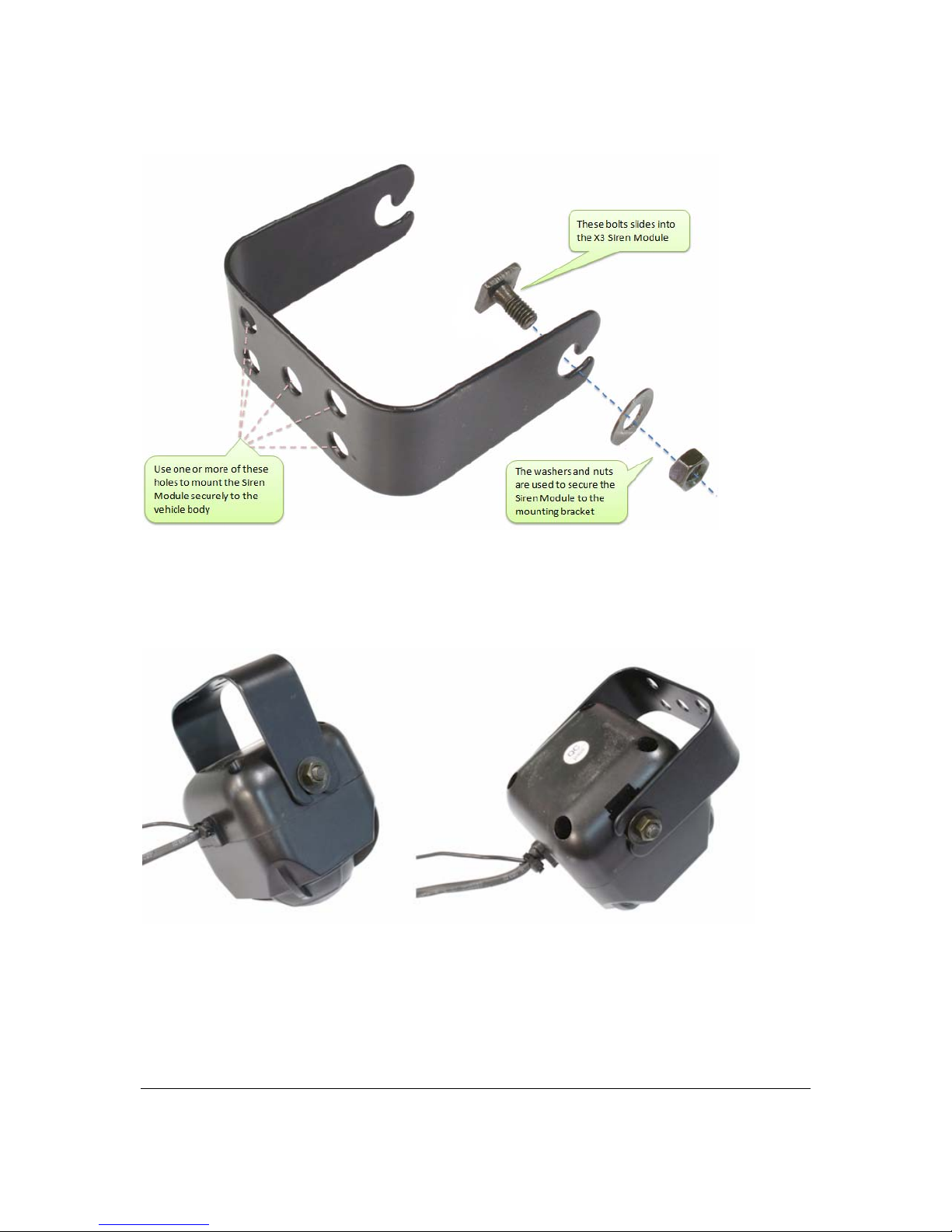

►SecuretheSirenandSensormodulemountingbrackettoastrongpointonthevehiclechassisusing

thescrewsandnutsprovidedasshownbelow:

X3DIYVehicleSecuritySystem



UserManual&InstallationInstructions Page9



►InstalltheSirenModuletothemountingbracketusingthescrewsandnutsprovided.Thesirencan

bemountedatanumberofdifferentanglestosuityourvehicleasshownintheimagesbelow.

Whereverpossible,itisrecommendedtomountthesirenwiththeopeningfacingdownwards,towards

thegroundasshownintheexamplesbelow.

►Loosenthenutonthebatterynegativeterminal(black)andconnecttheX3negativewire(black)to

thebatterynegativeterminal.

►Loosenthenutonthebatterypositiveterminal(red)andconnecttheX3positivewire(red)tothe

batterypositiveterminal.
