CyberView HRP615 Manuel utilisateur
User Manual
HRP615 / 717 / 819 Rackmount LCD Display
Options :
- AV / BNC
- Touchscreen
- Front NEMA 4 / IP 65 protection
- DC power
- DVI
- SunReadable
- 15", 17", 19" screen size
BlankPage
Chapter 1 Getting Started
1.1 Important Safeguards..........................................................1
1.2 Package Contents...............................................................2
1.3 Before Installation...............................................................3
1.4 Unpacking...........................................................................3
1.5 OptionalAccessories...........................................................3
1.6 Peripheral Products.............................................................4
1.7 Structure Diagram...............................................................4
1.8 Installation..........................................................................5
1.9 Connection.........................................................................6
Chapter 2 Operation
2.1 On-screen Display Operation..............................................6
2.2 On-screen Menu.................................................................7
Chapter 3 LCD Specification.........................................................8
Chapter 4 AV, BNC, DVI Options
4.1 DVI-D Option.......................................................................9
4.2 S-Video + RCA Input Option...............................................9
4.3 S-Video + BNC Input Option...............................................9
4.4 On-screen Menu for DVI, BNC, S-Video & RCA Input .....
....................................................................................10-11
Chapter 5 Touchscreen Options..............................................12
Chapter 6 Front NEMA 4 / IP65 Options............................13
Chapter 7 DC Power Options......................................................14
Chapter 8 Troubleshooting..........................................................15
Chapter 9 Dimensions......................................................................16
Contents
1.1 Important Safeguards Chapter 1
P. 1
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modifi-
cation, or failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.

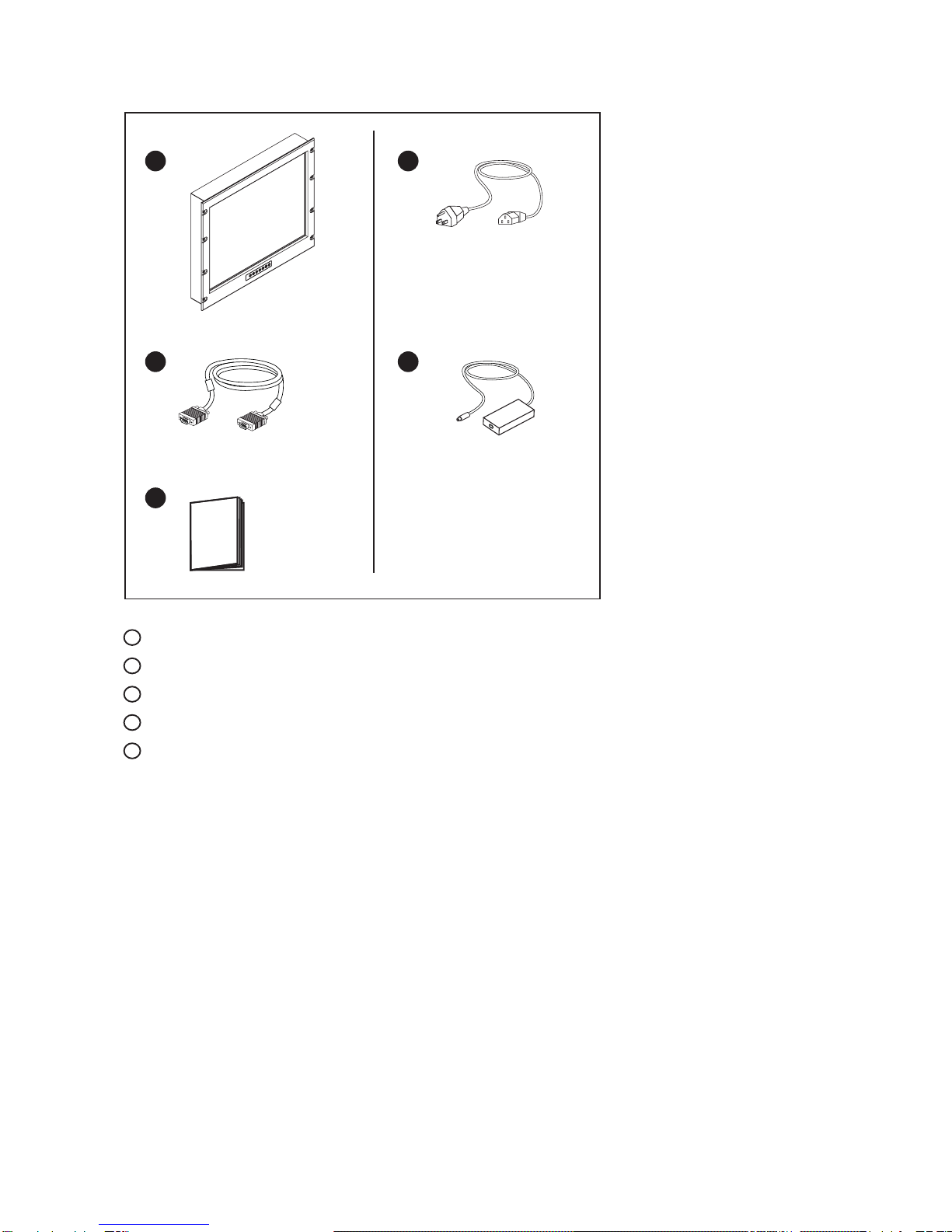

1.2 Package Contents Chapter 1
P. 2
Rackmount LCD display x 1 pc
6' VGA cable (male to male) x 1 pc
User manual x 1 pc
Power cord x 1 pc
Auto switch power adapter x 1pc
5
4
2
1
3
User
Manual
1
5
4
3
2
1.5 Optional Accessories
■It is very important to locate the Rackmount LCD Display in a suitable environment.
■The surface for placing and fixing the Rackmount LCD Display should be stable and level or mounted into a suitable
cabinet.
■Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,
water, moisture and vibration.
■Convenience for connecting the Rackmount LCD Display to the related facilities should be well considers too.
The Rackmount LCD Display comes with the standard parts shown on the package contents. Check and make sure they
are included and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.4 Unpacking
1.3 Before Installation Chapter 1
P. 3
1. Power Cord
1.1 IEC power cord
1.2 NEMA 5-15 power cord (US)
1.3 BS 1363 power cord (UK)
1.4 CEE 7/4 power cord (German)
1.5 AS 3112 power cord (Australia)
P. 4
1.6 Peripheral Products Chapter 1
1.7 Structure Diagram
For 15" LCD
Item Model No. Description
DB-15 KVM
IP-802 / IP-1602
CV-802 / CV-1602
CV-401 / CV-801 / CV-1601
CV-S801 / CV-S1601
8 / 16-port IP PS/2 KVM
8 / 16-port two console PS/2 KVM
4 / 8 / 16-port PS/2 KVM
8 / 16-port USB KVM
Cat5 KVM
UIP-1602 / UIP-3202
U-1602 / U-3202
U-1601 / U-3201
16 / 32-port IP Cat5 KVM
16 / 32-port two console Cat5 KVM
16 / 32-port high density Cat5 KVM
Keyboard Drawer RK-1
RK-2
Rackmount keyboard drawer (with KVM options)
Rackmount keyboard drawer (short depth version)
Class A TFT LCD panel
LCD membrane
1
1
2
2
P. 5

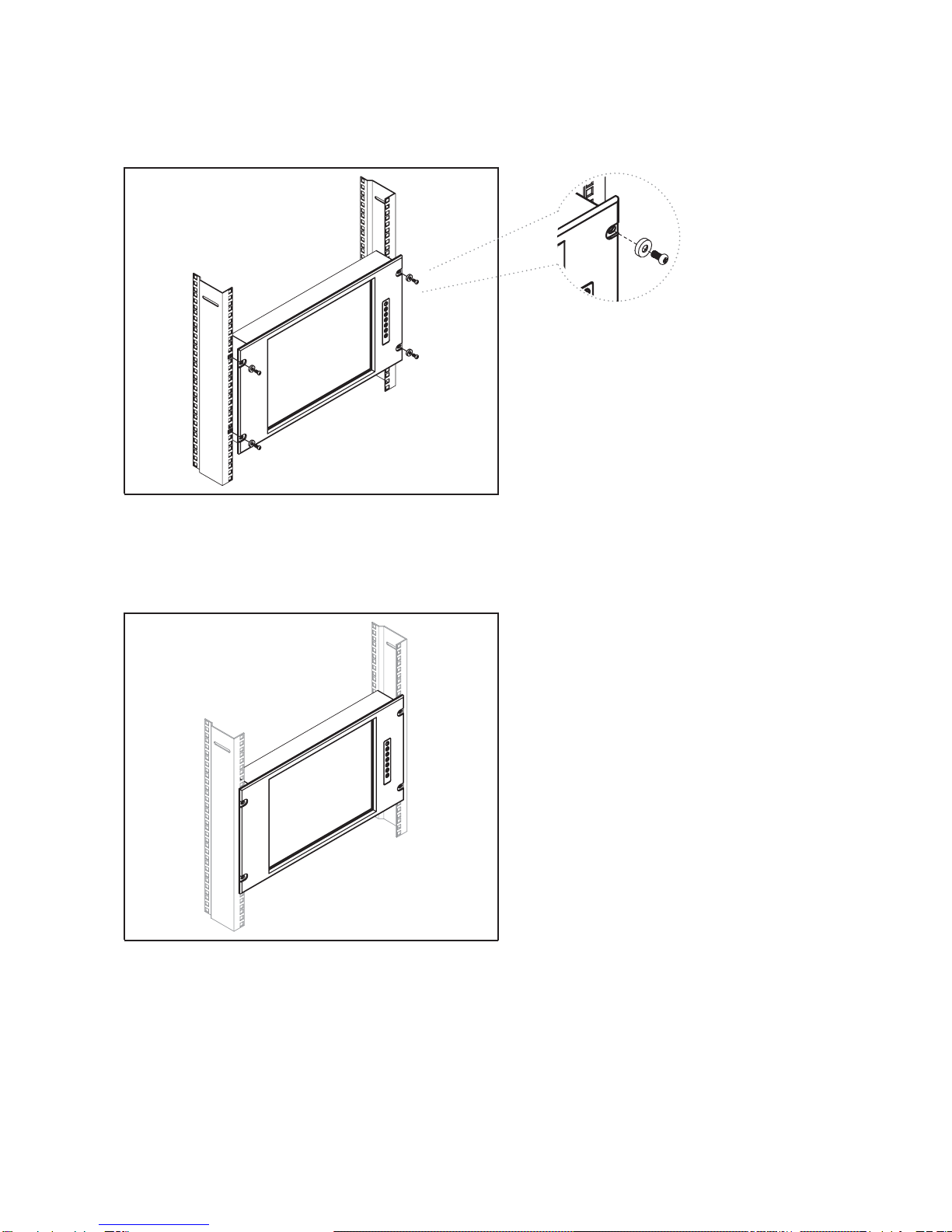

1.8 Installation Chapter 1
■Install each screws shown in Figure 1.
Figure 1.
Figure 2.
■Fixed the LCD into the rack.
* M6 screws is not provided.
P. 6

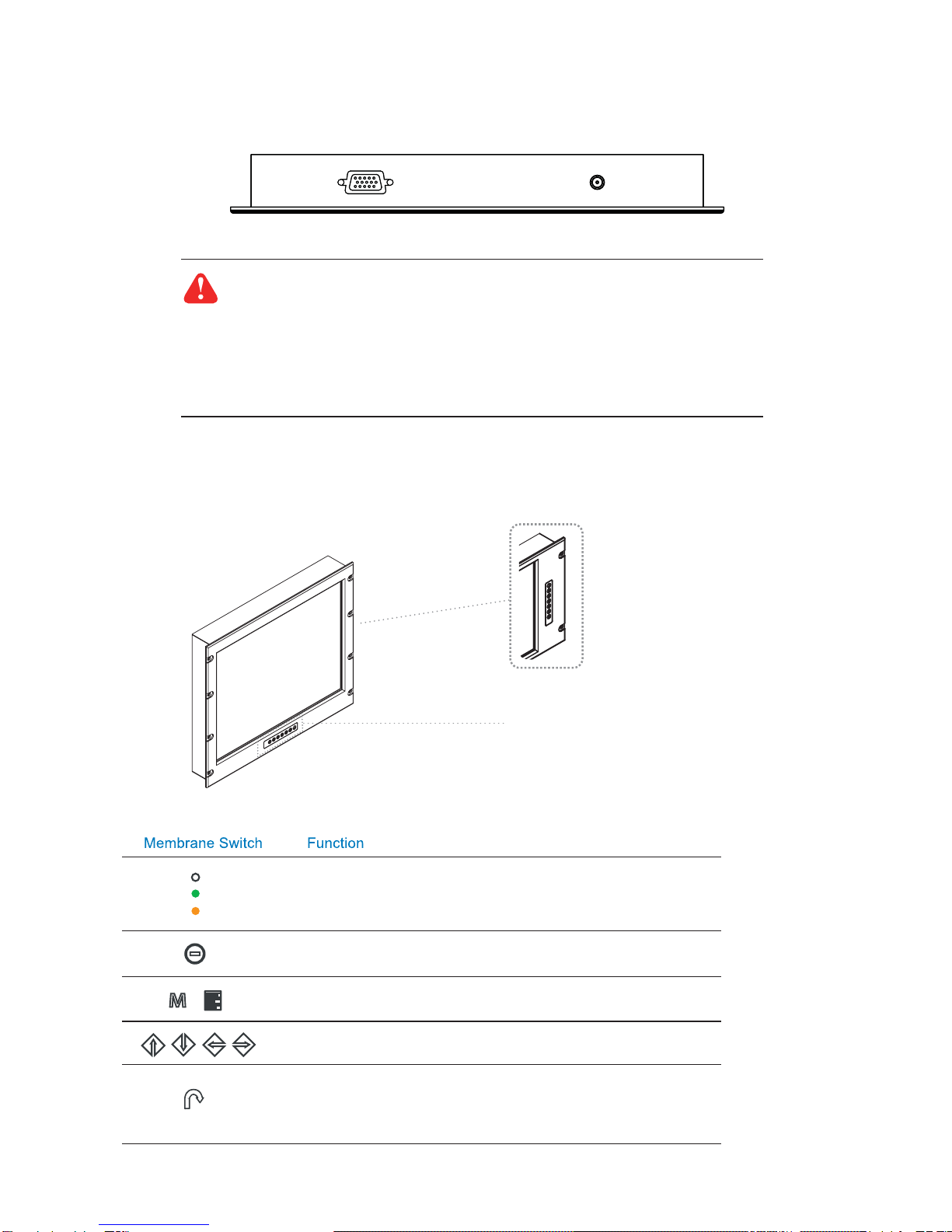

1.9 Connection Chapter 1
Caution : The Rackmount LCD Display are hot-pluggable, but components of connected
devices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and un-
plugging cables while servers and KVM are powered on may cause irreversible damage of
the servers, KVM and Rackmount LCD Display. Before attempting to connect anything to
the Rackmount LCD Display, we suggest that turn off power to all devices before connect-
ing them. Apply power to connected devices again only after the Rackmount LCD Display
receiving power.The company is not responsible for damage caused in this way.
DB-15 VGA female connector Power input
2.1 On-screen Display Operation Chapter 2
Exit the OSD screen
Shortcut key to auto adjustment by pressed the button for 5 seconds or
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
Display the OSD menu
Power on / off LCD
Power light
Green = On
Orange = Power saving
15" LCD membrane
17" & 19" LCD membrane
P. 7
2.2 On-screen Menu Chapter 2
BRIGHTNESS / CONTRAST
Brightness: Adjust background black level of the screen image.
Contrast: Adjust the difference between the image background (black level)
and the foreground (white level).
AUTO ADJUST
Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion. An "Adjusting" message is displayed
during the process.
Auto Tune: Optimize phase, clock, position and size. An "Adjusting" message is displayed during the process.
PHASE/CLOCK
Phase / Clock: To enter into the phase & clock sub menu
H/V POSITION
H/V Position: Align the screen image left or right and up or down.
MISC
Information: Display the current resolution, refresh rate and frequency information on the screen.
OSD Timer: Set the time duration in seconds that the OSD is visible after the last button is pressed.
The factory default is 10 seconds.
Color: Select the screen color - 5500K, 6500K & 9500K. The factory default is 9500K.
Language: Select the language in which the OSD menu is displayed -
English, Chinese (中文), Japanese (日本語), German, French, Spanish, Italian
RESET Restore the settings to factory defaults.
MAIN MENU
BRIGHTNESS/CONTRAST
PHASE/CLOCK
H/V POSITION
MISC
RESET
AUTO
ADJUST
