EyeRIS IX-Series
Quick Start Guide
For any further support e-mail us: [email protected]
Components for Standard Mount Setup
Freude an Technik
EyeRIS v3.1
EyeRIS

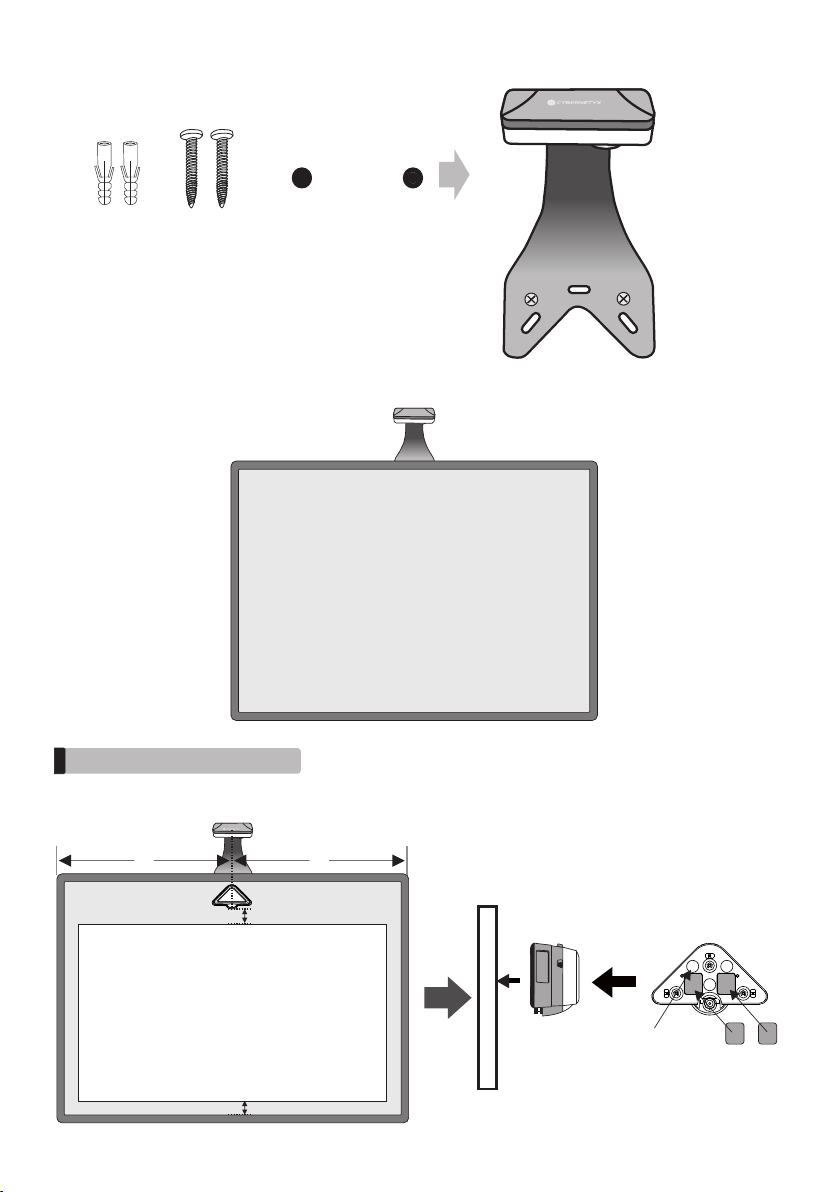

Assembling EyeRIS on Mount
x
x
x
x
Installing EyeRIS Standard Mount on whiteboard

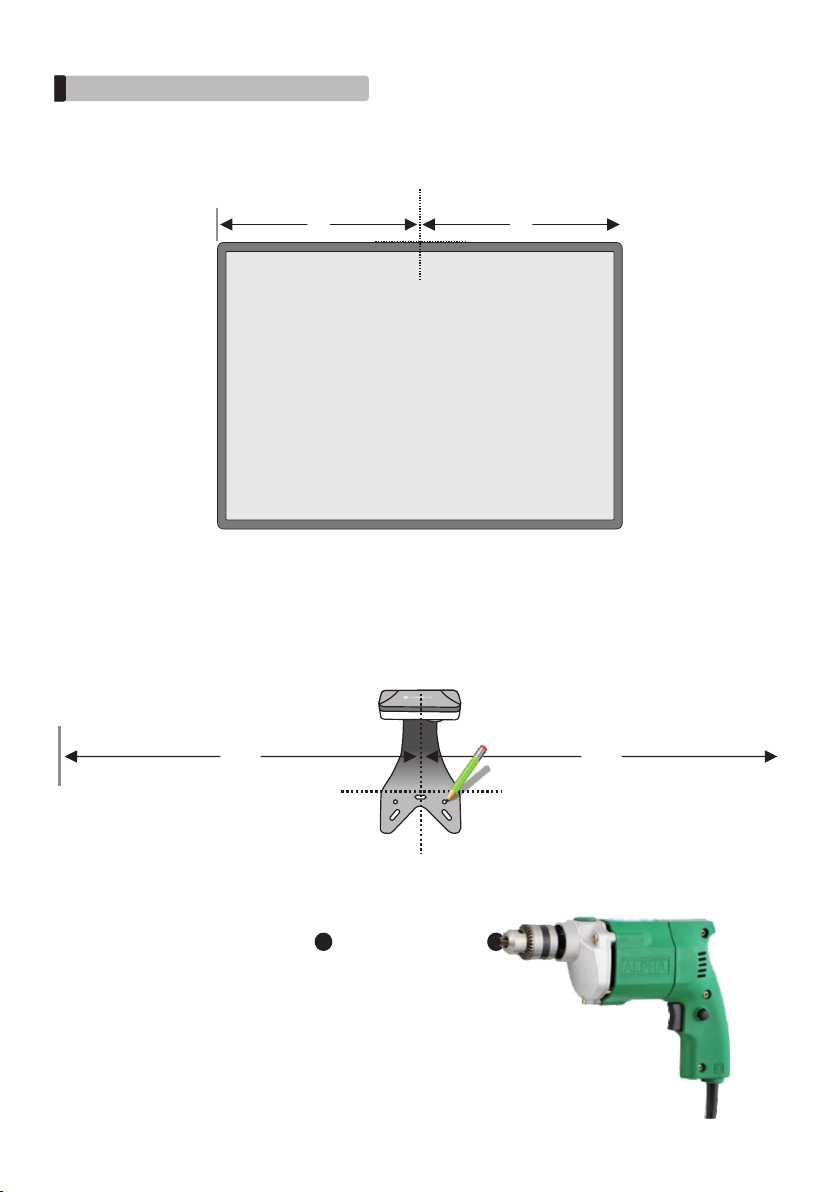

1. Measure and mark center & top point of whiteboard as shown below:
2. Place EyeRIS mount & mark the holes as shown below
3. Drill holes on wall using a drill machine
4. Fix plastic wall fishers and screws provided in the h/w set to fix mount as shown below
Fishers Screws
5. Place back the whiteboard on wall
Installing TOUCH v2.0 on whiteboard
x x
Projection Area
25mm
15mm
Double
Sided Tape
Magnets
Whitebaord
TOUCH 2.0
Fix TOUCH unit using double sided tape or magnets as shown below
Whiteboard Setup Wall Setup
Projection area
Screws
Fisher
TOUCH v2.0
Wall
x x
Projection Area
1 inch
TOUCH 2.0

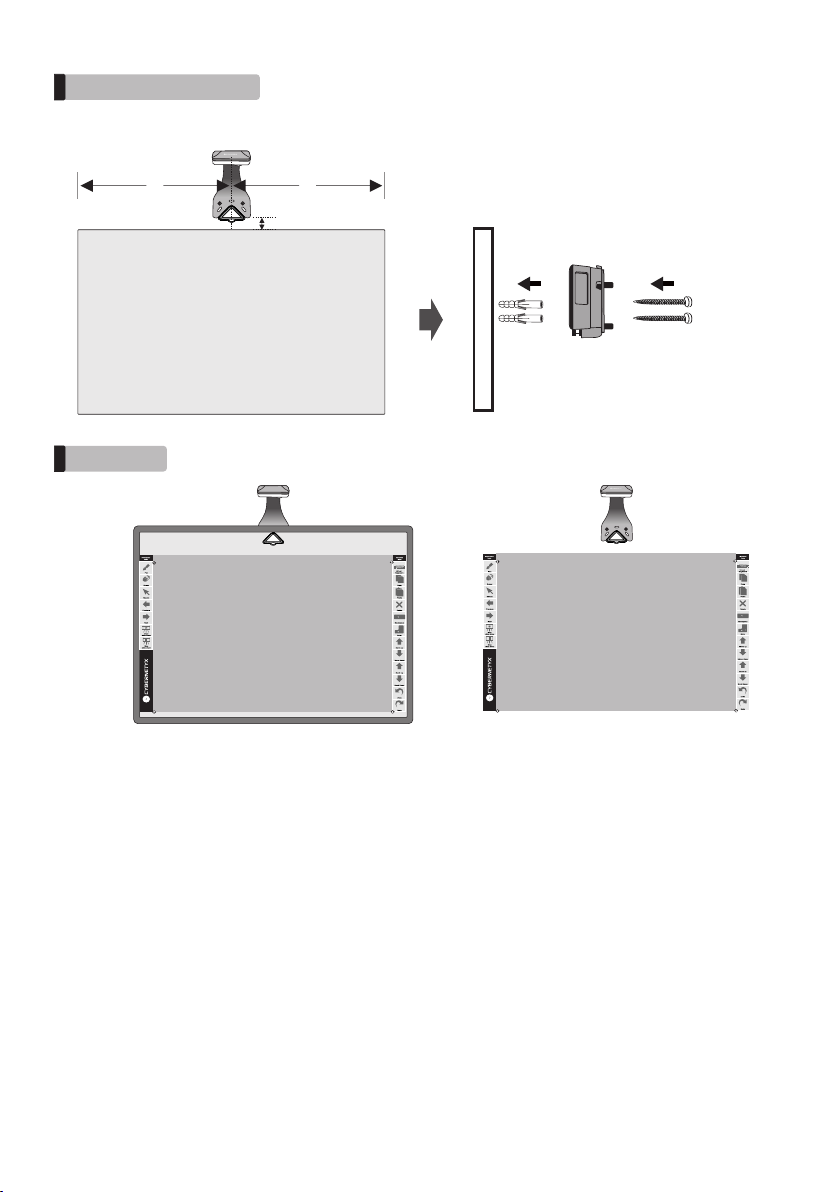

Fix TOUCH unit on the wall using plastic wall fisher and screws as shown below
Installing TOUCH v2.0 on Wall
Fixing OPTIBAR
Projection area
Following points should be taken care while using OPTIBAR Setup:
1) OPTIBAR stickers to be used only in following projection setup.
a) When using 6'x4' Board and projection is 78 inch diagonal in 4:3 Aspect Ratio (making total diagonal size including OPTIBAR as
84 inch. As shown above.
b) When the projection is in 16:9 aspect ratio and vertical size of projection not exceeding 4 feet and total diagonal size of setup
including OPTIBAR is not more than 90 inch.
2) In any case the width (vertical) of projection should not be more than the OPTIBAR size.
3) Projected surface should not overlap the OPTIBAR stickers.
4) The distance between the edge of Projection and OPTIBAR sticker should not be more than 10mm.
Align TOUCH
3. Adjust Gear ‘B’ so that the red line laser becomes parallel to wall or board surface
2. Rotate Gear ‘A’ counter clockwise so that red line laser is visible on the surface
1. Press ‘Align’ button to turn ON the red line Laser
4. Rotate Gear ‘A’ clock wise to bring red line laser as close to the board or wall surface as possible.
Whiteboard Whiteboard
TOUCH TOUCH
Whiteboard
TOUCH
Whiteboard
TOUCH
Whiteboard
TOUCH
Whiteboard
TOUCH
A
B
Align
A
B
Align
A
B
Align
A
B
Align
Top View
Top View
Top View
Connectivity
EyeRIS
Calibrating of EyeRIS
Click here
Registered Offices : Cybernetyx Interaktiv UG (haftungsbeschränkt) Friedrichstraße 15A, 31737 Rinteln, Germany Phone: + 49 162 342 8337
: Phone: + 8662
Indian operation CYBERNETYX Technik Pvt. Ltd. Plot : C-98, Sector-65, Noida - 201301, India 91 120 421
Side View
5. Make sure the red line laser is not incident on the wall or board surface.
Whiteboard
Whiteboard
Whiteboard
TOUCH
TOUCH
TOUCH
