Portable MP3 Player MP256

User's Guide

Introduction

Installing the MP3 Player

Transfer data to and from the MP3 Player

Listening to your WMA/MP3 music

MP3 Player Controls

LCD Display

Voice Recorder

Hold Function

Navigation

Advanced Settings

Upgrade the Firmware

Removing the MP3 Player from your computer

Trouble Shootings

Specifications

Safety

Introducing the MP256 MP3 Player

The MP3 Player incorporates a portable WMA/MP3 Player, Voice Recorder and USB 2.0 Mass

Storage Device.

MP3 Player Features:

• WMA/MP3 player.

• Synchronous lyric display with WMA/MP3 music.

• Voice recorder.

• WMA DRM support.

• USB mass storage device.

• Integrated USB connector.

• Backlit display.

• Superb audio quality.

• No cable required.

• Requires 1 AAA / LR03 battery (supplied).

System support:

• Supports Windows Me/2000/XP.

Note for Windows Me/2000/XP users: Installation of the MP3 Player drivers is required only

if you wish to upgrade the firmware of the player.

Note for Windows 2000 users: Windows Service Pack 3 must be installed before installing

MP3 Player drivers.

• Supports Windows 98 SE after installation of drivers (see below).

• Supports Mac OS X (version 10.2.6 or above) without driver.

Note:

•

To minimize static electricity, avoid operating the player in an extremely dry environment.

•

Under the environment with electrostatic discharge, the product may malfunction and

requirement user to reset the product.

Installing the MP3 Player

Installation of drivers for computers using Windows Me/2000/XP is not necessary.

Note for Windows Me/2000/XP users: Installation of the MP3 Player drivers is required only if you

wish to upgrade the firmware of the player.

Note for Windows 2000 users: Windows Service Pack 3 must be installed before installing MP3

Player drivers.

Windows 98 SE users will need to install the MP3 Player on their system:

1. Click on the link below to open the folder containing the MP3 Player installation program.

2. Click on the Setup icon to begin the installation.

3. Follow the on-screen instructions to complete the installation.

Click here to install the MP3 Player driver

Transfer data to and from the MP3 Player.

1. Make sure that the MP3 Player is turned off.

2. Remove the USB port cover & disconnect the earphone.

3. Plug the MP3 Player into the USB port of your computer. The

built-in LCD displays "READY", indicating that the MP3

Player is in USB mode. The MP3 Player is then automatically

recognized (in 'My Computer') as a removable media device.

4. Transfer files to or from the internal Flash RAM using

Windows explorer.

5. Unplug the MP3 Player from your computer (click here to see

how to do this safely), WMA/MP3 files can now be listened to

and all data stored can be transferred to another computer.

Listen to WMA/MP3 music files with the MP3 Player

1. Follow the instructions for the transfer of data to and from the MP3 Player to copy WMA/MP3

music files to the MP3 Player.

2. Install 1 AAA/LR03 battery into the battery compartment.

3. Connect the supplied headphones to the headphone socket.

4. Press the Play button.

5. Use the MP3 Player controls to adjust playback and volume level to listen to your WMA/MP3

music.

Note: Installing the battery:

1. Push and slide out the battery compartment door.

2. Install the battery.

Lyric display function

The MP3 Player supports lyric files in LRC format.

1. Prepare a MP3 or WMA music, for example, happymusic.mp3;

2. Download a lyric file from internet. The lyric file must have to be with an extension file name LRC.

For example, happymusic-2004.lrc.

3. Rename the lyric file. For example, happymusic.lrc. It is to make sure the lyric filename is same as

the corrosponding music filename.

4. Copy the lyric file & music file to the MP3 player.

5. Disconnect the MP3 player.

6. Use Skip buttons to select the music file, for example, abc.mp3. Press Play button to play.

7. The LRC icon would appears, and the lyric would display Synchronously on LCD while the music is

being playback.

Note: The MP3 player supports LRC format only.

Note: If the lyric does not synchronize with the music, please download one better lyric file from

internet and try again.

Note: Make sure the MP3 music and LRC file is located in same directory and the filename is

same. If not, the MP3 player can not recognize the lyric file.

MP3 Player Controls

A. USB Port Cover

B. Headphone

Socket

C. A-B / Menu

Button

D. Skip Next / Fast

Forward

E. Skip Previous /

Fast Rewind

F. Power Off/Stop

G. Power

On/Play/Pause

H. Hold Switch

I. Volume Down

J. Volume Up

K. Microphone

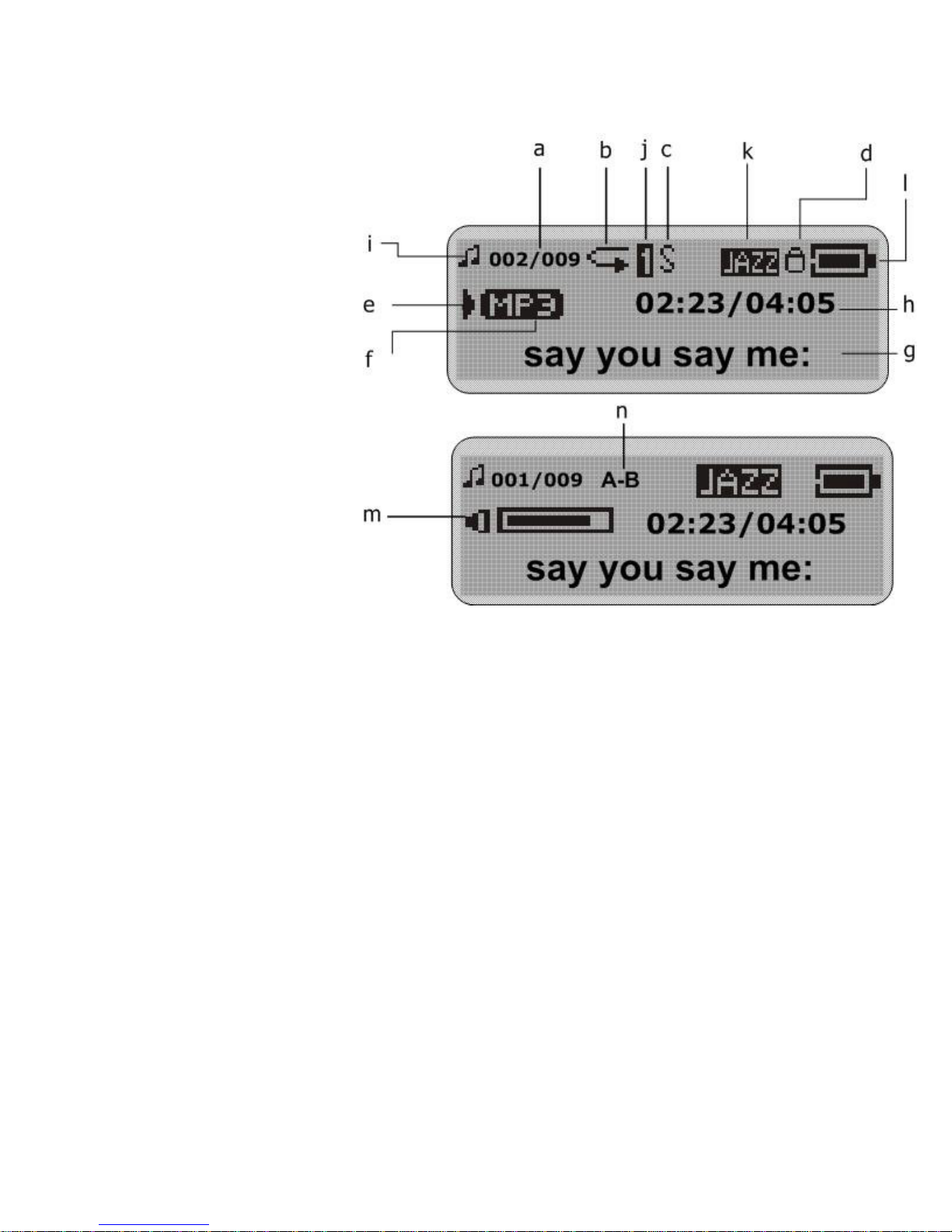

LCD Display

a. Track Number /

Total Tracks

b. Repeat all

c. Shuffle

d. Hold

e. Play/Pause/Stop/Rec.

f. Music Type

(MP3/WMA/WAV)

g. ID3 Tag (track

name) display

h. Elapsed Time/ Track

Time

i. Music Mode/ Voice

Mode

j. Repeat one

k. Equaliser

l. Battery Indicator

m. Volume

n. A-B Repeat

Voice Recorder

Record voice

1. Select Record in the LCD menu list to begin recording.

2. Press the Stop or Menu button to stop the recording and enter Voice mode.

The voice recording will have been saved as a file named Vxxx.WAV in the Voice folder.

Note that the LCD display will read MEMORY FULL when all available memory has been used.

Playback voice

This operation is similar to the playback of music.

1. Select Voice in the LCD menu to enter Voice mode.

2. Select a recording to listen to by pressing the Skip buttons.

3. Press the Play button to playback the recording.

Hold Function

Use the Hold function to deactivate the MP3 Player controls (to avoid accidental activation).

1. To activate the Hold function, slide the Hold switch.

2. Slide the Hold switch back to turn off the Hold function.

Note: The MP3 Player will turn off automatically if the key is hold when turning on the power.

Navigation

Use [Menu] button to enter Menu.

1 Select [Navigation] and press Menu button to enter navigation mode.

1.1 Line 1: Folder icon / MP3 music icon / WMA music icon / WAV file icon / Upper directory

icon

1.2 Line 2: Filename / Folder name / Return to previous level

2 Use [Skip] button to select a file or folder and use Play button to play the music or enter the folder.

3 Use Stop button in Navigation mode to backward to upper level.

Navigation…continued

Note: When a folder is selected in navigation mode, press on Menu button, a sub-menu window will pop-

up. To enter the folder, select Enter. To play music located in the folder, select Play.

When a file is selected in navigation mode, press on Menu button, a sub-menu window will pop-up. To play

this file, select Play. To erase, select Delete.

• Note: The player supports music files & folders up to 240 maximally.

• Note: The player supports folders up to 13 levels maximally.

• Note: If the number of total music files (WMA/MP3/WMA format only) and/or folders exceeds 240,

or the folder is more than 13 levels, some files/folders would be ignored.

Advanced Settings

To navigate the settings menu.

1. Press & hold the A-B/Menu button for a while

and release it to enter the settings menu.

2. Press the Skip buttons to choose a setting.

3. Press the A-B/Menu button to select that

setting.

4. After setting is finished, press & hold the A-

B/Menu button for a while and release it to exit

the Menu.

Equalizer Setting

The Equalizer (Eq) setting is to adjust the music playback effect. There are six Eq presets

available: Normal, X-Bass, Rock, Jazz, Classical and Pop.

1. Select Equalizer in the settings menu.

2. Press the Skip buttons to select a preset Eq.

3. Press the A-B/Menu button to activate.

Play mode Setting

The available Play modes are:

• Normal

• Repeat Track

• Repeat All

• Shuffle

• Shuffle Repeat

1. In the settings menu, select Play Mode.

2. Press the Skip buttons to select a play mode.

Adjust LCD Contrast

To adjust the LCD contrast

1. In the settings menu, select Contrast.

2. Press the Skip buttons to adjust the contrast

level.

3. Press the A-B/Menu button to go back to setting

menu.

Backlight

To adjust the backlight

1. In the settings menu, select Back Light.

2. Press the Skip buttons to adjust the delay before

the backlight is switched off.

Note: Selecting "Disable" would turn off the

backlight. Selecting "On" would always turn on the
