THERMAL FRESHTRACTM (TFT)
TFT1G3040
1.0 Gallon Dispenser
With FreshTracTM Lid
Service & Sales
1-800-421-6150 www.wilburcurtis.com
TFT15G/TFT1G COMPONENTS
FRESHTRACTM LID
STAINLESS STEEL TUBE
STEM
LIQUID LEVEL
Each bar represents the
liquid level so you know
how much coffee is in the
dispenser at any time
COFFEE QUALITY TIMER
Counts down so you know
when it is time to brew.
Factory set to 1:00
ACTIVE LED LIGHTS
Green and red LED lights blink
to indicate the freshness and
volume of the coffee
The Liquid Level on the LCD screen will remain on (blink on and off) as long as
there is liquid in the server, even if the quality timer has expired.
TFT15G/TFT1G GUIDE TO LED AND LCD DISPLAY ACTIVITY*
Brewing coffee into an empty TFT Server
LED/LCD Display Activity:
• The LED lights will ash Green/Red/Green to indicate
activation or reset.
• As the server lls with coffee:
• The LED will ash Green/Red until the volume inside the
server exceeds 24 ounces.
• The number of Liquid Level Bars will increase as the
server lls with coffee.
• The Quality Timer will reset and display the remaining time on LCD.
The coffee is fresh and the TFT Server contains
more than 24 ounces of coffee
LED/LCD Display Activity:
• The Quality Timer will display the remaining time on the LCD.
• The volume of coffee in the server will be indicated by the
number of Liquid Level Bars displayed on the LCD.
TFT15G/TFT1G LED LIGHT GUIDE
Green/Red/Green
Green LED is OFF
Red
Green/Red
Activation/Reset.
Time: Coffee is fresh. There are 11 or more minutes remaining on the Quality Timer.
Volume: Dispenser contains more than 24 ounces of coffee.
Time: The Quality Timer has expired.
Volume: The dispenser is empty.
Time: The Quality Timer is almost expired. There are 10 or less minutes remaining.
Volume: The dispenser is almost empty. There is approximately 12-24 ounces of coffee remaining.
LIGHT COLOR MEANING
*Photos show example display information only.
Service & Sales
1-800-421-6150 www.wilburcurtis.com
The TFT Server is empty
LED/LCD Display Activity:
• The Red LED light will ash every 6 seconds for any time
remaining on the Quality Timer and then for an additional hour.
• There will be no Liquid Level Bars displayed on the LCD,
indicating that the server is empty.
• The LCD will ash for one hour after the Quality Timer has
expired.
The Quality Timer has expired AND the TFT Server
is empty
LED/LCD Display Activity:
• The Red LED light will ash every 6 seconds for one hour.
• The LCD will ash on and off for one hour.
• The Quality Timer will display 0:00 to indicate that the timer
has expired.
• There will be no Liquid Level Bars displayed on the LCD,
indicating that the server is empty.
The Quality Timer is ALMOST expired (10 minutes
or less remaining)
LED/LCD Display Activity:
• The Green and Red LED lights will ash in a Green/Red
sequence every 6 seconds.
• The remaining time left on the Quality Timer will continue to
count down.
• The volume of coffee in the server will be indicated by the
number of Liquid Level Bars displayed on the LCD.
The TFT Server is ALMOST empty (approximately
12-24 ounces remaining)
LED/LCD Display Activity:
• The Green and Red LED lights will ash in a Green/Red
sequence every 6 seconds.
• There will be one Liquid Level Bar displayed on the LCD.
• If there is any time left on the Quality Timer, it will continue to
count down.
The Quality Timer has expired
LED/LCD Display Activity:
• The Red LED light will ash every 6 seconds for one hour.
• The LCD will ash on and off for one hour.
• The Quality Timer will display 0:00 to indicate that the timer
has expired.
• The volume of coffee in the server will be indicated by the
number of Liquid Level Bars displayed on the LCD.
Service & Sales
1-800-421-6150 www.wilburcurtis.com

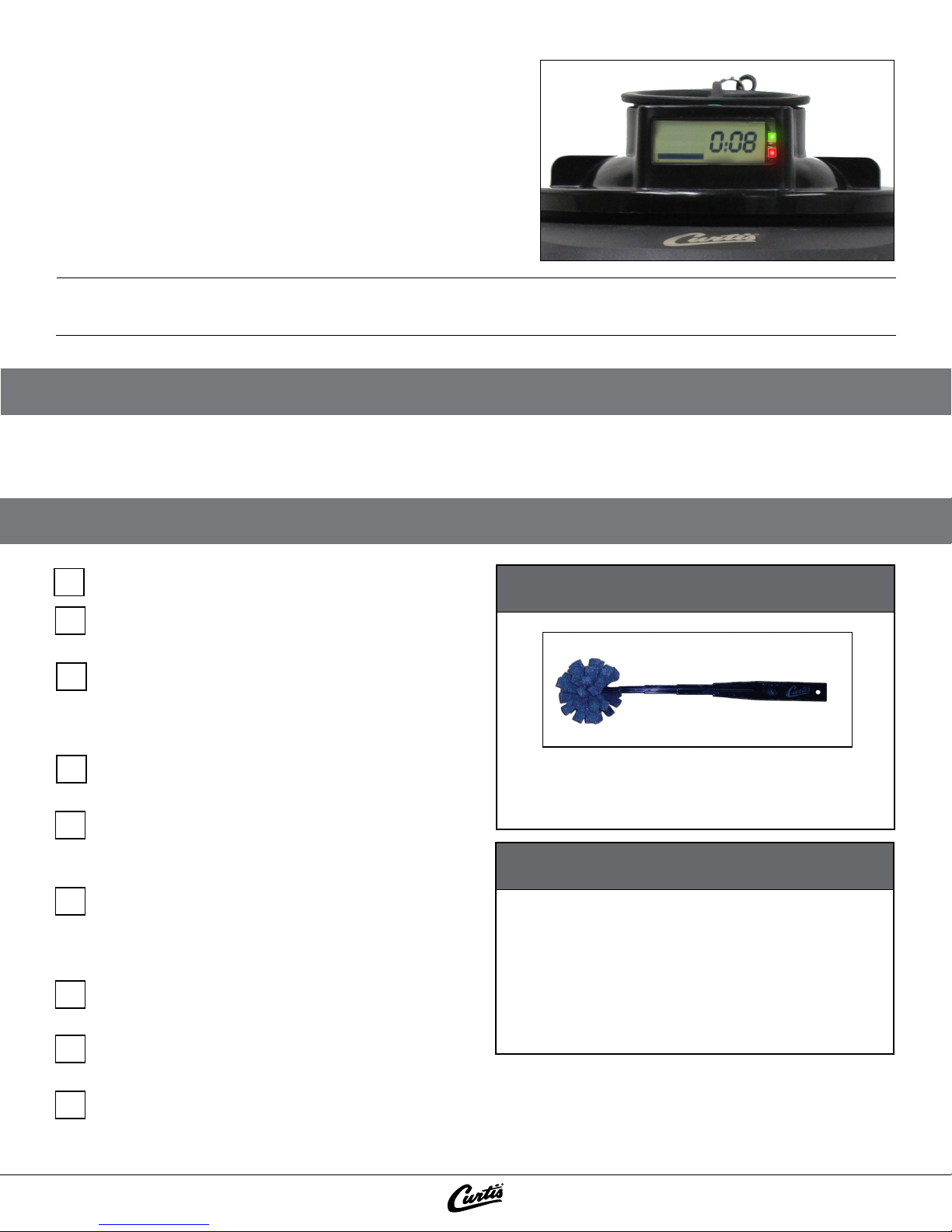

Keeping the TFT stem free from coffee oil build-up ensures that accurate time and volume
information is displayed.
WIPE THE TFT STEM CLEAN BEFORE EACH BREW CYCLE
Completely empty dispenser before cleaning.
Place dispenser with brew-thru FreshTracTM lid
under the coffee brewer.
Remove the brew basket and place cleaning
products in the center of the brew basket and
replace (see product supplier information for
number of cleaning tablets needed).
Press the brew button to brew hot water and the
cleaning solution into the dispenser.
When the cycle is complete, leave the cleaning
solution in the dispenser for approximately 15
minutes.
Use a cleaning brush to remove coffee oil
build-up from inside the dispenser. Empty the
dispenser. Wipe off excess residue from TFT
stem.
Place under the brewer and run another brew
cycle with water only to rinse the dispenser.
Empty the dispenser and run one more brew
cycle with water only.
Rinse and empty. Dry thoroughly.
1
2
3
4
5
6
TFT DISPENSER CLEANING
7
8
9
04/2014 M000_revNC
JB-1
(or other similar brush)
CLEANING TOOL
The Quality Timer is ALMOST expired and the TFT
Server is ALMOST empty
LED/LCD Display Activity:
• The Green and Red LED lights will ash in a Green/Red
sequence every 6 seconds.
• The remaining time left on the Quality Timer will continue to count down.
• There will be one Liquid Level Bar displayed on the LCD.
As long as the TFT Server senses coffee inside the server, the LCD will stay on and the Liquid Level
Bars will display on the screen.
• Do not immerse coffee server in water.
• Do not place in dishwasher.
• Do not use harsh powders or cleaners
containing chlorine.
• Do not use a wire brush or pot scour to
clean inside liner.
TFT COFFEE SERVER PRECAUTIONS
