Currys Essentials CID45B10 Manuel de service
DISHWASHER
INSTALLATION / INSTRUCTION MANUAL
CID45B10
CID45B10_IB_110426.indd 1 4/26/11 8:14 PM
CID45B10_IB_110426.indd 2 4/26/11 8:14 PM
Contents
Unpacking.................................................................................................................................... 5
Installation ................................................................................................................................... 6
Location ..................................................................................................................................................................... 6
Product Overview...................................................................................................................... 12
Internal View...........................................................................................................................................................12
Rear View .................................................................................................................................................................12
Control Panel..........................................................................................................................................................13
Wash Cycle Table........................................................................................................................ 14
Before Operating....................................................................................................................... 15
To Open the Door.................................................................................................................................................15
To Close the Door .................................................................................................................................................15
Items Not Suitable for Use in the Dishwasher............................................................................................15
Adding Detergent or Detergent Tablet.................................................................................... 16
Adding Rinse Aid .......................................................................................................................17
Adjusting the Rinse Aid Reservoir..................................................................................................................17
Adding Salt .............................................................................................................................................................18
Adjusting Salt Consumption............................................................................................................................19
Loading the Dishwasher ........................................................................................................... 20
Before Loading the Dishwasher......................................................................................................................20
Upper Basket..........................................................................................................................................................21
- Adjusting the Upper Basket...................................................................................................................21
- Hinged Cup Rack .......................................................................................................................................21
- Loading the Upper Basket for 8 Place Settings...............................................................................22
Lower Basket ..........................................................................................................................................................22
- Hinged Spikes.............................................................................................................................................22
- Loading the Lower Basket for 8 Place Settings...............................................................................22
Cutlery Basket........................................................................................................................................................23
Starting a Wash Cycle ................................................................................................................24
Changing a Programme ............................................................................................................24
At the End of a Programme....................................................................................................... 24
Switching O the Unit............................................................................................................... 25
Unloading the Dishwasher .......................................................................................................25
Delay Start.................................................................................................................................. 25
Cleaning After Use..................................................................................................................... 26
External Care ..........................................................................................................................................................26
- The Door and the Door Seal ..................................................................................................................26
- The Control Panel ......................................................................................................................................26
Internal Care...........................................................................................................................................................26
- Filtering System..........................................................................................................................................26
- Spray Arms...................................................................................................................................................27
CID45B10_IB_110426.indd 3 4/26/11 8:14 PM
Frost Precaution ........................................................................................................................ 27
Moving the Dishwasher ............................................................................................................ 27
Maintenance After a Prolonged Period of Non-Operation ....................................................27
Hints and Tips ............................................................................................................................ 28
Fault Code ...............................................................................................................................................................28
Technical Problems..............................................................................................................................................28
Disposal of the Dishwasher ......................................................................................................30
Disposal of Packing Material .................................................................................................... 30
Specications............................................................................................................................. 31
Safety Warnings......................................................................................................................... 32
CID45B10_IB_110426.indd 4 4/26/11 8:14 PM
GB-5
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.

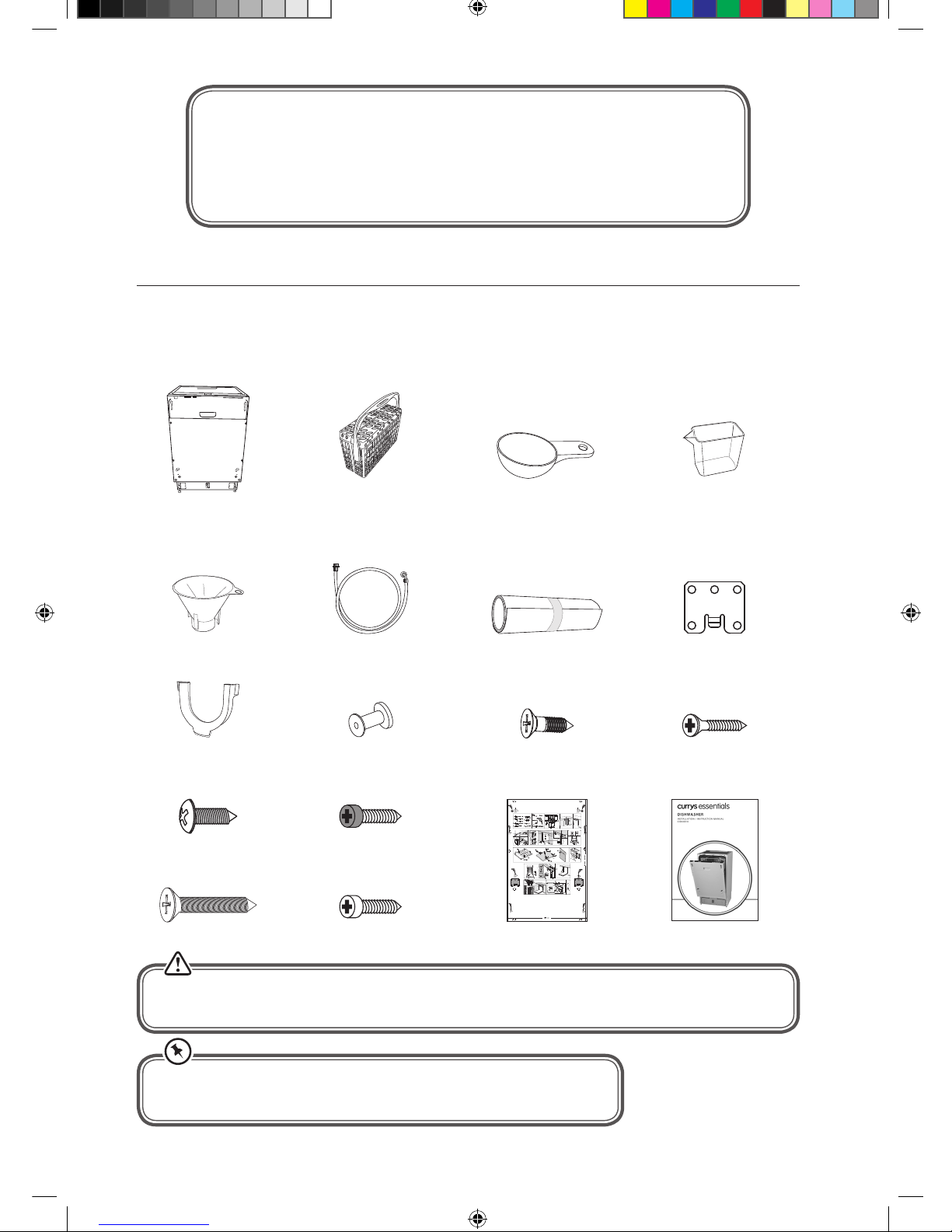

The following items are included:
Thank you for purchasing the new Curry Essentials Dishwasher.
We recommend that you spend some time reading this installation / instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation /
instruction manual for future reference.
This product has been wet tested to ensure correct operation. As a result some water may remain
inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
The Main Unit
Lower Hook X 2
P.N.: 672000200103
Detergent Measuring Spoon X 1
1 full spoon = 20g (approx.)
P.N.: 673002200079
Instruction Manual X 1
P.N.: CID45B10-002
Door Template X 1
P.N.: 675001800309
ST4 screws X 10
P.N.: 672000900040
ST3.9x13 screws (white) X 2
P.N.: 672000900078
Condensation Strip X 1
P.N.: 675001300715
ST3.9x13 screws (black) X 2
P.N.: 672000900079
3.5x25 screws X 2
P.N.: 672000900041
U-Shape Hose Holder X 1
P.N.: 673006200003
Salt Funnel X 1
P.N.: 673002200043
Hop Hook X 2
P.N.: 672000200023
Measuring Cup X 1
60ml (approx.)
P.N.: 673006200004
Water Supply Hose X 1
P.N.: 673005400045
Cutlery Basket
P.N.: 673002200049
4x18 screws X 2
P.N.: 672000900039
4x20 screws X 2
P.N.: 672000900036
CID45B10_IB_110426.indd 5 4/26/11 8:15 PM
GB-6
INSTALLATION
1. Please ensure the dishwasher is installed by a
qualified technician. Refer to the tools required.
Location
When selecting a position for your dishwasher you
should make sure the installation surface is flat
and firm, and the room is well ventilated. Avoid
locating your dishwasher near a heat source, e.g.
cooker, boiler or radiator. Extreme cold ambient
temperatures may also cause the appliance not to
perform properly. This dishwasher is not designed
for use in a garage or outdoor installation.
Do not drape the dishwasher with any covering.
When installing, ensure that free space is left at the
sides.
2. Ensure there is clearance each side of the unit
to allow slight sideways movement for servicing
when required. Good levelling is essential for
correct closure and sealing of the door. When
the unit is correctly levelled, the door should
not catch the inner liner on either side of the
cabinet. The adjustable feet may be loosened
or tightened in order to obtain the optimum
levelling of the unit.
level
level
level level
screw
cone
gear
level
Installation
All parts removed must be saved to do
the reinstallation in the future. Ensure
the dishwasher is unplugged and empty.
We recommend that 2 people handle the
dishwasher during installation.
The supplied door template also contains
installation steps which will assist
installation.
CID45B10_IB_110426.indd 6 4/26/11 8:15 PM
GB-7
INSTALLATION

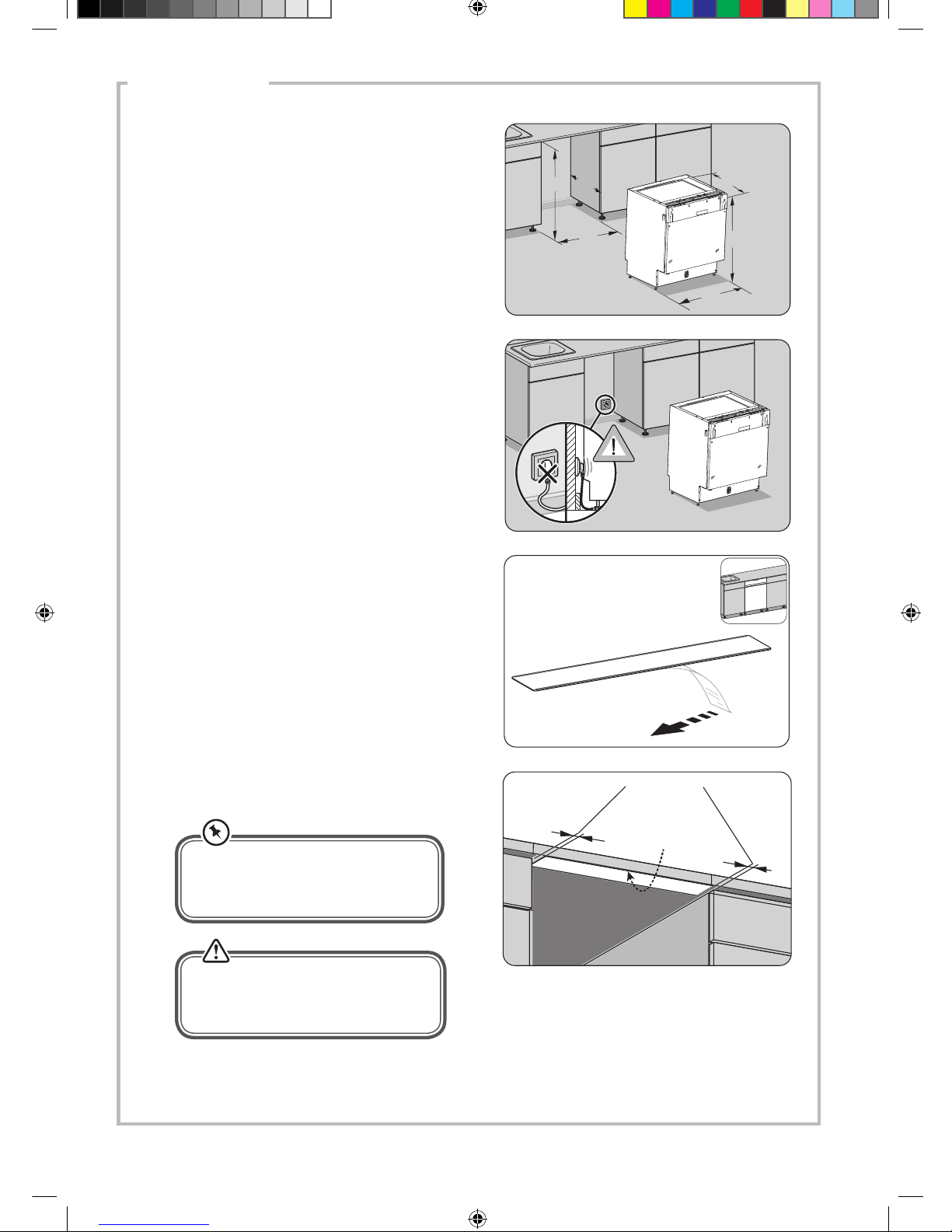

3. The height of the unit is 820 mm. The figure
outlines the minimum dimensions required
to accommodate the dishwasher within fitted
kitchen furniture units.
820
450
560
450
540
820
unit in mm
4. Do not connect the unit to the mains socket
before installation. Ensure you are not installing
the unit right in front of the mains socket. This
is to avoid potential damage to the back of the
unit.
5. The condensation strip must be fitted to
the underside of the worktop above your
dishwasher to protect it against any moisture. Its
purpose is to protect your worktop’s underside
from steam rising from the dishwasher.
Remove the backing paper from the
condensation strip.
Ensure the surface is clean prior to
sticking the condensation strip to
the underside of the worktop.
Leave some space
Stick the Condensation
Strip under the worktop,
where you want to
install the dishwasher.
6. Stick the condensation strip to the underside of
the worktop.
Failure to attach the condensation
strip could result in damage to the
underside of your worktop!
CID45B10_IB_110426.indd 7 4/26/11 8:15 PM
GB-8
INSTALLATION
7. Position the dishwasher next to a water tap and
a drain. Ensure the water inlet and drain hoses
are not kinked or squashed. The unit must not
stand on the mains cable.
8. To secure the dishwasher under the table top,
tighten the screws through the top sides of the
unit onto the table top.
<4.5kg
9. Tape the supplied Door Template to the
dishwasher door. Make sure the top of the
template is at the top of the door. Drill the
required holes following the depth and diametre
shown on the Door Template.
CID45B10_IB_110426.indd 8 4/26/11 8:15 PM
GB-9
INSTALLATION

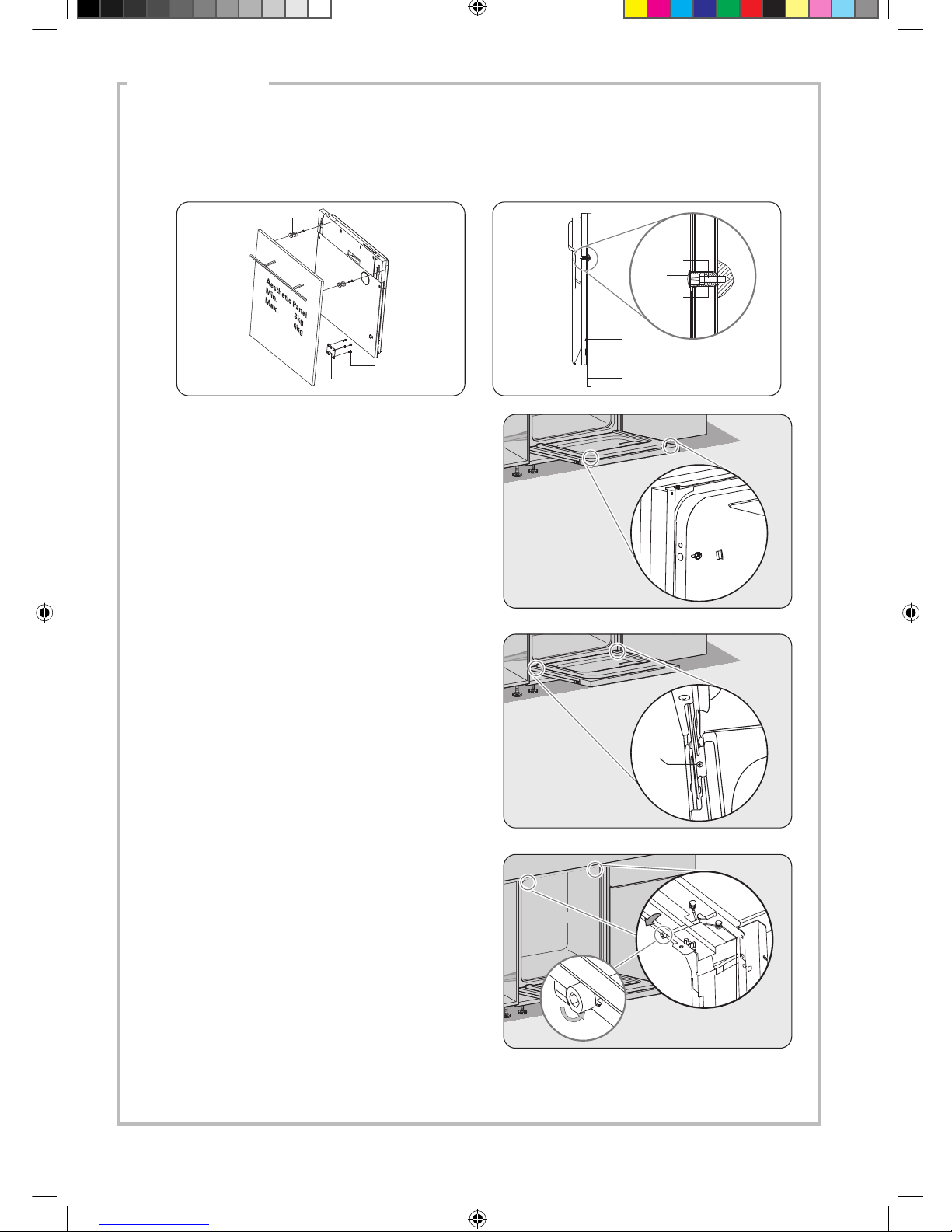

10. Install the Aesthetic Panel onto the dishwasher door. Ensure the aesthetic panel weight is a
minimum of 3kg and a maximum of 6kg. After the aesthetic panel is installed, the tension of the
dishwasher door spring can be adjusted by rotating the adjusting bolt. If the tension is right, the
door will remain horizontal in the fully open position.
4 X 18 screw
Cover
Spacer for
aesthetic
panel
Hook for
aesthetic panel
Aesthetic panel
Outer door of
dishwasher
Lower hook
Hop hook
ST4 countersunk
head screw
11. Ensure to tighten the screws on both sides of
the dishwasher door and to secure the Aesthetic
Panel.
Rubber cover
Screw
4*14 screw
Loosen
12. Adjust the bolt to loosen or tighten the tension
of the dishwasher door.
CID45B10_IB_110426.indd 9 4/26/11 8:15 PM
GB-10
INSTALLATION
• Do not bend your drain hose.
14. Make sure your plumbing is suitable for use with
the dishwasher. If in doubt contact a qualified
plumber. This unit MUST BE connected to COLD
WATER MAINS using the new water inlet hose.
OLD HOSE SETS MUST NOT BE RE-USED. The
water pressure from the water mains needs to
be at a minimum of 0.04 MPa and a maximum of
1.00MPa.
• Connect one end of the safety water supply
hose to your dishwasher, and then connect
the other end of the hose to your water
mains. Please ensure the black rubber seal is
in place.
• After connecting the hose, turn on your water
mains and check for leaks.
• Connect the dishwasher to the mains socket.
water mains
water supply hose
Y-Adaptor
(not included)
Connect to
another
appliance
if required.
You may use a Y-Adaptor (not included)
for an additional water feed for another
appliance, for example a washing
machine. This is only applicable for cold
water mains. A Y-Adaptor is available
from most DIY stores.
screw
cone
gear
level
13. Adjust the adjustable feet again to obtain the
optimum levelling of the unit.
CID45B10_IB_110426.indd 10 4/26/11 8:15 PM
