Culligan 9" Manuel

DCO# 220017 02/22/22

CAT# 01040718 Rev C

Aquasential™

Smart

High Efficiency

Water Conditioners

Models from 2021

atencion@purewater.mx purewater.mx 81-1642-7777

Introduction........................................................................ 3

.................................................................... 7

....................................................................... 16

.......................................................................... 29

................................................ 30

............................................................................ 35

.......................................................... 36

............................................................................. 37

............................................... 40

Service............................................................................. 41

.................................................... 47

.......................................................................... 66

.................................. 81

.......................................... 83

......................................... 87

.................... 93

.... 96

............................. 99

.... 100

........ 101

................... 102

........... 105

................ 106

.................... 107

........................... 109

Index.............................................................................. 110

Contents

Aquasential™

Smart

High Efficiency

Water Conditioners

Models from 2021

atencion@purewater.mx purewater.mx 81-1642-7777

Introduction

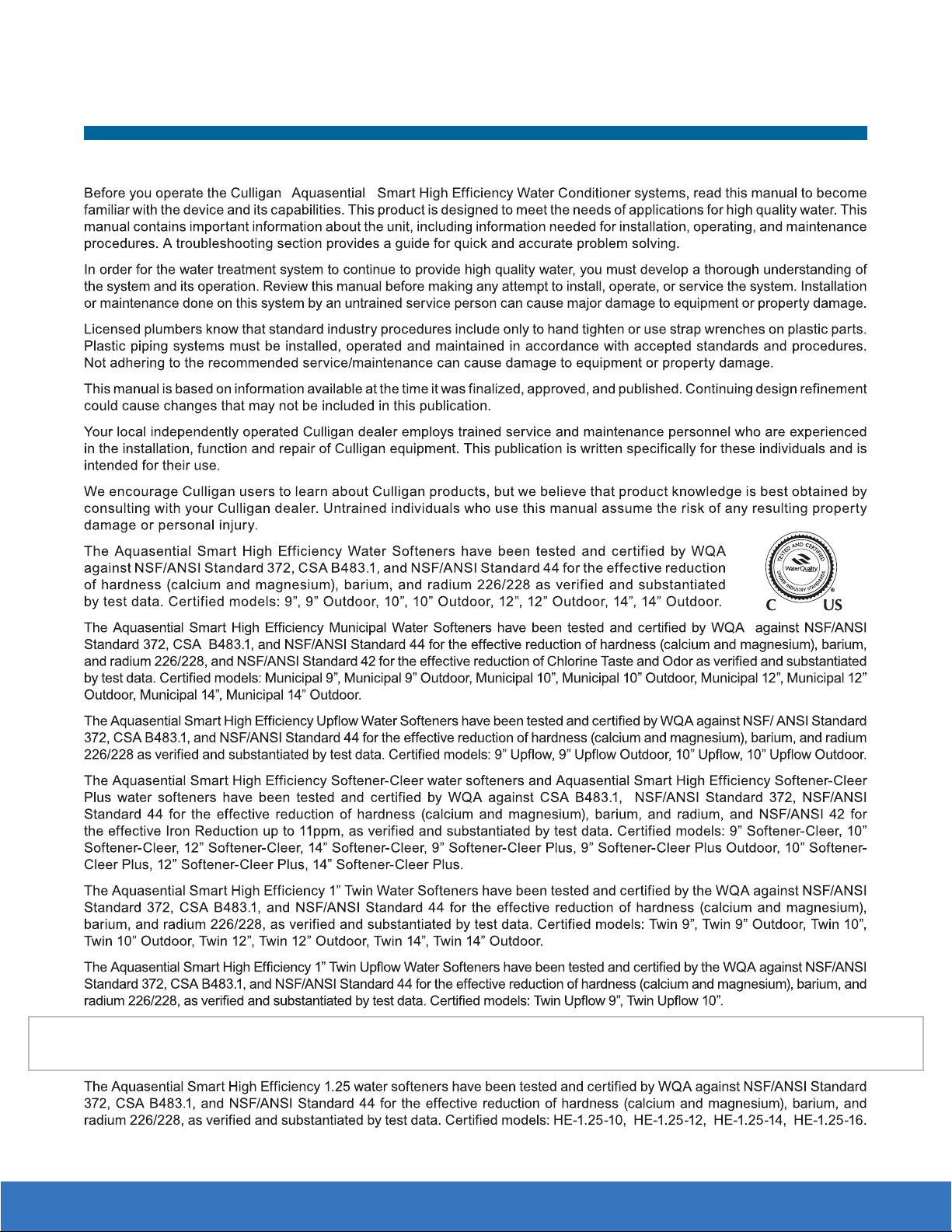

Read this Manual First

®™

atencion@purewater.mx purewater.mx 81-1642-7777

•

NOTE! An Owners Guide is available online; it contains answers to most questions, system

operation information, suggested maintenance, and a trouble shooting section.

www.culligan.com/support/product-information/product-manuals

atencion@purewater.mx purewater.mx 81-1642-7777

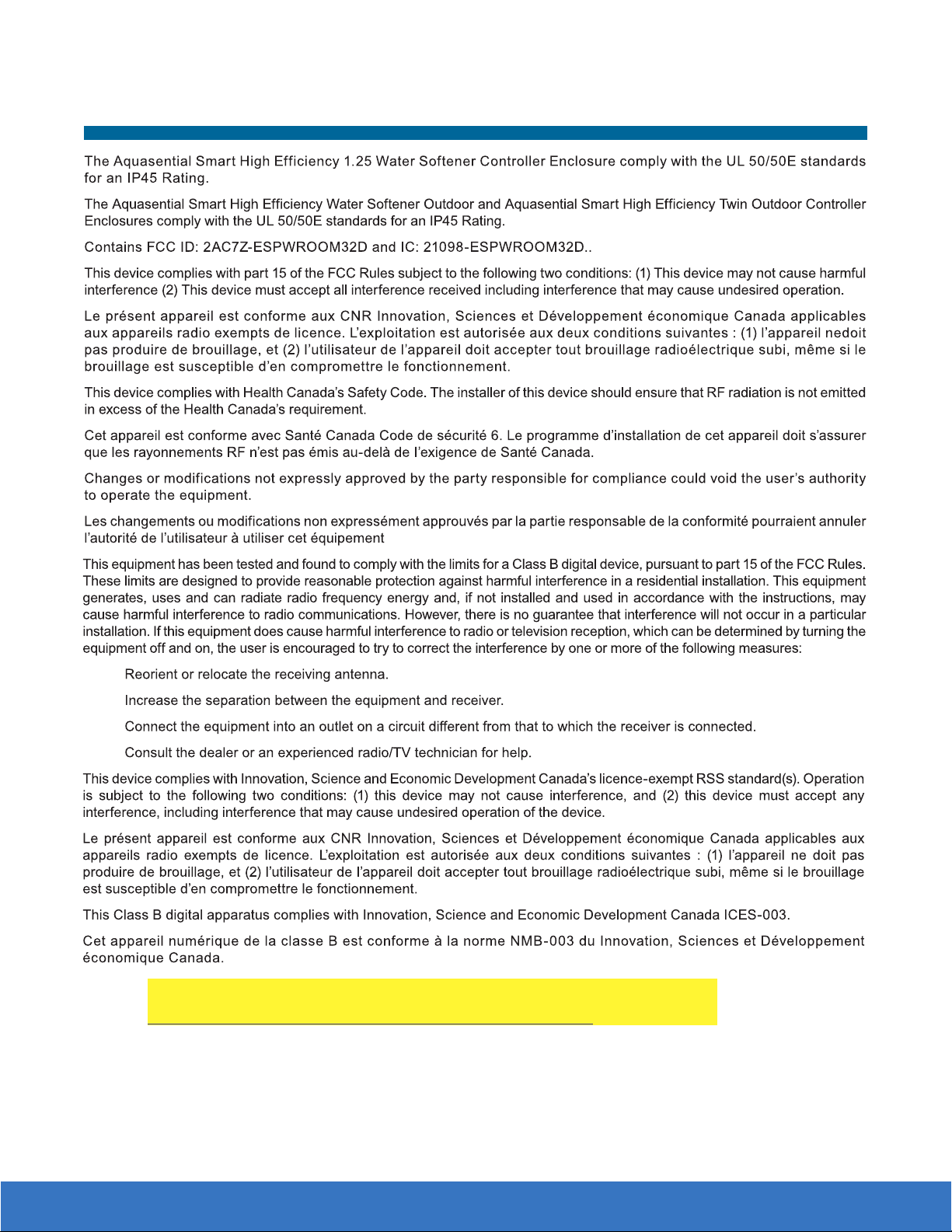

Safety Instructions and Safety Definitions

Note

NOTE! “Note!” is used to emphasize installation, operation or maintenance information which is important,

but does not present any hazard.

Caution

CAUTION!

“Caution” is used when failure to follow directions could result in damage to equipment or property.

Warning

WARNING!

“Warning” is used to indicate a hazard which could cause injury or death if ignored.

CAUTIONWARNING

MUST

Culligan International Company

atencion@purewater.mx purewater.mx 81-1642-7777

Attention Service Technician:

NOTE! Please send any suggestions for improving this manual to productmanuals@culligan.com

Be sure to check and follow the applicable plumbing codes and ordinances when installing this equipment.

WARNING!

Electrical shock hazard! Prior to servicing equipment, disconnect power supply to prevent electrical shock.

WARNING!

If incorrectly installed, operated, or maintained, this product can cause severe injury. Those who install,

operate, or maintain this product should be trained in its proper use, warned of its dangers, and should

read the entire manual before attempting to install, operate, or maintain this product. Failure to comply

with any warning or caution that results in any damage will void the warranty.

WARNING!

Use protective clothing and proper face or eye protection equipment when handling chemicals or power tools.

CAUTION!

This product is not to be used by children or persons with reduced physical, sensory or mental capabilities,

or lack of experience or knowledge, unless they have been given supervision or instruction. Children

should be instructed not to play with this appliance.

CAUTION!

If the power cord from the power supply to the unit looks or becomes damaged, the cord and power supply

should be replaced by a Culligan Service Agent or similarly qualified person in order to avoid a hazard.

CAUTION!

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

NOTE! This system is not intended for use with water that is microbiologically unsafe or of unknown quality

without adequate disinfection either before or after the system.

Check your applicable local plumbing and sanitation codes. Follow local codes if they differ from the

standards used in this manual. To ensure proper and efficient operation of this Culligan product to your full

satisfaction, carefully follow the instructions in this manual.

atencion@purewater.mx purewater.mx 81-1642-7777

Specifications

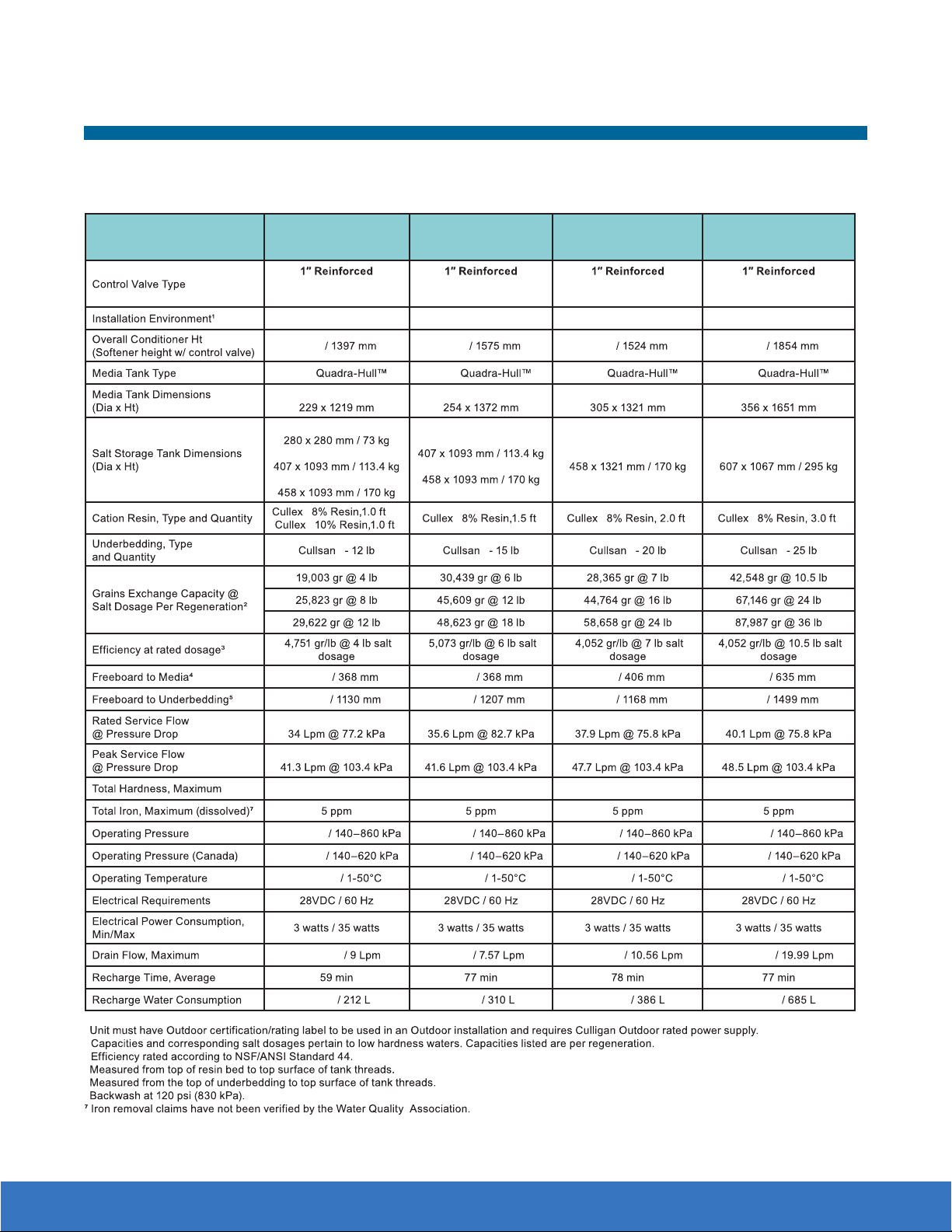

Culligan Aquasential Smart High Efficiency (HE) Water Conditioners

Culligan Aquasential Smart HE Softener—Downflow Regeneration

Model 9"

9” Outdoor

10"

10" Outdoor

12"

12" Outdoor

14"

14" Outdoor

Thermoplastic with

GBX Circuit Board

Thermoplastic with

GBX Circuit Board

Thermoplastic with

GBX Circuit Board

Thermoplastic with

GBX Circuit Board

Indoor / Outdoor Indoor / Outdoor Indoor / Outdoor Indoor / Outdoor

56 in 62 in 60 in 73 in

9 x 48 in 10 x 54 in 12 x 52 in 14 x 65 in

11 x 11 in / 160 lb

16 x 43 in / 250 lb

18 x 43 in / 375 lb

16 x 43 in / 250 lb

18 x 43 in / 375 lb

18 x 43 in / 375 lb 24 x 42 in / 650 lb

®3 or

®3

®3®3®3

® ® ® ®

14.5 in 14.5 in 16 in 25 in

44.5 in 47.5 in 46 in 59 in

9.0 gpm @ 11 psi 9.4 gpm @ 12 psi 10.0 gpm @ 11 psi 10.6 gpm @ 11 psi

10.9 gpm @ 15 psi 11.0 gpm @ 15 psi 12.6 gpm @ 15 psi 12.8 gpm @ 15 psi

75 gpg 99 gpg 99 gpg 99 gpg

20-125 psi 20-125 psi 20-125 psi 20-125 psi

20-90 psi 20-90 psi 20-90 psi 20-90 psi

33-120°F 33-120°F 33-120°F 33-120°F

62.38 gpm 2 gpm 2.86 gpm 5.28 gpm

56 gal 82 gal 102 gal 167 gal

atencion@purewater.mx purewater.mx 81-1642-7777

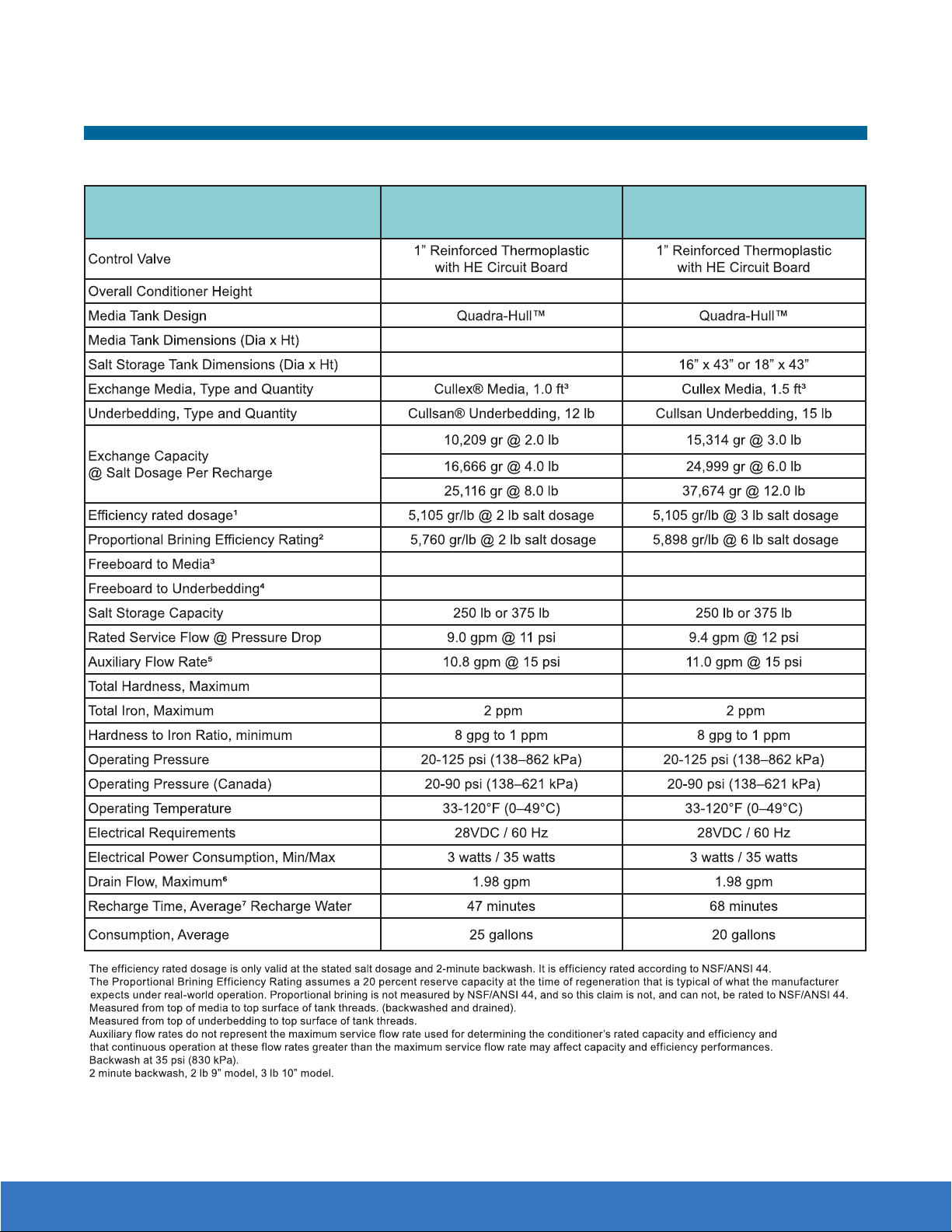

Culligan Aquasential Smart HE Softener—Upflow Regeneration

Model 9" Upflow

9" Upflow Outdoor

10" Upflow

10" Upflow Outdoor

56 in 62 in

9 x 48 in 10 x 54 in

16" x 43" or 18" x 43"

14.5 in 14.5 in

44.5 in 47.5 in

30 gpg 30 gpg

atencion@purewater.mx purewater.mx 81-1642-7777

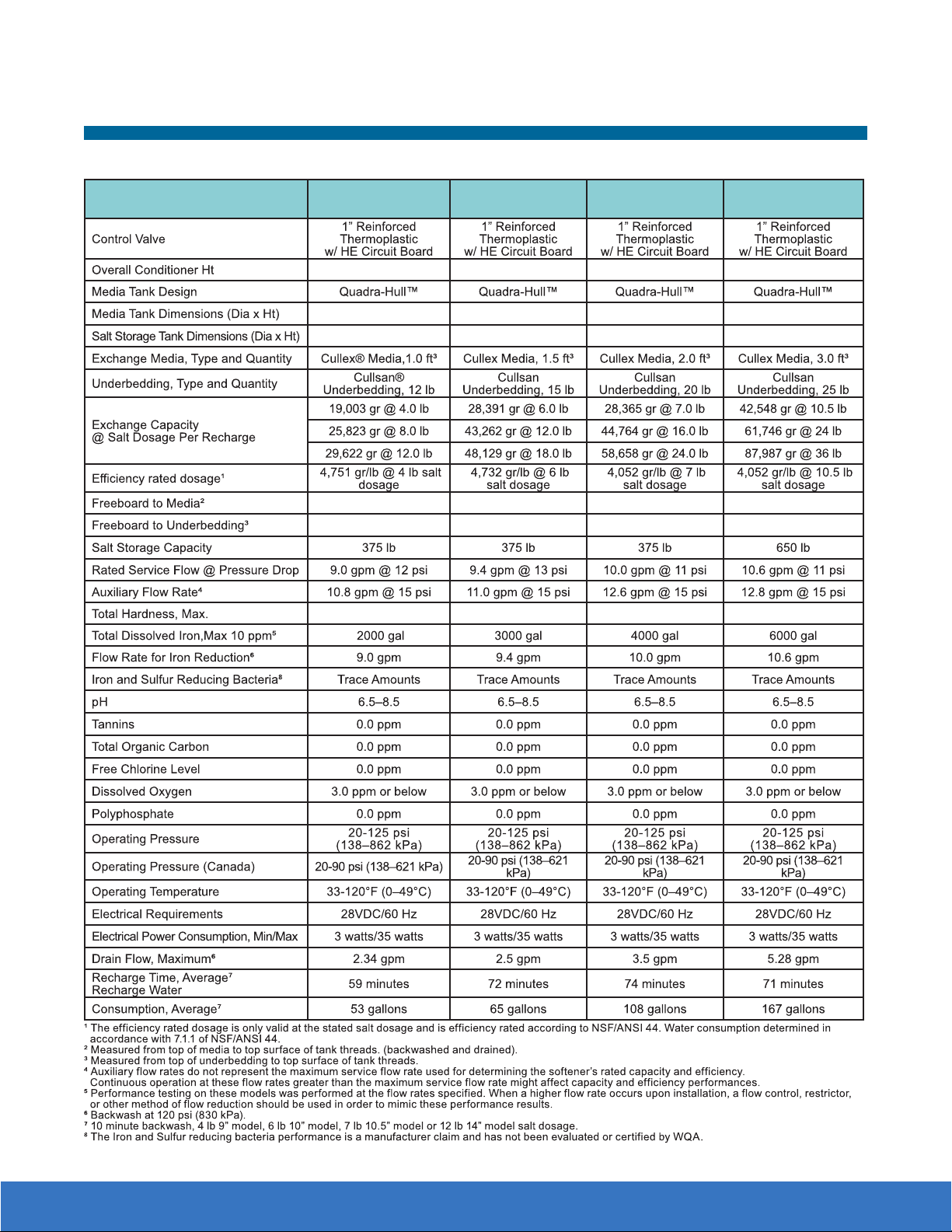

Culligan Aquasential Smart HE Softener—Municipal

Model Municipal 9"

Municipal 9" Outdoor

Municipal 10"

Municipal 10" Outdoor

Municipal12"

Municipal 12" Outdoor

Municipal 14"

Municipal 14" Outdoor

54 in 60 in 58 in 71 in

9 x 48 in 10 x 54 in 12 x 52 in 14 x 65 in

11 x 11 in or

16 x 43 in or

18 x 43 in

16 x 43 in

or 18 x 43 in 18 x 43 in 24 x 42 in

® 3 ® 3 ® 3 ® 3

® ® ® ®

215.75 in 19.5 in 17.31 in 25.89 in

344.5 in 47.5 in 46 in 59 in

15 gpg 15 gpg 15 gpg 15 gpg

atencion@purewater.mx purewater.mx 81-1642-7777

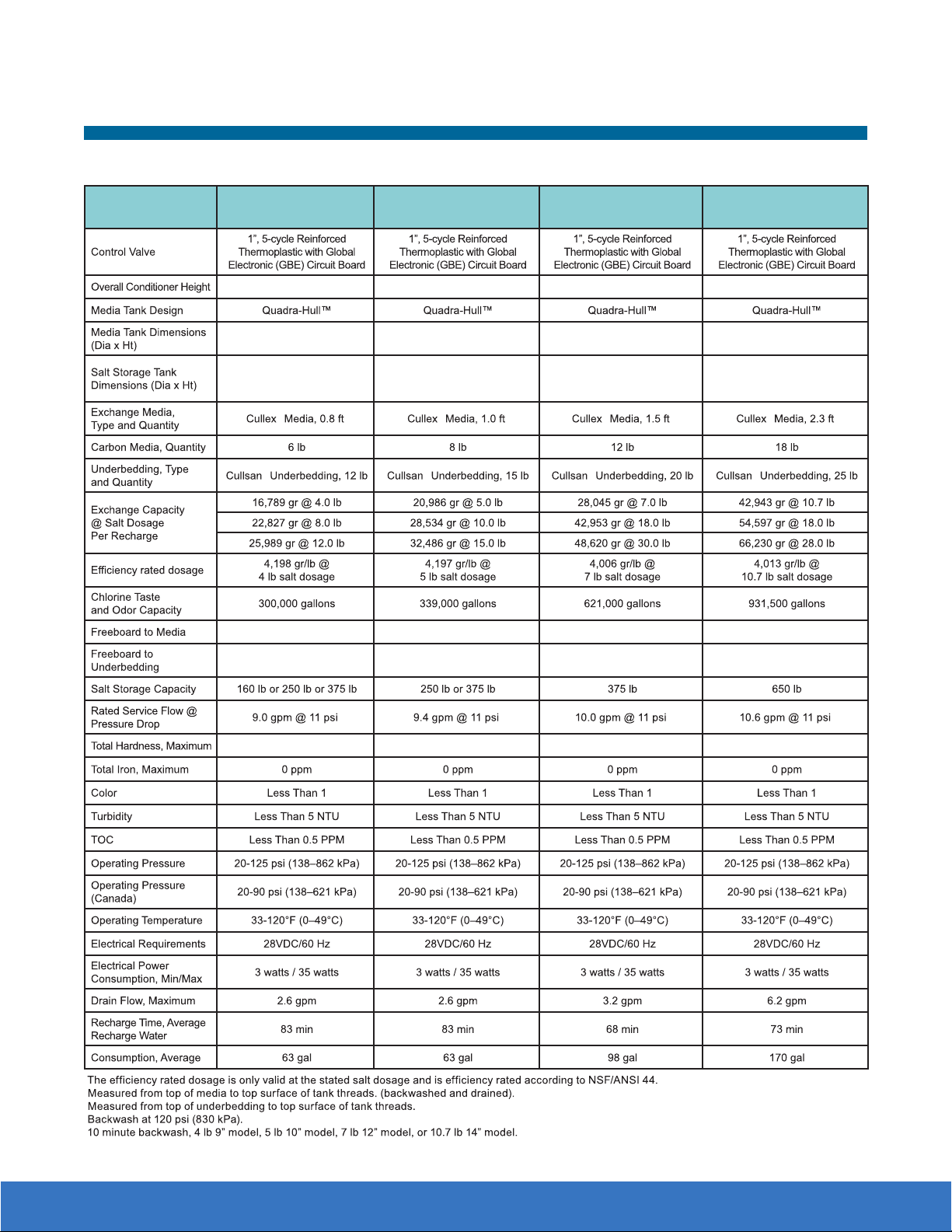

Culligan Aquasential Smart HE Softener—Softener-Cleer

Model 9"

Softener-Cleer 10"

Softener-Cleer 12"

Softener-Cleer 14"

Softener-Cleer

56 in 62 in 60 in 73 in

9 x 48 in 10 x 54 in 12 x 52 in 14 x 65 in

16 x 43 in or 18 x 43 in 16 x 43 in or 18 x 43 in 18 x 43 in 24 x 42 in

14.5 in 14.5 in 16 in 25 in

44.5 in 47.5 in 46 in 59 in

50 gpg 75 gpg 75 gpg 75 gpg

atencion@purewater.mx purewater.mx 81-1642-7777
