CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Printed In USA

Il l u s t r a t e d Pa r t s Ma n u a l

Cub Cadet Tillers — RT 65 & FT 24

Form No. 769-03793

(January 10, 2008)

RT 65 Gear Case Assembly

12 45

36 35

16 19 49

44 33

16 28

14 11

10 25

Ref. Part Number Description

1. 611- 0 4074 Wheel Shaft Assembly: 33T

2. 611- 0 021 Tine Shaft Assembly: 18T

3. 611- 012 8 Jack Shaft Assembly

4. 611- 012 9 Input Shaft Assembly

5. 617-0058 Reverse Idler Gear Assembly: 30T

6. 617-0059 Tine Idler Gear Assembly: 30T

7. 617-0060 Tine Input Sprocket Assembly: 9T

8. 617-0061 Wheel Inp. Sprocket Assembly: 10T

9. 617-0062 Gear Assembly:11T

10. 686-0108 R.H. Housing Assembly

11. 710-0376 Hex Bolt, ⁄-18 x 1” Lg.

12. 710-0599 Hex S-Tap Screw, ⁄- 20 x.5”

13. 710-0604A Hex S-Tap Screw, ⁄-18 x.625”

14. 710-3008 Hex Bolt, ⁄-18 x.75”

15. 711-1349 Input Shaft

16. 712-0378 Hex Nut, ⁄-20

17. 712-3004A Flange Nut, ⁄-18

18. 713- 0367 #420 Chain, ⁄ Pitch x 50 Links

19. 713-0484 #50 Chain, ⁄ Pitch x 54 Links

20. 716-0865 Snap Ring

21. 717- 0853 Shifting Fork

22. 717-1582 Spur Gear, 44T

23. 717-1583 Spur Gear, 30T

24. 717-1584 Spur Gear, 30T

25. 717-1585 Spur Gear, 44T

26. 717-1587 Spur Gear, 44T

Ref. Part Number Description

27. 717-1594 Spur Gear, 16T

28. 721-0378 Seal 1.0 Shaft

29. 721-0379 Seal .75 Shaft

31. 726-0277 Taper Cap Ring

32. 732-0496 Compression Spring, .50” Leg.

33. 736-0163 Thrust Washer, 1.03” I.D. X. 1.62”

34. 736-0351 Fl-Washer, .76” I.D. x 1.5” O.D.

35. 736-0407 Bell-Washer, .45” I.D. x 1.0”

36. 736-0518 Thrust Washer, .445 x 1.92 x .060

37. 736-3088 Fl-Washer, .635” I.D. x 1.59 O.D.

40. 738-0645 Detent Shaft, ⁄” Dia.

41. 738-0648 Jack Shaft, .625 x 2.385

42. 738-1013 Jack Shaft, .625 x 5.0

43. 741-0124 Ball Bearing

44. 741-0420 Flange Bearing, 1.0 x 2.5 x 1.38

45. 741-0421 Flange Bearing, .75 x 2.5 x 1.38

46. 741-0563 Ball Bearing, .6692 x 5745 x .466

47. 741-0862 Detent Ball, .250

48. 750-0258 Spacer, .315

49. 750-0570 Spacer, 1.0 I.D x 2.0 O.D. x .440

50. 750-0664 Spacer, .505 I.D. x .88 O.D. x .440

51. 750-0671 Spacer, .75 x 2.0 x .50

52. 786-0171 L.H. Chain Case Assembly

53. 786-0238 Gear Positioner Bracket

—686-04074 Gear Case Assembly Complete

RT 65 Gear Case Assembly

RT 65 Handle & Tine Assembly

40 30

62 32

56 57

3720 8

60 67

RT 65 Handle & Tine Assembly

Ref. Part Number Description

1. 647-0039 Shift Rod

2. 649-0041 Upper Handle Assembly

3. 649-0034 Lower Handle Assembly

4. 710-3005 Hex Screw, ⁄-16 x 1.25

5. 710-3056 Hex Screw, ⁄-18 x 3.25

6. 711- 0 415 Clevis Pin, ⁄-1.62

7. 712-0379 Flange Lock Nut, ⁄-24

8. 712-0429 Hex Lock Nut, ⁄-18

9. 714-0147 Cotter Pin

10. 720 -0313 Grip

11. 720-0210A T-Knob

12. 720-0278A Foam Grip

14. 726-0317 Cable Tie

15. 735-0246A Plug

16. 7 36 - 0117 Flat Washer, ⁄ ID x .620 OD

17. 736-0242 Bell Washer, .340 ID x .872 OD

18. 738-0958 Shoulder Spacer

19. 784- 0190 Handle Adjustment Crank

20. 784-0191 Hex Nut Retainer Bracket

21. 786 - 0120 Depth Stake

22. 747-1219 Bail Clutch

23. 786-0181 Shift Lever Rod

24. 686-0044B Tine Shield Cover Assembly

25. 710 -0176 Hex Cap Screw, ⁄-18 x 2.75

26. 710-3008 Hex Cap Screw, ⁄-18 x .750

27. 710-3097 Carriage Bolt, ⁄-16 x 1.0

28. 712-0421 Wing Nut

29. 736-0169 Lock Washer, ⁄

30. 712-04063 Flange Nut, ⁄-18

31. 726-0106 Cap Nut

32. 738-0849 Hex Screw, ⁄-18 x .75”

33. 747-0432 Rod

Ref. Part Number Description

34. 750-0885A Spacer, .322 x .625 x 2.0

35. 786-0090A Shoulder

36. 78 6 - 0113A Tine Shield Hinge Flap

37. 786 - 0176 RH Handle Bracket

38. 786-0177 LH Handle Bracket

39. 786-0178A Tine Shield

40. 786-0179 Tine Shield Bracket

41. 786-0180 Shoulder Spacer Bracket

42. 686-0109 Shift Crank Assembly

44. 710 -1017 Screw, ⁄-14 x .625

46. 715-0120 Spiral Pin, ⁄ x 1.0

49. 784-0208C Shift Cover

50. 711- 0415 Clevis Pin

51. 712-3054 Hex Nut, ⁄-24

53. 742-0305 13” Articulating Tine

54. 738-0689 Shoulder Bolt

55. 736-0208 Flat Washer, .51” ID x 1.50” OD

56. 736-0253 Bell Washer, .515” ID x 1.14” OD

57. 738-0688 Shoulder Bolt

58. 784-0160 Tine Adapter Assembly, 18”

59. 714-0149B Internal Cotter Pin

60. 714-0104 Cotter Pin

61. 710-3022 Hex Screw, ⁄-16 x 2.75”

62. 736-0204 Flat Washer

63. 712-04065 Flange Nut, ⁄-16

64. 736-0169 Lock Washer

65. 712-3017 Hex Nut, ⁄-16

66. 710-0946 Truss Screw, ⁄-20 x .65

67. 712-0324 Hex Lock Nut, ⁄-20

68. 726-0273 Battery Hose Clamp, ⁄

69. 736-3090 Flat Washer, .260 ID x .720 OD

70. 784-0161 Tine Adapter Plate

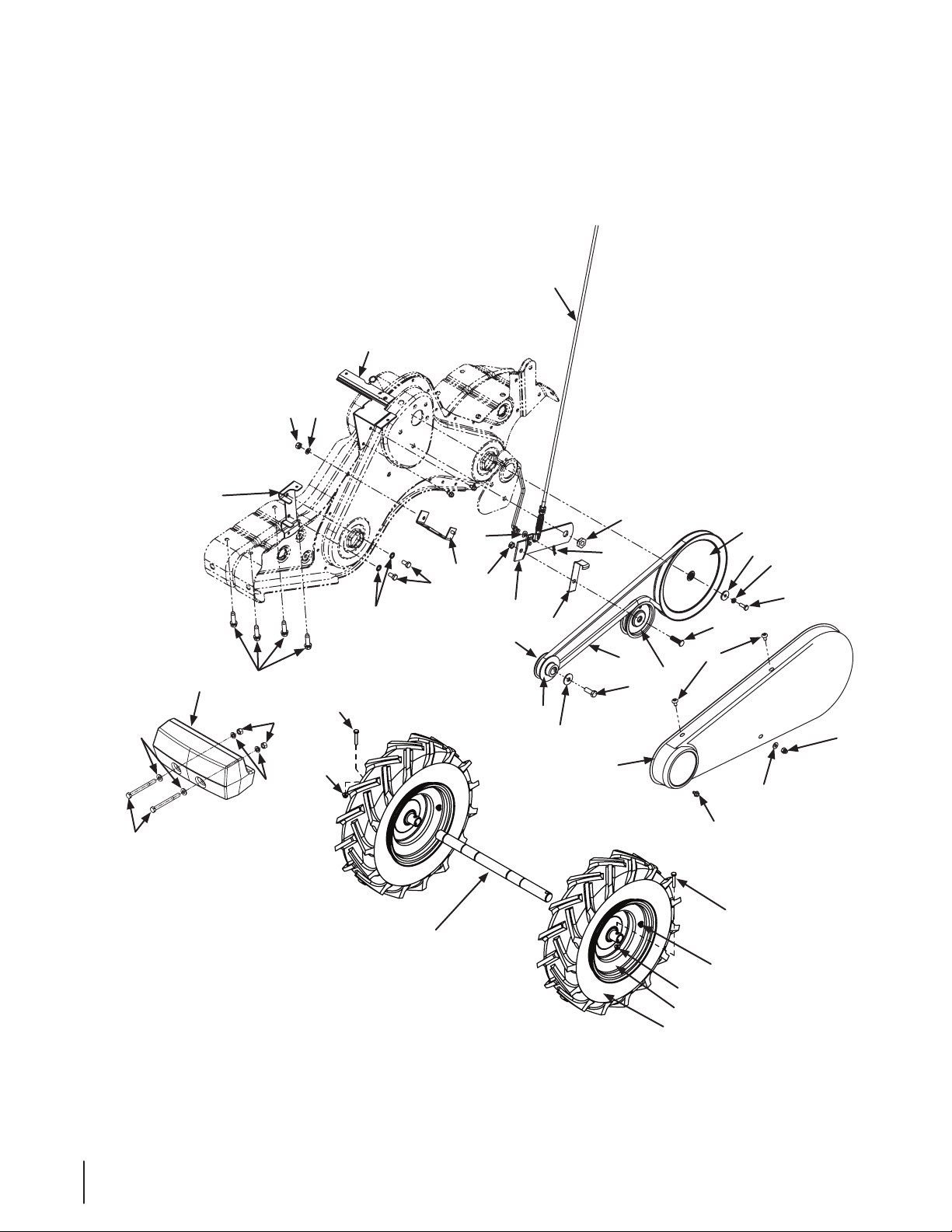

RT 65 Drive System

129

13 15

Wheel shaft shown

for reference only.

RT 65 Drive System

Ref. Part Number Description

1. 6 86 - 0111 Belt Cover Bracket Assembly

2. 710-0237 Hex Bolt, ⁄-24 x .62”

3. 710-0412 Hex Bolt, ⁄-28 x .75”

4. 710-0520 Hex Washer Screw, ⁄-16 x 1.50”

5. 710-1039 Hex Bolt, ⁄-24 x 1.0

6. 710-0599 Hex Washer Screw

7. 710-0723 Hex Cap Screw, ⁄-16 x 1.25

8. 712-0266 Lock Jam Nut, ⁄-16

9. 712-0267 Hex Nut, ⁄-18

10. 714-0104 Internal Cotter Pin

11. 736-0104 Hairpin Clip

12. 736 - 0119 Lock Washer, ⁄”

13. 736 - 0176 Flat Washer, .25 ID x .93 OD

14. 736-0271 Spring Washer, .317 ID x .625 OD

15. 736-0329 Lock Washer, ⁄” ID

16. 736-0452 Bell Washer, .396 ID x 1.14 OD

17. 738-0876 Shoulder Nut, ⁄-20

18. 74 6 -1117 Clutch Cable

19. 747-1159 Idler Pulley Rod

20. 754-0434 V-Belt

21. 756-0405 Flat Idler w/ Flange, 3.75 OD

22. 756-0971 Outer Engine Pulley Half

Ref. Part Number Description

23. 756-0972 Inner Engine Pulley Half

24. 756 -1162 Input Pulley

25. 786-0064A Idler Bracket

26. 786-0185 Belt Keeper Bracket

27. 786-0187 Shift Cover Bracket

28. 786-0193 Idler Belt Keeper

29. 634-04365 Wheel Assembly, 16.0 x 4.6 x 8

734-0808 Tire Only, 16.2 x 4.6

30. 634-04230 Wheel Rim Assembly

31. 734-0255 Air Valve

32. 710-0606 Hex Head Screw, ⁄-20

33. 712-04064 Flange Lock Nut, ⁄-20

34. 710-0382 Hex Bolt, ⁄-13 x 5.0

35. 712-0206 Hex Nut, ⁄-13

36. 723-0381 Counterweight, 40 lbs.

37. 736-0326 Flat Washer

38. 736-0921 Lock Washer, ⁄

39. 710-0653 Hex Screw, ⁄-20 x .375

40. 710 -1017 Screw, ⁄-14 x .625

41. 712-0392 Lock Nut

42. 736-3020 Flat Washer, .271 ID x .630 OD

43. 784-0158A Belt Cover

RT 65 Honda GC190A Cylinder

Ref. Part Number Description

1. 12000-Z1A-0000 Cylinder Assembly

2. 12 311-Z L8 - D 0 0 Head Cover

3. 12355-ZL8-000 Breather Cover , Valve Assembly

4. 90013-883-000 Flange Bolt, 6 X 12

5. 90014-952-000 Flange Bolt, 6 X 14

6. 91201-ZL8-003 Oil Seal, 25.4 X 62 X 6

7. 98079-56846 Spark Plug (BPR6ES NGK)

CYLINDER

1-2 2006 American Honda Motor Co., Inc. MAY, 2006 1-C1

Z1A0E0300

MODEL TYPE

A =GC190A a =MHA2

E-3

Engine

Serial Number

Ref Description From To QTY Part Number H/C

1CYLINDER ASSY. ...................................... -------- -------- 1 12000-Z1A-0000 7907462

2COVER, HEAD............................................ -------- -------- 1 12311-ZL8-D00 6325211

3COVER, BREATHER

(BREATHER VALVE ASSY.) .................. -------- -------- 1 12355-ZL8-000 5580006

4BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 4 90013-883-000 0636845

5BOLT, FLANGE (6X14) .............................. -------- -------- 1 90014-952-000 0803619

6OIL SEAL (25.4X62X6)................................ -------- -------- 1 91201-ZL8-003 5581038

7SPARK PLUG (BPR6ES) (NGK) ................ -------- -------- 1 98079-56846 1441112

RT 65 Honda GC190A Crankcase Cover

Ref. Part Number Description

1. 11300-Z1A-600 Crankcase Cover Assembly

3. 15600-ZF0-003 Oil Filler Cap Assembly

4. 15625-ZE1-003 Oil Filler Cap Gasket

5. 16510-ZL8-000 Governor Assembly

6. 16531-ZE1-000 Governor Slider

7. 16541-ZL8-000 Governor Arm Shaft

8. 90121-952-000 Flange Bolt, 6 x 25

9. 90131-896- 650 Drain Plug Bolt

10. 90451-ZE1-000 Thrust Washer, 6mm

11. 90602-ZE1-000 Governor Holder Clip

13. 91202-ZL8-003 Oil Seal, 28 x 41.25 x 6

14. 94101- 06800 Plain Washer, 6mm

15. 94109-12000 Drain Plug Washer, 12mm

16. 94251-08000 Lock Pin, 8mm

17. 94301-08200 Dowel Pin, 8 x 20

OIL PAN

MAY, 2006 2006 American Honda Motor Co., Inc. 1-3

Z1A0E0600B

MODEL TYPE

A =GC190A a =MHA2

E-6

Engine

Serial Number

Ref Description From To QTY Part Number H/C

1COVER ASSY., CRANKCASE (Q-TYPE) .. -------- -------- 1 11300-Z1A-600 7356249

3CAP ASSY., OIL FILLER ............................ -------- -------- 1 15600-ZF0-003 6435895

4GASKET, OIL FILLER CAP ........................ -------- -------- 1 15625-ZE1-003 4497947

5GOVERNOR ASSY. .................................... -------- -------- 1 16510-ZL8-000 5611108

6SLIDER, GOVERNOR ................................ -------- -------- 1 16531-ZE1-000 1427251

7SHAFT, GOVERNOR ARM ........................ -------- -------- 1 16541-ZL8-000 5611124

8BOLT, FLANGE (6X25) .............................. -------- -------- 8 90121-952-000 0748111

9BOLT, DRAIN PLUG .................................. -------- -------- 2 90131-896-650 1986231

10 WASHER, THRUST (6MM) ........................ -------- -------- 1 90451-ZE1-000 2413862

11 CLIP, GOVERNOR HOLDER...................... -------- -------- 1 90602-ZE1-000 2456697

13 OIL SEAL (28X41.25X6).............................. -------- -------- 1 91202-ZL8-003 5581046

14 WASHER, PLAIN (6MM) ............................ -------- -------- 2 94101-06800 0345900

15 WASHER, DRAIN PLUG (12MM)................ -------- -------- 2 94109-12000 0171868

16 PIN, LOCK (8MM)........................................ -------- -------- 1 94251-08000 0115527

17 PIN, DOWEL (8X20).................................... -------- -------- 2 94301-08200 1417369

CRANKSHAFT

1-4 2006 American Honda Motor Co., Inc. MAY, 2006 1-C2

Z1A0E0700C

MODEL TYPE

A =GC190A a =MHA2

E-7

Engine

Serial Number

Ref Description From To QTY Part Number H/C

4CRANKSHAFT (M-TYPE) .......................... -------- -------- 1 13310-Z1A-660 7399470

6WASHER, THRUST .................................... -------- -------- 1 90402-ZL8-000 5581012

RT 65 Honda GC190A Crankshaft

Ref. Part Number Description

1. 13310 -Z1A- 660 Crankshaft (M-Type)

2. 90402-ZL8-000 Thrust Washer

Autres manuels pour RT 65

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cub Cadet Taller

Cub Cadet

Cub Cadet FT 24 Manuel utilisateur

Cub Cadet

Cub Cadet FT 24 R Front-Tine Garden Tiller Manuel utilisateur

Cub Cadet

Cub Cadet 21AA40M7710 Manuel utilisateur

Cub Cadet

Cub Cadet RT 65 Manuel utilisateur

Cub Cadet

Cub Cadet RT 45 Manuel utilisateur

Cub Cadet

Cub Cadet RT 65 Manuel utilisateur

Cub Cadet

Cub Cadet 340 Series Manuel utilisateur

Cub Cadet

Cub Cadet FT 24 Manuel utilisateur

Cub Cadet

Cub Cadet CC 148 Cultivator Manuel utilisateur

Cub Cadet

Cub Cadet RT 45 Manuel utilisateur

Cub Cadet

Cub Cadet 440 Manuel utilisateur

Cub Cadet

Cub Cadet 340 Series Manuel utilisateur

Cub Cadet

Cub Cadet 21AB455C710 Manuel utilisateur

Cub Cadet

Cub Cadet 190-002 Manuel utilisateur

Cub Cadet

Cub Cadet 448 Manuel utilisateur

Cub Cadet

Cub Cadet FT 24 Manuel utilisateur

Cub Cadet

Cub Cadet RT 35 Rear-Tine Garden Tiller Manuel utilisateur

Cub Cadet

Cub Cadet FT-50 Manuel utilisateur

Cub Cadet

Cub Cadet RT 65 Guide de configuration

Cub Cadet

Cub Cadet GC145 Manuel utilisateur

Cub Cadet

Cub Cadet 700 Series VTT Manuel utilisateur

Cub Cadet

Cub Cadet RT-75 Guide d'installation

Cub Cadet

Cub Cadet RT 35 Rear-Tine Garden Tiller Manuel utilisateur

Cub Cadet

Cub Cadet 454 Manuel utilisateur

Manuels Taller populaires d'autres marques

MTD

MTD 410R Manuel utilisateur

Craftsman

Craftsman 247.29931 Manuel utilisateur

MTD

MTD FRT Series Manuel utilisateur

Craftsman

Craftsman 917.298353 Manuel utilisateur

Troy-Bilt

Troy-Bilt Colt FT Manuel utilisateur

Ryobi

Ryobi 510r Manuel utilisateur

MTD

MTD OHV Series Manuel utilisateur

YAT

YAT YT5601-01 Manuel d'entretien

Craftsman

Craftsman 917.296010 Manuel utilisateur

Troy-Bilt

Troy-Bilt OEM-290-260 Manuel utilisateur

Scheppach

Scheppach MTP560 Instructions de montage

GARDEN WAY

GARDEN WAY 12194 Manuel utilisateur

Classen

Classen STAND-AER SA-25 Instructions d'installation et d'entretien

Craftsman

Craftsman 850 Series Manuel utilisateur

DR PILOT 2 Guide de démarrage rapide

Altrad

Altrad ATIKA BH 1400 N Mode d’emploi

WIL-RICH

WIL-RICH 2500 Manuel utilisateur

Viking

Viking HB 685 Manuel utilisateur
