Cub Cadet 221 HP Guide de configuration

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Printed In USA

Illustrated Parts Manual

Form No. 769-06975

(June 07, 2011)

Single Stage Snow Thrower

Model 221 HP & 221 LHP

Model 221 HP shown

Thank you for purchasing a Cub Cadet Snow Thrower. It was

carefully engineered to provide excellent performance when

properly operated and maintained.

All information in this manual is relative to the most recent

product information available at the time of printing. Please be

aware that this Illustrated Part’s Manual may cover a range of

product specifications for various models.

Components listed and/or illustrated in this manual may not be

applicable to all models. We reserve the right to change product

specifications, designs and equipment without notice and

without incurring obligation.

Throughout this manual, all references to right (RH) and left (LH)

are observed from the operating position.

Thank You

0637 Black

4021 Yellow (Cub Cadet)

0499 Beige (Cub Cadet)

0685 Blue (Cub Cadet)

0691 Black Jack (Cub Cadet Commercial)

To The Owner

Drive System & Auger Assembly ............................ 8

Engine Model 370-JU-11 ........................................12

Engine Model 265-JU-11 ....................................... 20

Labels (Model 221 HP)............................................10

Labels (Model 221 LHP)..........................................11

Shroud, Chute & Handle (Model 221 HP) .............. 4

Shroud, Chute & Handle (Model 221 LHP.............. 6

Table of Contents

Record Product Information

To ease in ordering replacement parts, please locate the model

plate on the equipment and record the information in the

provided area to the right. You can locate the model plate by

looking beneath the seat.

Model NuMber

Serial NuMber

Painted Parts

When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).

Please refer to the table below for current color codes:

This page left intentionally blank.

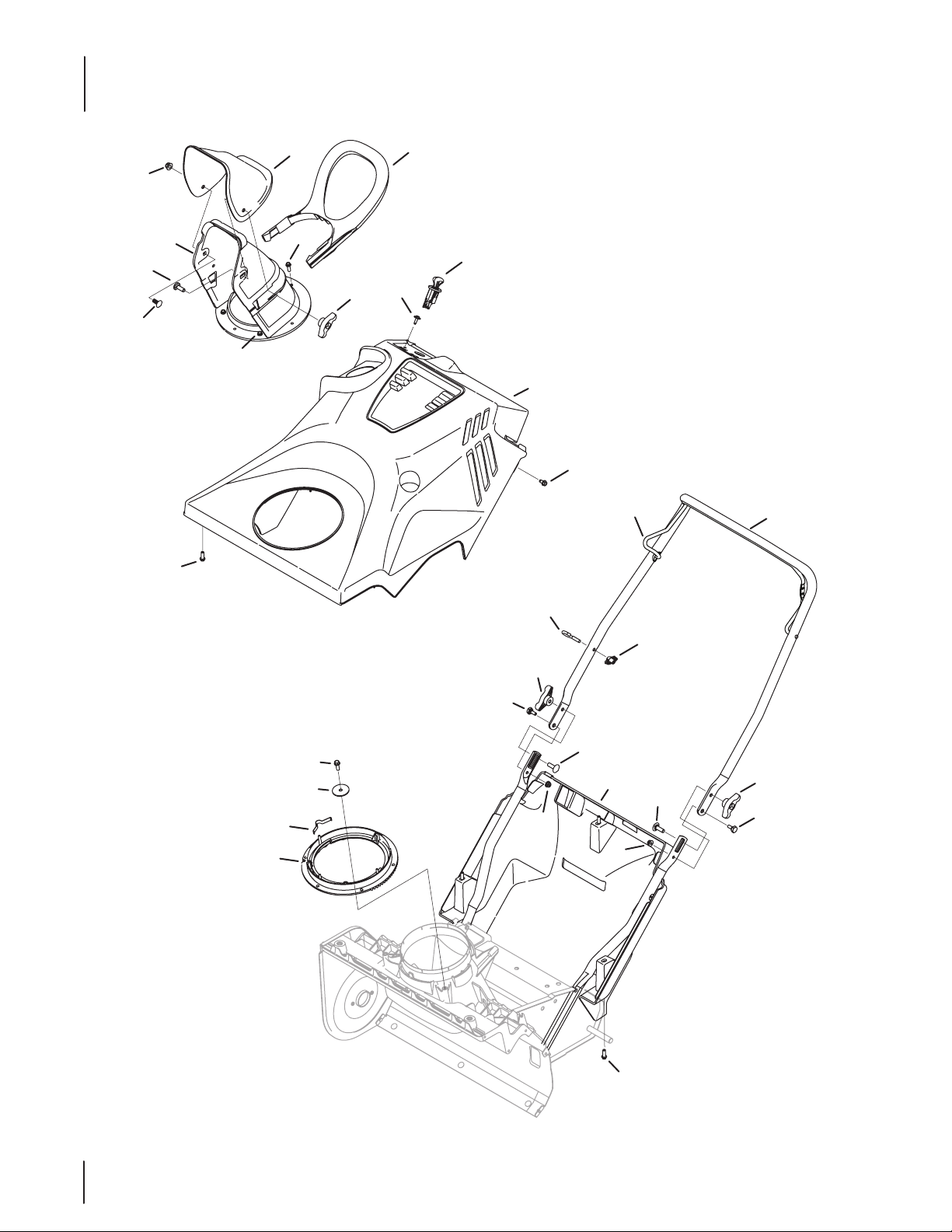

Shroud, Chute & Handle (Model 221 HP)

213

Shroud, Chute & Handle (Model 221 HP)

Ref. Part Number Description

1736-04576 Flat Washer, .28 x 1.5 x .075

2747-05327B Auger Bail

3710-0451 Carriage Bolt, 5/16-18 x .750

4710-05108 Hex Washer Screw, 1/4 x .750

5712-04063 Flange Lock Nut, 5/16-18

6712-04064 Flange Lock Nut, 1/4-20

7731-08274 Chute Ring

8720 -04122 Wing Knob, 5/16-18

9731-04426A Upper Chute

10 731-07644 Chute Handle

11 931-07753A Lower Chute

12 932- 0 4111 Chute Adjustment Spring

13 749-04703B Upper Handle

14 710-0895 Screw, Hi-Lo:1/4-15, 0.75

15 925-04031A Ignition Switch Assembly

16 710-04669 Hex Washer Screw, 10-16 x .625

17 710-0599 Hex Washer Screw, 1/4-20 x .500

18 731-07725 Bottom Cover

19 731-07830A Top Cover

20 710-04998 Carriage Screw, 5/16-18 x 1.00

21 710-05348 Eye Bolt, 1/4-20

22 720-0279 Handle Knob

23 738-04419A Shoulder Screw, 1/4-20 x .375 x .148

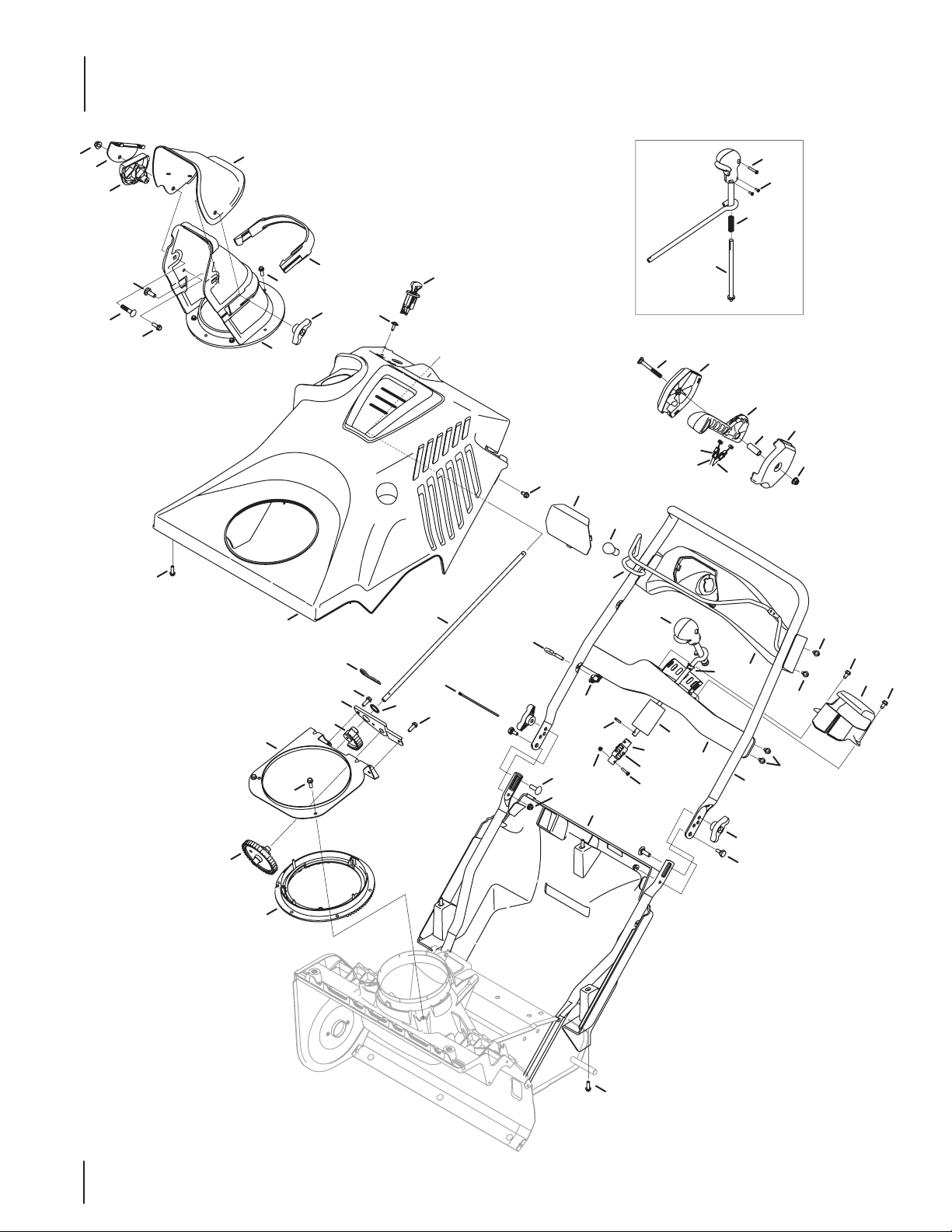

Shroud, Chute & Handle (Model 221 LHP)

Ref. Part Number Description

1710-05163 Carriage Bolt, 5/16-18 x 2.5

2712-04063 Flange Lock Nut, 5/16-18

3731-07651 Chute Control Panel

4731-07654A Cable Handle Guide

5731-07656 Chute Control Panel, Inner

6731-07868 Cable Clip

7946-04722 Cable

8750-05414 Spacer, .325 ID x .496 OD x 1.34

9631-04526P Chute Control Assembly

10 710-04352 Screw, #6 x .375

11 710-04353 Screw, #8 x 1.00

12 731-08018 Chute Rod

13 732-04789 Spring, .460 OD x 1.469

14 684-04350 Joint Block Assembly

15 715- 0150 Roll Pin, 3/16 Dia. x 1.1 LG.

16 684-04383 Indicator Bracket Assembly

17 925-04031A Ignition Switch Assembly

18 710-0262 Carriage Bolt, 5/16-18 x 1.00

19 710-0451 Carriage Bolt, 5/16-18 x .75

20 710-05108 Hex Washer Screw, 1/4 x .750

21 710-05179A Screw, #8-32 x .875

22 710-0599 Hex Washer Screw, 1/4-20 x .500

23 710-0895 Screw, Hi-Lo:1/4-15, 0.75

24 712-04063 Flange Lock Nut, 5/16-18

25 712-04064 Flange Lock Nut, 1/4-20

26 712-04035 Hex Lock Nut, #8-32

27 714-04003 Cotter Pin

28 715- 04095 Pin, .156 x .875

29 717-04941 Bevel Gear, 40T/11T

Ref. Part Number Description

30 717-04940 Spur Gear, 35T

31 917-04844B Bevel Gear, 95T

32 720 -04122 Wing Knob, 5/16-18

33 731-04427A Upper Chute

34 731-06451 Cable Guide

35 731-07708 Chute Plug

36 931-07753A Lower Chute

37 731-07957 Chute Cover

38 720- 04174 Grip, 1.18 x 3.33

39 710-04669 Hex Washer Screw, 10-16 x .625

40 731-07721A Top Cover

41 731-07725A Bottom Cover

42 736-04161 Flat Washer, .75 x 1.00 x .06

43 941-0475 Plastic Bushing, .380 ID

44 747-05299A Chute Rod

45 784-5594 Cable Bracket

46 790-00471 Gear Retainer Bracket

47 790 - 00416 Gear Mounting Plate

48 931-04504 Handle Panel Assembly

49 731-07784 Handle Panel Lens

50 710-04998 Carriage Screw, 5/16-18 x 1.00

51 710-05348 Eye Bolt, 1/4-20

52 720-0279 Handle Knob, 1/4-20

53 725-0157 Cable Tie

54 725-1629 Lamp

55 738-04419A Shoulder Screw, .375 x .148 x 1/4-20

56 747-05327B Auger Bail

57 749-04693B Upper Handle

—925-04139* Harness Assembly

* Not Shown

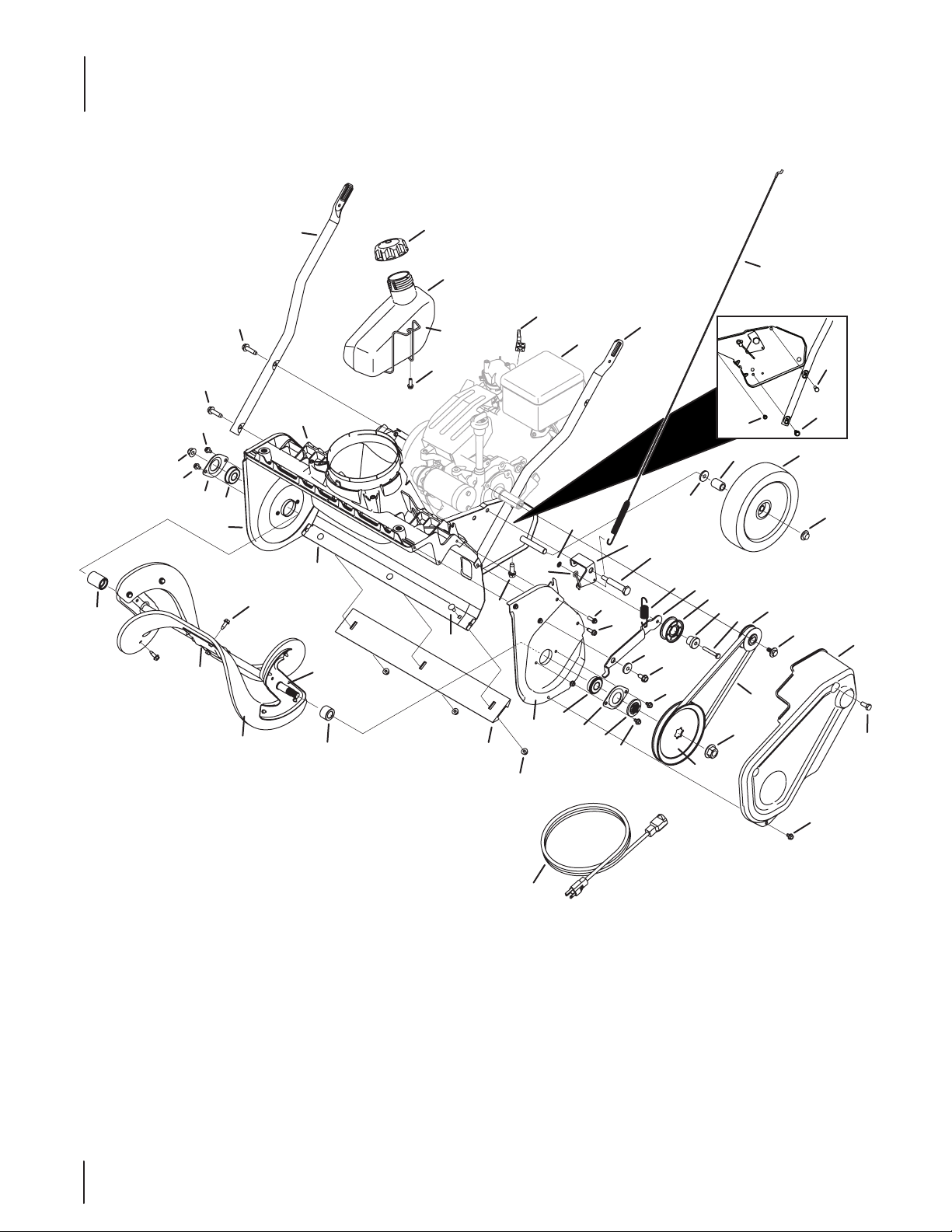

Drive System & Auger Assembly

10 19

35 25

531

10 12

40 39

34 25

35 18 10

46 9

Drive System & Auger Assembly

Ref. Part Number Description

1684-04168 Idler Pulley Assembly

2684-04398 Frame

3984-04393 Auger Assembly Mount

4929-0071A 3-Prong Extension Cord

5753-06469 Auger Replacement Kit (Inc. 2 Pad-

dles and 12 Hex Washer Screws)

6790-00427 Center Auger Bracket

7710- 0134 Carriage Screw, 1/4-20 x .62

8710-0778 Hex Screw, 1/4-20 x 1.50

9710-0627 Hex Lock Screw, 5/16-24 x .750

10 710-0642 Hex Washer Screw, 1/4-20 x .750

11 710-0599 Hex Washer Screw, 1/4-20 x .500

12 710-0817 Hex Washer Screw, 5/16-18 x 1.250

13 710-0895 Hex Washer Screw, 1/4-15 x .750

14 710-04484 Hex Washer Screw, 5/16-18 x .75

15 712-04065 Flange Lock Nut, 3/8-16

16 936-0192 Flat Washer, .535 x .930 x .090

17 712-04064 Flange Lock Nut, 1/4-20

18 718-04836 Pulley Hub

19 931-07626A Chute Adapter

20 731-08171 Shave Plate

21 731-07737A Belt Cover

22 732-04748 Extension Spring, .70 x 3.035

23 710-05183 Hex Screw, 5/16-24 x 1.25

24 738-04456 Shoulder Bolt, 5/16-24 x .496 x 2.18

25 741- 04517 Ball Bearing, .500 x 40mm x 12mm

26 946-04701 Clutch Cable

27 747-05360A Drive Cable Wire Support

Ref. Part Number Description

28 748- 0234 Shoulder Spacer

29 749-04810 Lower Handle

30 750-04571 Shoulder Spacer, .260 x .785 x .538

31 750-04758 LH Auger Spacer

32 750-05393 RH Auger Spacer

33 790-00444 RH Auger Plate

34 790-00445 LH Auger Plate

35 790-00457 Bearing Cup

36 790-00461 Idler Bracket

37 790-00426 Cable Idler Bracket

38 726-0299 Push Cap, 1/2

39 634-04347 Wheel, 8”

40 750 -05417 Sleeve Spacer, .525 x .78 x 1.00

41 747-05513 Gas Tank Wire Support

42 751-10487A Fuel Cap

43 751-116 4 8 Fuel Tank

44 731-07664 Choke Extension Lever

45 710-0654A Hex Washer Screw, 3/8-16 x 1.000

46 912-0702 Flange Nut, 7/16-20

47 710-05339 Hex Cap Screw, 5/16-24 x .75

48 954-04050 Belt, .500 x 35.06

49 956-0416B Pulley Half, .625 x 2.25

50 756-04443 Pulley, 1/2 x 6.00

51 726-0233 Push Nut

52 710-05058 Hex Washer Screw, 1/4-20 x .750

53 952Z265-JU† Replacement Engine

952Z370-JU†† Replacement Engine

† Model 221 HP

†† Model 221 LHP

Labels (Model 221 HP)

777X45317

777S32236

777S34027

777S33118 777I22139

777D14849777S33731

777D14848

777I23463

3.)

1.) INSERT IGNITION KEY AND SNAP

IN PLACE.

2.)

MOVE CHOKE CONTROL TO THE

“CHOKE” POSITION. PUSH PRIMER

BUTTON 3x.

ROPE START: PULL SLOWLY UNTIL

HARDER TO PULL,

THEN PULL RAPIDLY

TO START. REPEAT PRIMING IF NEEDED.

ELECTRIC START: DO NOT USE IN RAIN.

CONNECT POWER CORD AND PUSH

STARTER BUTTON. REPEAT PRIMING

IF NEEDED.

4.)

MOVE CHOKE CONTROL SLOWLY TO THE

“RUN” POSITION.

5.)

TO STOP ENGINE: PULL KEY OUT.

If engine does not start, consult

operators manual.

Do not run starter more than 10 times

at intervals of 5 Seconds On /

5 seconds Off.

Do not use electric start in the rain

STARTING

INSTRUCTIONS:

KEEP AWAY FROM ROTATING

AUGER

CONTACT WITH AUGER

CAN AMPUTATE HANDS AND FEET.

DISENGAGE CLUTCH LEVERS, STOP

ENGINE,

AND REMAIN BEHIND

HANDLES UNTIL ALL MOVING PARTS

HAVE STOPPED BEFORE UNCLOGGING

OR SERVICING MACHINE.

TO AVOID THROWN OBJECTS INJURIES,

NEVER DIRECT DISCHARGE

BYSTANDERS USE EXTRA CAUTION

WHEN OPERATING ON GRAVEL

SURFACES.

READ OPERATOR’S MANUAL.

PRIMER

STOP

KEY

PULL OUT K EY

TO STOP
