Cub Cadet Challenger 750 Crew Manuel utilisateur

Form No. 769-11324

(December 7, 2015)

OperatOr’sManual

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPER

ATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

Challenger 750 Crew

Owner's Manual

INTRODUCTION

Congratulations on your purchase of the Challenger 750 Crew. This Owner’s / Operator’s manual will

provide you information regarding safe operation, operational instructions, maintenance and care. Fully

understanding this manual and following all of the instructions herein will provide the knowledge needed to

have safe and enjoyable UTV operation.

If you have any questions regarding the operation or maintenance of your UTV, please

consult your dealer.

IMPORTANT SAFETY MESSAGES:

●READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING YOUR UTV. MAKE SURE

YOU UNDERSTAND ALL INSTRUCTIONS.

●PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE UTV.

●NEVER OPERATE AN UTV WITHOUT PROPER TRAINING OR INSTRUCTION.

●THIS UTV, AND ANY OTHER UTV OVER 90cc, SHOULD NOT BE RIDDEN BY ANYONE UNDER 16 YEARS

OF AGE.

Owner's Manual

IMPORTANT MANUAL INFORMATION

FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS INJURY

OR DEATH. Particularly important information is distinguished in this manual by the following

notations:

The Safety Alert Symbol means ATTENTION!

YOUR SAFETY IS INVOLVED!

Failure to follow WARNING instructions could result in severe injury or death to

the machine operator, bystander or a person inspecting or repairing the

machine.

A CAUTION indicates special precautions that must be taken to avoid damage

to the machine.

A NOTE provides key information to make procedures easier or clearer.

NOTE:

Owner's Manual

IMPORTANT NOTICE

Turning speed must be less than 18MPH (30 km/h)

This UTV is designed and manufactured for OFF - ROAD use only. It is illegal and unsafe to operate this

UTV on any public street, road or highway.

This UTV complies with all applicable OFF - ROAD noise level and spark arrester laws and regulations in

effect at the time of manufacture.

Please check your local riding laws and regulations before operating this UTV.

When the temperature is below -4°F (-20°C), park the UTV in a place where the temperature is higher

than -4°F (-20°C). Start the UTV after the UTV has warmed up. Please see page 6-3 on the warming up

process.

Follow the proper parking procedures whenthe temperature is higher than 100°F (38°C): turn off the

engine; make sure the radiator fan is on for 3 minutes before turning off the power switch.

Starting the UTV for the first time will take longer because the fuel will need reach the fuel

injectors. To start the UTV the first time, hold the ignition key on at 5-second intervals. Allow the

starter to rest 15 seconds between each start attempt.

Owner's Manual

Location of the Warning and

Specification Labels 1-1

Safety Information 2-1

Description and Vehicle

Identification 3-1

Identification Number Records 3-3

Vehicle Identification Number 3-3

Control Functions 4-1

Main Switch 4-1

Indicator and Warning Lights 4-2

Use of EPS system 4-4

Speedometer Unit 4-5

Odometer and Trip Meter Modes 4-6

Fault code indicator 4-8

Fuel level indicator 4-9

Switches 4-9

Accelerator Pedal 4-13

Brake Pedal 4-15

Parking Brake Lever 4-15

Drive Select Lever 4-16

Fuel Tank Cap 4-17

Front Seats 4-17

Rear Seats 4-19

Seat Belt For Front Seats 4-19

Seat Belt For Rear Seats 4-20

Glove Compartment 4-22

Cargo Bed 4-23

Opening and Closing the Tailgate 4-23

Lifting and Lowering the Cargo

Bed 4-24

Front and Rear Shock Adjustment 4-26

Trailer Hitch Bracket 4-28

Auxiliary DC Jack 4-28

Owner's Manual

Pre Operation Checks 5-1

Brakes 5-2

Brake Pedal 5-2

Brake Fluid Level 5-2

Brake Fluid Leakage 5-3

Brake Operation 5-3

Fuel 5-4

Gasohol 5-4

Engine Oil 5-5

Coolant 5-6

Final Gear Oil 5-7

Differential Gear Oil 5-7

Throttle Pedal 5-8

Throttle Freeplay 5-8

Throttle Freeplay Inspection 5-9

Throttle Freeplay Adjustment 5-9

Steering Wheel Inspection 5-10

Seat Belts 5-10

Fittings and Fasteners 5-10

Lights 5-10

Switches 5-10

Tires 5-11

How to Measure Tire Pressure 5-12

Tire Wear Limit 5-13

Operation 6-1

Starting the Engine in Low

Temperatures 6-1

Starting the Engine 6-2

Warming Up 6-4

Drive Select Lever Operation and

Driving In Reverse 6-4

Parking 6-7

Parking on a Slope 6-8

Vehicle Break-in Period 6-9

Engine Break-In

CVT Break-in

6-9

6-11

Accessories 6-11

Loading 6-12

Owner's Manual

Driving Your Vehicle 7-1

Getting to Know Your Vehicle 7-1

Learning to Operate Your Vehicle 7-5

Turning your Vehicle

Operating Improperly in Reverse

7-6

7-7

Braking 7-7

Going Uphill 7-8

Going Downhill 7-10

Crossing Through Shallow Water 7-11

Vehicle Immersion 7-12

Riding Over Rough Terrain 7-15

Riding in Brush or Wooded Areas 7-15

Encountering Obstacles on the

Trail 7-16

Periodic Maintenance and

Adjustment 8-1

Periodic Maintenance Chart for the

Emission Control System 8-3

General Maintenance and

Lubrication Chart 8-4

Hood 8-7

Console 8-8

EFI system 8-9

To Change the Engine Oil 8-14

Final Gear Oil 8-17

Changing the Final Gear Oil 8-18

Differential Gear Oil 8-19

Changing The Differential Gear Oil 8-20

Coolant 8-22

Axle Boots 8-23

Spark Plug Inspection 8-24

Inspection 8-25

Installation 8-25

Cleaning the Air Filter Elements 8-26

V-belt Cooling Duct Check Hose 8-30

V-belt Case Drain Plug 8-31

Cleaning the Spark Arrester 8-32

Valve Clearance 8-33

Front Brake Pad Check 8-33

Owner's Manual

Rear Brake Pad Check 8-34

Checking the Brake Fluid Level 8-35

Brake Fluid Replacement 8-36

Checking the Brake Pedal 8-36

Parking Brake Lever Free Play

Adjustment 8-37

Brake Pedal and Accelerator Pedal

Lubrication 8-39

Rear Knuckle Upper and Lower

Pivot Lubrication 8-40

Steering Shaft Lubrication 8-40

Wheel Removal 8-41

Wheel Installation 8-42

Battery 8-43

Battery Maintenance 8-45

Fuse Replacement 8-46

Replacing Headlight Bulb 8-48

Headlight Beam Adjustment 8-51

Tail/brake Light Bulb Replacement 8-51

Troubleshooting 8-53

Solution to Common Problems in

the Vehicle 8-54

Cleaning and Storage 9-1

Cleaning 9-1

Storage 9-3

Specifications 10-1

Fault code of Electronic

Injection System 11-1

USA EPA Emissions Limited

Warranty 12-1

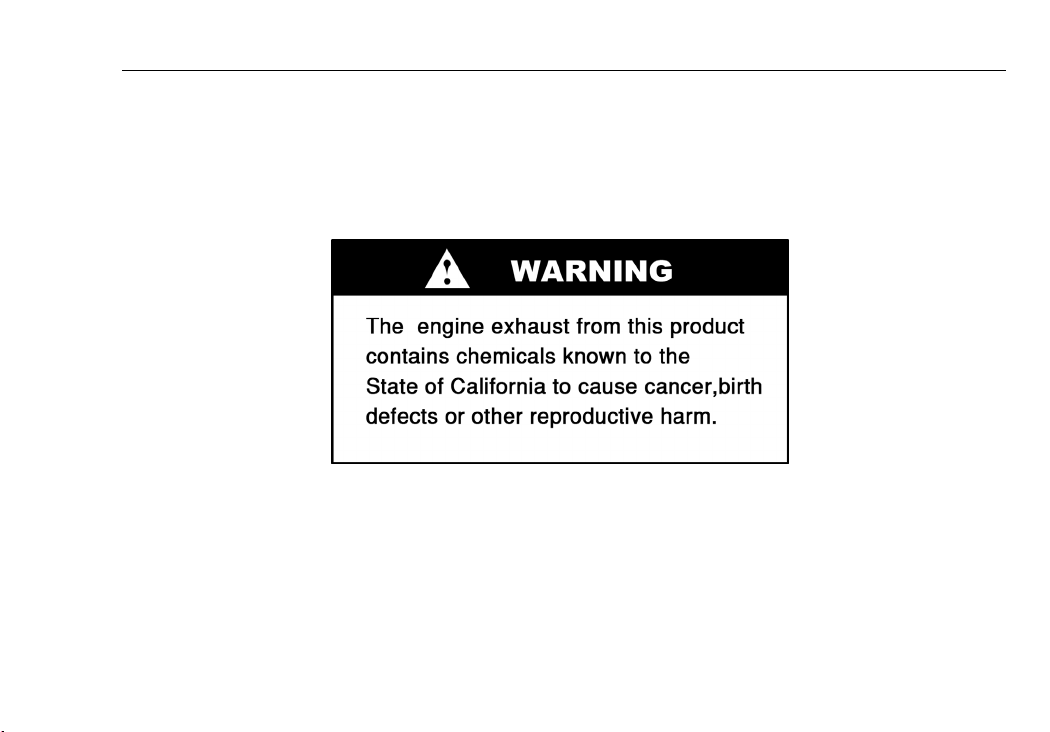

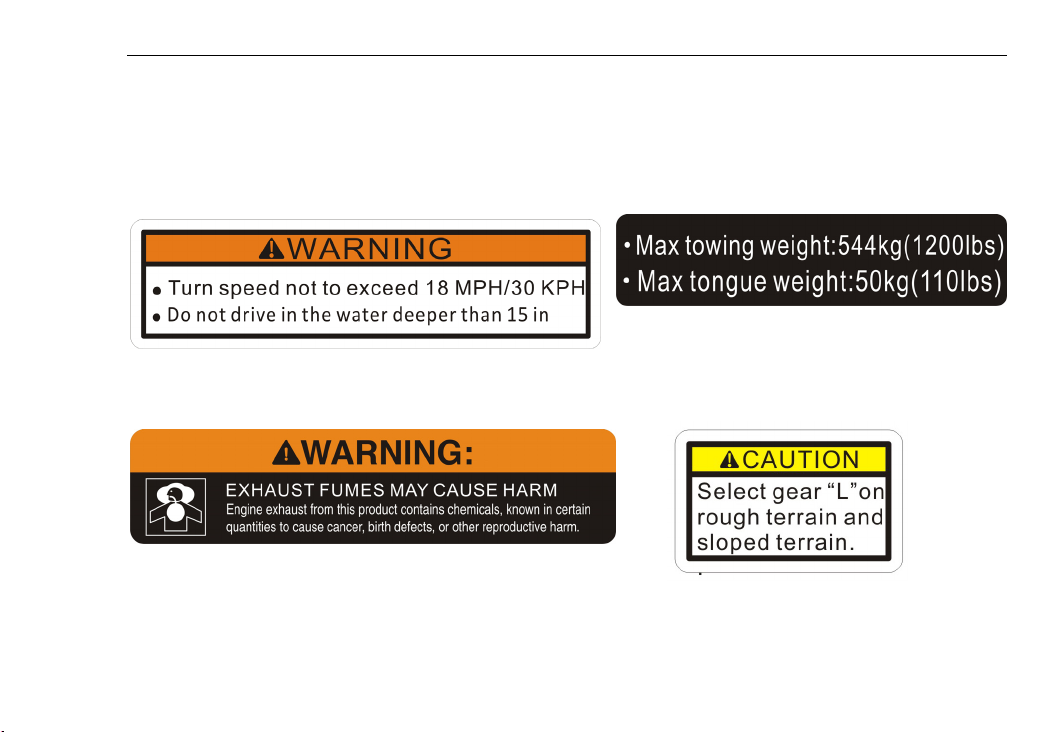

Location of the Warning and Safety Labels 1-1

Read and understand all of the labels on your vehicle. They contain important information for

safe and proper operation of your vehicle.

Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a

replacement label is available from your dealer.

1 3

2 4
