Parts Manual

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

FORM NO.

769-01652.fm

(1/17/2005)

PRINTED IN U.S.A.

Hydrostatic Lawn Tractor

SERIES 1500

Model SLT1554

DESCRIPTION PAGE

Axle, Front ....................................................... 6

Battery ............................................................. 16

Brake Pedal ..................................................... 12

Deck, 54-inch.................................................... 20

Dash Panel ...................................................... 16

Drive System ................................................... 4

Engine .............................................................. *

Engine Accessories ......................................... 15

Fender ............................................................. 10

Frame .............................................................. 8

Fuel Tank ......................................................... 10

Head Lamp ...................................................... 18

Hood ................................................................ 18

Lift Linkage ...................................................... 11

Muffler .............................................................. 15

PTO ................................................................. 19

Seat ................................................................. 14

Steering ........................................................... 6

Transmission, Hydrostatic ............................... 22

Wheels, Front & Rear ...................................... 3

DESCRIPTION PAGE

SERIES 1500 HYDROSTATIC LAWN TRACTORS

TABLE OF CONTENTS

NOTE, For painted parts, please refer

to the list of color codes below. Please

add the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part,

numbered 700-xxxx, is painted Cub

Yellow, the part number to order would

be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Powder Black: 0637

* Engine parts breakdowns unavailable at time of printing.

WHEELS

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 734-04174 Tire, Turf, Cub Cadet 22 x 9.5 x 12 2

2 634-3178 Rim Assembly, 12 x 7 (4-Lug) 2

3 712-3050 Lug Nut, 7/16-14 8

4 741-3032 Bearing, Ball,.75 ID x 1.75 OD 4

5 634-04104A Rim Assembly, 6 x 4.5 2

(Included, Bearings, Spacer and Valve)

6 731-3020 Hub Cap 2

7 734-04140 Tire, Turf, Cub Cadet 15 x 6 x 6 2

8 634-04094A Wheel Assembly, Cub Cadet 15 x 6 x 6 2

(Includes Rim Ass’y, Tire and Fitting)

9 634-04210 Wheel Assembly, Cub Cadet 22 x 9.5 x 12 2

(Includes Rim Ass’y, Tire and Valve)

— 737-0224 Grease Fitting 2

— 734-0255 Valve, Tubeless Air 4

DRIVE SYSTEM

Attach Spring Here

B54

DRIVE SYSTEM

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 17840 Bracket, Mounting, Transaxle 2

2 618-04228 Hub Assembly, Wheel 2

3 618-04270 Transmission, Hydrostatic 1

4 629-04124 Harness Assembly, Ground & Reverse 1

5 783-04442 Bracket Assembly, Idler, Center Dbl 1

6 710-1266 Hex Cap Screw, 5/16-18,3.5, Gr5 4

7 710-0227 Screw, #8-18, 0.500 2

8 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 1

9 710-0726 Screw, 5/16-12, 0.75 4

10 710-0599 Screw, 1/4-20, 0.5 1

11 710-3007 Screw, #12-24, 0.375 3

12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1

13 710-0809 Hex Cap Screw, 5/16-18, 1.25, Gr5 1

14 710-0627 Hex Cap Screw, 5/16-24 x.750 2

15 711-0832 Ferrule, 3/8-24 x.375 Dia 1

16 712-0291 Nut, Hex Lock, 1/4-20 1

17 712-0239 Nut, Hex Lock, 1/2-20, Gr2 1

18 712-04065 Nut, Nylon Lock, 3/8-16 1

19 731-05130 Sleeve, 2.4” 2

20 712-04063 Nut, Flange Lock, 5/16-18, Gr5 4

21 750-0566A Spacer, 1” 1

22 712-3017 Nut, Hex, 3/8-16, Gr8 2

23 714-0104 Pin, Cotter,.072 Dia. x 1.13 Lg 1

24 714-0111 Pin, Cotter, 3/32, 1.0 2

25 725-0157 Cable, Tie, 3/16 x.05 x 7.4 2

26 725-1644 Switch, Spring, Short 1

27 726-0154 Tie, Cable, Push Mount 7.5 Lg 1

28 726-0320 Plate, Insulator Nut 1

29 731-1449A Fan, Blade, 10” 1

30 732-0209 Spring,.48 OD x 2.03 Extension 1

31 732-0429A Spring, Extension,.50 Dia x 3.97 Lg 1

32 732-0716 Spring, Extension,.59 OD x 4.00 Lg 1

33 732-0729 Ring, Wire 1

34 732-0994 Spring, Extension,.500 Dia x 7.0 1

35 732-3118 Spring, Extension, 3/8 OD x 1.44 1

36 710-0502A Screw, 3/8-16, 1.25 1

37 736-0169 Washer, Lock, 3/8, Regular Duty 1

38 736-0866 Washer, Flat,.755 x 1.92 x.060 2

39 736-0242 Belle Washer 2

40 736-3010 Washer, Flat,.407 x.812 x.135 1

41 738-0372B Spacer, Shoulder, 1.00 x.38 x.38 1

42 747-1149 Rod, Hydro Bypass 1

43 747-04139 Rod, Brake, Hydro 1

44 747-1151 Rod, Control, Hydro 1

45 756-0978A Pulley, Engine, 3.56 Dia. 1

46 754-0461 Belt, V Type, Poly 1

47 756-0116A Pulley, Idler, V Type x 3.06 Dia 2

48 756-0981B Pulley, Idler, Flat 2.75 OD 1

49 756-04111 Pulley, Engine, 4.11Dia. 1

50 783-0810B Bracket, Transmission, Torque Hydro 1

51 783-1019 Bracket, Actuator, Switch 1

52 736-0320 Washer, Flat,.38 x 1.92 x.060 1

53 750-0535 Spacer,.380 ID x.625 OD x.21 1

54 710-1007 Screw, 3/8-16 x 1.500 1

55 748-0334 Transaxle Spacer 2

STEERING

21 26

STEERING

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 1

2 711-1408 Link, Drag, RH 1

3 711-1409A Link, Drag, LH 1

4 710-1260 Self-tapping Screw, 5/16-18 x.75 1

5 712-0240 Nut, Jam, 7/16-20, Gr2 2

6 712-0214 Nut, Hex, 3/8-24, Gr5 2

7 712-04065 Nut, Nylon Lock, 3/8-16 4

8 712-0459 Nut, Flange Lock, 7/16-20 1

9 712-3004A Nut, Flange Lock, 5/16-18 2

10 717-1550E Gear, Steering, 11/90 Ratio 1

11 717-1554 Gear, Pinion, Steering 1

12 723-0448A Ball Joint, 7/16-20 2

13 710-04095 Hex Cap Screw, 3/8-16, 1.00 1

14 736-3004 Washer, Flat,.406 x.875 x.105 1

15 736-3084 Washer, Flat,.510 x 1.120 x.060 1

16 737-3007 Grease, Alvania Ep 2 1

17 738-04154 Spacer, Shoulder, 1.00 x.38 x.38 2

18 738-04075 Shaft, Steering,.625 OD x 25.00 Lg 1

19 741-0475 Bushing, Plastic,.380 ID 2

20 741-0656A Bearing, Hex Flange, 5/8 1

21 683-04101 Axle Assembly, LH.750 Dia 1

22 683-04102 Axle Assembly, RH.750 Dia 1

23 712-0417A Nut, Hex, Flange, 5/8-18 2

24 714-04039 Pin, Cot, 5/32, 1.25 2

25 719-04105 Axle, Pivot, Cast.750 Dia 1

26 736-0866 Washer, Flat,.755 x 1.92 x.060 2

27 738-1011A Screw, Shoulder,.500 x 2.230, 3/8-16 2

28 731-04514 Wheel, Steering, Three Spoke 1

29 731-3210 Cover, Steering Wheel 1

FRAME

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 17962 Plate, Switch 1

2 683-04173 Frame Assembly, Lower 1

3 726-0205 Clamp, Hose,.490 Dia. 2

4 710-0224 Screw, Hex Wash. Hd. Tapp, 10-16 x.5 2

5 710-0726 Screw, Self-tapping, 5/16-18, 0.75 13

6 751-0535 Fuel Line 1

7 710-1652 Screw, Hex Wash. Hd. Tapp, 1/4-20 x 0.625 1

8 725-04039 Switch, Interlock 1

9 712-04065 Nut, Nylon Lock, 3/8-16 4

10 710-0607 Screw, Hex Wash. Tapp, 5/16-18 x.5 1

11 783-04329A Bracket, Frame, Seat 1

12 741-04092 Snap Bushing 1

13 732-04035 Spring, Compression, 1.28 OD x 3.125 Lg 2

14 736-0222 Washer, Lock, Ext 1/4 1

16 738-04058 Shoulder Spacer 2

17 738-0143 Shoulder Screw, 3/8-16 2

18 710-3005 Hex Screw 3/8-16 x 1.25 2

19 783-0726D Bracket, Pivot, Support RH 1

20 783-0727C Bracket, Pivot, Support LH 1

21 783-0728 Bracket, Pivot, Bar 1

22 783-04330A Frame, Upper 1

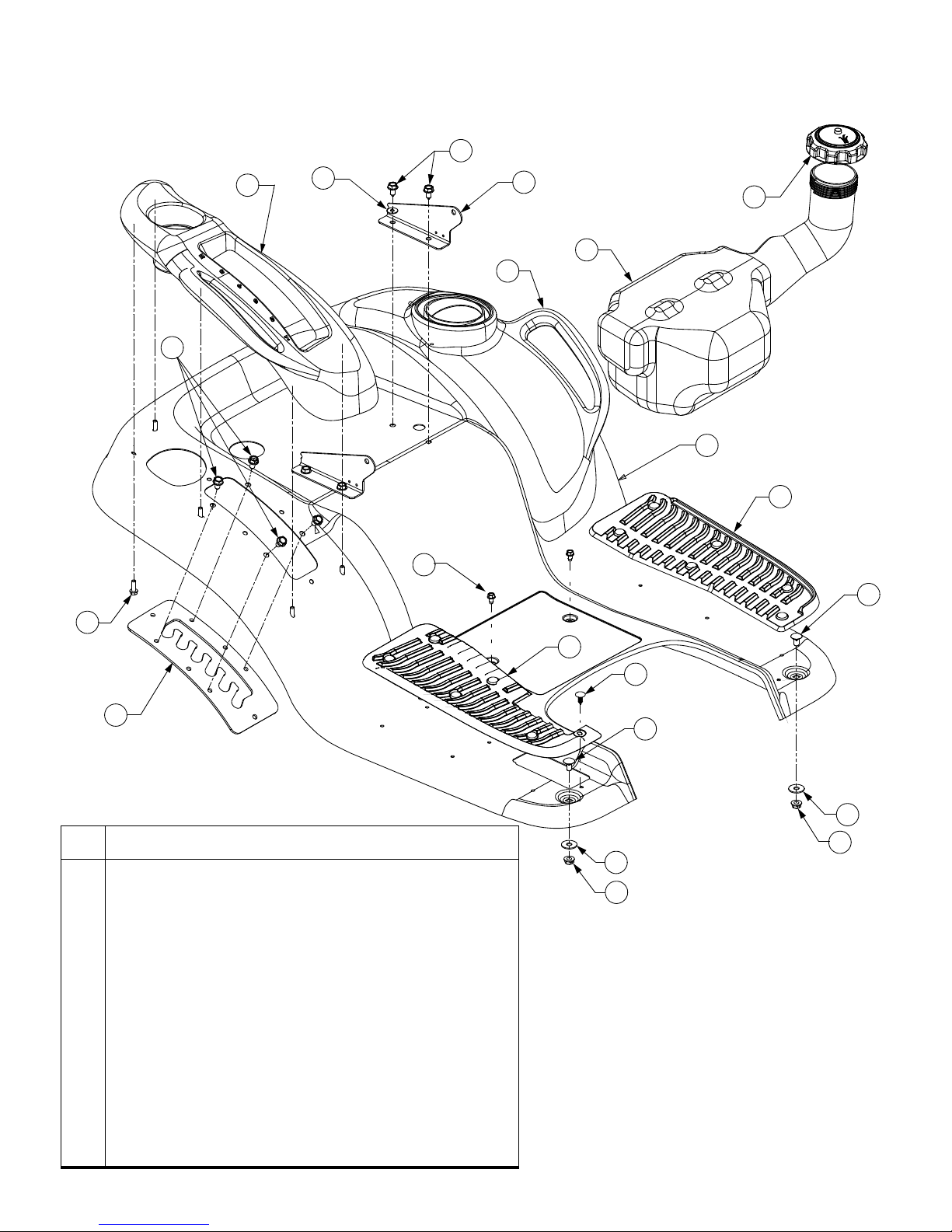

FENDER & FUEL TANK

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0451 Bolt, Carriage, 5/16-18 x.750 Lg 2

2 710-0726 Screw, 5/16-12, 0.75 8

3 710-0895 Screw, 1/4-15, 0.750 6

4 712-04063 Nut, Nylon Lock, 5/16-18 2

5 731-2616A Cover, Fender, RH 1

6 731-2617 Cover, Fender, LH 1

7 736-3078 Washer, Flat,.349 x 1.00 x.063 2

8 783-0677 Bracket, Lift, Adjustment 1

9 783-1489A Bracket, Seat, Mount 2

10 783-04398A Fender 1

11 726-3046 Clip, Ratchet,.250 Dia 12

12 735-0697A Pad, Foot, LH 1

13 735-0698B Pad, Foot, RH 1

14 751-0819B Tank, Fuel 1

15 751-3124B Cap, Fuel 1

16 710-0599 Screw, Self-tapping, 1/4-20, 0.500 2

17 736-0607 Lock Washer, 5/16 1
